HBW

TECHNICAL DATA:

• Main Blade Diameter : 315 mm
• Main Blade Speed : 3400 rpm / 50 Hz
• Scoring Blade Diameter : 120 mm
• Scoring Blade Speed : 7600 rpm / 50 Hz
• Blade Tilt : 0–45°
• Max Depth of Cut @ 45° : 65 mm
• Max Depth of Cut @ 90° : 93 mm
• Max Rip Capacity : 975 mm
• Sliding Beam Size : 3000 × 360 mm
• Sliding Beam Cutting Capacity : 3000 mm
• Blade Rising : Manual
• Blade Tilting : Manual
• Table Size : 819 (374+650) mm
• Dust Extraction Outlet : 100 mm
• Main Motor Output : 4 kW S1
• Net / Gross Weight : 452 / 527 kgs
• Package Size : 2005 × 1140 × 870 mm, 3326 × 470 × 188 mm

TECHNICAL DATA

• Cutter Block Speed : 5500rpm

• Cutter Block Diameter : 70mm

• Max. Depth of Cut : 4mm

• Cutter Head : Extra cost for 2 Slot Spiral cutterhead

• Over Length of Planer Tables : 2000mm

• Extractor Port Dia. : 120mm

• Motor Power : 3*400V/50hz/4kw

• Net Gross Weight : 290/651kg

• with extension table and cross cutting fence

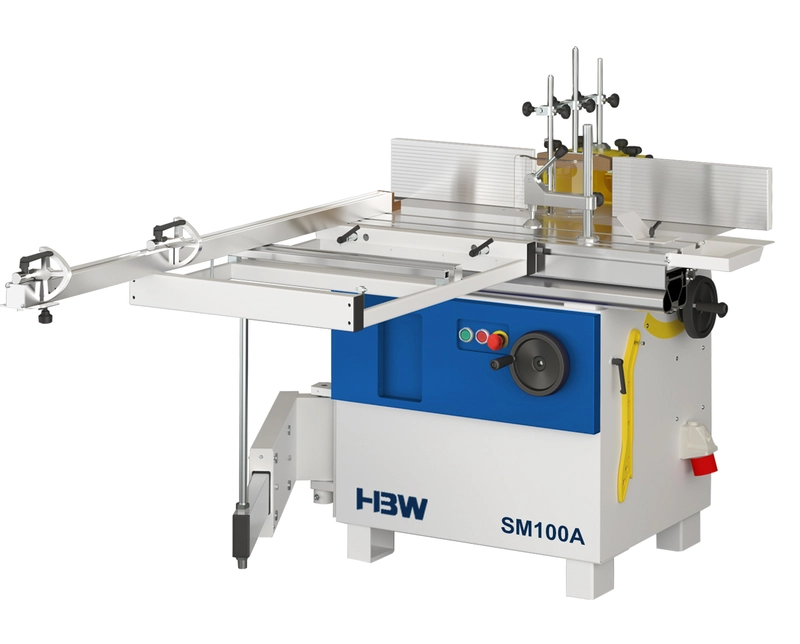

TECHNICAL DATA

• Spindle Diameter : 30mm

• Spindle Speed : 1400/3500/6000/8000rpm

• Max. Spindle stroke : 140mm

• Spindle length : 130mm

• Spindle tilt in deg. : -5 45

• Max. Table opening dia. : 220mm

• Max. Tool dia. Under the table : 200/250mm

• Height of table : 890mm

• Max. height of machine : 1300mm

• Table size : 1000 x 350mm

• Extractor port dia. : 100mm

• Net/gross weight : 235/280kg

• Power : 3*400V/50Hz

• with 6 slots spiral cutterhead

TECHNICAL DATA

• Feed Speed : 4 - 16m/min (variable speed)

• Cutter block Speed : 5500rpm

• Cutter block dia. : 115mm

• Max. Thickness Height : 5 - 300mm

• Max. Thickness Width : 630mm

• Min. length of workpiece : 280mm

• Max. depth of cut : 8mm

• Cutterhead : 6 Slot Spiral cutterhead

• Thickness table size : 1050 x 630mm

• Extractor port dia. : 150mm

• Lift motor output : 0.25kw

• Feeding motor output : 0.55kw

• Net/gross weight : 650/716kg

• Power : 3*400V/50Hz/7.5kW

• with Digital Readout

• with 4 Slot Spiral cutterhead

• with Extension table

TECHNICAL DATA

• Feed Speed : 6.5m/min

• Cutter block Speed : 4200rpm

• Cutter block dia. : 95mm

• Max. Thickness Height : 4 - 220mm

• Max. Thickness Width : 410mm

• Min. length of workpiece : 156mm

• Max. depth of cut : 5mm

• Cutterhead : 4 Slot Spiral cutterhead

• Thickness table size : 750 x 408mm

• Extractor port dia. : 120mm

• Net/gross weight : 306/367kg

• Power : 3*400V/50Hz/4kW

• Feed Speed : 7m/min

• Power : 2.2kW

• with Digital Readout

• with 2 Slot Spiral cutterhead

• with Extension table

TECHNICAL DATA

• Feed Speed : 7m/min

• Cutter block Speed : 5500rpm

• Cutter block dia. : 70mm

• Max. Thickness Height : 4 - 225mm

• Max. Thickness Width : 410mm

• Min. length of workpiece : 160mm

• Max. depth of cut : 4mm

• Cutterhead : 2 Slot Spiral cutterhead

• Over length of plane table : 1659mm

• Thickness table size : 650 x 407mm

• Extractor port dia. : 120mm

• Net/gross weight : 294/352kg

• Power : 3*400V/50Hz/4kW

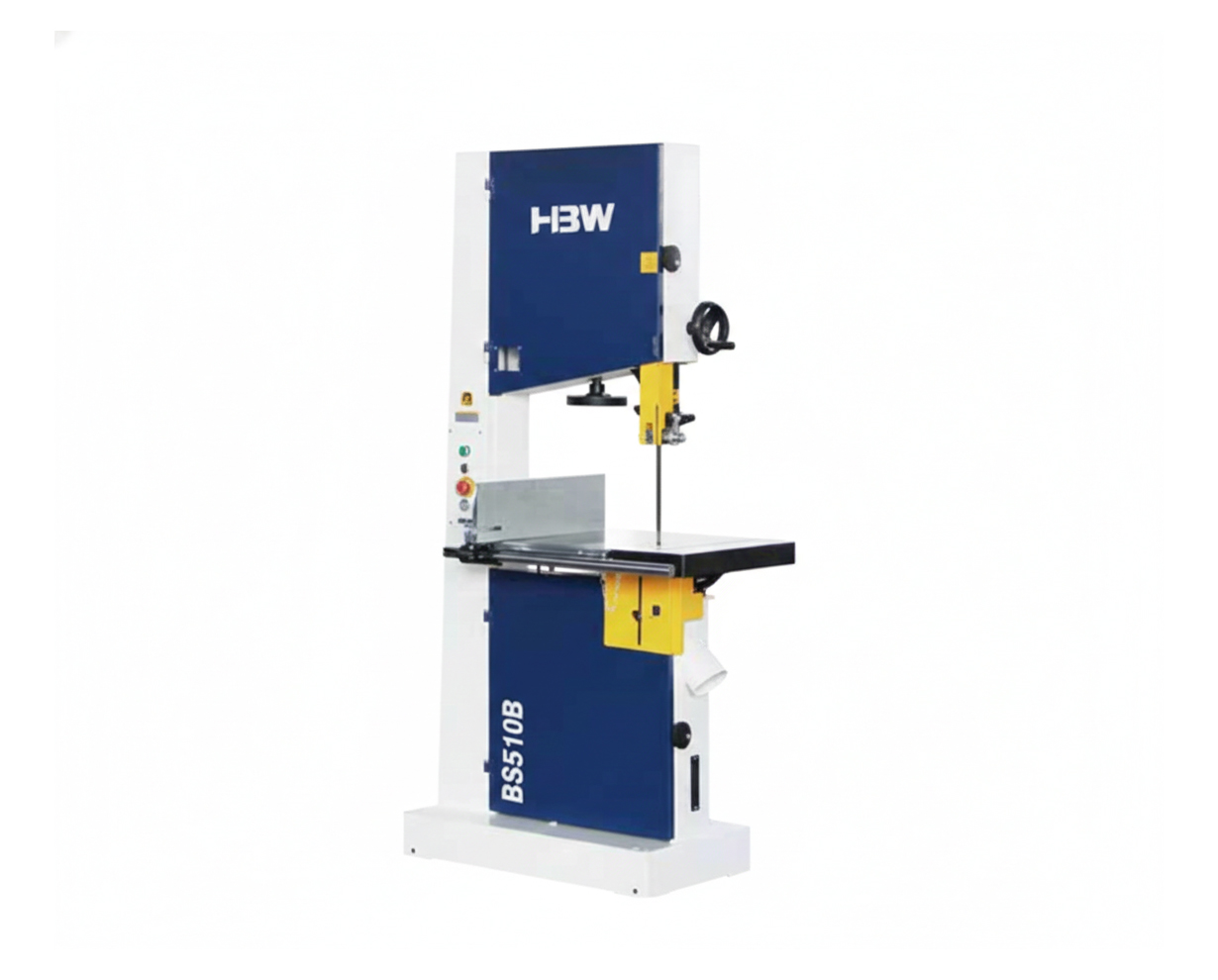

Features

• Reliable dual support tension system

• Quick blade tension release

• Side mounted dust port with zero clearance insert provides efficient vacuuming

• Gear drive table trunnion with quick locking mechanism

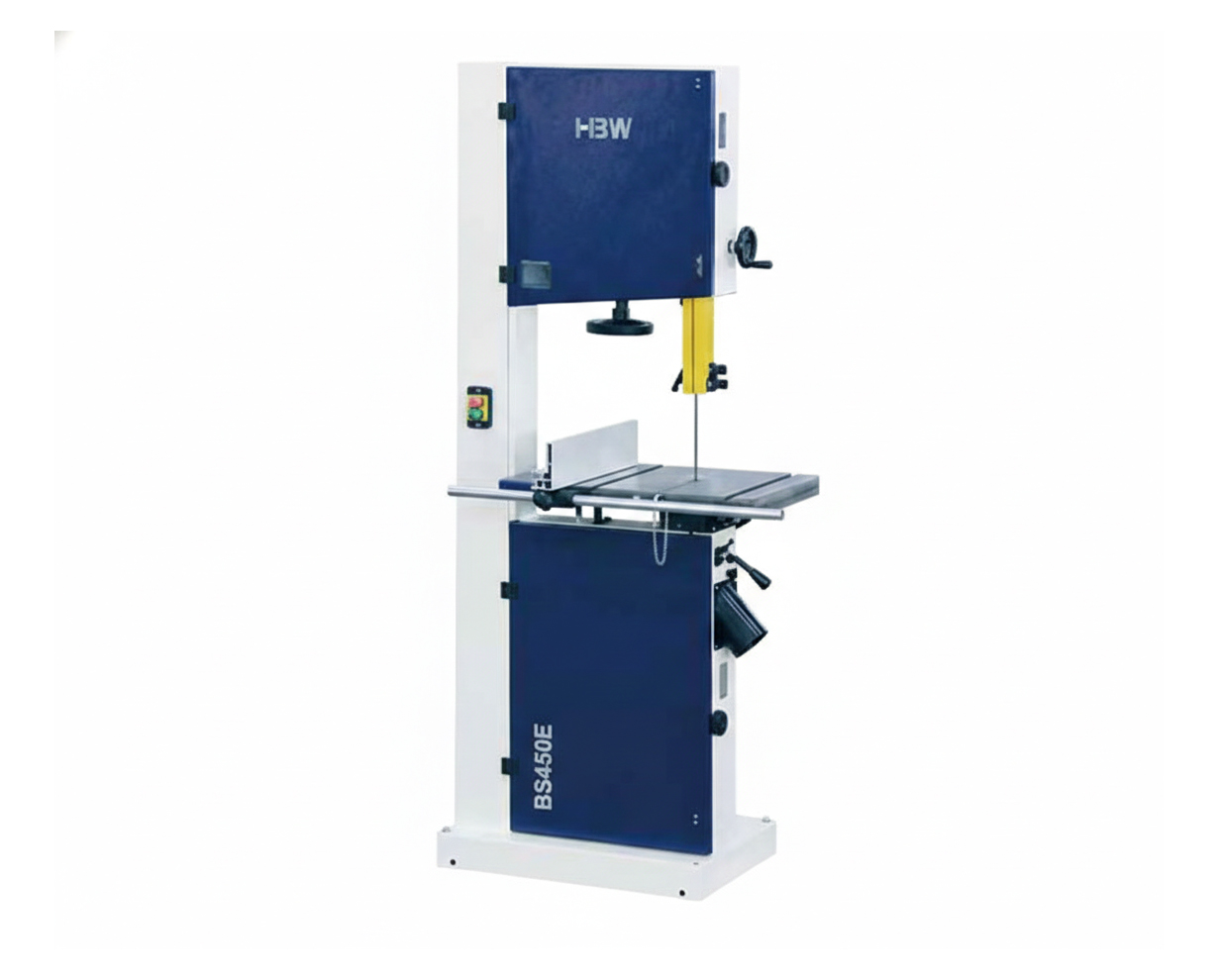

TECHNICAL DATA

• Blade Length : 3886 mm

• Blade Width : 6 - 33 mm

• Blade Speed : 400/900 m/min

• Throat Width : 447 mm

• Table Size : 546x400 mm

• Table Tilt : -5 -45 Deg.

• Band wheel Diameter : 450 mm

• Motor Power input : 2-1/2 HP

• Motor Output : 2 HP

• Extractor port dia. : 2x100 mm

• Net/Gross Weight : 161/180 kg

• Mitre Gauge : 300x100x60mm
