Lamello

Lamello Switzerland — Caple India

Swiss-engineered joinery for India's most demanding furniture makers

68 Lamello products supplied across India, the Subcontinent, Middle East & Africa. Biscuit joiners, P-System connectors and joinery accessories from the inventor of the wooden biscuit (1969). Free demos at our Demo Centres in Pelhar and Delhi.

68 Live SKUs	10 Families	1969 Founded	4.5+ Google Rating

Get pricing & book a free demo.
Call your regional executive or WhatsApp us — reply within one working day.

CALL WHATSAPP EMAIL

West & South: +91 70454 59931 · North: +91 99993 94047 · East: +91 95994 87490

✓ Authorised distributor · Direct from Lamello AG

★4.5+ Google rating · 120+ reviews

⛰ Free demos · Pelhar & Delhi Demo Centres

⚙ Pan-India service · 3 regional teams

Why Lamello, Why Caple

Three reasons it pays for itself

Feature	Advantage	Benefit
P-System groove	One Zeta P2 cut accepts Clamex, Tenso, Divario, Invis.	One machine, four connector systems.
Cabineo one-step	Drill, drive, done. No screws, dowels or glue.	Cabinet build time drops 30-50%.
Caple Service	Free demos at Demo Centres, factory setup, pan-India service.	Productive from week one. Sub-48 hrs in metros.

Where Lamello goes to work

Industries served by Caple

Modular Kitchens	Cabineo on side, base and back-panels — one-step furniture, faster build, screw-head-free interiors.
Retail Roll-out	Clamex P-14 cabinets ship flat, install in minutes on-site, dismantle for the next store.
Hospitality & Yacht	Invis Mx2 magnetic connectors for joints that disappear into the design and disassemble without trace.

Browse by family

Ten Lamello families on Caple

Scroll below to view the full product range.

Zeta P2	17 products	Swiss biscuit joiner. Cuts the P-System groove for all four Lamello connectors.
Cabineo	17 products	One-step connector for flat-pack furniture: drill, drive, done.
Clamex	8 products	Detachable P-System connector. Ship flat, install in minutes.
Tenso	6 products	Self-clamping P-System connector. Replaces clamps and glue.
Divario	4 products	Push-in connector for shelves and dividers. Tool-free, hidden.
Invis Mx2	6 products	Magnetic invisible connector. Install with a drill, remove without trace.
Classic X	1 products	Original biscuit joiner since 1969. Corded plate joiner.

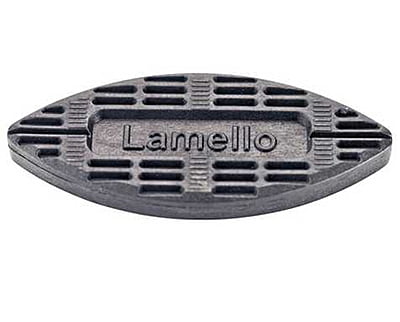

Bisco P-14	1 products	Wooden P-System biscuits for Zeta P2.

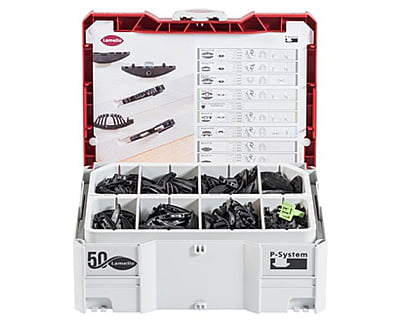

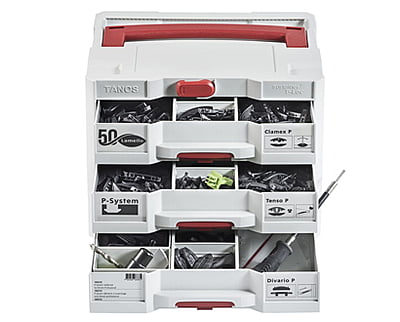

P-System	7 products	Brochures, samples and connector assortments to evaluate the P-System.
Domino	1 products	Lamello-compatible Domino router sample (M6 on HPL).

FAQ

Lamello in India

Where to buy? Caple is the authorised India distributor. 68 SKUs ship from Mumbai across India, Subcontinent, Middle East, Africa.

What is the P-System? Patented form-lock groove cut by Zeta P2 — accepts Clamex, Tenso, Divario, Invis Mx2 connectors.

Demos & training? Yes. Free at our Demo Centres in Pelhar and Delhi. Training and pan-India service support.

Connector difference? Cabineo = one-step screw-in. Clamex = detachable. Tenso = self-clamping. Divario = tool-free push-in.

Caple Industrial Solutions — Authorised India distributor of Lamello Switzerland. web@caple.in. Markets: India, Subcontinent, Middle East, Africa.

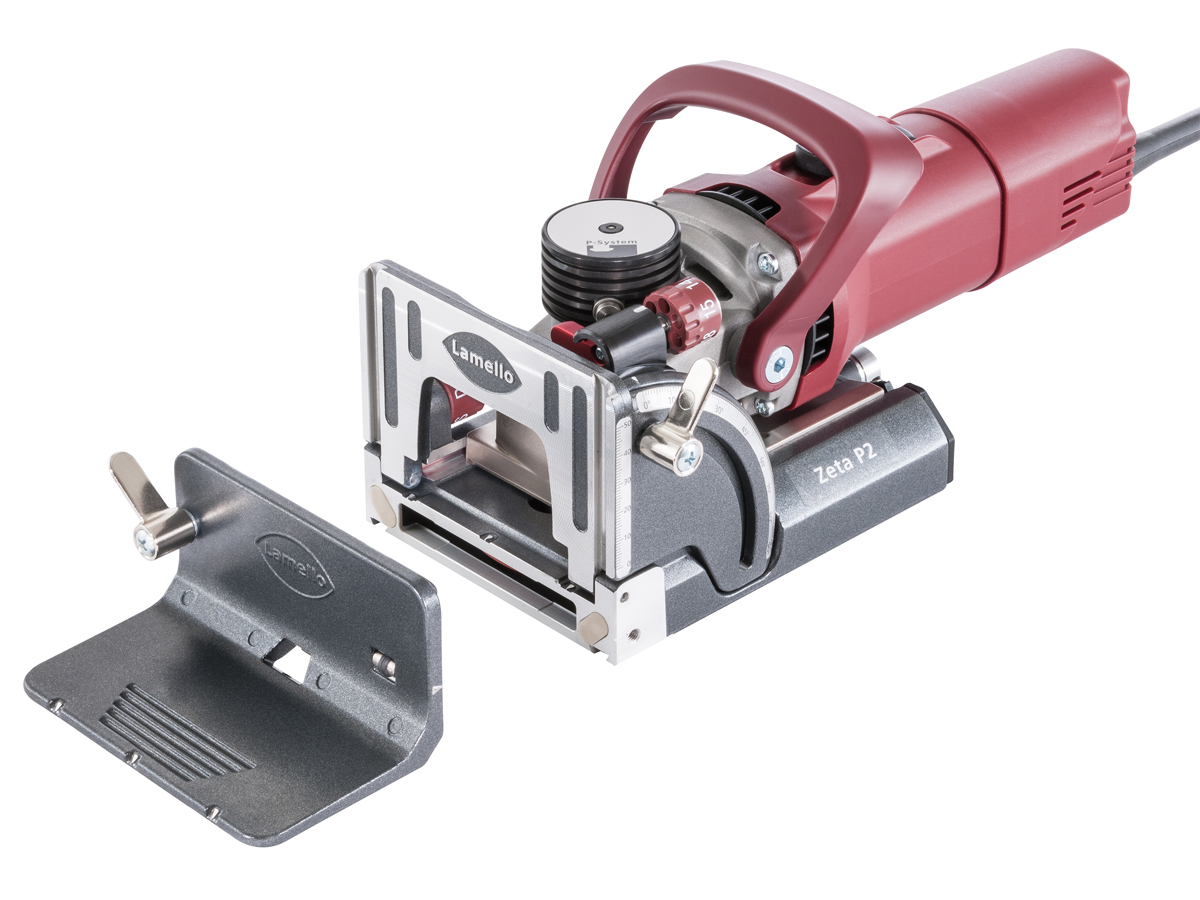

Lamello Zeta P2 biscuit joiner, DP, plug type F Schuko, in systainer3 M

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m

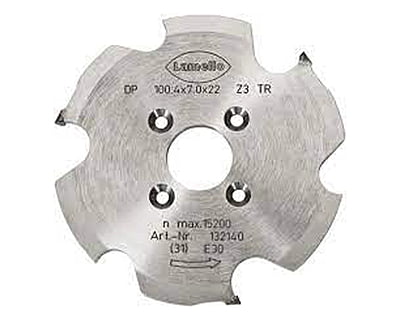

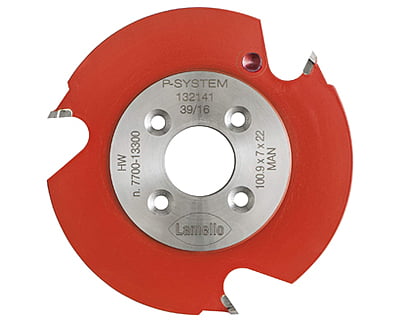

Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹200,000.00 ₹250,000.00

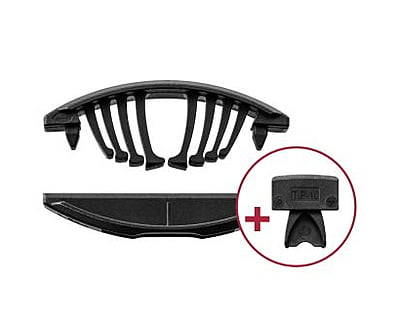

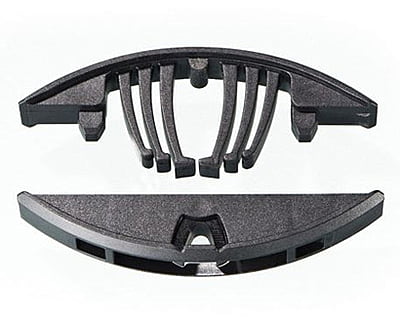

Lamello Tenso P-14, with preload clip [80Pair]

Technical Specifications — Lamello Tenso P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	11 mm
Minimum material thickness for centre wall machining	19 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Clamping force	approx. 35 lbs per connector (155 N)
Size (LxWxH)	66 x 27 x 9.7 mm
Strength	Depending on the adhesive
Material	Fiberglass reinforced plastic
Groove depth	14 mm
Cutter	Ø 100.4 × 7 × 22 mm

₹10,000.00 ₹12,500.00

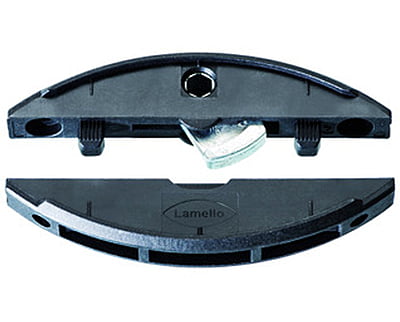

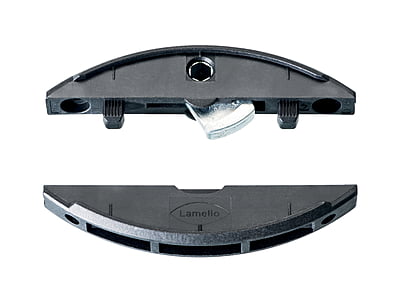

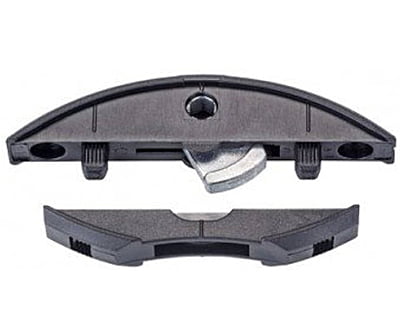

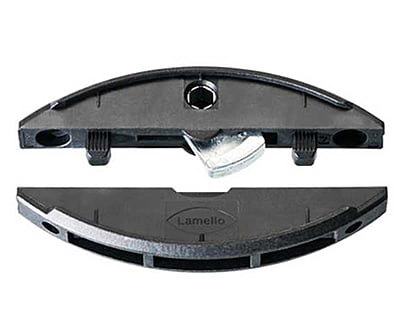

Lamello Clamex P-14 [80Pairs]

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹15,000.00 ₹18,750.00

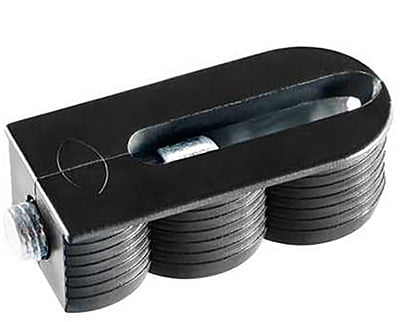

Lamello Cabineo insert M6x15.3 mm [500pcs]

Technical Specifications — Lamello Cabineo 12
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

₹27,000.00 ₹33,750.00

Lamello Cabineo insert M6x12.3 mm [500pcs]

Technical Specifications — Lamello Cabineo 12
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

₹25,000.00 ₹31,250.00

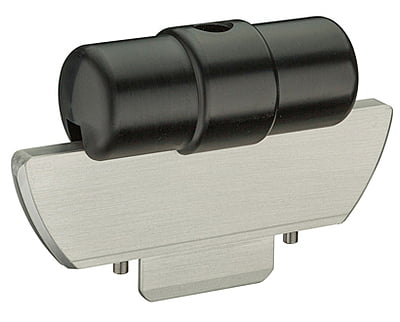

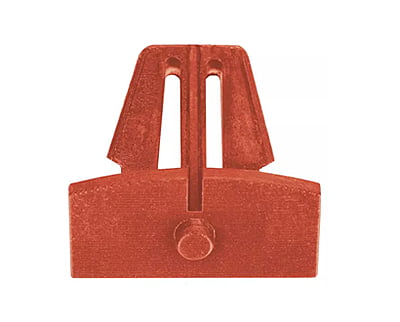

Lamello Zeta P2 positioning clip

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹1,100.00 ₹1,375.00

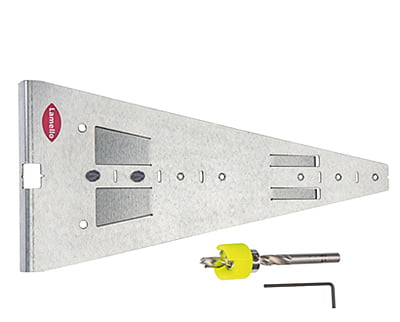

Lamello Clamex P Installation tool

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹5,000.00 ₹6,250.00

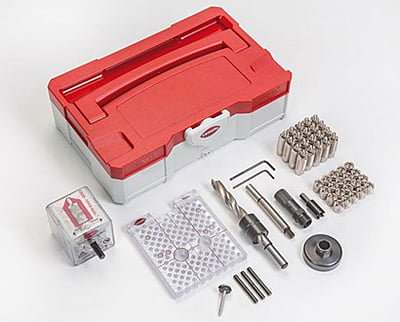

Lamello Invis Mx2 joiner set [20pairs]

Technical Specifications — Lamello Invis Mx2
Size connector	Ø 12 × 35 mm
Size stud (standard)	Ø 12 mm × 14 mm
Size stud (long)	Ø 12 mm × 30 mm
Size centre-wall stud	Ø 12 mm × 30 mm
Required drill hole	Ø 12 mm
Maximum distance to edge (for full clamping force)	9 mm (max. 15 mm)
MiniMag rotation speed	1200–1500 rpm
Housing material	Zinc
Installation tolerance longitudinal	± 0.1 mm
Clamping force per connector	up to 250 kg (2452 N)
Minimum panel thickness	18 mm (edge cuts)
Sold in sets of	20 pairs

₹16,000.00 ₹20,000.00

Lamello Anti-slip pad [2pcs]

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹600.00 ₹750.00

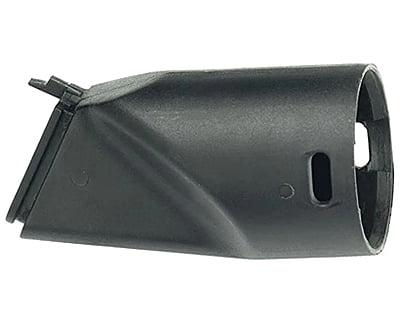

Lamello Extractor stub 36mm

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹2,000.00 ₹2,500.00

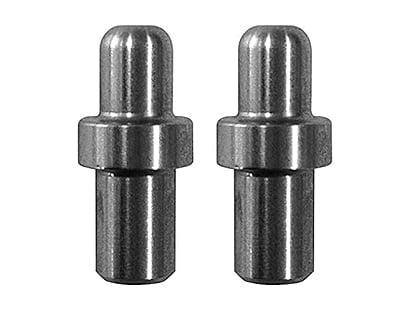

Lamello Zeta P2 positioning pin [2pcs]

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹2,000.00 ₹2,500.00

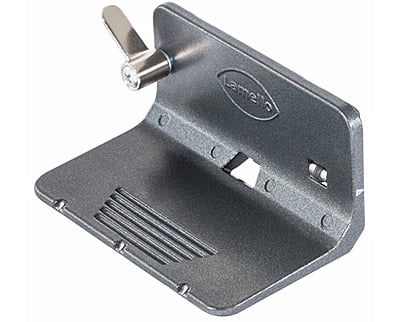

Lamello Stop square

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹12,000.00 ₹15,000.00

Lamello Cabineo 8 M6 black [2000pcs]

Technical Specifications — Lamello Cabineo 8
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	9 mm
Minimum material thickness for centre wall machining	16 mm
Tensile strength in particle board	520 N
Tensile strength in MDF	610 N
Tensile strength in beech	1530 N
Shear strength in particle board	530 N
Shear strength in MDF	680 N
Shear strength in beech	1430 N
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	8 mm (black wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole

₹65,000.00 ₹81,250.00

Lamello Cabineo 8 black [2000pcs]

Technical Specifications — Lamello Cabineo 8
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	9 mm
Minimum material thickness for centre wall machining	16 mm
Tensile strength in particle board	520 N
Tensile strength in MDF	610 N
Tensile strength in beech	1530 N
Shear strength in particle board	530 N
Shear strength in MDF	680 N
Shear strength in beech	1430 N
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	8 mm (black wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole

₹65,000.00 ₹81,250.00

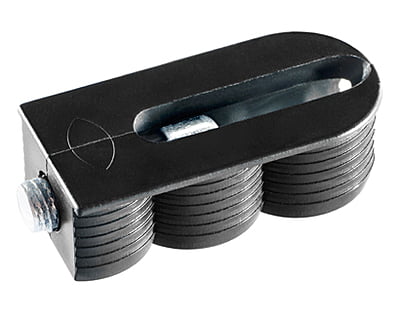

Lamello Cabineo 12 black [2000pcs]

Technical Specifications — Lamello Cabineo 12
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

₹65,000.00 ₹81,250.00

Lamello Cabineo 12 [2000pcs]

Technical Specifications — Lamello Cabineo 12
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

₹65,000.00 ₹81,250.00

Lamello Cabineo 8 M6 [2000pcs]

Technical Specifications — Lamello Cabineo 8
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	9 mm
Minimum material thickness for centre wall machining	16 mm
Tensile strength in particle board	520 N
Tensile strength in MDF	610 N
Tensile strength in beech	1530 N
Shear strength in particle board	530 N
Shear strength in MDF	680 N
Shear strength in beech	1430 N
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	8 mm (black wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole

₹65,000.00 ₹81,250.00

Lamello Cabineo 8 [2000pcs]

Technical Specifications — Lamello Cabineo 8
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	9 mm
Minimum material thickness for centre wall machining	16 mm
Tensile strength in particle board	520 N
Tensile strength in MDF	610 N
Tensile strength in beech	1530 N
Shear strength in particle board	530 N
Shear strength in MDF	680 N
Shear strength in beech	1430 N
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	8 mm (black wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole

₹65,000.00 ₹81,250.00

Lamello Divario P-18 [1000pairs]

Technical Specifications — Lamello Divario P-18
P-System groove depth (P-System setting)	P-18
Groove depth	18 mm

₹70,000.00 ₹87,500.00

Lamello Tenso P-10, with preload clip [1000pairs]

Technical Specifications — Lamello Tenso P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	11 mm
Minimum material thickness for centre wall machining	19 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Clamping force	approx. 35 lbs per connector (155 N)
Size (LxWxH)	66 x 27 x 9.7 mm
Strength	Depending on the adhesive
Material	Fiberglass reinforced plastic
Groove depth	14 mm
Cutter	Ø 100.4 × 7 × 22 mm

₹65,000.00 ₹81,250.00

Lamello Tenso P-14 preload clip [1000pcs]

Technical Specifications — Lamello Tenso P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	11 mm
Minimum material thickness for centre wall machining	19 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Clamping force	approx. 35 lbs per connector (155 N)
Size (LxWxH)	66 x 27 x 9.7 mm
Strength	Depending on the adhesive
Material	Fiberglass reinforced plastic
Groove depth	14 mm
Cutter	Ø 100.4 × 7 × 22 mm

₹8,750.00 ₹10,937.50

Lamello Tenso P-14 [1000pcs]

Technical Specifications — Lamello Tenso P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	11 mm
Minimum material thickness for centre wall machining	19 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Clamping force	approx. 35 lbs per connector (155 N)
Size (LxWxH)	66 x 27 x 9.7 mm
Strength	Depending on the adhesive
Material	Fiberglass reinforced plastic
Groove depth	14 mm
Cutter	Ø 100.4 × 7 × 22 mm

₹60,000.00 ₹75,000.00

Lamello Clamex P-10 [1000Pairs]

Technical Specifications — Lamello Clamex P-10
Installation tolerance longitudinal	± 0.5 mm
Installation tolerance radial	± 0.5 mm
Minimum workpiece width	65 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	11 mm
Minimum material thickness for centre wall machining	19 mm
Minimum material thickness for angle bisector	15 mm
P-System groove depth (P-System setting)	P-10
Tensile strength in particle board	540 N
Tensile strength in MDF	700 N
Tensile strength in beech	900 N
Shear strength in particle board	420 N
Shear strength in MDF	530 N
Shear strength in beech	1590 N
Size (LxWxH)	52 x 19 x 9.7 mm
Access hole diameter	6 mm
Groove depth	10 mm

₹80,000.00 ₹100,000.00

Lamello Clamex P-14/10 Medius [1000pairs]

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹80,000.00 ₹100,000.00

Lamello Clamex P-14 [1000Pair]

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹80,000.00 ₹100,000.00

Lamello P-System connector assortment basic

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹30,000.00 ₹37,500.00

Lamello Bisco P-14 [300pcs]

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹11,000.00 ₹13,750.00

Lamello Zeta P2, P-System groove cutter

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹14,000.00 ₹17,500.00

Lamello Zeta P2, P-System groove cutter, DP (Diamond)

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹25,000.00 ₹31,250.00

Lamello Divario P-18 marking jig metal

Technical Specifications — Lamello Divario P-18
P-System groove depth (P-System setting)	P-18
Groove depth	18 mm

₹15,000.00 ₹18,750.00

Lamello Divario P-18 installation tool

Technical Specifications — Lamello Divario P-18
P-System groove depth (P-System setting)	P-18
Groove depth	18 mm

₹11,000.00 ₹13,750.00

Lamello Lamello Invis Mx2 Starter set, in systainer

Technical Specifications — Lamello Invis Mx2
Size connector	Ø 12 × 35 mm
Size stud (standard)	Ø 12 mm × 14 mm
Size stud (long)	Ø 12 mm × 30 mm
Size centre-wall stud	Ø 12 mm × 30 mm
Required drill hole	Ø 12 mm
Maximum distance to edge (for full clamping force)	9 mm (max. 15 mm)
MiniMag rotation speed	1200–1500 rpm
Housing material	Zinc
Installation tolerance longitudinal	± 0.1 mm
Clamping force per connector	up to 250 kg (2452 N)
Minimum panel thickness	18 mm (edge cuts)
Sold in sets of	20 pairs

₹65,000.00 ₹81,250.00

Lamello P-System 145312 connector assortment professional, in Sortainer

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹90,000.00 ₹112,500.00

Lamello

Swiss-engineered joinery for India's most demanding furniture makers

Three reasons it pays for itself

Industries served by Caple

Ten Lamello families on Caple

Lamello in India

Woodworking Machinery

Woodworking Machinery

Brands

Machine Importer

Consulting Services

Machine Exporter

Products

Contact Details

2026 | Caple Industrial Solutions | Rights Reserved for price offered, configuration, availability, terms and conditions on the featured products. Please feel free to connect with the team.
