Lamello Lamello Invis Mx2 Starter set, in systainer

₹65,000.00 ₹81,250.00

Warranty

12 Months

Country of origin

Switzerland

GST Extra

18%

Available on Request

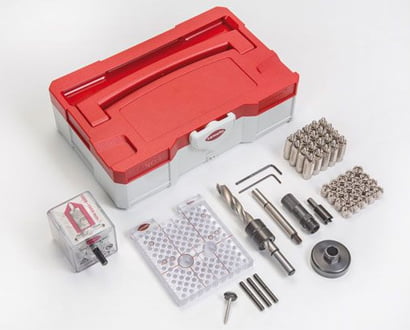

Kit contains

• 20x Invis Mx2 with stud 14 mm

• Invis Mx2 screw bit

• Invis Mx2 insertion jig

• MiniMag Mx2 inkl. flexible shaft

• Rasto perforated plate, positioning bolts,fastening screw

• Rasto drill bushings Dia,12 mm

• drill Dia,12 mm, Depth adjuster, spacer

TEST

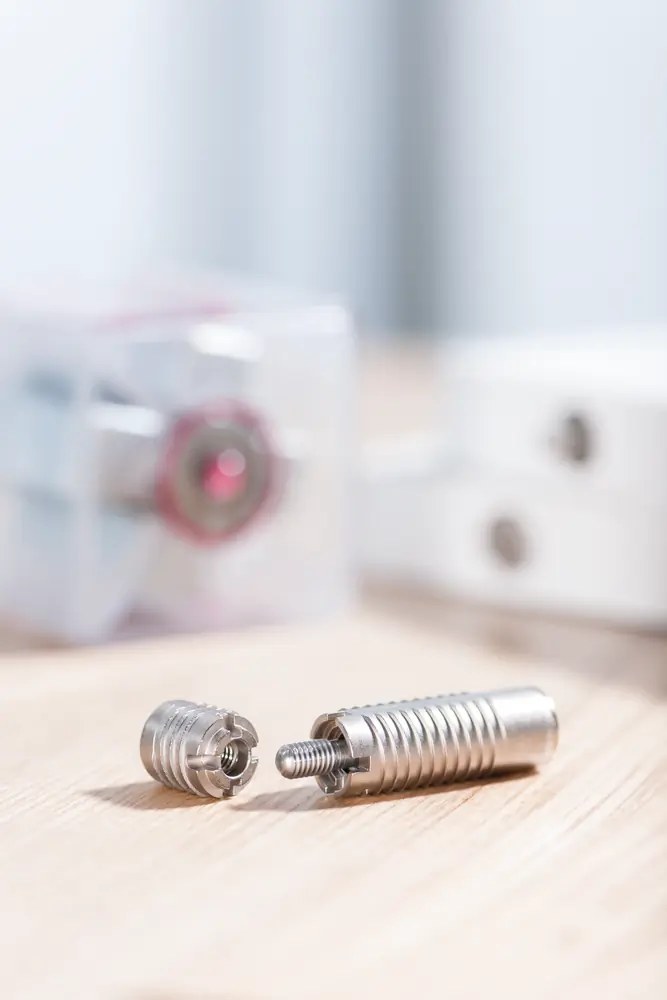

Drilling System Connector (Magnet-Driven, Invisible)

Lamello Invis Mx2

Magnetically driven, 100% invisible furniture connector — no visible openings, holes or access points

Size connector

Ø 12 × 35 mm

Size stud (standard)

Ø 12 mm × 14 mm

Size stud (long)

Ø 12 mm × 30 mm

Size centre-wall stud

Ø 12 mm × 30 mm

Required drill hole

Ø 12 mm

Maximum distance to edge (for full clamping force)

9 mm (max. 15 mm)

Why Lamello Invis Mx2

Magnetically driven, 100% invisible furniture connector —…

Magnetically driven, 100% invisible furniture connector — no visible openings, holes or access points

Enormously high clamping force of up to 250 kg per connec…

Enormously high clamping force of up to 250 kg per connector

Detachable — can be connected and disconnected repeatedly…

Detachable — can be connected and disconnected repeatedly using the MiniMag with a cordless drill

50% larger magnet (Mx2 vs original Mx) results in more po…

50% larger magnet (Mx2 vs original Mx) results in more powerful clamping

Why Choose Caple

Pillar	You Get	You Save
Safety	CE-marked Swiss-engineered tool with comprehensive safety features	Risk of workplace injuries and compliance issues
Quality	Swiss precision engineering with ±0.1 mm tolerance accuracy	Rework, rejection costs, and quality complaints
User Friendly	Intuitive operation with minimal setup and training required	Time on operator training and complex adjustments
Productivity	Dramatically faster assembly — no clamping or drying time	Hours per day on manual clamping, alignment, and rework
ROI	Lower total cost through reduced consumables, rework, and assembly time	Adhesive, clamp, screw hardware, and labour costs
Trust	Authorised Distributor	Official Lamello partner — genuine products with full support
	caple.in Since 1974	Over 50 years of woodworking machinery expertise in India
	Warranty	12 months warranty on machines
	Trained Team	Factory-trained application specialists on staff
	Pan-India Support	Service network across major cities and metro areas

Technical Specifications

Size connector	Ø 12 × 35 mm
Size stud (standard)	Ø 12 mm × 14 mm
Size stud (long)	Ø 12 mm × 30 mm
Size centre-wall stud	Ø 12 mm × 30 mm
Required drill hole	Ø 12 mm
Maximum distance to edge (for full clamping force)	9 mm (max. 15 mm)

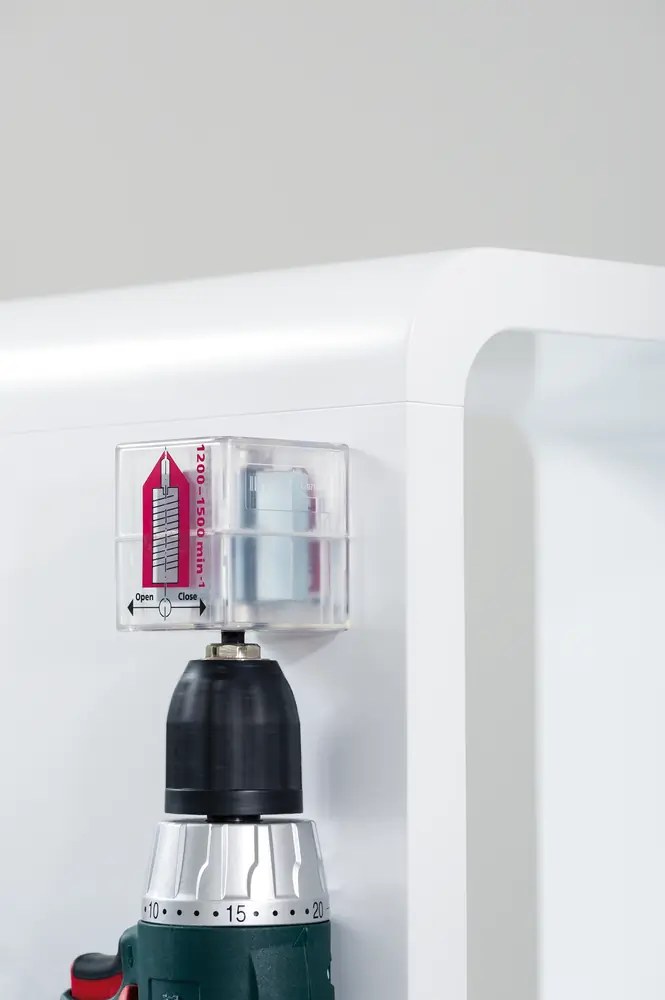

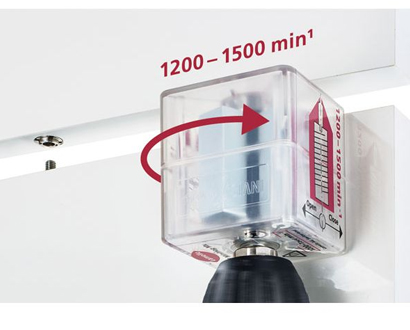

MiniMag rotation speed	1200–1500 rpm
Housing material	Zinc
Installation tolerance longitudinal	± 0.1 mm
Clamping force per connector	up to 250 kg (2452 N)
Minimum panel thickness	18 mm (edge cuts)
Sold in sets of	20 pairs

Frequently Asked Questions

What is the Lamello Invis Mx2?

The Lamello Invis Mx2 is a drilling system connector (magnet-driven, invisible) — Magnetically driven, 100% invisible furniture connector — no visible openings, holes or access points

What groove is required for the Invis Mx2?

The Invis Mx2 requires a groove milled with the Lamello Zeta P2 biscuit joiner or a CNC machining centre. Groove depth: P-System groove.

What is the minimum material thickness for the Invis Mx2?

Minimum material thickness is 18 mm (edge cuts). Please refer to the technical specifications above for all thickness requirements.

Is the Invis Mx2 detachable?

Yes, it can be connected and disconnected multiple times without tools or adhesive — ideal for flat-pack and RTA furniture.

How many connectors are needed per joint?

Typically 2–4 connectors per linear joint depending on panel size and load requirements. Our trained team can advise on the optimum count for your specific application.

Does caple.in supply the Invis Mx2 in bulk?

Yes, caple.in supplies Lamello connectors in both trial quantities and bulk packs (up to 1000+ pairs). Contact us for volume pricing.

What is the tensile strength of the Invis Mx2?

Tensile strength is up to 250 kg (2452 N) in particle board. Performance varies by substrate — see specifications for MDF and solid wood values.

Can the Invis Mx2 be used for mitre joints?

Yes, with appropriate machining setup. Contact our team for guidance on mitre joint applications.

Ready to see it in action?

Experience Swiss precision joining technology with expert guidance from our trained team.
