Name: Lamello Cabineo insert M6x15.3 mm [500pcs]
Brand: Lamello
SKU: 186376
Price: 27000.0 INR
Availability: InStock

Power Tools & Hand Tools Power Tool - Accessory & Consumables Lamello Cabineo insert M6x15.3 mm [500pcs]

Lamello Cabineo insert M6x15.3 mm [500pcs]

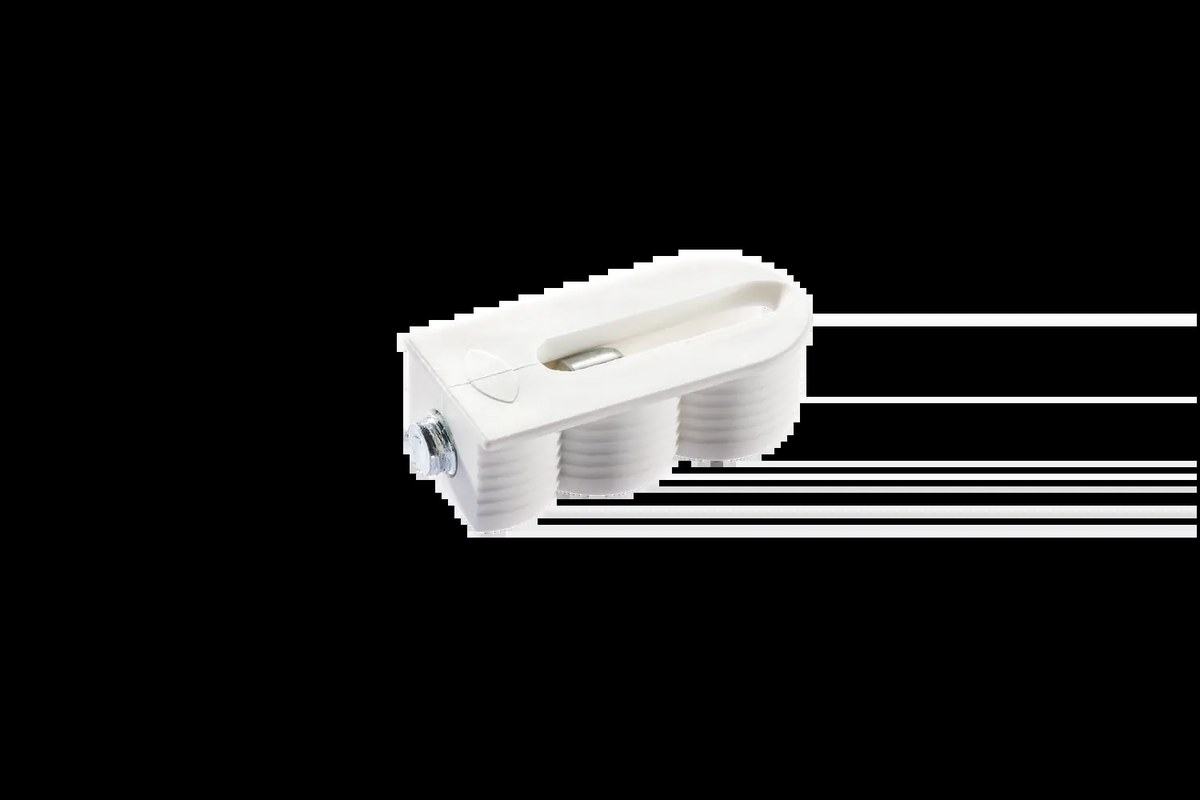

Technical Specifications — Lamello Cabineo 12
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

₹27,000.00

₹33,750.00

Customize

Choose Quantity :

View Details

TEST

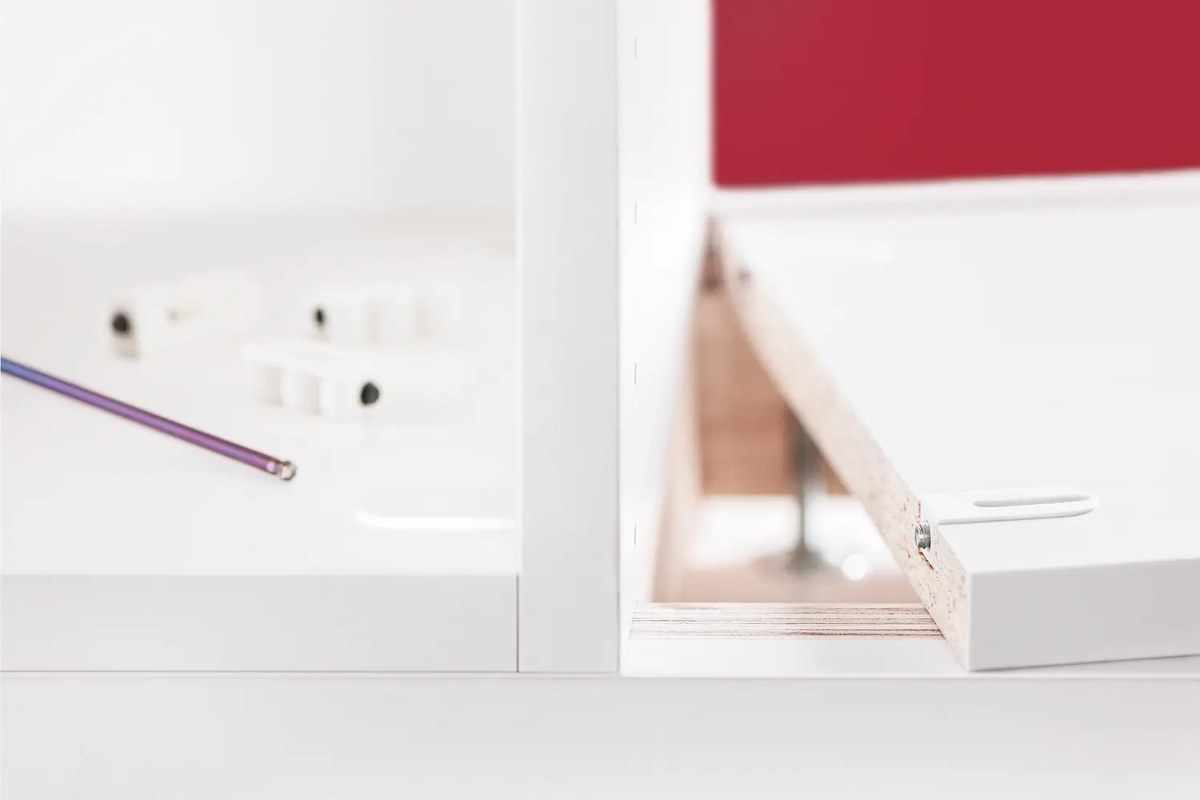

Lamello Cabineo 12 — Inspiration & Application

FEATURE — ADVANTAGE — BENEFIT
Feature / Fact	Advantage (So what?)	Benefit (You get / You save)
QUALITY
One-piece, pre-assembled cabinet connector for corner...	One-piece, pre-assembled cabinet connector for corner joints.	no edge drilling required.
Pre-installed screw allows connector to be...	Pre-installed screw allows connector to be installed in workpiece during production (flat-pack ready).	Delivers Swiss-engineered Lamello performance on every cut.
Higher clamping force than cam connectors...	Higher clamping force than cam connectors.	no additional wooden dowels required.
No loose parts — no separate...	No loose parts.	no separate hardware bag needed, eliminates assembly errors.
Workpieces can be stacked flat-pack for...	Workpieces can be stacked flat-pack for transport without protruding parts damaging surfaces.	Delivers Swiss-engineered Lamello performance on every cut.
Three installation options: on the surface...	Three installation options: on the surface, flush cover cap, or flush with HPL surface.	Delivers Swiss-engineered Lamello performance on every cut.
Available in white or black housing;...	Available in white or black housing; optional cover caps in 12 colours for concealed installation.	Delivers Swiss-engineered Lamello performance on every cut.
Ideal for 90° corner joints in...	Ideal for 90° corner joints in panels from 12 mm material thickness.	Delivers Swiss-engineered Lamello performance on every cut.
PRODUCTIVITY
Pure surface machining — works with...	Pure surface machining.	works with all CNC machines including simple 3-axis and nesting machines.
Assembled with cordless drill and Cabineo...	Assembled with cordless drill and Cabineo bit.	fast single-person furniture assembly.
