Lamello Invis Mx2 joiner set [20pairs]
₹16,000.00 ₹20,000.00
Warranty
Not Applicable Country of origin
Switzerland GST Extra
18% | Technical Specifications — Lamello Invis Mx2 | |
|---|---|

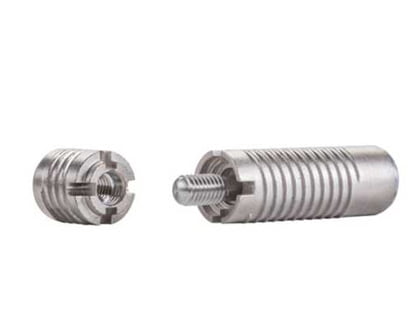

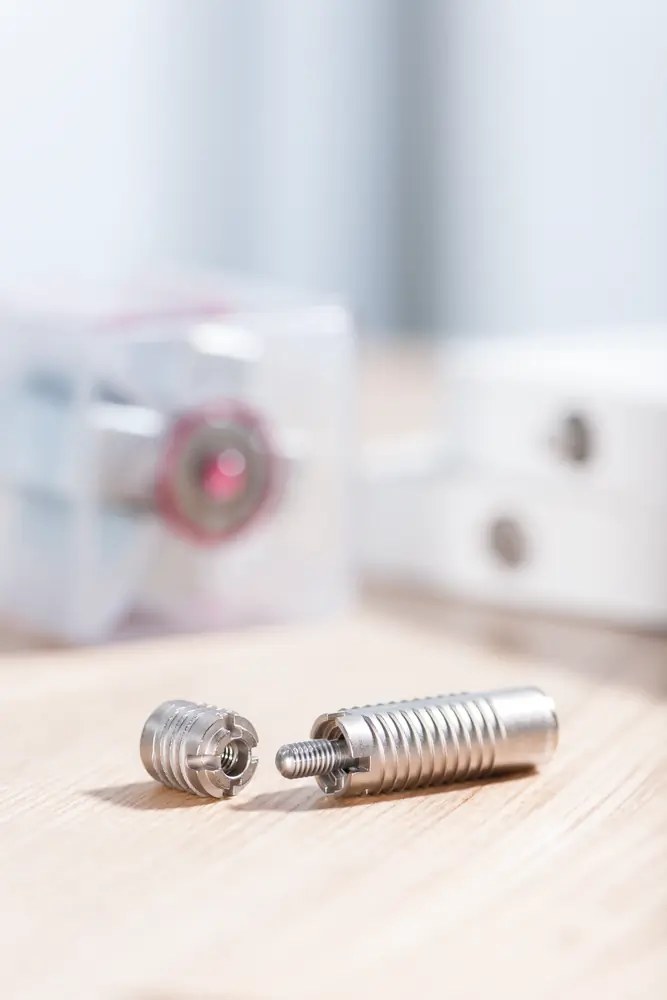

| Size connector | Ø 12 × 35 mm |
| Size stud (standard) | Ø 12 mm × 14 mm |
| Size stud (long) | Ø 12 mm × 30 mm |
| Size centre-wall stud | Ø 12 mm × 30 mm |
| Required drill hole | Ø 12 mm |
| Maximum distance to edge (for full clamping force) | 9 mm (max. 15 mm) |
| MiniMag rotation speed | 1200–1500 rpm |
| Housing material | Zinc |
| Installation tolerance longitudinal | ± 0.1 mm |
| Clamping force per connector | up to 250 kg (2452 N) |
| Minimum panel thickness | 18 mm (edge cuts) |
| Sold in sets of | 20 pairs |
Choose Quantity
TEST
Lamello Invis Mx2 — Inspiration & Application
 |  |  |
 |  |  |
| FEATURE — ADVANTAGE — BENEFIT | ||
|---|---|---|
| Feature / Fact | Advantage (So what?) | Benefit (You get / You save) |
| QUALITY | ||
| Magnetically driven, 100% invisible furniture connector... | Magnetically driven, 100% invisible furniture connector. | no visible openings, holes or access points. |
| Enormously high clamping force of up... | Enormously high clamping force of up to 250 kg per connector. | Delivers Swiss-engineered Lamello performance on every cut. |
| Detachable — can be connected and... | Detachable. | can be connected and disconnected repeatedly using the MiniMag with a cordless drill. |
| 35 mm long metal thread allows... | 35 mm long metal thread allows strong anchor in particleboard. | Delivers Swiss-engineered Lamello performance on every cut. |
| Flexible shaft on MiniMag Mx2 enables... | Flexible shaft on MiniMag Mx2 enables access to the smallest corners. | Delivers Swiss-engineered Lamello performance on every cut. |
| Connectors screwed into Ø 12 mm... | Connectors screwed into Ø 12 mm drill holes. | no CNC profiling required. |

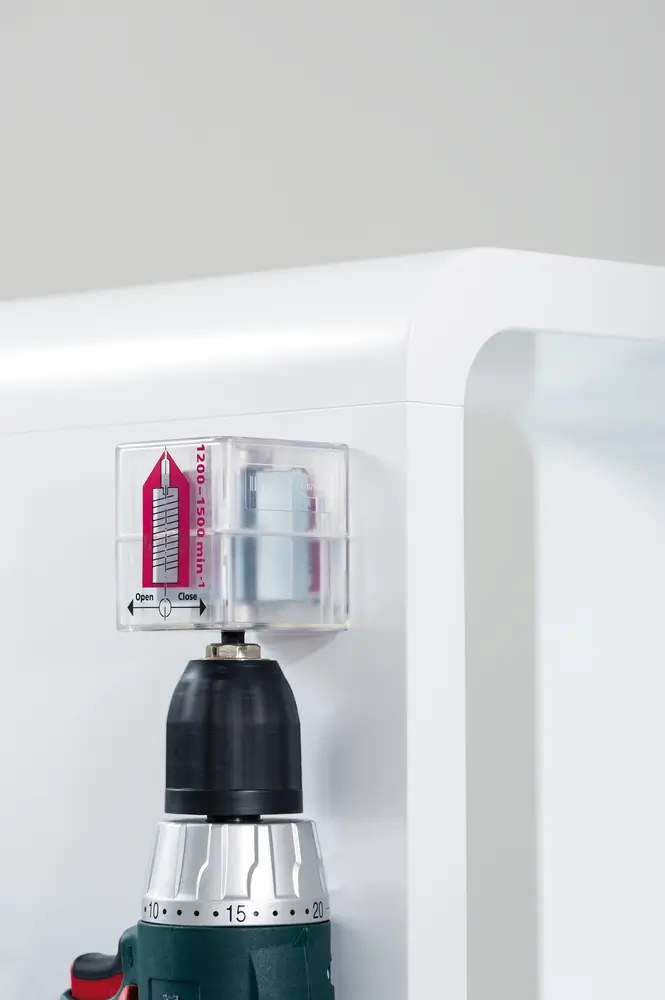

| MiniMag attached to cordless drill at... | MiniMag attached to cordless drill at 1200-1500 rpm closes the connection. | Delivers Swiss-engineered Lamello performance on every cut. |
| Ideal for high-gloss painted furniture, moulded... | Ideal for high-gloss painted furniture, moulded workpieces, stairs, solid wood. | Delivers Swiss-engineered Lamello performance on every cut. |
| Rasto drilling jig enables precise hole... | Rasto drilling jig enables precise hole positioning without measuring or marking. | Delivers Swiss-engineered Lamello performance on every cut. |
| Available in 14 mm stud (standard... | Available in 14 mm stud (standard panel) and 30 mm stud (centre wall) versions. | Delivers Swiss-engineered Lamello performance on every cut. |
| Starter set includes MiniMag, connector sets... | Starter set includes MiniMag, connector sets, Rasto drill jig and accessories. | Delivers Swiss-engineered Lamello performance on every cut. |
| PRODUCTIVITY | ||
| Direction of rotation reversal on cordless... | Direction of rotation reversal on cordless drill opens/detaches the joint. | Delivers Swiss-engineered Lamello performance on every cut. |
| TRUST | ||
| 50% larger magnet (Mx2 vs original... | 50% larger magnet (Mx2 vs original Mx) results in more powerful clamping. | Delivers Swiss-engineered Lamello performance on every cut. |
