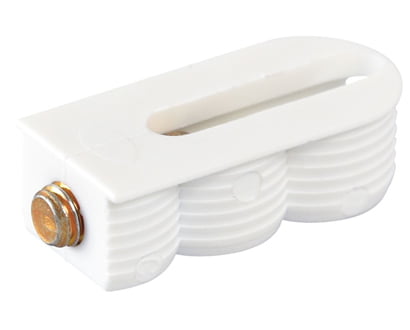

Name: Lamello Cabineo 8 M6 [2000pcs]
Brand: Lamello
SKU: 186316
Price: 65000.0 INR
Availability: OutOfStock

Technical Specifications — Lamello Cabineo 8
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	9 mm
Minimum material thickness for centre wall machining	16 mm
Tensile strength in particle board	520 N
Tensile strength in MDF	610 N
Tensile strength in beech	1530 N
Shear strength in particle board	530 N
Shear strength in MDF	680 N
Shear strength in beech	1430 N
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	8 mm (black wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole

Available on Request

₹65,000.00

₹81,250.00

Customize

TEST

FEATURE — ADVANTAGE — BENEFIT
Feature / Fact	Advantage (So what?)	Benefit (You get / You save)
QUALITY
Shorter screw version of Cabineo designed...	Shorter screw version of Cabineo designed for centre/dividing panel connections.	Delivers Swiss-engineered Lamello performance on every cut.
Allows centre wall connections in 16...	Allows centre wall connections in 16 mm panels (vs 24 mm for Cabineo 12).	Delivers Swiss-engineered Lamello performance on every cut.
One-piece, pre-installed connector — no loose...	One-piece, pre-installed connector.	no loose parts during assembly.
Assembled with cordless drill and Cabineo...	Assembled with cordless drill and Cabineo bit.	Delivers Swiss-engineered Lamello performance on every cut.
Available in white or black housing...	Available in white or black housing with optional cover caps.	Delivers Swiss-engineered Lamello performance on every cut.
PRODUCTIVITY
Same housing as Cabineo 12 —...	Same housing as Cabineo 12.	identical machining across all workpieces.
Pure surface machining — no edge...	Pure surface machining.	no edge drilling required, compatible with all CNC machines.
