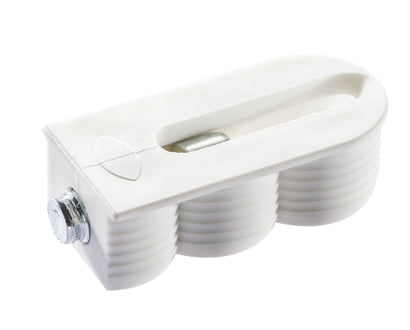

Lamello Cabineo 12 [2000pcs]
₹65,000.00 ₹81,250.00
Warranty
Not Applicable Country of origin
Switzerland GST Extra
18% | Technical Specifications — Lamello Cabineo 12 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 13 mm |
| Minimum material thickness for centre wall machining | 24 mm |
| Tensile strength in particle board | 820 N |
| Tensile strength in MDF | 980 N |
| Tensile strength in beech | 2250 N |
| Shear strength in particle board | 880 N |
| Shear strength in MDF | 1120 N |
| Shear strength in beech | 2350 N |
| Clamping force in particle board (19 mm) | ~900 N (~90 kg) |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 12 mm (nickel-plated wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Assembly torque | approx. 2.5 Nm |
| Colours available | White, Black (cover caps in 12 colours) |
Choose Quantity
TEST
Lamello Cabineo 12 — Inspiration & Application
 |  |  |
 |  |  |
| FEATURE — ADVANTAGE — BENEFIT | ||
|---|---|---|
| Feature / Fact | Advantage (So what?) | Benefit (You get / You save) |
| QUALITY | ||
| One-piece, pre-assembled cabinet connector for corner... | One-piece, pre-assembled cabinet connector for corner joints. | no edge drilling required. |
| Pre-installed screw allows connector to be... | Pre-installed screw allows connector to be installed in workpiece during production (flat-pack ready). | Delivers Swiss-engineered Lamello performance on every cut. |
| Higher clamping force than cam connectors... | Higher clamping force than cam connectors. | no additional wooden dowels required. |
| No loose parts — no separate... | No loose parts. | no separate hardware bag needed, eliminates assembly errors. |

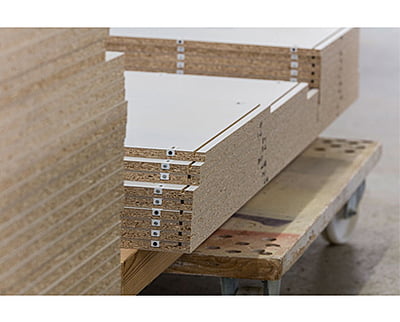

| Workpieces can be stacked flat-pack for... | Workpieces can be stacked flat-pack for transport without protruding parts damaging surfaces. | Delivers Swiss-engineered Lamello performance on every cut. |
| Three installation options: on the surface... | Three installation options: on the surface, flush cover cap, or flush with HPL surface. | Delivers Swiss-engineered Lamello performance on every cut. |
| Available in white or black housing;... | Available in white or black housing; optional cover caps in 12 colours for concealed installation. | Delivers Swiss-engineered Lamello performance on every cut. |

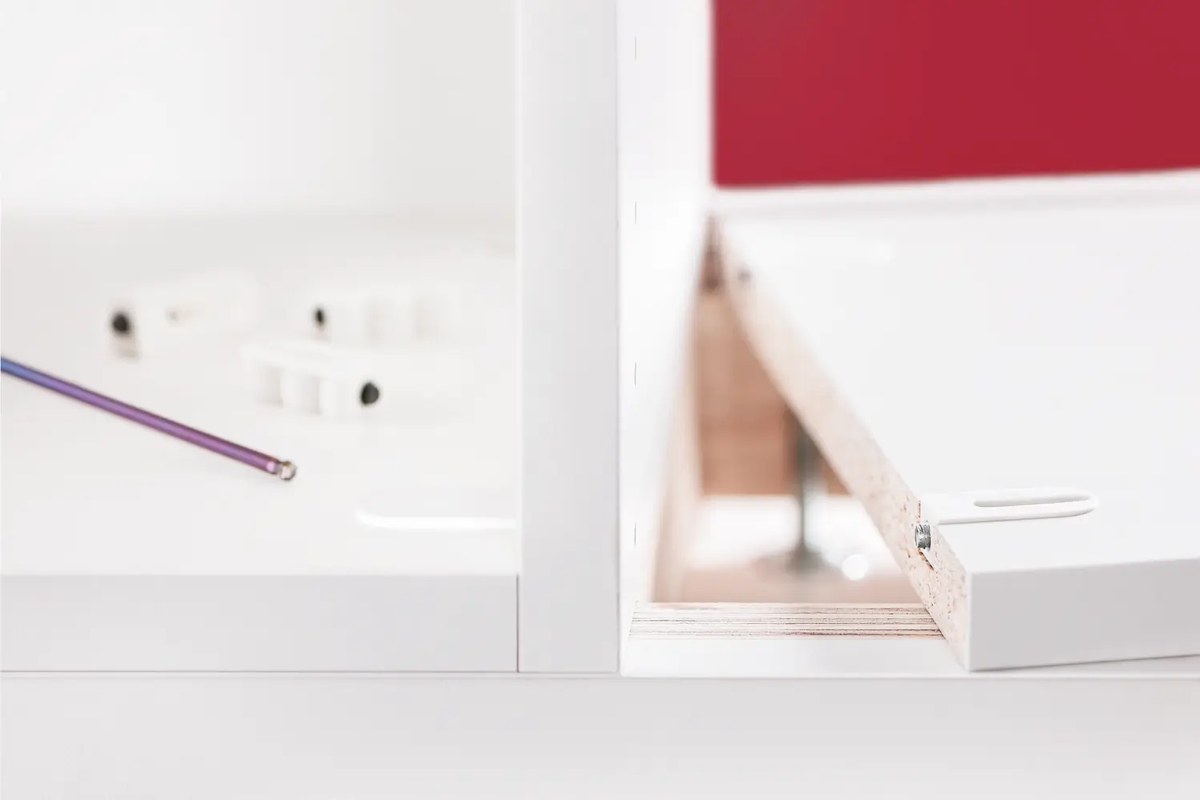

| Ideal for 90° corner joints in... | Ideal for 90° corner joints in panels from 12 mm material thickness. | Delivers Swiss-engineered Lamello performance on every cut. |
| PRODUCTIVITY | ||
| Pure surface machining — works with... | Pure surface machining. | works with all CNC machines including simple 3-axis and nesting machines. |
| Assembled with cordless drill and Cabineo... | Assembled with cordless drill and Cabineo bit. | fast single-person furniture assembly. |
