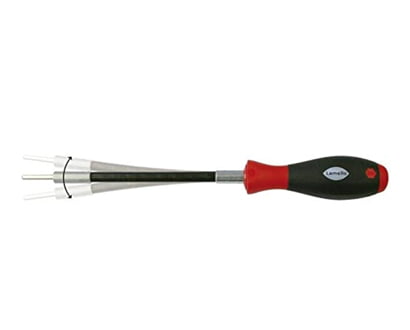

Lamello Clamex P Installation tool
₹5,000.00 ₹6,250.00
Warranty
Not Applicable Country of origin
Switzerland GST Extra

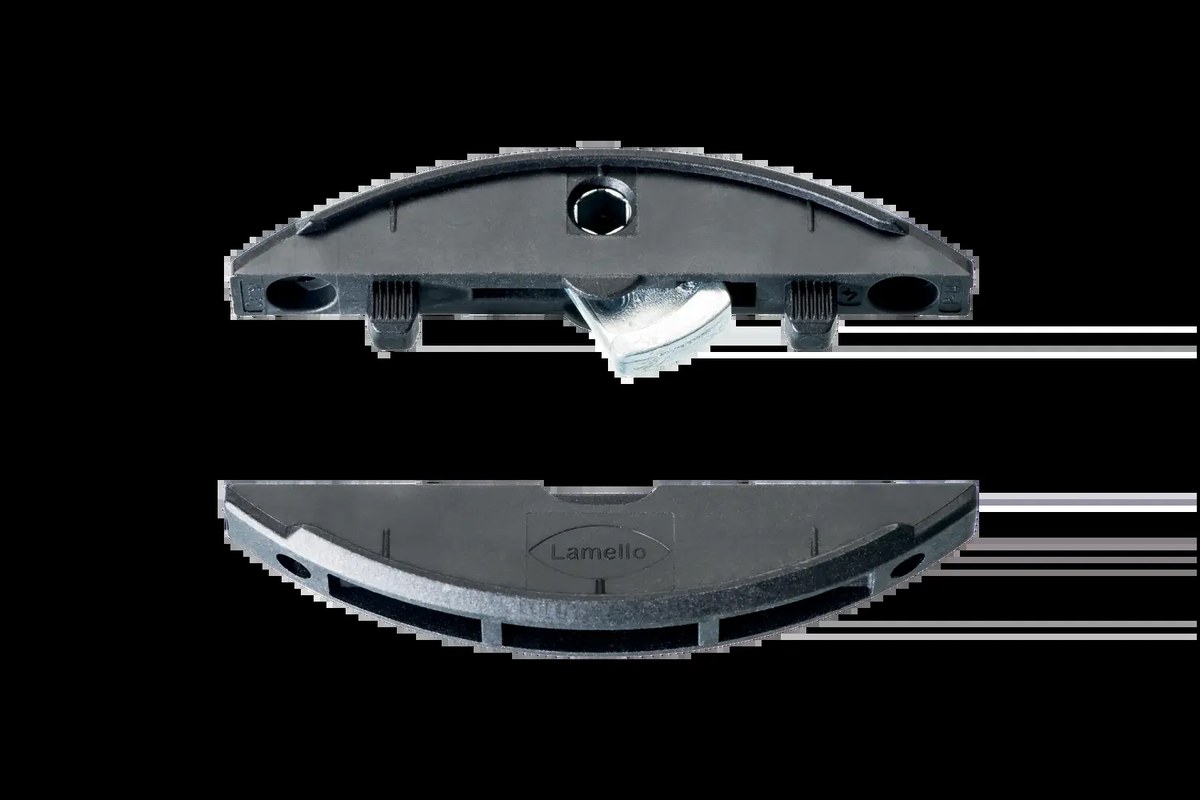

18% | Technical Specifications — Lamello Clamex P-14 | |
|---|---|
| Installation tolerance longitudinal | ± 1 mm |
| Installation tolerance radial | ± 1 mm |
| Minimum workpiece width | 75 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 15 mm |
| Minimum material thickness for centre wall machining | 29 mm |
| Minimum material thickness for angle bisector | 18 mm |
| P-System groove depth (P-System setting) | P-14 |
| Tensile strength in particle board | 1070 N |
| Tensile strength in MDF | 1210 N |
| Tensile strength in beech | 1870 N |
| Shear strength in particle board | 490 N |
| Shear strength in MDF | 600 N |
| Shear strength in beech | 2940 N |
| Size (LxWxH) | 64 x 27 x 9.7 mm |
| Access hole diameter | 6 mm |
| Material | Fiberglass reinforced plastic |
| Groove depth | 14 mm |
Choose Quantity
TEST
Lamello Clamex P-14 — Inspiration & Application
 |  |  |
 |  |
| FEATURE — ADVANTAGE — BENEFIT | ||
|---|---|---|
| Feature / Fact | Advantage (So what?) | Benefit (You get / You save) |
| QUALITY | ||
| Detachable furniture connector — can be... | Detachable furniture connector. | can be assembled and disassembled multiple times. |
| Connected and released using a lever... | Connected and released using a lever through a minimalist 6 mm access hole (similar to a cam connector). | Delivers Swiss-engineered Lamello performance on every cut. |
| Near-invisible joint aesthetics — 6 mm... | Near-invisible joint aesthetics. | 6 mm access hole is almost completely concealed. |
| No adhesive required — ideal for... | No adhesive required. | ideal for flat-pack furniture, transport and on-site assembly. |
| Compatible with butt joints and mitre... | Compatible with butt joints and mitre joints at almost any angle (22.5° to 180°). | Delivers Swiss-engineered Lamello performance on every cut. |
| Eliminates waiting times — assembled workpiece... | Eliminates waiting times. | assembled workpiece can be further processed or shipped immediately. |
| Can be used as a gluing... | Can be used as a gluing aid for difficult-to-clamp workpieces. | Delivers Swiss-engineered Lamello performance on every cut. |
| Stackable — no protruding parts that... | Stackable. | no protruding parts that damage flat-pack workpieces during transport. |
| PRODUCTIVITY | ||
| Anchored in the form-locking P-System groove... | Anchored in the form-locking P-System groove in seconds. | no tools required for installation. |
| Groove made with Zeta P2 biscuit... | Groove made with Zeta P2 biscuit joiner or CNC machining centre. | Delivers Swiss-engineered Lamello performance on every cut. |
