![Lamello Tenso P-14 preload clip [1000pcs]](/product-images/PRO_FOT_STA_Tenso-P-14-Paar__SALL__AIN__V1.jpg/2574649000091521665/300x300 "Lamello Tenso P-14 preload clip [1000pcs]")
![Lamello Tenso P-14 preload clip [1000pcs]](/product-images/ANW_FOT_KUN_10-4-Tenso-P14-einschieben-kante__SALL__AIN__V1.jpg/2574649000091680357/300x300 "Lamello Tenso P-14 preload clip [1000pcs]")

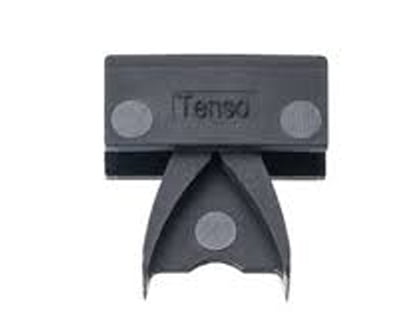

Lamello Tenso P-14 preload clip [1000pcs]
₹8,750.00 ₹10,937.50
Warranty
Not Applicable Country of origin
Switzerland GST Extra
18% | Technical Specifications — Lamello Tenso P-14 | |
|---|---|
| Installation tolerance longitudinal | ± 1 mm |
| Installation tolerance radial | ± 1 mm |
| Minimum workpiece width | 75 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 11 mm |
| Minimum material thickness for centre wall machining | 19 mm |
| Minimum material thickness for angle bisector | 18 mm |
| P-System groove depth (P-System setting) | P-14 |
| Clamping force | approx. 35 lbs per connector (155 N) |
| Size (LxWxH) | 66 x 27 x 9.7 mm |
| Strength | Depending on the adhesive |
| Material | Fiberglass reinforced plastic |
| Groove depth | 14 mm |
| Cutter | Ø 100.4 × 7 × 22 mm |
Choose Quantity
TEST
Lamello Tenso P-14 — Inspiration & Application
 |  |  |
 |  |
| FEATURE — ADVANTAGE — BENEFIT | ||
|---|---|---|
| Feature / Fact | Advantage (So what?) | Benefit (You get / You save) |
| QUALITY | ||
| Self-clamping connector for gluing — replaces... | Self-clamping connector for gluing. | replaces clamps, presses and adhesive tape. |
| Powerful tension springs anchor into counterpart... | Powerful tension springs anchor into counterpart and generate high clamping pressure on the joint. | Delivers Swiss-engineered Lamello performance on every cut. |
| Completely invisible — no openings or... | Completely invisible. | no openings or visible hardware after assembly. |
| Eliminates the need for clamps, presses... | Eliminates the need for clamps, presses, protectors or tape during gluing. | Delivers Swiss-engineered Lamello performance on every cut. |
| Three functions in one: alignment, clamping... | Three functions in one: alignment, clamping and connecting. | Delivers Swiss-engineered Lamello performance on every cut. |
| Compatible with almost any joint angle... | Compatible with almost any joint angle. | butt joints and mitres from 22.5° to 180°. |
| Available with or without preload clip... | Available with or without preload clip for different installation workflows. | Delivers Swiss-engineered Lamello performance on every cut. |
| Suitable for particle board, MDF, plywood... | Suitable for particle board, MDF, plywood, softwood, hardwood and other wood composites. | Delivers Swiss-engineered Lamello performance on every cut. |
| Ideal for furniture parts that cannot... | Ideal for furniture parts that cannot be easily clamped. | angles, mitres, complex shapes. |
| PRODUCTIVITY | ||

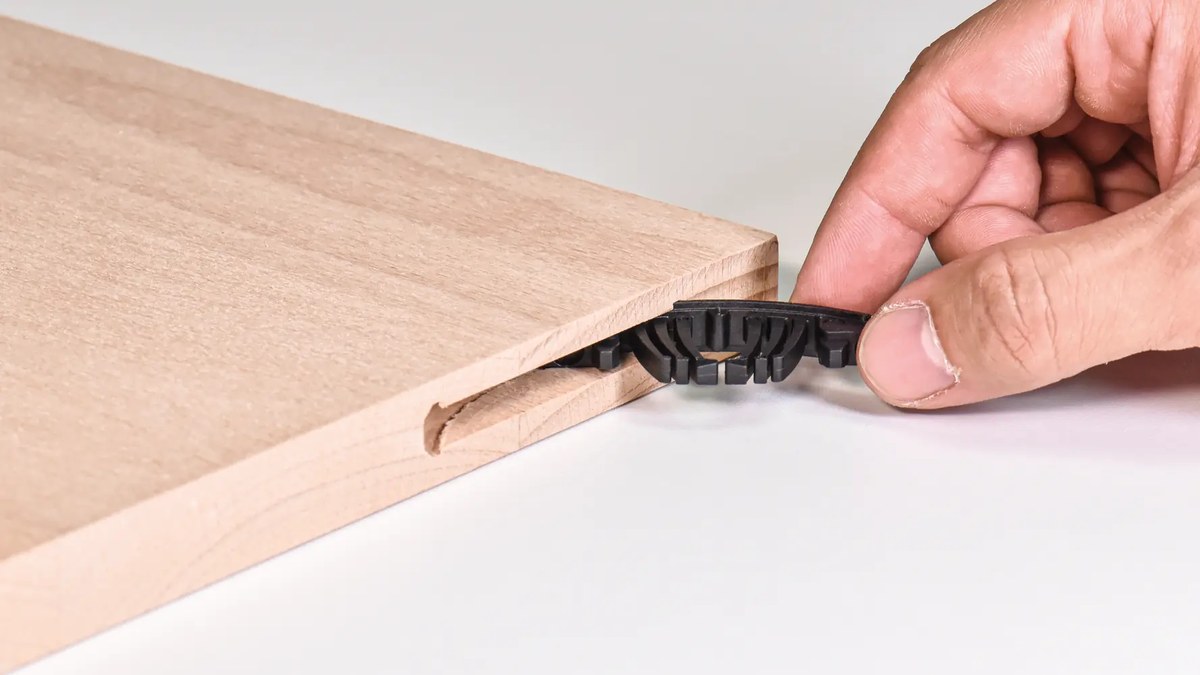

| Inserted into the P-System groove in... | Inserted into the P-System groove in seconds without tools. | Delivers Swiss-engineered Lamello performance on every cut. |
| Groove made with Zeta P2 biscuit... | Groove made with Zeta P2 biscuit joiner or CNC machining centre at P-14 depth setting. | Delivers Swiss-engineered Lamello performance on every cut. |
