Sliding Table Panel Saw

Caple India · Panel Saws & Sliding Table Saws

Sliding table saws & beam saws for cabinet & panel shops

Manual sliding table saws for retail cabinet shops, semi-automatic beam saws for mid-scale factories, and fully automatic CNC beam saws for high-volume panel processing. Altendorf, SCM, Nanxing and other premium brands — Caple India is the authorised distributor for cabinet-quality saws in India.

2200 to 3800 mm sliding length	Manual to CNC Automation levels	Nanxing SCM	Pelhar & Delhi Demo Centres

Get pricing & book a free demo.
Call your regional executive or WhatsApp us — reply within one working day. Visit our Demo Centres in Pelhar and Delhi.

CALL WHATSAPP EMAIL

West & South: +91 70454 59931 · North: +91 99993 94047 · East: +91 95994 87490

✓ Authorised distributor · Premium global brands

★4.5+ Google rating · 120+ reviews

⛰ Free demos · Pelhar & Delhi Demo Centres

⚙ Pan-India service · 3 regional teams

Why Caple for this category

Three reasons it pays for itself

Feature	Advantage	Benefit
Sliding length 2200 to 3800 mm	Cut full panel sheets without flipping or re-positioning.	Higher throughput per shift. Lower operator fatigue.
Scoring blade option	Pre-scores the laminate before main blade cut — zero chip-out on HPL or melamine-faced board.	No edge re-touching needed. Customer-ready cut quality.
Caple's calibration service	Cross-cut squareness checked every visit; blade alignment optimised for your specific material mix.	Long-term cut accuracy. Lower scrap rate over the machine's life.

FAQ

Buying questions answered

Sliding table saw vs beam saw? Sliding table for under-50 panels/day. Beam saw for over-50 panels/day, or when stack-cutting required. Beam saw is the better unit economics at scale.

Manual or CNC beam saw? Manual beam saw if you cut 1-5 SKUs repeatedly. CNC beam saw if you cut variable SKUs from a list of 50+ cutting patterns.

Scoring blade necessary? Essential for HPL, melamine, acrylic, and any pre-faced board. Optional for plain plywood or MDF.

Altendorf vs SCM vs Nanxing — which brand? Altendorf for premium German build (10-15 year machine life). SCM for Italian engineering with strong dust extraction. Nanxing for excellent value with proven track record in India.

What is typical delivery? Manual sliding saw in stock: 2 weeks. CNC beam saw on order: 12-16 weeks. Pre-order indents save 8-10 weeks of lead time.

Caple Industrial Solutions — Woodworking machinery, consumables & service for India, Subcontinent, Middle East and Africa. web@caple.in · Brands: Nanxing, SCM, Festool, Lamello, Bessey, Orma, Vitap, Kuper.

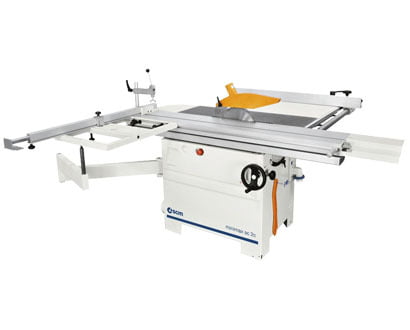

Sliding Table Panel Saw PS315BR with Simple Guard | Angle Cutting Device | 3000mm Table | 975mm Rip Cut | 93mm Max Height Cut | Single Speed | 4KW

TECHNICAL DATA:

Main Blade Diameter : 315 mm
Main Blade Speed : 3400 rpm / 50 Hz
Scoring Blade Diameter : 120 mm
Scoring Blade Speed : 7600 rpm / 50 Hz
Blade Tilt : 0–45°
Max Depth of Cut @ 45° : 65 mm
Max Depth of Cut @ 90° : 93 mm
Max Rip Capacity : 975 mm
Sliding Beam Size : 3000 × 360 mm
Sliding Beam Cutting Capacity : 3000 mm
Blade Rising : Manual
Blade Tilting : Manual
Table Size : 819 (374+650) mm
Dust Extraction Outlet : 100 mm
Main Motor Output : 4 kW S1
Net / Gross Weight : 452 / 527 kgs
Package Size : 2005 × 1140 × 870 mm, 3326 × 470 × 188 mm

₹300,000.00 ₹375,000.00

Sliding Panel Saw MJ6112S [1200mm Table | 1200mm Rip-cut fence | 4.75 kW

• Technical Specifications

• Sliding table size : 1200*375MM

• Max cutting length : 1200MM

• Distance between saw and parallel stop : 1250MM

• The best cutting thickness( saw diameter 300mm) : 75MM - 45゜the best cutting thickness : 65MM

• Grooving saw spindle speed : 7000—8000R/ MIN

• Main saw size : Outside diameter 300MM/inner diameter 30MM

• Grooving saw size : Outside diameter 120MM/inner diameter 20MM

• Main saw spindle speed : 4000—6000R/MIN

• Main saw diameter (possible range), mm : 250-300MM

• Motor power : 4 0.75KW

• Saw blade angel : 0 - 45゜

• Outside size : 1200*2450*900mm

₹230,000.00 ₹287,500.00

Nanxing Sliding Table Saw with Digital Crosscut fence MJK1138F1(415V) [3800mm Table | Digital 1200mm Rip-cut Fence | 6.6 Kw | DRO on Cross-cut Fence]

• TECHNICAL SPECIFICATION:

• Max. Cutting length : 3700mm

• Max Rip-cut length : 1200mm

• Cutting thickness at 0 / 45 Deg. : 70/100mm

• Main saw Speed : 3800/5200rpm

• Main saw Motor : 5.5kw

• Saw blade Size Dia. : 300 - 350 / 30

• Scoring saw Speed : 9000rpm

• Scoring saw Motor : 1.1kw

• Saw blade tilting Deg. : 0-45°

• Dust collection: Dia. : 120mm / 22mm

• Total power: : 6.6kw

• Power : 415V 50HZ

• Dimension: : 3300*3×3430*1670mm

• Net weight: : 1100kg

₹800,000.00 ₹1,000,000.00

Nanxing Sliding Table Saw MJ1138F (415V) [3800mm Table | 1200mm Rip-cut Fence | 6.6 Kw]

TECHNICAL DATA

• Max. Cutting length length : 3700mm

• Ripping capacity : 1200mm

• Cutting thickness at 0 / 45 Deg. : 100/70mm

• Main saw Speed : 3800/5200rpm

• Main saw Motor : 5.5kw

• Scoring saw Speed : 9000rpm

• Scoring saw Motor : 1.1kw

• Saw blade tilting Deg. : 0-45°

• Dust collection: Dia. : 120mm

• Total power: : 6.6kw

• Dimension: : 3300×3370×1200mm

• Net weight: : 785kg

• Voltage : 415V 3Ph 50Hz

₹550,000.00 ₹687,500.00

Nanxing Sliding Table Saw MJK1132F1 415V [3200 mm Table | 1200mm Digital Rip-cut Fence | 6.6 kW | DRO on Crosscut Fence]

TECHNICAL DATA

• Max. Cutting length length : 3100mm

• Max Rip-cut length : 1200mm

• Cutting thickness at 0 / 45 Deg. : 70/100mm

• Main saw Speed : 3800/5200rpm

• Main saw Motor : 5.5kw

• Saw blade Size Dia. : 300 - 350 / 30

• Scoring saw Speed : 9000rpm

• Scoring saw Motor : 1.1kw

• Saw blade tilting Deg. : 0-45°

• Dust collection: Dia. : 120mm

• Total power: : 6.6kw

• Power : 415V 50HZ

• Dimension: : 3300*3×3430*1×1200mm

• Net weight: : 980kg

₹750,000.00 ₹937,500.00

Nanxing Sliding Table Saw MJ1132F 415V [3200mm Table | 1200mm Rip-cut Fence | 6.6 Kw]

TECHNICAL DATA

• Max. Cutting length length : 3100mm

• Ripping capacity : 1200mm

• Cutting thickness at 0 / 45 Deg. : 70/100mm

• Main saw Speed : 3800/5200rpm

• Main saw Motor : 5.5kw

• Scoring saw Speed : 9000rpm

• Scoring saw Motor : 1.1kw

• Saw blade tilting Deg. : 0-45°

• Dust collection: Dia. : 120mm

• Total power: : 6.6kw

• Dimension: : 3300×3370×1200mm

• Net weight: : 785kg

• Voltage : 415V 3Ph 50Hz

₹450,000.00 ₹562,500.00
