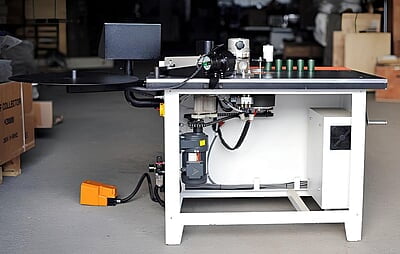

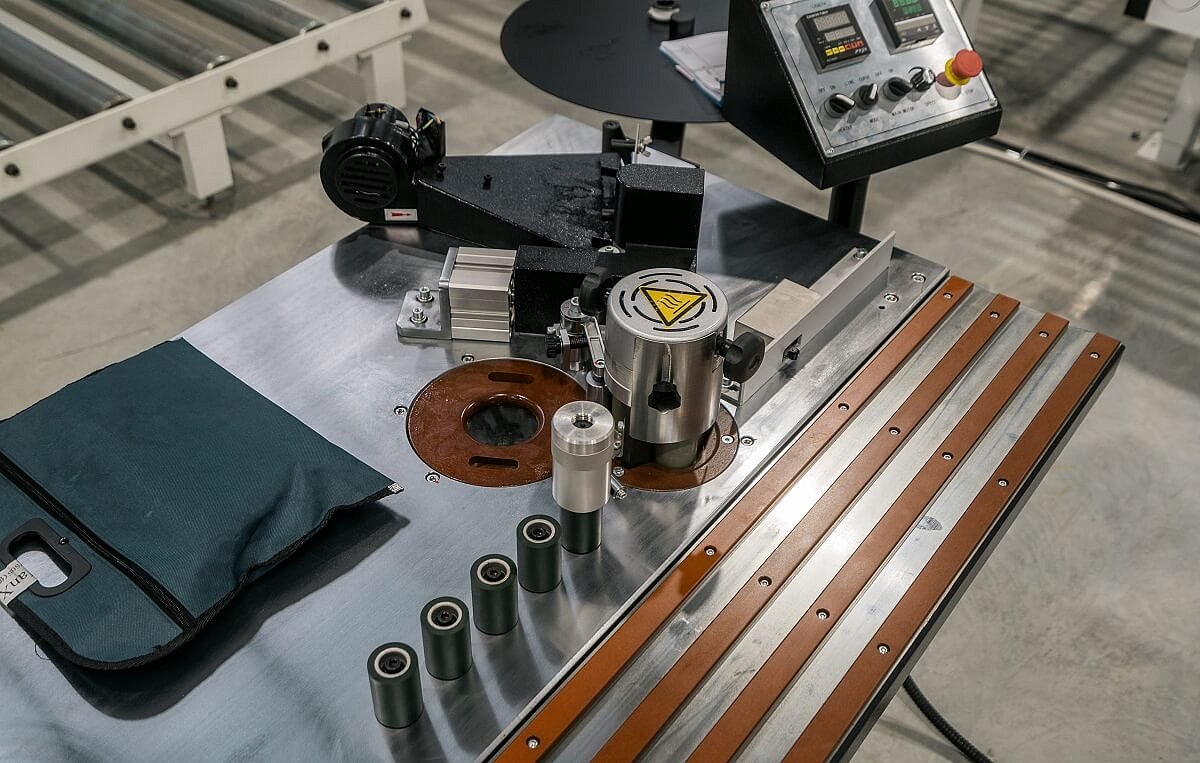

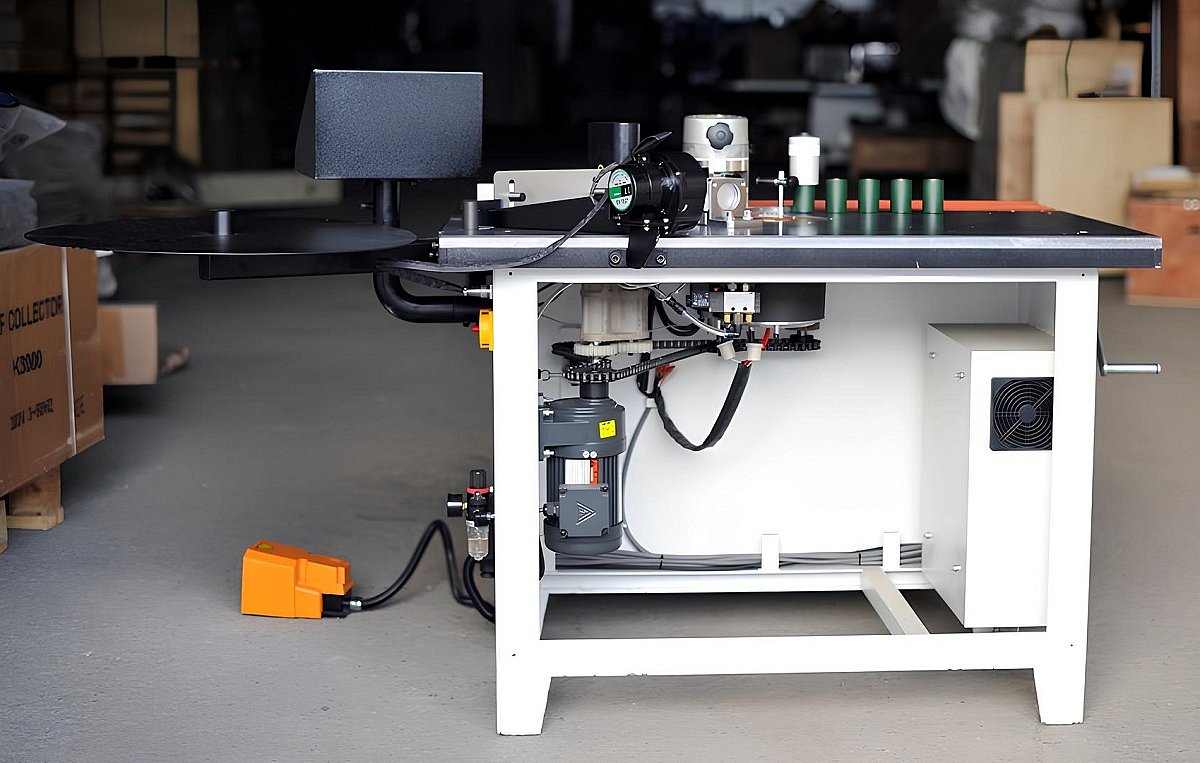

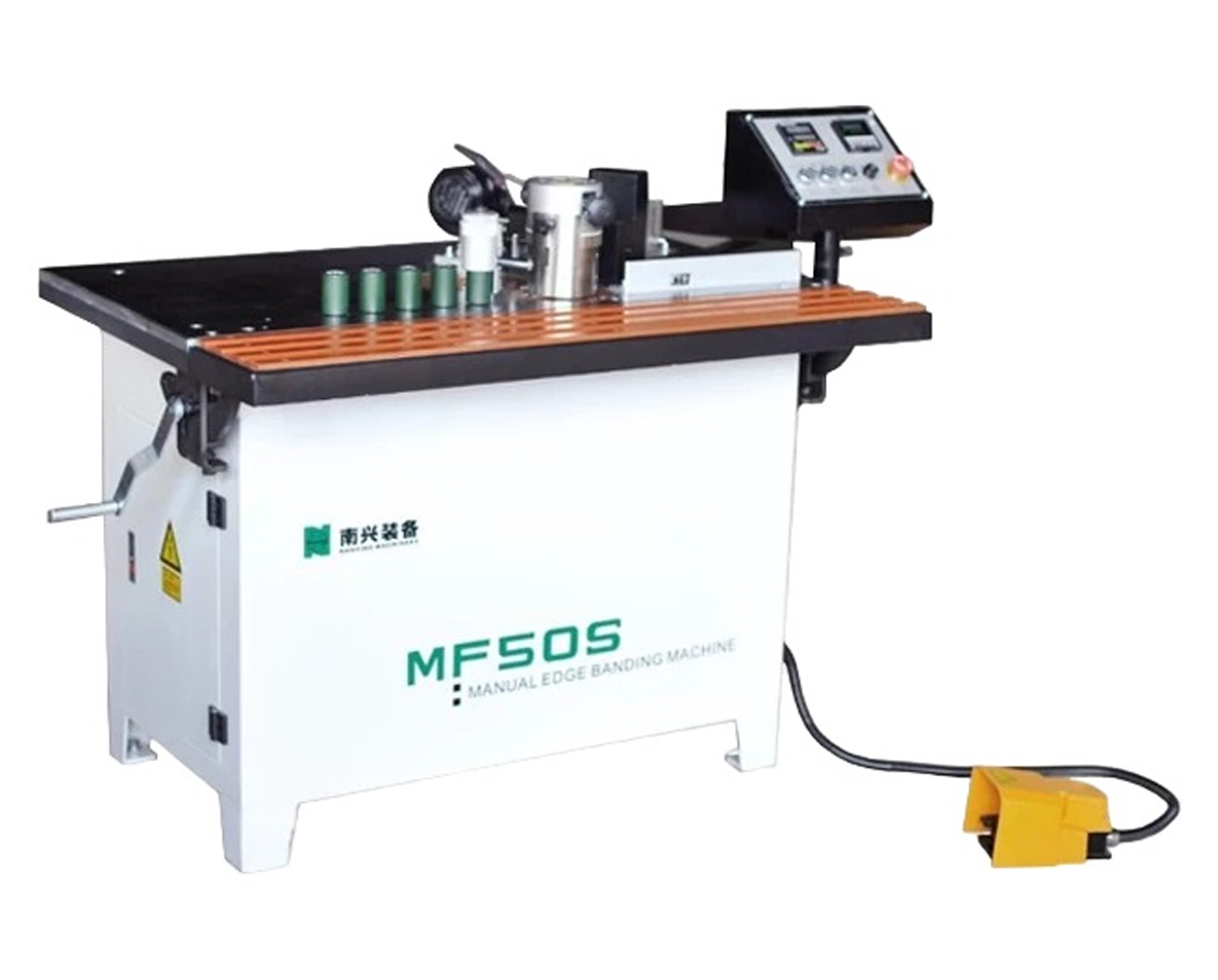

Nanxing Manual Edge Banding Machine MF50S

₹200,000.00 ₹250,000.00
Warranty
12 Months
Country of origin
China
GST Extra
18%

Nanxing NB7CJ — built by Nanxing Mac (China), one of Asia's top-3 woodworking machinery makers, with 30+ years of OEM supply to global furniture brands. Authorised distributor: Caple Industrial Solutions, India.

Best for: Panel furniture production and modular cabinet making.

FeatureAdvantageBenefit
Heavy duty machine body processed by advanced CNC machines ensures high stability and durability.Vibration-free running at maximum feed speedCleaner cuts, longer tool life, lower rejection rate on premium boards
Numerous functions like pre-milling and corner trimming are merged into one efficient process.Fresh, clean substrate before glue applicationEdge tape sticks for the life of the cabinet, no peel-back claims
Automatic standby and one-button wake-up devices provide significant energy saving capabilities.Fast set-up by a semi-skilled operatorReduces dependence on a single senior machinist, scales the team faster
Most electrical components are from world famous brands ensuring reliable and stable operation.Spare parts available globally, never a long downtimeService uptime above 95 percent, peace of mind for OEM contracts
The machine supports high-speed feeding at rates of 16, 20, or 24 meters per minute.Throughput per shift unmatched in this price bandPays back the capex in months not years on volume contracts

Why buy Nanxing from Caple: Authorised India distributor since 2018. Factory-trained engineers across Mumbai, Delhi, Bengaluru, Kolkata. Genuine spares, on-call service, GST invoice. Demo at our Centre of Excellence, Pelhar (Mumbai). Project finance and EMI options available.

Choose Quantity
+ Add to Cart
TEST

Edge Bander

Nanxing Manual Edge Banding Machine MF50S

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

18

Feed Speed

0.2kw - Total power : 2.5 kW - Overall dimension : 1800 *1120*1150mm - Net weight : 310kg

Motor Power

2.5 kW - Overall dimension : 1800 *1120*1150mm - Net weight : 310kg

Total Power

2.2kw

Power

310kg

Weight

12 mo / 2000 hr

Warranty

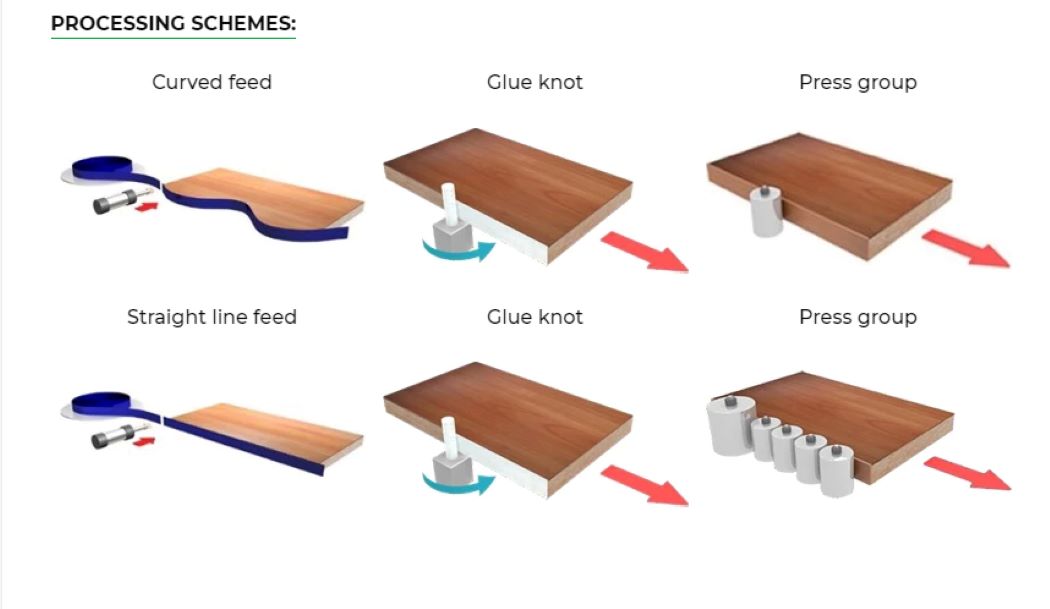

HOW IT WORKS

01

Feed Panel

02

Apply Glue

03

Bond Edge

04

Trim Ends

05

Buff Finish

KEY FEATURES
— TECHNICAL DATA:
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Precision-engineered componentsTight tolerances on all machined partsYou get accurate, consistent output every shift
Rigid steel frame constructionEliminates vibration during operationYou get cleaner cuts and better surface finish
Quality control sensorsAuto-detects deviation in real timeYou get fewer rejects and less rework
USER FRIENDLY

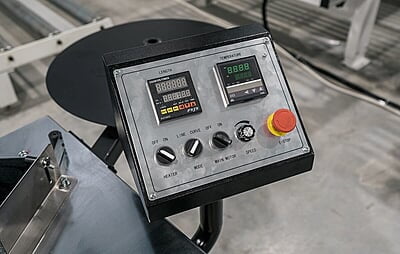

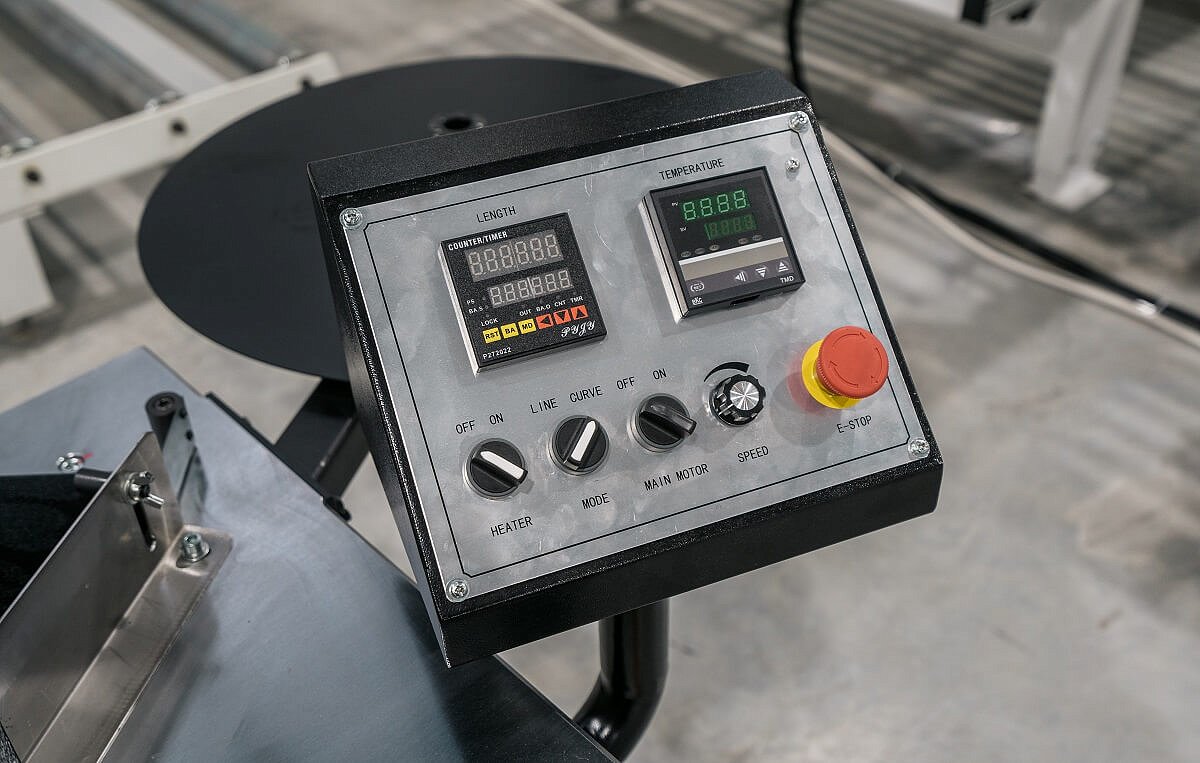

Simple control interfaceEasy-to-read display and controlsYou get quick operator training and confident use
Centralized lubrication pointsAll grease points in one locationYou get faster, easier routine maintenance
Clear diagnostic displaysOn-screen error codes and guidanceYou get quick fault identification and resolution
PRODUCTIVITY
High feed speed (18)More panels processed per hourYou get higher daily output from the same shift
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is
TECHNICAL SPECIFICATIONS
Edge Tape Width10-50mm
Edge Tape Thickness0.3-3mm
Minimum radius of surface20mm
Feeding Speed1-18m/min
Heating Power2.2kw
Motor power0.2kw
Total power2.5 kW
Overall dimension1800 *1120*1150mm
Net weight310kg
FREQUENTLY ASKED QUESTIONS
What edge tape materials can this machine process?
The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.
What board thickness range does this edge bander support?
The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.
Do I need a skilled operator to run this machine?
No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.

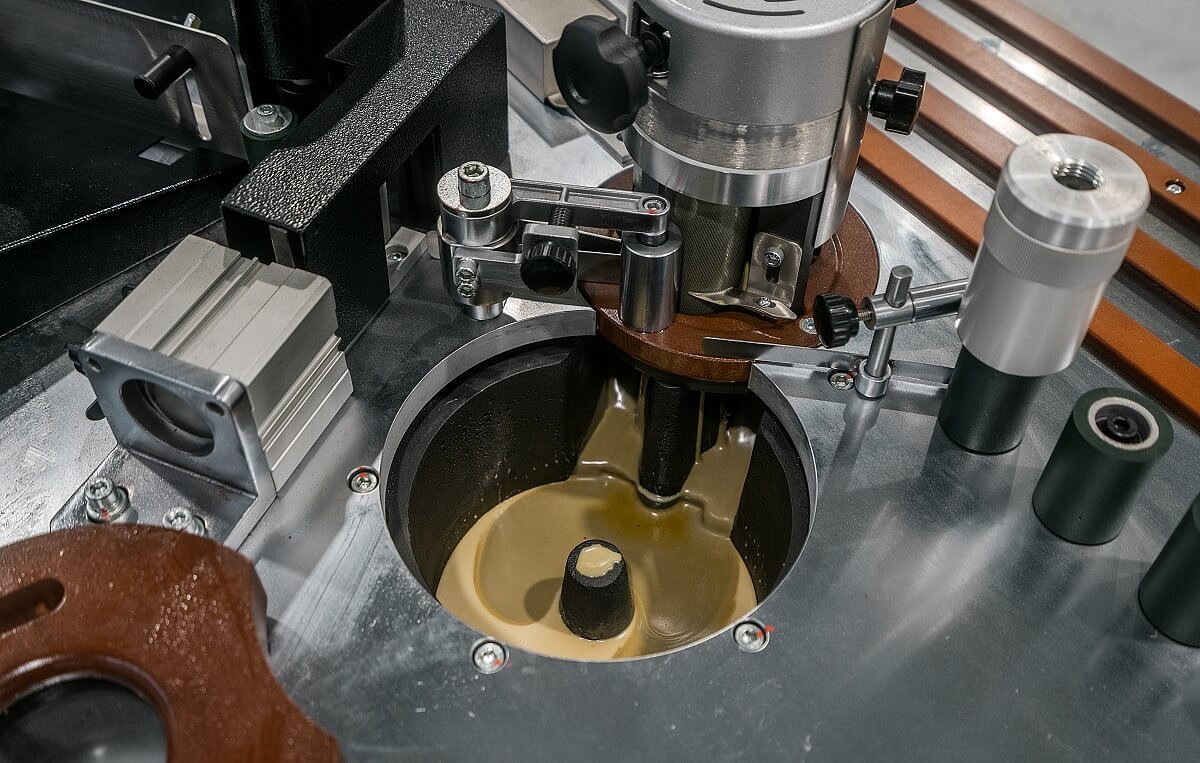

What type of glue does the machine use?
The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.
How long does installation and training take?
Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.
Where can I find the full manual and spare parts list for the MF50S?
Full documentation for the MF50S is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the Nanxing Manual Edge Banding Machine MF50S require?

The Nanxing Manual Edge Banding Machine MF50S requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the Nanxing Manual Edge Banding Machine MF50S?

The Nanxing Manual Edge Banding Machine MF50S draws approximately 3.4 HP (2.5 kW) total power. Use a 16-amp 3-phase 415V supply with separate earthing and a 10 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the Nanxing Manual Edge Banding Machine MF50S?

The Nanxing Manual Edge Banding Machine MF50S needs approximately 2,649 CFM (4,500 CMH) dust extraction through standard dust ports. We recommend the Dust Collector AXC 5HP | 4500-5000 CMH.

What are the overall dimensions of the Nanxing Manual Edge Banding Machine MF50S?

The Manual Edge Banding Machine MF50S measures 1,800 × 1,120 × 1,150 mm (L × W × H) — equivalent to 5'11" × 3'8" × 3'9". Machine footprint is 2.0 m² (22 sq ft). Plan at least 213 sq ft including 1.5 m operator access zones on all sides.

What is the weight of the Nanxing Manual Edge Banding Machine MF50S?

The Nanxing Manual Edge Banding Machine MF50S weighs 310kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
