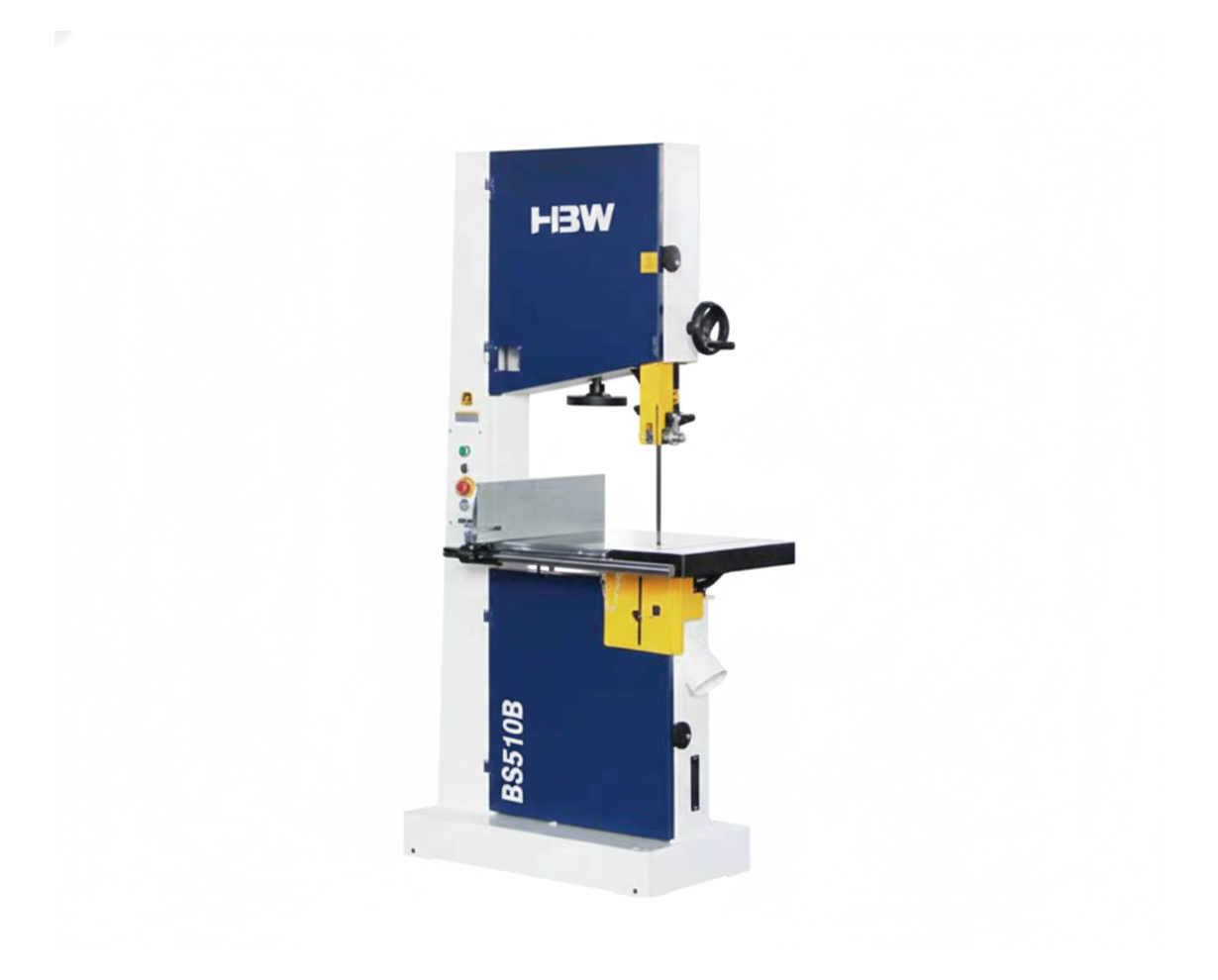

Bandsaw Machine BS510B with mitre gauge

FEATURES

• Reliable dual support tension system

• Quick blade tension release

• European industrial roller blade guide

• Over sized table trunnion . driven by gear for easy tilting

TECHNICAL DATA

• Blade Length : 3962 mm

• Blade Width : 6 - 30 mm

• Blade Speed : 1500 m/min

• Max depth cut with bearing : 335 mm

• Max depth of cut EU roller : 305 mm

• Throat Width : 480 mm

• Table Size : 633x485 mm

• Table Tilt : 0 -45 Deg.

• Band wheel Diameter : 500 mm

• Motor Power input : 2-1/2 HP

• Motor Output : 3 Kw S1

• Extractor port dia. : 2x100 mm

• Net/Gross Weight : 220/245 kg

• Mitre Gauge : 300x100x60mm
