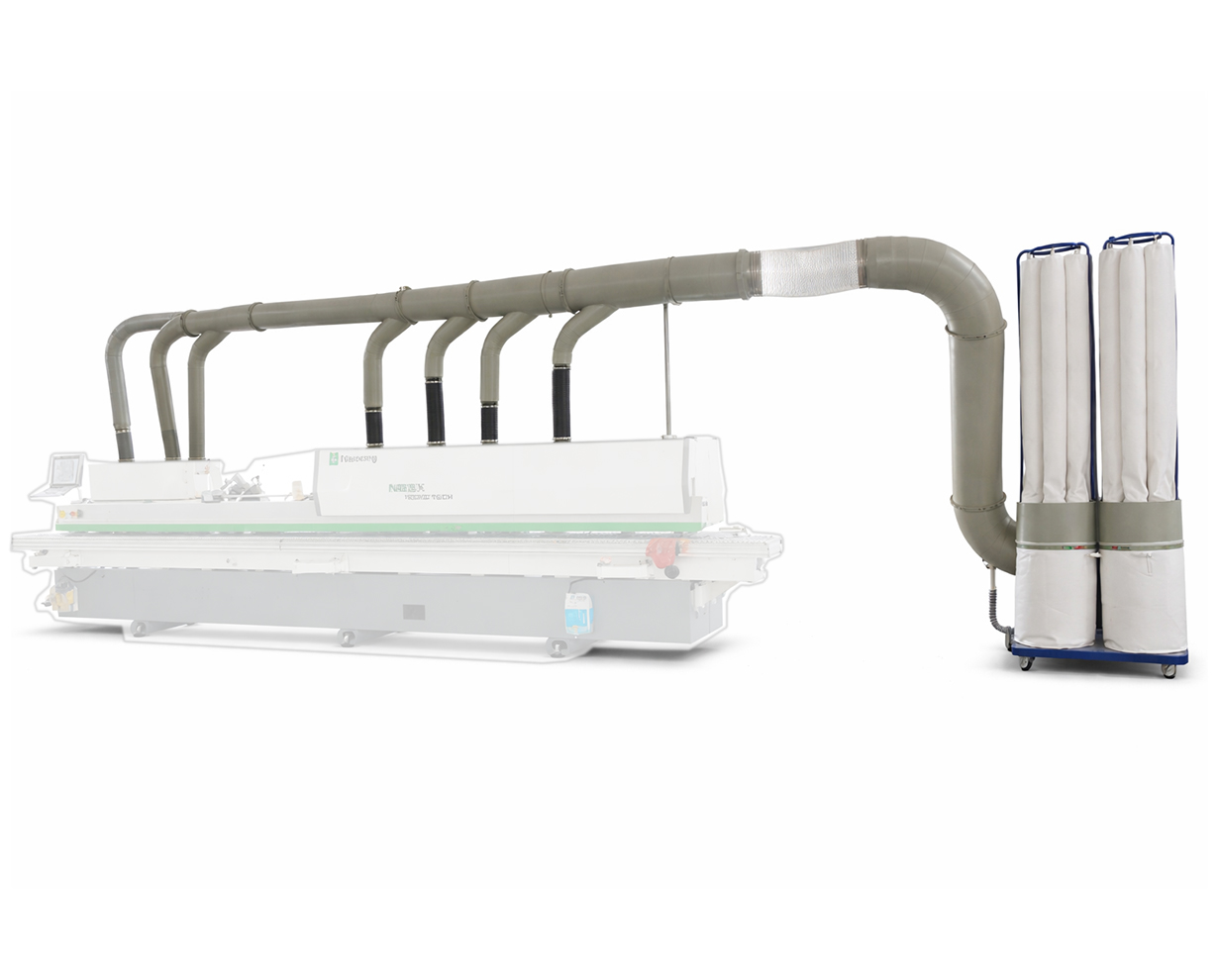

Dust Collector AXC | 10HP | 7295 CMH | Duct | NB5X

• Technical Specification:

• Suction Port Size : Dia 125 OD x 7 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 9275 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning." PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.
