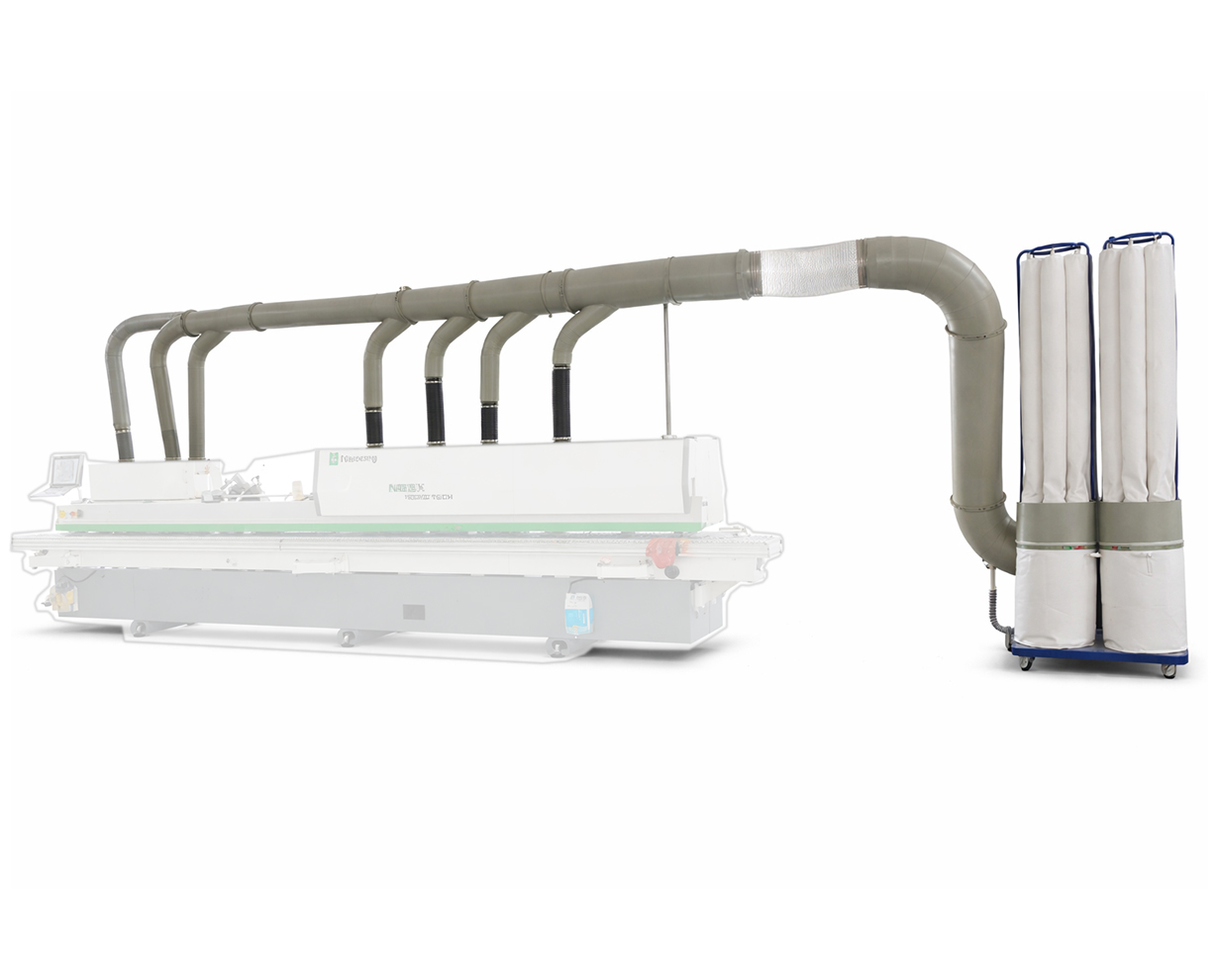

Dust Collector AXC | 10HP | 6625 CMH | Duct | NB7CJMN

• Technical Specification:

• Suction Port Size : Dia 125 OD x 5 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 6625 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning. PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.
