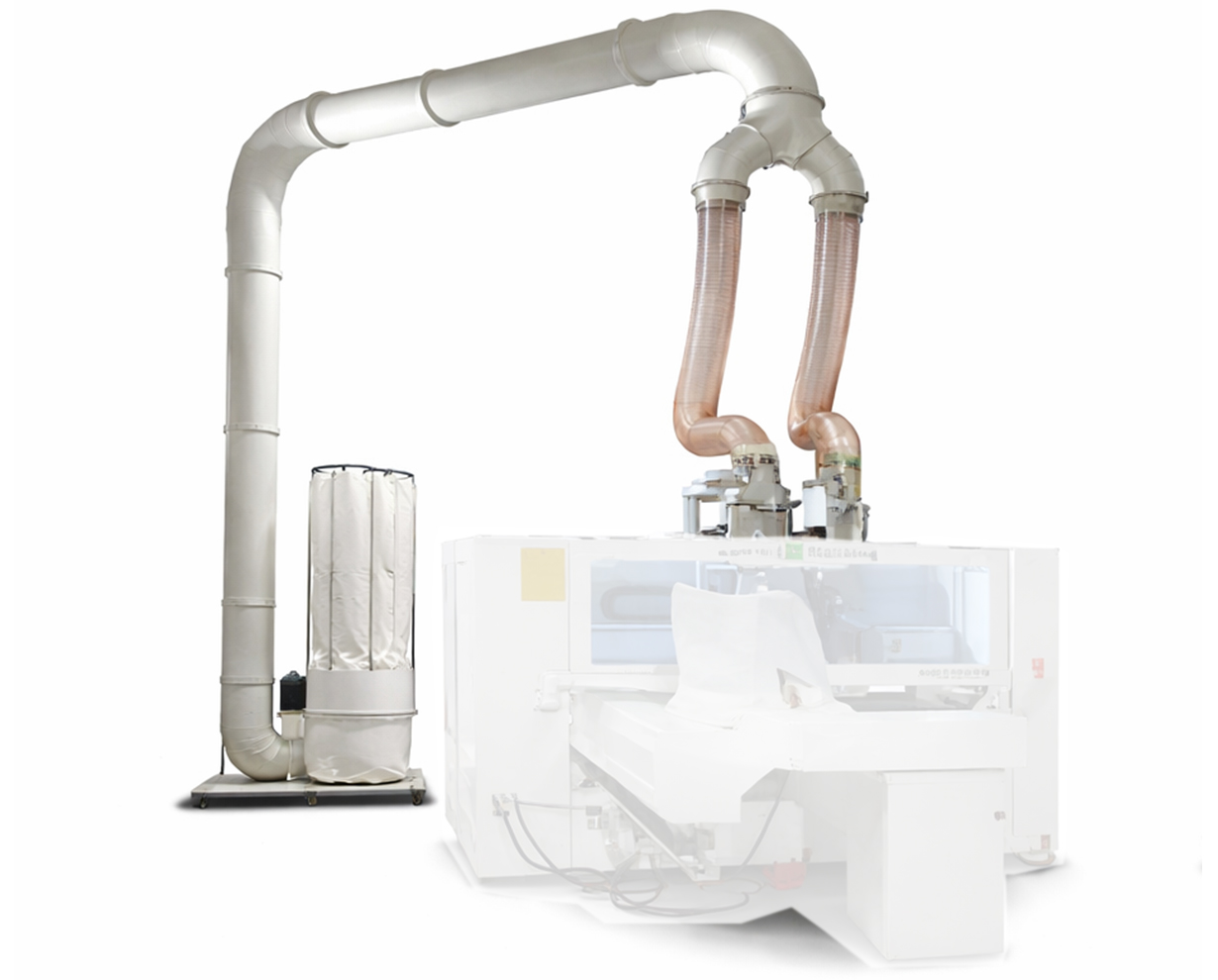

• Portable Dust Extraction with High Suction Efficiency for NB612FT2 Technical Specification:
• Suction Port Size : Dia 200 x 1 No Dia 125 x 1No
• Motor : 7.5 HP/2P
• Dust Collector Capacity : 6000-6500
• Required Capacit At 30 m/s : 4725 CMH
• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-7.5 HP- DS
• MPN : AXC-PDC-7.5 HP- DS
• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.
• No.of Bottom Bags : 2 collection bag to collect .35 m3
• DOL starter.
• PDC Suction adaptor & Machine adaptor.
• 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.
• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning.
• 1Set PVC Flexible Hose and Clamps.
• 1Set PU Flexible Hose & Clamps. Φ200
