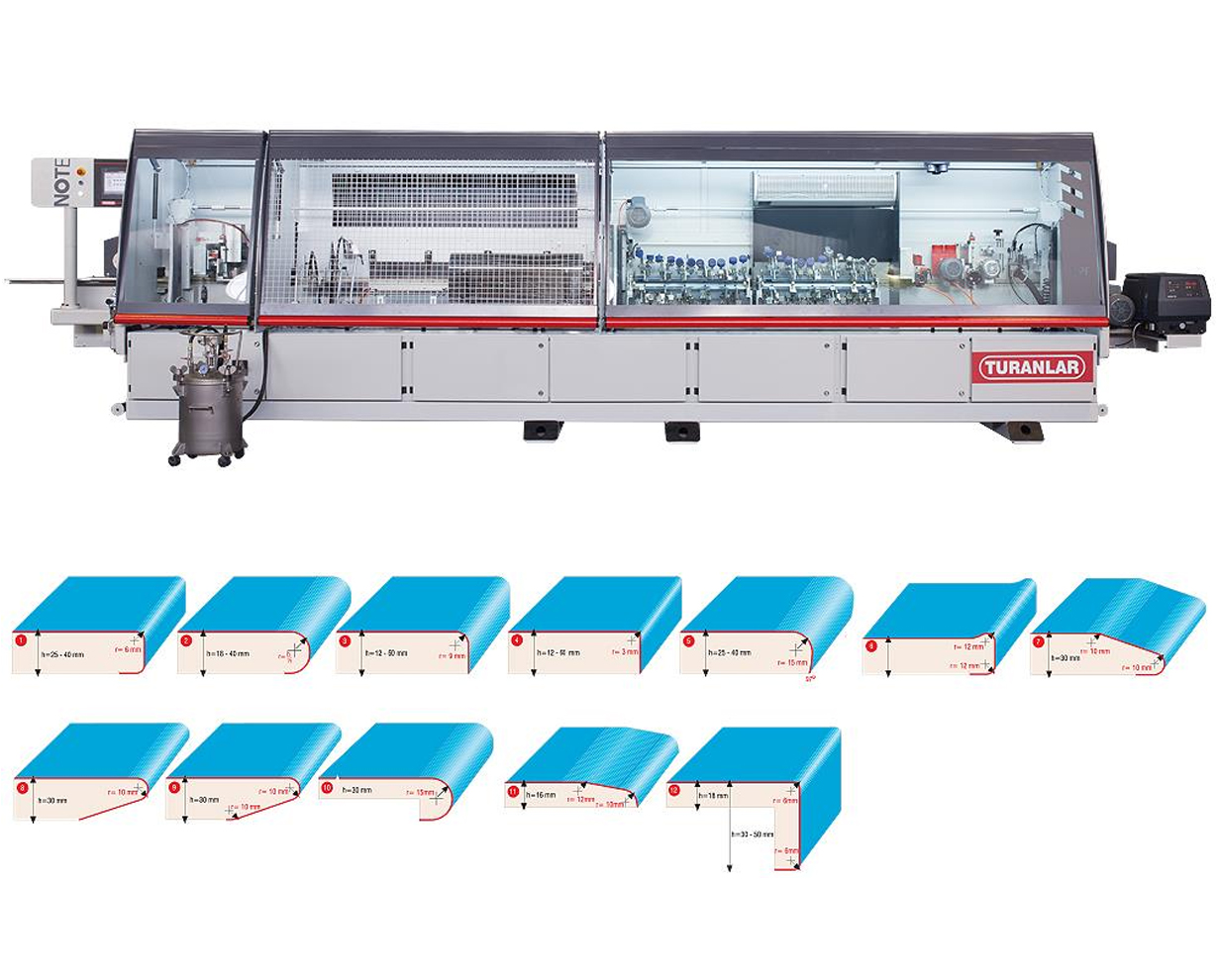

Turanlar Postforming Machine TPF777

• FEATURES

• Top pressure system with belt

• Top pressure system with strong structure that can be adjusted from screen

• Laminate and Primer milling unit

• PVA glue spraying system

• Movable heater unit with reading

• Short-wave infrared glass heaters

• Form pressure roller unit

• Steel cooled form wheels

• Cooling cabinet

• Holt-melt filler glue (standard)

TECHNICAL DATA

• Electrical Level : 400V/ 50Hz

• Speed : 5-20 m/min

• Nominal Current : 70A

• Laminate Thickness : 0.4 - 1mm

• Laminate Height : 80mm

• Total Electric Power : 34kW

• Working Height : 910mm

• Milling Motor : 0.37 kW / 12000rpm

• Grooving Motor : 0.55 kW

• Total Air Pressure : 6 bar

• Dryer Lamp : 4 kW

• Pre Heating Lamp : 3 kw

• Laminate Milling Power : 0.37 kW / 12000rpm

• Primer Milling Power : 1.5 kW / 12000 rpm

• Total Air Use : 100 lt/min

• Dust outfeed dia. : 150mm

• Machine Dimensions : 1200w x 8000Lx 1850H

• Weight : 4450kg
