FEATURES:

Key Benefits

• Durable 5 mm chequered plate top platform

• Seamless truck-to-dock transition with a steel lip

• Precise control with infinite positioning

• Efficient single-acting hydraulic cylinders

• 24V DC control voltage for enhanced safety

• Even load distribution for optimal performance

TECHNICAL SPECIFICATIONS:

• Number of Scissor Arms : One

• Max Capacity of lift table : 6000 Kgs

• Load to Raise/Lower : 6000 Kgs

• Top Platform size : 5000 mm x 2500 mm

• Max height from base frame : 2800 mm

• Closed height : 800 mm

• Stroke / Travelling lift : 2000 mm

• Motor : 7.5 HP - 3 Phase 415 V AC 50 Hz.

• Power Source : 3 PH, 415V + Neutral

• Control Voltage : 24 V DC (For Safety)

• Control type : Push Button

• Top Platform base sheet : 8 mm thick MS Chequered Sheet

• Power Pack Position : Outside of Scissor lift

• Movement / Location : Stationary – Pit Mounted

• Equipment Color : RAL 5017 Traffic Blue

OPERATIONAL SPECIFICATIONS:

• Lifting time / Speed : 50 sec approximate @ 40 mm/sec

• Lowering time / Speed : 50 sec approximate @ 40 mm/sec

• Cycle Time : Customer to specify

• Frequency of Operations per hour : Customer to specify

• Duty Cycle – No. of Shifts : Customer to specify

• Motor Running Type : Non-Continuous

• Circuit Type – for raising and lowering : Inching

• Stopping Accuracy : +/- 5 mm

• Site temperature Max & Min : N/A

• Humidity : N/A

Exclusions

• Installation of equipment: unloading and placing into the pit / factory floor is not our scope of supply.

• Civil and structural work at site is not in our scope of supply.

Available on Request

₹1,550,000.00

₹1,937,500.00

Customize

TEST

ED-S20 5025-6T — Features, Advantages & Benefits + Q&A | Caple Industrial Solutions

Product Intelligence Sheet

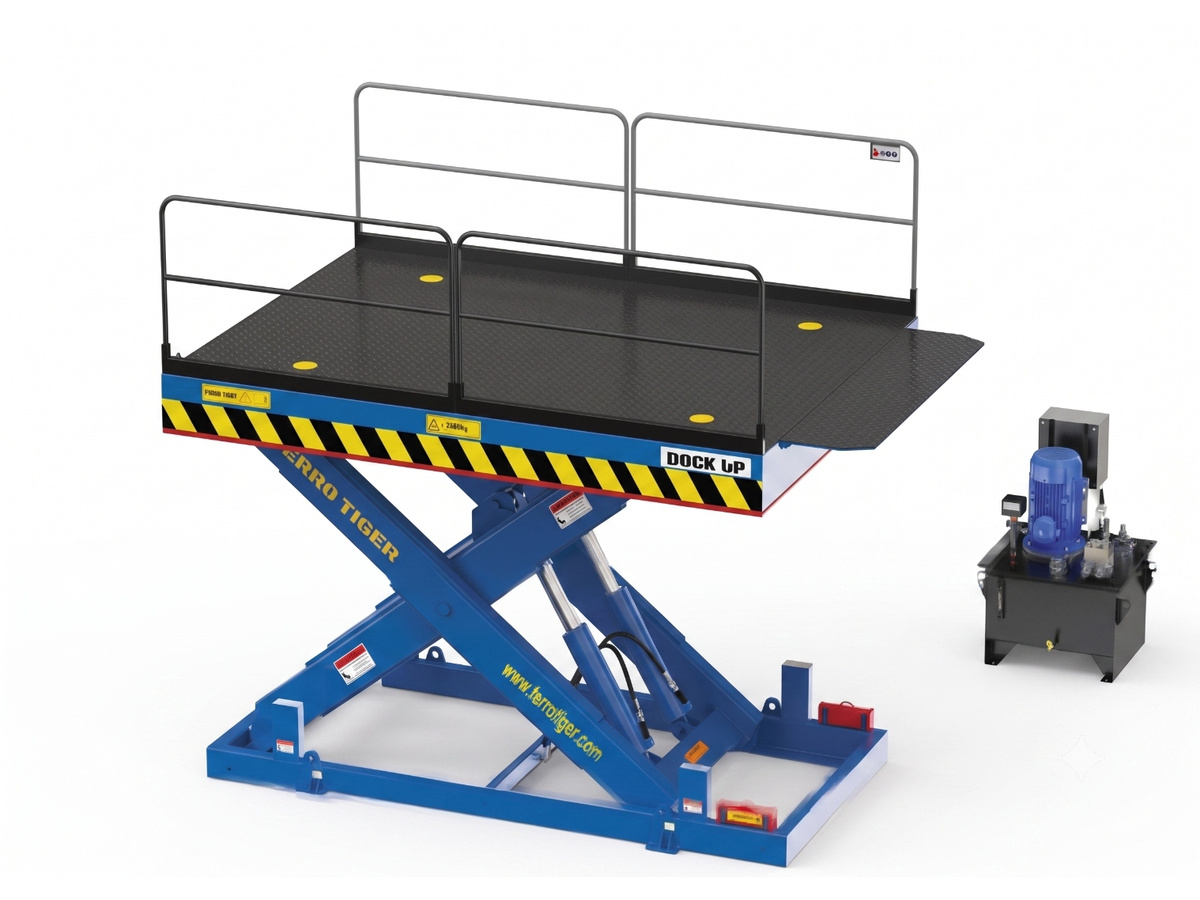

Dock Up Scissor Lift

Name: Ferro Tiger, Scissor Lift as Dock Up for Loading Unloading [ 6000kg | 5000x2500mm | 2000mm Stroke]
Brand: Other Brands
SKU: ED-S20-5025-6T
Price: 1550000.0 INR
Availability: OutOfStock

ED-S20 5025-6T · Ferro Tiger (Ferro Foundries)

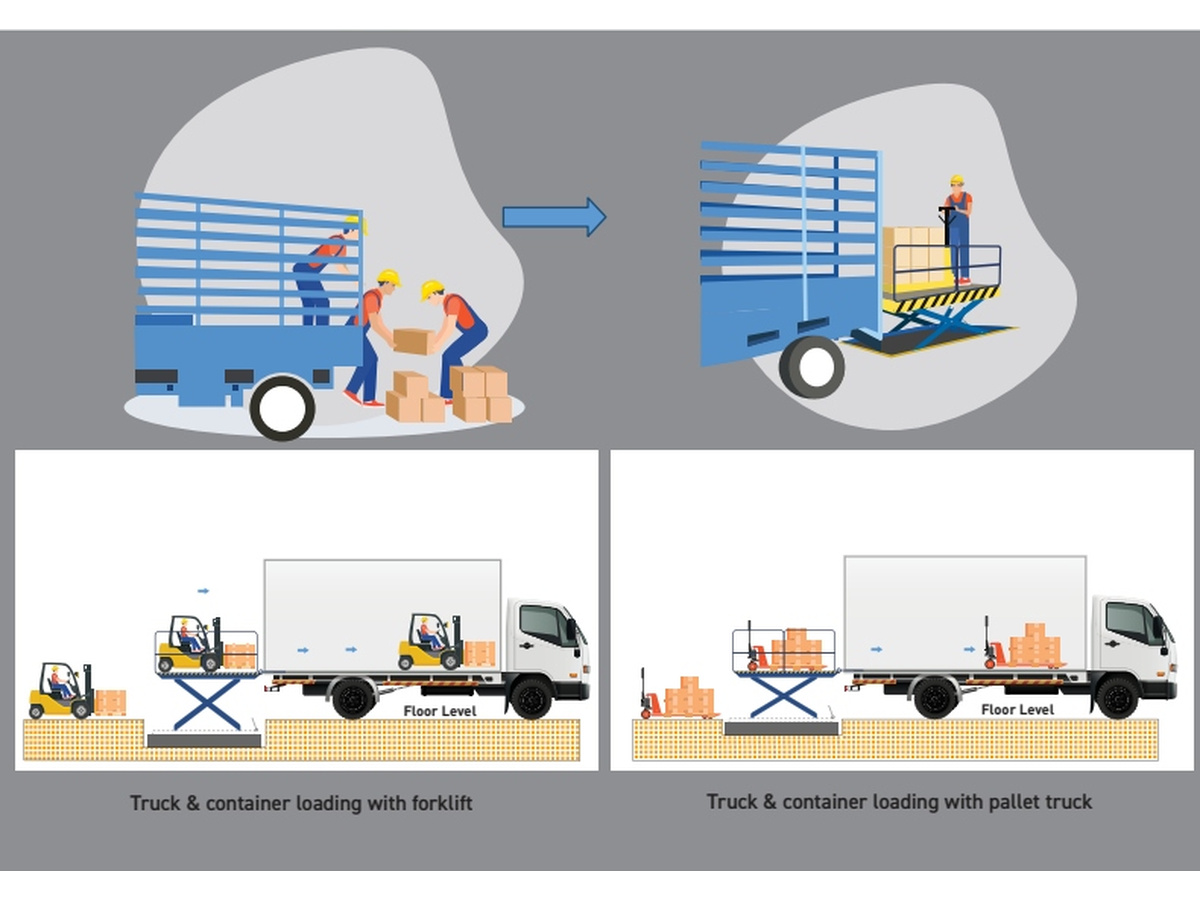

A comprehensive Features · Advantages · Benefits analysis and pre-sales Q&A for the ED-S20 5025-6T pit-mounted, dock-up hydraulic scissor lift — engineered to bring a 6,000 kg platform flush to a loading dock or vehicle bed for fast, safe forklift and pallet-truck loading/unloading of trucks and containers.

Max Capacity

6,000 Kgs

Platform Size

5000 × 2500 mm

Max Height

2800 mm

Motor

7.5 HP, 415V, 3-Ph

Stopping Accuracy

± 5 mm

Warranty

1 Year

FAB Analysis

Features · Advantages · Benefits

Each feature is mapped to a technical advantage and a real customer benefit — use this table in sales conversations, quotations, and proposals.

Feature	Advantage	You Get · You Achieve · You Save
Structural & Lifting Mechanism
Single Scissor Arm Design 2000 mm stroke, 800 mm closed height	A single, heavy scissor arm assembly raises the 5000 × 2500 mm platform smoothly from an 800 mm closed height to 2800 mm — matching the full range of truck and container floor heights.	You get flush dock alignment across a wide range of vehicle bed heights. You achieve a low 800 mm closed height for easy walk-on access when the lift is down. You save on separate ramps or levellers at the dock.
EN8 Pivot Pins & Bronze Bushes Self-aligning spherical bearings on cylinder mounts	Hardened EN8 pins running in bronze bushes, combined with self-aligning cylinder bearings, keep the scissor mechanism synchronized and free of binding even under off-centre loads.	You get smooth, level lifting even with uneven pallet loading. You reduce wear-related downtime and pin replacement frequency.
6,000 kg Rated Capacity Platform 5000 × 2500 mm, 8 mm MS chequered deck	The 8 mm MS chequered top sheet over a reinforced base frame is rated for a full 6-tonne load across the entire 5 m × 2.5 m platform, sized for forklifts, pallet trucks, and loaded pallets together.	You get room to load a forklift and pallet in a single lift cycle. You achieve slip resistance from the chequered deck surface in all weather.
Hydraulic Power & Safety Systems
7.5 HP Hydraulic Power Pack 415V, 3-Phase, positioned outside the lift	The power pack sits outside the scissor mechanism for easy access and servicing, delivering a controlled 50-second full lift/lower cycle at 40 mm/sec.	You get fast, predictable dock cycle times. You save maintenance time with an easily accessible power unit.
Overload Protection & Non-Return Valves Complies with EN1570	The overload protection valve prevents lifting beyond rated capacity, while the non-return valve locks the platform in place if hydraulic pressure is lost or power fails.	You get platform-freeze safety on power failure — no uncontrolled drop. You achieve EN1570-compliant operation for insurance and safety audits. You reduce overload-related equipment damage.
Hose Burst Valve & 350-Bar Hoses Double-wire-braided hose assemblies	The hose burst valve instantly stops platform descent if a hydraulic line fails, while 350-bar rated, double-wire-braided hoses are built for continuous dock-cycle duty.	You get a critical safety fail-safe against sudden hose failure under load. You save on hose replacement frequency with heavy-duty braided construction.
Manual Lowering Valve Mechanical override, no power required	Allows the platform to be lowered safely in a controlled manner even during a power outage or power pack fault, without needing electrical power.	You get a safe way to clear the dock even during a power cut. You reduce operational disruption from utility outages.
Platform & Handling Features
1,100 mm Guard Rails & Toe Guards 100 mm toe guard, both 5000 mm sides	Full-length guard rails with integrated toe guards on both long sides of the platform protect operators and pedestrians while the lift is raised or in motion.	You get compliant fall and toe-trap protection on every cycle. You achieve a safer working environment for dock personnel.
Toe-Trap Prevention Device Standard accessory, both sides	A dedicated mechanical device closes the scissor-arm shear gap as the platform lowers, eliminating the toe/foot entrapment hazard common on open scissor lifts.	You get one of the most common dock-lift injury risks engineered out. You reduce liability and downtime from safety incidents.
Manually Operated Lip Bridges the platform-to-vehicle gap	The lip extends to bridge the gap between the platform and the truck or container floor, letting forklifts and pallet trucks roll straight across without a step or gap.	You get smooth, continuous forklift and pallet-truck travel across the gap. You save on separate dock levellers or bridge plates.
Utilities & Installation Efficiency
24V DC Push-Button Control Guard-rail-mounted station, inching circuit	Low-voltage 24V DC control with an inching (non-continuous) circuit gives the operator precise up/down control and immediate stop-in-place at any height, to ±5 mm accuracy.	You get safer, low-voltage operator controls at the point of use. You achieve precise dock-height alignment on every cycle.
No Compressed Air Required Fully hydraulic operation	Unlike pneumatic dock levellers, the ED-S20 5025-6T runs entirely on its own hydraulic power pack — no compressor, air line, or FRL unit needs to be installed or maintained.	You save on compressed-air infrastructure at the dock. You reduce ongoing compressor maintenance and energy draw.
Pit-Mounted, Stationary Installation Civil pit sized to the platform footprint	Installing the lift flush in a reinforced concrete pit keeps the dock floor level and obstruction-free when the platform is lowered, and Caple's Pre-Installation Checklist confirms every civil and electrical requirement before the engineer arrives.	You get a clean, trip-hazard-free dock floor when not in use. You achieve a right-first-time installation with a pre-confirmed site checklist. You save on installation delays and revisit charges.

Pre-Sales Q&A

Questions & Answers

Common questions from customers, dealers, and project evaluators — answered with Caple precision.

Technical

What is the load capacity and platform size of the ED-S20 5025-6T?

The lift is rated for 6,000 kg across a 5000 × 2500 mm top platform, built with an 8 mm MS chequered deck sheet — large enough to handle a loaded forklift or pallet truck in a single lift cycle.

What height range does the platform cover?

The platform travels from an 800 mm closed height to a 2800 mm maximum raised height — a 2000 mm stroke — covering the full range of truck bed and container floor heights typically found at Indian loading docks.

How is toe-trap and pinch-point risk managed on this scissor lift?

The ED-S20 5025-6T ships standard with a dedicated toe-trap prevention device plus 1,100 mm guard rails with 100 mm toe guards on both 5000 mm sides of the platform, closing off the common shear and entrapment hazards on open scissor mechanisms.

How accurately does the platform stop at dock height?

The 24V DC push-button, inching-type control circuit gives a stopping accuracy of ±5 mm, so the platform can be aligned flush with the vehicle bed on every cycle at a lift/lower speed of 40 mm/sec (approx. 50 seconds for a full stroke).

Electrical & Utilities

What power supply does the ED-S20 5025-6T require?

The hydraulic power pack runs on a 7.5 HP, 415V AC, 3-phase, 50Hz supply, with a 24V DC control circuit for the push-button station. A dedicated MCCB with earth leakage protection and proper earthing are required at the pit location.

Does the ED-S20 5025-6T need a compressed air supply?

No — this is a fully hydraulic dock scissor lift. No compressed air or pneumatic connection is required for normal operation, only for optional pneumatic dock accessories ordered separately.

What civil work is needed before installation?

A reinforced concrete pit (indicatively ~5080 × 2580 × 875 mm, to be confirmed against Ferro Foundries' civil drawing) with M25/C25-30 grade concrete, a ≥300 mm reinforced base slab, floor drainage, and embedded curb angles is required. Caple's Pre-Installation Checklist covers the full civil, electrical, and access requirements.

Commercial & ROI

How does a dock-up scissor lift improve loading/unloading productivity?

By bringing the platform flush with the truck or container floor, forklifts and pallet trucks can drive straight across without ramps, dock levellers, or manual pallet handling — cutting per-vehicle loading/unloading time and reducing handling damage compared to ground-level unloading with a hand pallet truck.

What warranty and after-sales support does Caple provide?

The ED-S20 5025-6T carries a 1-year warranty on structural components and the hydraulic power pack from Ferro Foundries, starting 30 days after invoicing or commissioning, for normal single-shift (8 hr/day) usage. Caple continues to offer after-sales spares and service support beyond the warranty period. Contact: sales@caple.in.

What spares should I keep on-site after installation?

Budget for hydraulic oil, a spare hydraulic seal kit, a spare suction oil filter, a spare solenoid/flow control valve, and one spare 350-bar hose assembly as running spares to minimise downtime between service visits.
