Lamello Divario P-18
| Technical Specifications — Lamello Divario P-18 | |
|---|---|
| P-System groove depth (P-System setting) | P-18 |
| Groove depth | 18 mm |
₹64.00 ₹80.00
₹64.00 ₹80.00
| Technical Specifications — Lamello Divario P-18 | |
|---|---|
| P-System groove depth (P-System setting) | P-18 |
| Groove depth | 18 mm |

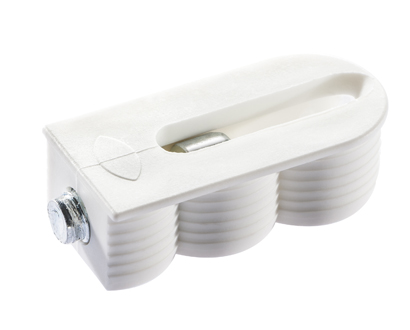

| Technical Specifications — Lamello Cabineo 12 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 13 mm |
| Minimum material thickness for centre wall machining | 24 mm |
| Tensile strength in particle board | 820 N |
| Tensile strength in MDF | 980 N |
| Tensile strength in beech | 2250 N |
| Shear strength in particle board | 880 N |
| Shear strength in MDF | 1120 N |
| Shear strength in beech | 2350 N |
| Clamping force in particle board (19 mm) | ~900 N (~90 kg) |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 12 mm (nickel-plated wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Assembly torque | approx. 2.5 Nm |
| Colours available | White, Black (cover caps in 12 colours) |
| Technical Specifications — Lamello Cabineo 12 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 13 mm |
| Minimum material thickness for centre wall machining | 24 mm |
| Tensile strength in particle board | 820 N |
| Tensile strength in MDF | 980 N |
| Tensile strength in beech | 2250 N |
| Shear strength in particle board | 880 N |
| Shear strength in MDF | 1120 N |
| Shear strength in beech | 2350 N |
| Clamping force in particle board (19 mm) | ~900 N (~90 kg) |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 12 mm (nickel-plated wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Assembly torque | approx. 2.5 Nm |
| Colours available | White, Black (cover caps in 12 colours) |

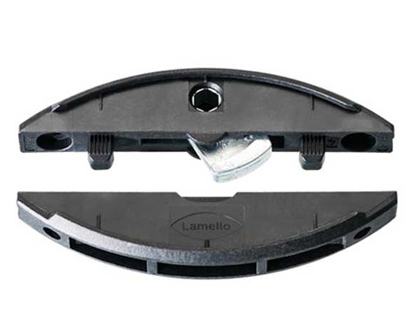

| Technical Specifications — Lamello Clamex P-10 | |
|---|---|
| Installation tolerance longitudinal | ± 0.5 mm |
| Installation tolerance radial | ± 0.5 mm |
| Minimum workpiece width | 65 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 11 mm |
| Minimum material thickness for centre wall machining | 19 mm |
| Minimum material thickness for angle bisector | 15 mm |
| P-System groove depth (P-System setting) | P-10 |
| Tensile strength in particle board | 540 N |
| Tensile strength in MDF | 700 N |
| Tensile strength in beech | 900 N |
| Shear strength in particle board | 420 N |
| Shear strength in MDF | 530 N |
| Shear strength in beech | 1590 N |
| Size (LxWxH) | 52 x 19 x 9.7 mm |
| Access hole diameter | 6 mm |
| Groove depth | 10 mm |
| Technical Specifications — Lamello Cabineo 8 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 9 mm |
| Minimum material thickness for centre wall machining | 16 mm |
| Tensile strength in particle board | 520 N |
| Tensile strength in MDF | 610 N |
| Tensile strength in beech | 1530 N |
| Shear strength in particle board | 530 N |
| Shear strength in MDF | 680 N |
| Shear strength in beech | 1430 N |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 8 mm (black wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Technical Specifications — Lamello Tenso P-14 | |
|---|---|
| Installation tolerance longitudinal | ± 1 mm |
| Installation tolerance radial | ± 1 mm |
| Minimum workpiece width | 75 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 11 mm |
| Minimum material thickness for centre wall machining | 19 mm |
| Minimum material thickness for angle bisector | 18 mm |
| P-System groove depth (P-System setting) | P-14 |
| Clamping force | approx. 35 lbs per connector (155 N) |
| Size (LxWxH) | 66 x 27 x 9.7 mm |
| Strength | Depending on the adhesive |
| Material | Fiberglass reinforced plastic |
| Groove depth | 14 mm |
| Cutter | Ø 100.4 × 7 × 22 mm |

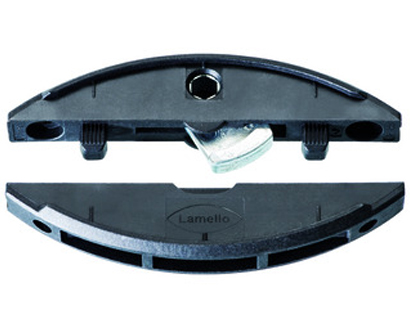

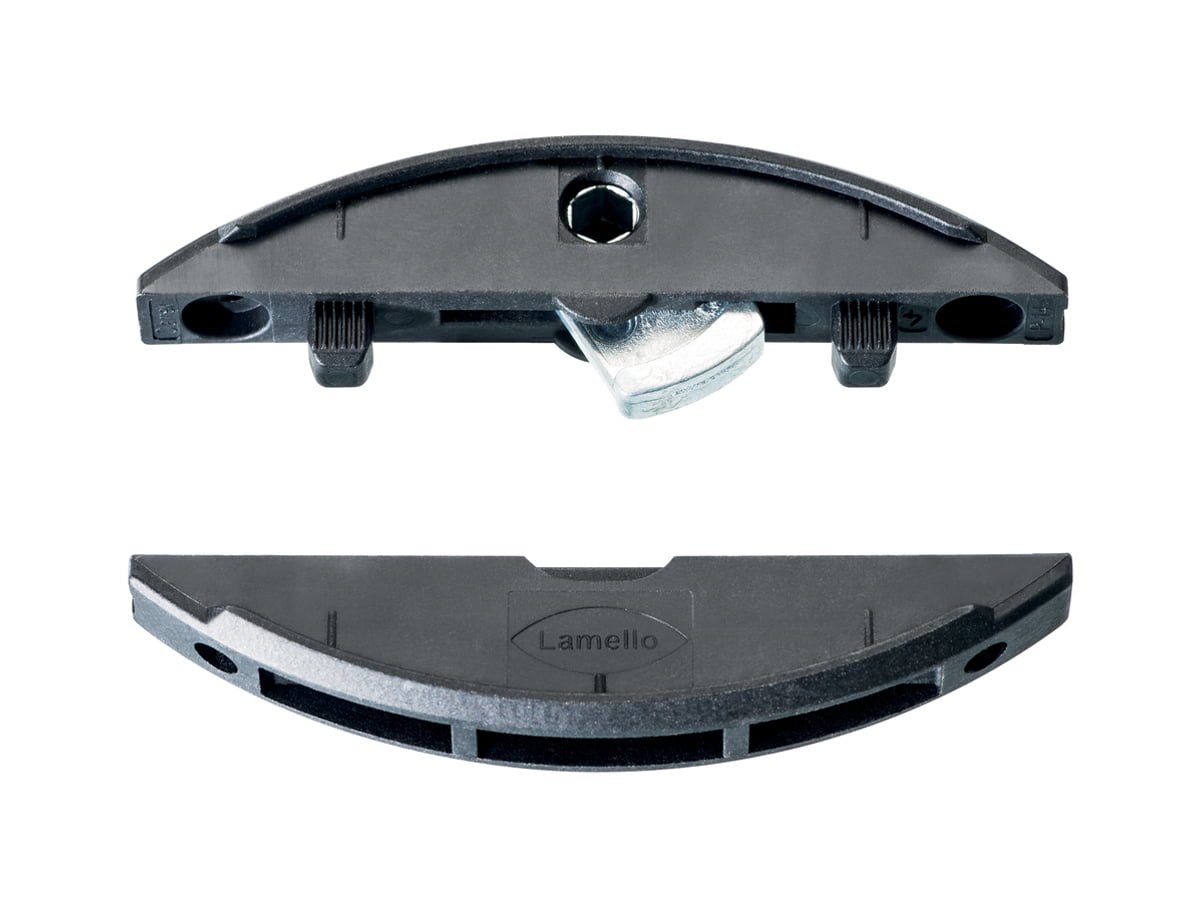

| Technical Specifications — Lamello Clamex P-14 | |
|---|---|
| Installation tolerance longitudinal | ± 1 mm |
| Installation tolerance radial | ± 1 mm |
| Minimum workpiece width | 75 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 15 mm |
| Minimum material thickness for centre wall machining | 29 mm |
| Minimum material thickness for angle bisector | 18 mm |
| P-System groove depth (P-System setting) | P-14 |
| Tensile strength in particle board | 1070 N |
| Tensile strength in MDF | 1210 N |
| Tensile strength in beech | 1870 N |
| Shear strength in particle board | 490 N |
| Shear strength in MDF | 600 N |
| Shear strength in beech | 2940 N |
| Size (LxWxH) | 64 x 27 x 9.7 mm |
| Access hole diameter | 6 mm |
| Material | Fiberglass reinforced plastic |
| Groove depth | 14 mm |
| Technical Specifications — Lamello Tenso P-14 | |
|---|---|
| Installation tolerance longitudinal | ± 1 mm |
| Installation tolerance radial | ± 1 mm |
| Minimum workpiece width | 75 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 11 mm |
| Minimum material thickness for centre wall machining | 19 mm |
| Minimum material thickness for angle bisector | 18 mm |
| P-System groove depth (P-System setting) | P-14 |
| Clamping force | approx. 35 lbs per connector (155 N) |
| Size (LxWxH) | 66 x 27 x 9.7 mm |
| Strength | Depending on the adhesive |
| Material | Fiberglass reinforced plastic |
| Groove depth | 14 mm |
| Cutter | Ø 100.4 × 7 × 22 mm |
| Technical Specifications — Lamello Clamex P-14 | |
|---|---|
| Installation tolerance longitudinal | ± 1 mm |
| Installation tolerance radial | ± 1 mm |
| Minimum workpiece width | 75 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 15 mm |
| Minimum material thickness for centre wall machining | 29 mm |
| Minimum material thickness for angle bisector | 18 mm |
| P-System groove depth (P-System setting) | P-14 |
| Tensile strength in particle board | 1070 N |
| Tensile strength in MDF | 1210 N |
| Tensile strength in beech | 1870 N |
| Shear strength in particle board | 490 N |
| Shear strength in MDF | 600 N |
| Shear strength in beech | 2940 N |
| Size (LxWxH) | 64 x 27 x 9.7 mm |
| Access hole diameter | 6 mm |
| Material | Fiberglass reinforced plastic |
| Groove depth | 14 mm |
| Technical Specifications — Lamello Cabineo 12 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 13 mm |
| Minimum material thickness for centre wall machining | 24 mm |
| Tensile strength in particle board | 820 N |
| Tensile strength in MDF | 980 N |
| Tensile strength in beech | 2250 N |
| Shear strength in particle board | 880 N |
| Shear strength in MDF | 1120 N |
| Shear strength in beech | 2350 N |
| Clamping force in particle board (19 mm) | ~900 N (~90 kg) |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 12 mm (nickel-plated wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Assembly torque | approx. 2.5 Nm |
| Colours available | White, Black (cover caps in 12 colours) |
| Technical Specifications — Lamello Cabineo 12 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 13 mm |
| Minimum material thickness for centre wall machining | 24 mm |
| Tensile strength in particle board | 820 N |
| Tensile strength in MDF | 980 N |
| Tensile strength in beech | 2250 N |
| Shear strength in particle board | 880 N |
| Shear strength in MDF | 1120 N |
| Shear strength in beech | 2350 N |
| Clamping force in particle board (19 mm) | ~900 N (~90 kg) |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 12 mm (nickel-plated wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Assembly torque | approx. 2.5 Nm |
| Colours available | White, Black (cover caps in 12 colours) |
| Technical Specifications — Lamello Zeta P2 | |
|---|---|
| Product weight | 4 kg |
| Maximum machining depth | 20 mm |
| Engine power | 1050 W |
| Rotational speed | 9000 min-1 |
| Milling cutter attachment | Screwed |
| Cutter hub diameter | 22 mm |
| Secondary holes diameter | M4 mm |
| Secondary holes pitch circle diameter | 36 mm |
| Sound pressure level | 81 dB |
| Sound power level | 92 dB |
| Protection class | II |
| Hand arm oscillation | 2.5 m/s2 |
| Cable length | 4 m |
| Milling cutter | Profile groove cutter Ø 100 x 7 x 22 mm, Z3 |
| Cutting depth max | 20 mm |
| Technical Specifications — Lamello Clamex P-14 | |
|---|---|
| Installation tolerance longitudinal | ± 1 mm |
| Installation tolerance radial | ± 1 mm |
| Minimum workpiece width | 75 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 15 mm |
| Minimum material thickness for centre wall machining | 29 mm |
| Minimum material thickness for angle bisector | 18 mm |
| P-System groove depth (P-System setting) | P-14 |
| Tensile strength in particle board | 1070 N |
| Tensile strength in MDF | 1210 N |
| Tensile strength in beech | 1870 N |
| Shear strength in particle board | 490 N |
| Shear strength in MDF | 600 N |
| Shear strength in beech | 2940 N |
| Size (LxWxH) | 64 x 27 x 9.7 mm |
| Access hole diameter | 6 mm |
| Material | Fiberglass reinforced plastic |
| Groove depth | 14 mm |
| Technical Specifications — Lamello Invis Mx2 | |
|---|---|
| Size connector | Ø 12 × 35 mm |
| Size stud (standard) | Ø 12 mm × 14 mm |
| Size stud (long) | Ø 12 mm × 30 mm |
| Size centre-wall stud | Ø 12 mm × 30 mm |
| Required drill hole | Ø 12 mm |
| Maximum distance to edge (for full clamping force) | 9 mm (max. 15 mm) |
| MiniMag rotation speed | 1200–1500 rpm |
| Housing material | Zinc |
| Installation tolerance longitudinal | ± 0.1 mm |
| Clamping force per connector | up to 250 kg (2452 N) |
| Minimum panel thickness | 18 mm (edge cuts) |
| Sold in sets of | 20 pairs |
| Technical Specifications — Lamello Zeta P2 | |
|---|---|
| Product weight | 4 kg |
| Maximum machining depth | 20 mm |
| Engine power | 1050 W |
| Rotational speed | 9000 min-1 |
| Milling cutter attachment | Screwed |
| Cutter hub diameter | 22 mm |
| Secondary holes diameter | M4 mm |
| Secondary holes pitch circle diameter | 36 mm |
| Sound pressure level | 81 dB |
| Sound power level | 92 dB |
| Protection class | II |
| Hand arm oscillation | 2.5 m/s2 |
| Cable length | 4 m |
| Milling cutter | Profile groove cutter Ø 100 x 7 x 22 mm, Z3 |
| Cutting depth max | 20 mm |
| Technical Specifications — Lamello Zeta P2 | |
|---|---|
| Product weight | 4 kg |
| Maximum machining depth | 20 mm |
| Engine power | 1050 W |
| Rotational speed | 9000 min-1 |
| Milling cutter attachment | Screwed |
| Cutter hub diameter | 22 mm |
| Secondary holes diameter | M4 mm |
| Secondary holes pitch circle diameter | 36 mm |
| Sound pressure level | 81 dB |
| Sound power level | 92 dB |
| Protection class | II |
| Hand arm oscillation | 2.5 m/s2 |
| Cable length | 4 m |
| Milling cutter | Profile groove cutter Ø 100 x 7 x 22 mm, Z3 |
| Cutting depth max | 20 mm |
| Technical Specifications — Lamello Zeta P2 | |
|---|---|
| Product weight | 4 kg |
| Maximum machining depth | 20 mm |
| Engine power | 1050 W |
| Rotational speed | 9000 min-1 |
| Milling cutter attachment | Screwed |
| Cutter hub diameter | 22 mm |
| Secondary holes diameter | M4 mm |
| Secondary holes pitch circle diameter | 36 mm |
| Sound pressure level | 81 dB |
| Sound power level | 92 dB |
| Protection class | II |
| Hand arm oscillation | 2.5 m/s2 |
| Cable length | 4 m |
| Milling cutter | Profile groove cutter Ø 100 x 7 x 22 mm, Z3 |
| Cutting depth max | 20 mm |
| Technical Specifications — Lamello Zeta P2 | |
|---|---|
| Product weight | 4 kg |
| Maximum machining depth | 20 mm |
| Engine power | 1050 W |
| Rotational speed | 9000 min-1 |
| Milling cutter attachment | Screwed |
| Cutter hub diameter | 22 mm |
| Secondary holes diameter | M4 mm |
| Secondary holes pitch circle diameter | 36 mm |
| Sound pressure level | 81 dB |
| Sound power level | 92 dB |
| Protection class | II |
| Hand arm oscillation | 2.5 m/s2 |
| Cable length | 4 m |
| Milling cutter | Profile groove cutter Ø 100 x 7 x 22 mm, Z3 |
| Cutting depth max | 20 mm |
| Technical Specifications — Lamello Cabineo 8 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 9 mm |
| Minimum material thickness for centre wall machining | 16 mm |
| Tensile strength in particle board | 520 N |
| Tensile strength in MDF | 610 N |
| Tensile strength in beech | 1530 N |
| Shear strength in particle board | 530 N |
| Shear strength in MDF | 680 N |
| Shear strength in beech | 1430 N |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 8 mm (black wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Technical Specifications — Lamello Cabineo 8 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 9 mm |
| Minimum material thickness for centre wall machining | 16 mm |
| Tensile strength in particle board | 520 N |
| Tensile strength in MDF | 610 N |
| Tensile strength in beech | 1530 N |
| Shear strength in particle board | 530 N |
| Shear strength in MDF | 680 N |
| Shear strength in beech | 1430 N |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 8 mm (black wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Technical Specifications — Lamello Cabineo 12 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 13 mm |
| Minimum material thickness for centre wall machining | 24 mm |
| Tensile strength in particle board | 820 N |
| Tensile strength in MDF | 980 N |
| Tensile strength in beech | 2250 N |
| Shear strength in particle board | 880 N |
| Shear strength in MDF | 1120 N |
| Shear strength in beech | 2350 N |
| Clamping force in particle board (19 mm) | ~900 N (~90 kg) |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 12 mm (nickel-plated wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Assembly torque | approx. 2.5 Nm |
| Colours available | White, Black (cover caps in 12 colours) |
| Technical Specifications — Lamello Cabineo 12 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 13 mm |
| Minimum material thickness for centre wall machining | 24 mm |
| Tensile strength in particle board | 820 N |
| Tensile strength in MDF | 980 N |
| Tensile strength in beech | 2250 N |
| Shear strength in particle board | 880 N |
| Shear strength in MDF | 1120 N |
| Shear strength in beech | 2350 N |
| Clamping force in particle board (19 mm) | ~900 N (~90 kg) |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 12 mm (nickel-plated wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Assembly torque | approx. 2.5 Nm |
| Colours available | White, Black (cover caps in 12 colours) |
| Technical Specifications — Lamello Cabineo 8 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 9 mm |
| Minimum material thickness for centre wall machining | 16 mm |
| Tensile strength in particle board | 520 N |
| Tensile strength in MDF | 610 N |
| Tensile strength in beech | 1530 N |
| Shear strength in particle board | 530 N |
| Shear strength in MDF | 680 N |
| Shear strength in beech | 1430 N |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 8 mm (black wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Technical Specifications — Lamello Cabineo 8 | |
|---|---|
| Installation tolerance longitudinal | ± 0.1 mm |
| Installation tolerance radial | ± 0 mm |
| Minimum workpiece width | 21 mm |
| Minimum material thickness for edge cuts | 12 mm |
| Minimum material thickness for surface cuts | 9 mm |
| Minimum material thickness for centre wall machining | 16 mm |
| Tensile strength in particle board | 520 N |
| Tensile strength in MDF | 610 N |
| Tensile strength in beech | 1530 N |
| Shear strength in particle board | 530 N |
| Shear strength in MDF | 680 N |
| Shear strength in beech | 1430 N |
| Size (LxWxH) | 33.8 x 10.8 x 16.5 mm |
| Screw length | 8 mm (black wood screw) |
| Housing material | Fiberglass reinforced plastic |
| Required drill | Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole |
| Technical Specifications — Lamello Divario P-18 | |
|---|---|
| P-System groove depth (P-System setting) | P-18 |
| Groove depth | 18 mm |
Caple Industrial Solutions is a Skill Ambassador for FFSC (ffsc.in), helping mobilise, train and place freshers in India’s woodworking, furniture manufacturing and modular interiors industry.
Caple Industrial Solutions · Est. 1974
Authorised Nanxing distributor and dealer in India, authorised Lamello dealer in India, and authorised India dealer for HBW, Bessey, Kuper, Orma, IMOS and MAS — supplying CNC routers, beam saws, edge banders, nesting machines, CNC drilling machines and joinery systems to furniture manufacturers and OEM production lines nationwide.
Caple previously served as a regional dealer for Jai Industries, Homag India, Altendorf and SCM Group. Caple began by selling Festool and as a Häfele dealer, and later became Festool's import partner in India. We no longer represent these brands, but we continue to import Festool consumables and spare parts to support existing customers. All third-party brand names are trademarks of their respective owners.
Mon–Sat · 10:00 AM – 7:00 PM IST
© 2026 Caple Industrial Solutions. All rights reserved.
GST-registered supplier of industrial woodworking machinery and factory solutions in India.
