Woodworking Machines Edge Banding Machines Manual Edge Banders & Trimmers Curvilinear Edge Bander DTMAC DT-10XZ

TECHNICAL DATA:

- Voltage : 220V/50Hz/1phase

- Total Power : 6.2kw

- Air Pressure : 0.5-0.8Mpa

- Glue Pot : 2800ml

- Glue Pot Temperature : 110-210°C

- Speed : 0-24cm/s

- Strips Width : 12-70mm

- Strips Thickness : 0.5-3mm

- Size : 1010×800×1100mm

- Edge Banding Assembly : Oblique straight, with micro switch

- Cutting : Limit switch triggers automatic strip cut when board reaches set position

- Bonding : Hot air assisted edge banding for stronger bonding

- Pressure Unit : Detachable 45° beveled straight pressure unit

- Cutter Assembly : Brand new, compact structure, good cutting flatness effect

- Fluent Strip : Widened, extends 0-45cm outward for large plates

- Walking Board : New type, anti-reversal, suitable for edge banding width up to 7cm

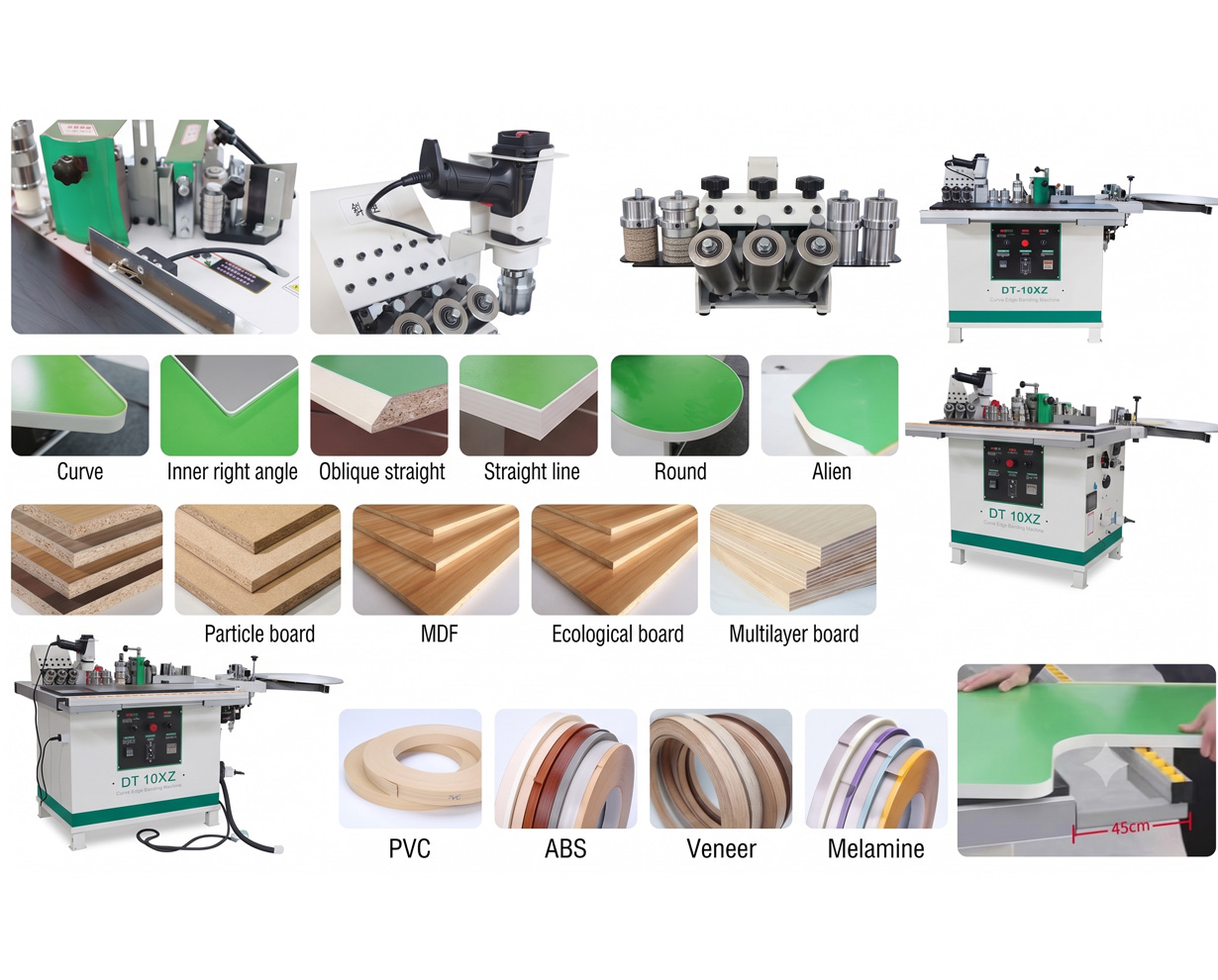

- Applicable Profiles : Curve, inner right angle, oblique straight, straight line, round, alien

- Applicable Boards : Particle board, MDF, ecological board, multilayer board, Osong board, high gloss board

- Applicable Edge Banding Materials : PVC, ABS, veneer, melamine

Available on Request

₹180,000.00

₹225,000.00

Customize

TEST

DT-10XZ — Features, Advantages & Benefits + Q&A | Caple Industrial Solutions

Product Intelligence Sheet

Curve Edge Banding Machine

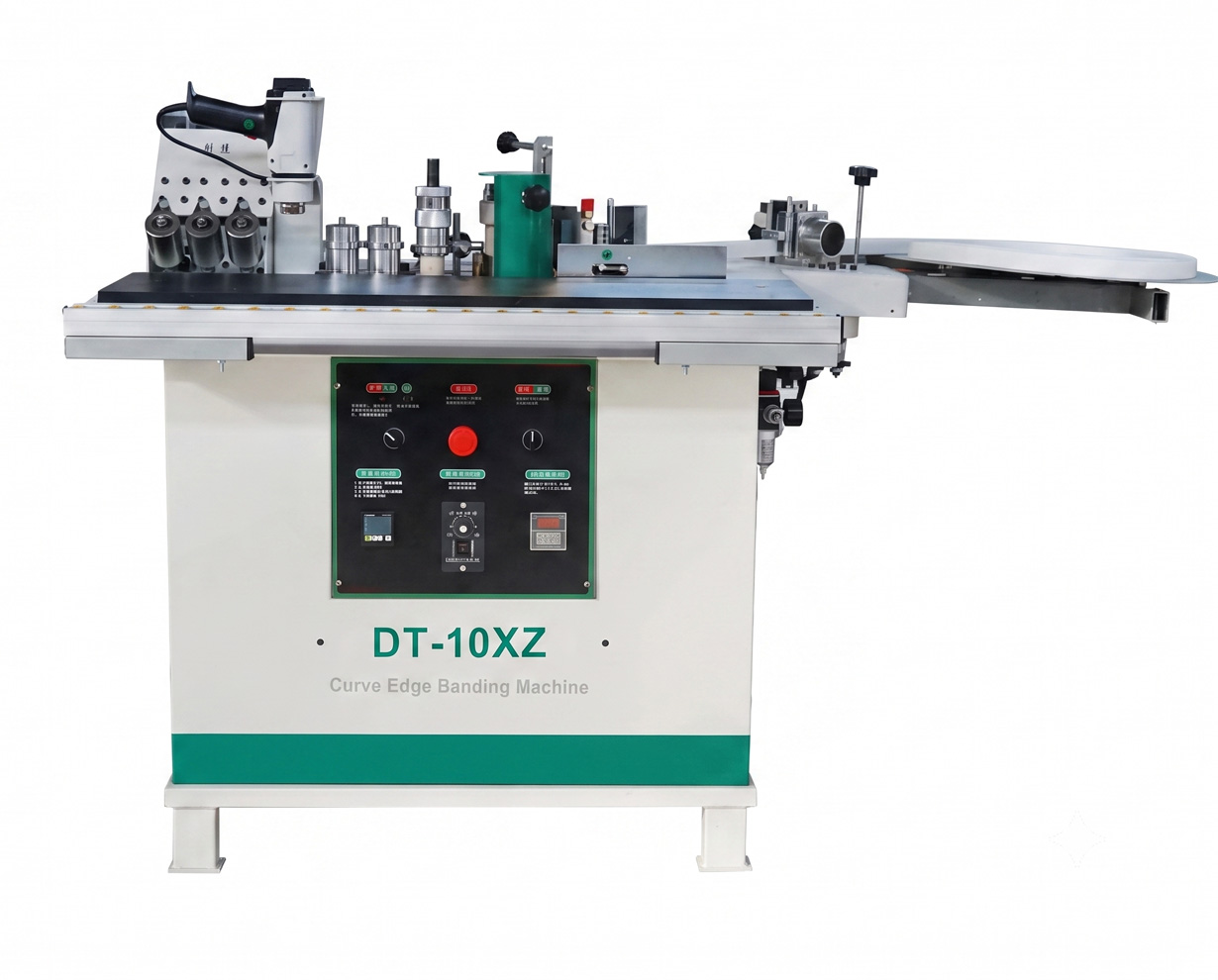

Name: Curvilinear Edge Bander DTMAC DT-10XZ
Brand: caple.in
SKU: DT-10XZ
Price: 180000.0 INR
Availability: OutOfStock

DT-10XZ · DTMACH (Shandong Dongteng Machinery)

A comprehensive Features · Advantages · Benefits analysis and pre-sales Q&A for the DT-10XZ Curve Edge Banding Machine — a compact, single-phase machine built for banding curved, oblique, round, and irregular ("alien") profile edges as well as straight lines, on particle board, MDF, ecological board, multilayer board, Osong board, and high-gloss board using PVC, ABS, veneer, or melamine strip.

Voltage

220V / 50Hz / 1-Phase

Total Power

6.2 kW

Edge Feed Speed

0–24 cm/s

Glue Pot

2800 ml, 110–210°C

Strip Width / Thickness

12–70mm / 0.5–3mm

Warranty

1 Year

FAB Analysis

Features · Advantages · Benefits

Each feature is mapped to a technical advantage and a real customer benefit — use this table in sales conversations, quotations, and proposals.

Feature	Advantage	You Get · You Achieve · You Save
Profile Versatility & Edge Assembly
Oblique Straight Edge Banding Assembly Integrated micro switch sensor guide	Guides and bands boards along oblique straight lines and curved contours using a dedicated pivoting assembly, complementing the machine's ability to also run straight, round, and irregular ("alien") profile edges.	You get one machine that bands curve, oblique, round, straight-line, and irregular profile parts. You achieve accurate strip tracking on non-straight edges without manual guide changes. You save the cost of a separate specialist machine for curved or odd-shaped parts.
Widened Fluent Strip Extends 0-45 cm outward	The outfeed support strip extends outward to support large panels as they exit the machine, preventing sagging or misalignment when sealing oversized boards.	You get reliable support for larger panels up to 45 cm beyond the table edge. You reduce the risk of panel drop or edge misalignment on big-format boards.
Precision Cutting & Bonding
Limit Switch Triggered Cut-Off Auto-trigger at designated board position	As the board moves to the designated position, the limit switch automatically triggers the strip cutter — removing the need for manual judgement on when to cut.	You get a consistent, repeatable cut length on every panel. You reduce strip wastage from early or late manual cutting.
Hot Air Assisted Edge Banding Pre-heats strip and glue line before pressing	Warms the banding strip and glue line with hot air immediately before pressing, improving glue activation and bond strength compared with cold pressing alone.	You achieve a stronger, more durable bond between strip and panel edge. You reduce edge-lifting or peeling complaints after installation.
Finishing & Pressure Control
Detachable 45° Beveled Straight Pressure Unit Quick-release pressure head	A dedicated pressure unit presses the strip flush along 45° beveled and straight edges, and detaches quickly when switching over to curved-profile work.	You get flush, gap-free bonding on both beveled and straight edges. You save changeover time switching between straight and curved-profile jobs.
Brand New Cutter Assembly Compact structure, improved cutting flatness	A redesigned, more compact cutter assembly delivers a flatter, cleaner trim at the strip ends compared with older cutter designs.	You get a cleaner, flatter edge cut with less manual touch-up. You reduce blade jams and cutting defects on thicker strip stock.
Utilities & Compact Footprint
Single-Phase 220V / 6.2 kW Drive 220V / 50Hz / 1-phase — no 3-phase wiring needed	Runs on standard single-phase power (220V, 50Hz) rather than requiring a 3-phase industrial connection, simplifying electrical installation for smaller workshops.	You save on electrical infrastructure cost — no 3-phase supply required. You get a machine that fits into smaller workshops without special wiring.
New-Type Anti-Reversal Walking Board Supports strip widths up to 7 cm	A redesigned walking board mechanism prevents the edge banding strip from reversing or slipping backward during feed, supporting strip widths up to 7 cm (70 mm).	You get reliable, consistent feed even with the full 70 mm strip width. You reduce feed jams and strip backing-out mid-run.

Pre-Sales Q&A

Questions & Answers

Common questions from customers, dealers, and project evaluators — answered with Caple precision.

Technical

Q

What edge profiles can the DT-10XZ band?

The DT-10XZ bands curve, inner right angle, oblique straight, straight line, round, and irregular ("alien") profile edges on furniture panels, using its oblique straight edge banding assembly and micro switch guide system.

Q

What strip widths and thicknesses does it support?

Strip width from 12–70 mm and thickness from 0.5–3 mm, covering standard PVC, ABS, veneer, and melamine edge banding stock.

Q

What board materials can be processed?

Particle board, MDF, ecological board, multilayer board, Osong board, and high-gloss board can all be run through the DT-10XZ.

Q

How does the machine ensure a strong bond?

Hot air assisted edge banding pre-warms the glue line before pressing, and the 2800 ml glue pot runs at 110–210°C, giving a stronger bond than cold pressing alone.

Electrical & Utilities

Q

What power supply does the DT-10XZ require?

220V AC, 50 Hz, single-phase supply, with a total connected load of 6.2 kW — no 3-phase connection needed, which simplifies installation in smaller workshops.

Q

Does the DT-10XZ need compressed air?

Yes — the pneumatic actuators require 0.5–0.8 MPa working pressure via a dedicated 3/8-inch air line fitted with a filter-regulator-lubricator (FRL) unit.

Q

What is the machine's footprint and weight?

Overall dimensions are 1010 × 800 × 1100 mm and the packed weight is approximately 180 kg* — compact enough for small-to-medium workshops. *Indicative for the DT-10XZ machine class; Caple will confirm the exact figure against the final packing list.

Commercial & ROI

Q

How does the DT-10XZ improve productivity compared to hand-held edge banding?

Hand-held edge banding involves separate heating, applying, trimming, and sanding steps for every panel. The DT-10XZ's limit switch triggered cut-off, hot air assisted bonding, and pressure unit combine gluing, banding, and cutting into one guided pass, letting one operator run higher panel volumes with a more consistent bond.

Q

What warranty and after-sales support does Caple provide?

The DT-10XZ carries a 1-year warranty covering manufacturing defects in components and workmanship, with spare parts provided free of charge for non-human factors during that period. After the warranty period, Caple continues to offer after-sales solutions and spares support. Contact: sales@caple.in.

Q

What consumables should I plan for after installation?

Budget for ongoing EVA hot-melt glue, PVC/ABS/veneer/melamine edge strip stock (12–70 mm width), and periodic replacement of the edge banding cutter and pressure rollers as running spares to keep the line at full output.
