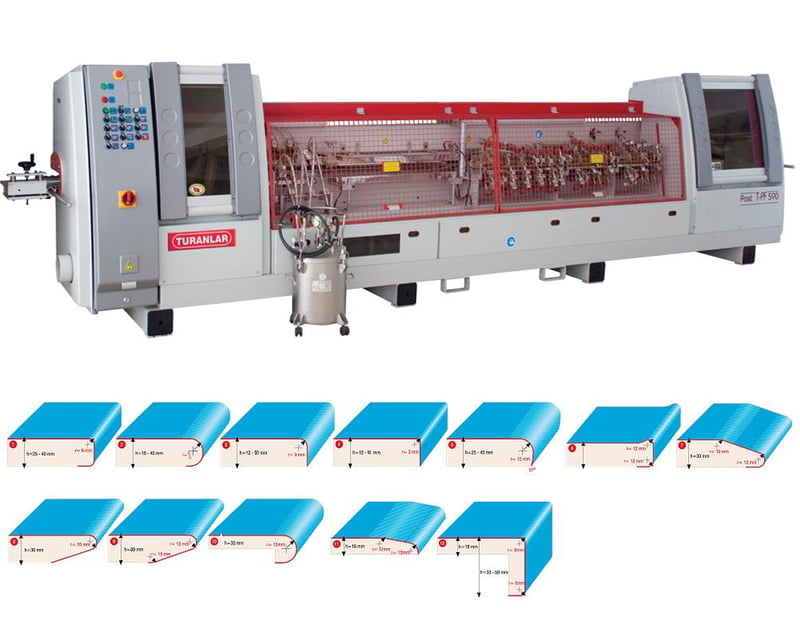

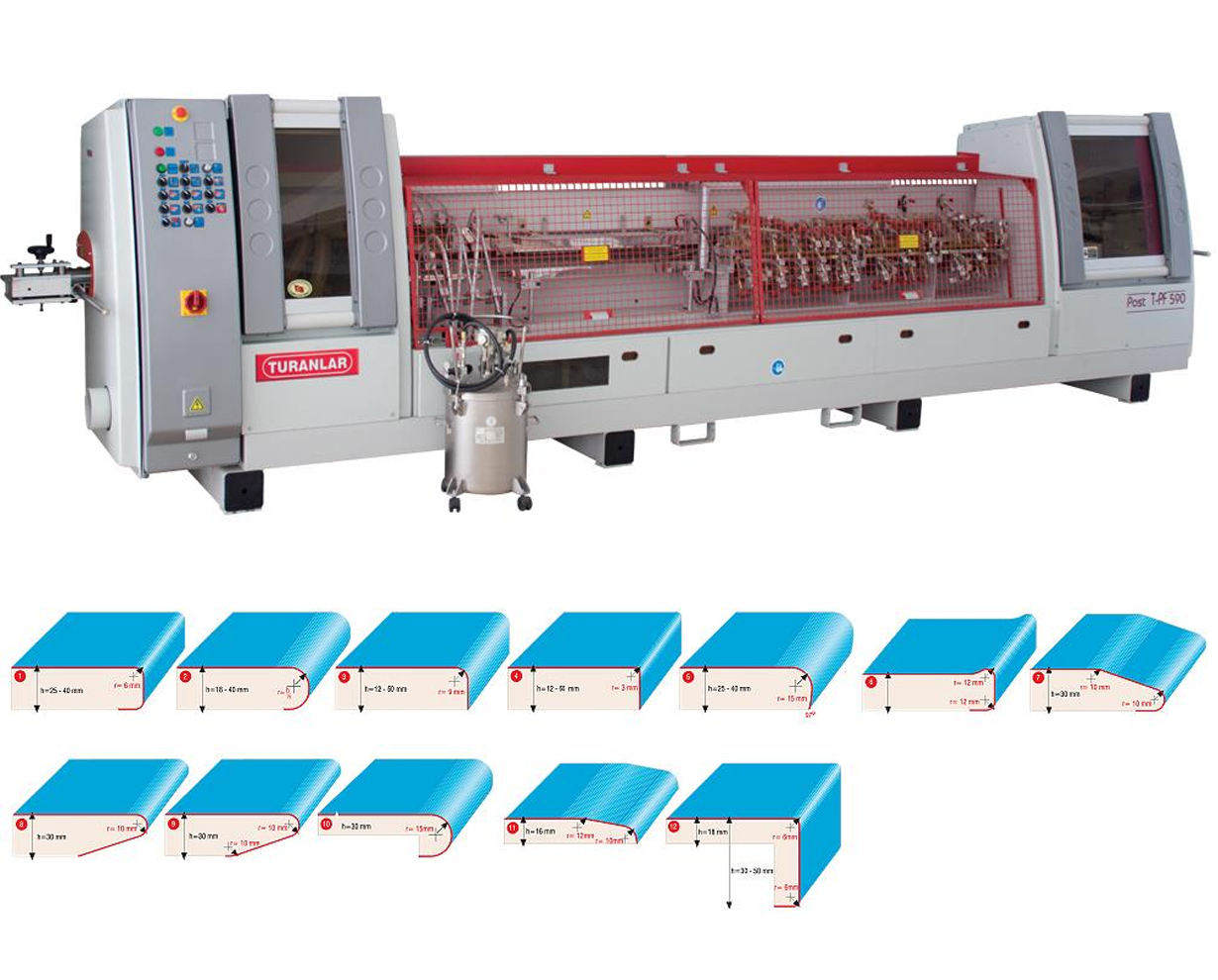

Turanlar Postforming Machine TPF590
₹10,150,000.00 ₹12,687,500.00
Warranty
12 Months Country of origin
Turkey YouTube Video 1
https://youtu.be/QD1n9d6SIhk?si=pO-_SIDUZKCqZzQP GST Extra
18% Available on Request
• FEATURES
• Laminate and Primer milling unit
• PVA glue spraying system
• Heaters unit
• Short-wave infrared glass heaters
• Form pressure roller unit
• Steel cooled form wheels
TECHNICAL DATA
• Electrical Level : 400V/ 50Hz
• Speed : 0-18 m/min
• Nominal Current : 57A
• Laminate Thickness : 0.4 - 1mm
• Laminate Height : 70mm
• Total Electric Power : 27kW
• Working Height : 870mm
• Milling Motor : 0.37 kW / 12000rpm
• Grooving Motor : 0.55 kW
• Total Air Pressure : 6 bar
• Dryer Lamp : 2 kW
• Laminate Milling Power : 0.37 kW / 12000rpm
• Primer Milling Power : 1.5 kW / 12000 rpm
• Total Air Use : 52 lt/min
• Dust outfeed dia. : 150mm
• Machine Dimensions : 920w x 6500Lx 1600H
• Weight : 2640kg
