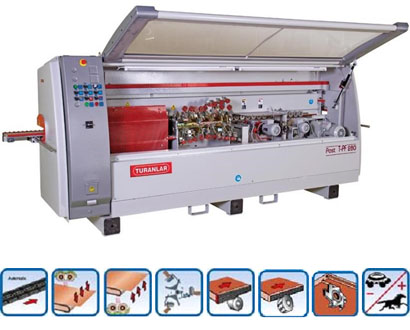

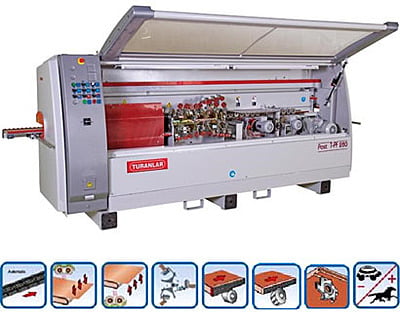

Through Feed Postforming machine TPF280
₹3,450,000.00 ₹4,312,500.00
Available on Request
• FUNCTION
• Heater unit
• Middle wave glass heaters
• Form pressure roller unit
• Steel cooled form wheels
• Milling
• Grooving
• Buffing
TECHNICAL DATA
• Electrical Level : 400V 50Hz 16A
• Speed : 0 - 12 m/min
• Laminate Thickness : 0.4 - 1mm
• Laminate Height : 70mm
• Total Power : 7.6kW
• Working Height : 870mm
• Milling Motor : 0.37kW / 12000rpm
• Grooving Motor : 0.55kW
• Buffing Motor : 0.18kW
• Dust outfeed diameter : 150mm
• Machine Dimentions : 920mm x 4000mm x 1600mm
• Machine Weignt : 1600kg
