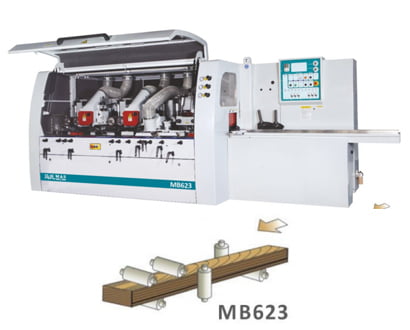

Four-Side Moulder MB623

TECHNICAL DATA

• Number of spindle: 6

• Spindle speed: 6000rpm

• Spindle Diameter: �40mm

• Feeding Speed: 6~30m/min

• Working Width: 20-230mm

• Working Thickness: 8-160mm

• First bottom Spindle Cutting Circles(Min-Max):�108-�145

• Right side Spindle Cutting Circles(Min-Max):�108-�200

• Left side Spindle Cutting Circles(Min-Max):�108-�200

• First Top Spindle Cutting Circles(Min-Max):�108-�200

• Second Top Spindle Cutting Circles(Min-Max):�108-�200

• Second bottom Spindle Cutting Circles(Min-Max):�108-�200

• First bottom Spindle Motor powers? 5.5kw/7.5Hp

• Right side Spindle Motor powers?5.5kw/7.5Hp

• Left side Spindle Motor powers?5.5kw/7.5Hp

• First Top Spindle Motor powers?7.5kw/10Hp

• Second Top Spindle Motor powers?5.5kw/7.5Hp

• Second bottom Spindle Motor powers?7.5kw/10Hp

• Feed Motor powers:4Kw/5.5Hp

• Feed beam rise &fall Motor powers:1.1Kw/1.5Hp

• Total Power: 42.1kw

• Overall Dimensions:4660x1720x1730mm
