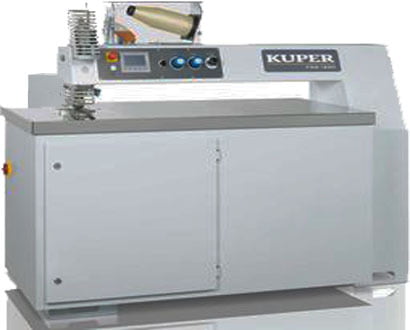

KUPER VENEER SPLICING MACHINE FWS-1250

FEATURES

• 149650 : Veneer Splicing Machine (0,4 - 2,0 mm)

• 127963 : Recommended Initial Operation for FWM 920 For the joining of veneers from about 0,3 - 3,0 mm. ADVANTAGES :

• NEW: Customized User Interface

• intuitive work, as with all KUPER machines

• etremely fast and precise ideal for industrial production

• user friendly PL-Control

• tight joints, strong adhesion and tear resistance are guaranteed, also for extremely wavy veneers

• touchpanel to control the main functions: heating

• power in standstill and operating mode

• pneumatical lifting of the glueing head

• disc drive with tolerance compensating mechanism

• start function via optical light sensor

• pneumatically driven thread break-off roller

• maintenance friendly

TECHNICAL DATA

• Throath depth : 1250 mm

• Feed speed 4 steps approx. : 15, 30, 45 and 60 m/min.

• Veneer thickness approx. : 0,3 - 3,0 mm

• Operation voltage standard : 400 V, 3 Ph, 50 cycl

• Total connection load approx. : 1.80 kVA

• Space required : 1870 x 720 x 1580 mm
