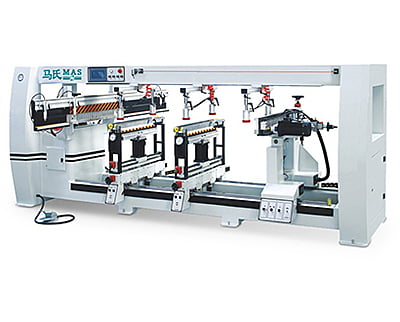

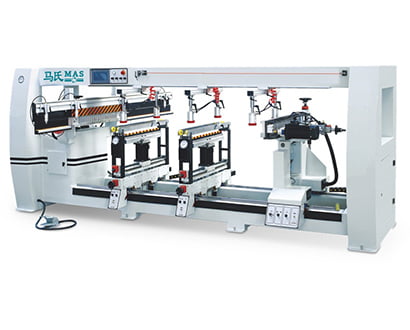

Four-head boring machine MZ73214FJ

TECHNICAL DATA

• Max. Drilling Dia:Max.=35mm D=13mm

• Max. Drilling Depth: 50mm

• Total Number Of Spindle: 21x4 (Right Boring head can turn up 90°)

• Installion Dia of drill bit shaft: 10mm

• Max.Center Distance between holes: L Max. xB Max.=2450mmx640mm

• Min.Center Distance between holes: L Min.x B Min.=220mmx32mm

• Max.Processing Length:2450mm

• Min.Processing Length:220mm

• Panel Thickness:8-80mm

• Spindle Speed: 2840 rpm

• Total power: 6kw

• Overall Dimension: 3800x2300x1650mm

• Weight: Approx.1100KG
