SPECIFIC FEATURES
- Innovative veneer infeed system with transport discs and
tolerance compensation mechanism for offset-free jointing
- Low-maintenance, energy-saving and veneer-protecting
high-performance plastic chains (good sliding characteristics,
hardly any heat conduction and no discoloration).
- 12 mm narrow, chrome-coated heating rails ensure low stress
on the veneers due to shrinkage and significantly reduced
energy requirements
- Intelligent, automatic energy management for standby and
run mode
- Intuitive control panel with all important functions at
a glance, parameter memory
INCLUDES each 1PC

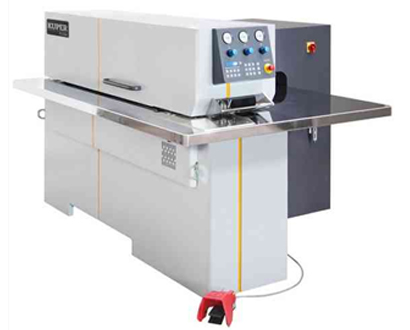

0164700: KUPER FLI 1000 Veneer Splicing Machine
0163920: Glue Cooling for KUPER FLI
TECHNICAL DATA
Throat depth: 1000 mm
Veneer thickness: Approx. 0.35 - 2.5 mm
Minimum veneer length: Approx. 300 mm
Minimum veneer width: Approx. 35 mm
Feed speed: Infinitely variable from 12 - 55 m/min**
Operating voltage: 400 V, 50 Hz, 3 Phase + N + PE
Total connected load: 4.1 kVA
Air consumption: Approx. 5 NL/min at 6 bar
* Subject to material tests, depending on the wood species and micro and/or thick veneer package (optional).
** Applicable only without the micro veneer and thick veneer packages (optional).Read less
