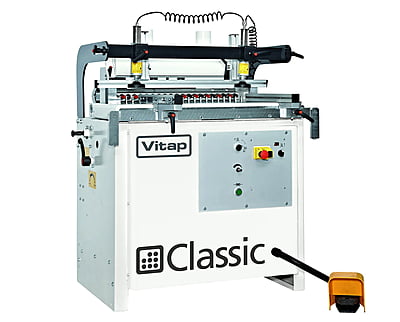

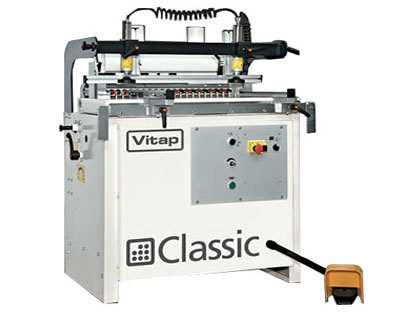

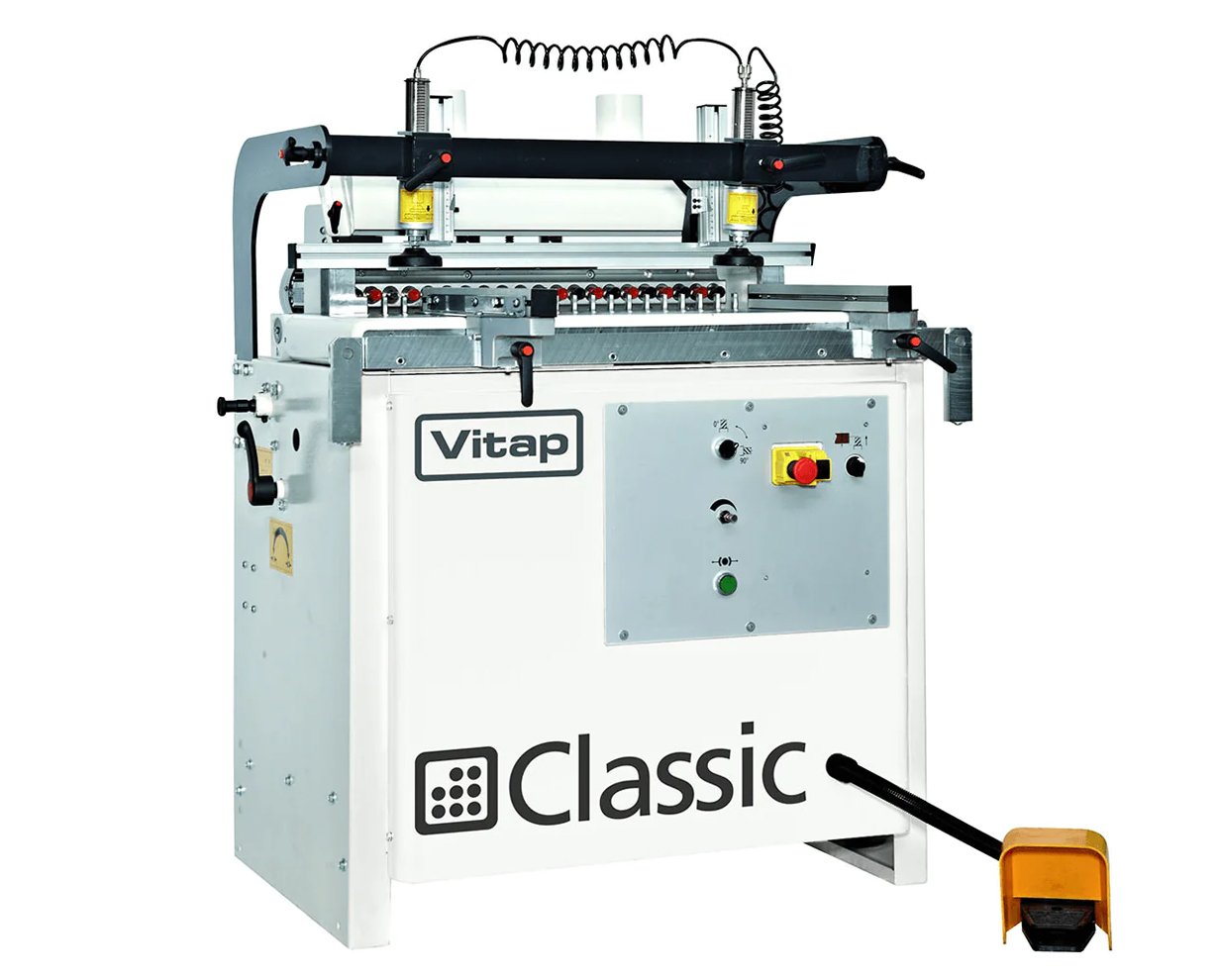

Vitap Single Head Boring Alfa 21 Classic

TECHNICAL DATA

• Quick Change Spindles

• Pn.Cylinder for Horizontal/Vertical Positioning

• Front Top Caliper

• Tilting Side Stops Adjustable by metric scale

• 2 Safety Clamps Inclined 4 degrees

• Mechanical Digital Position Indicator

• 6 Position Turret to adjust the Drilling Depth ( 8-80mm )

• Automatic Vertical-Horizontal Depth Difference Device (10mm)

• Drilling Speed Adjustment from Panel Control

• Strengthened Steel Structure for Tilting of the Boring Group

• 1.5 kW Motor

• Start/Stop Electro-pneumatic Circuit by Foot Pedal

• 1500mm x 2 Profile Aluminum Bar Length complete with4 Stops,

• Rapid Chuck Suitable to Receive Bits with Cylindrical attachment diam. 10mms

• Packaging with Heavy Cardboard on Wooden Pallet.
