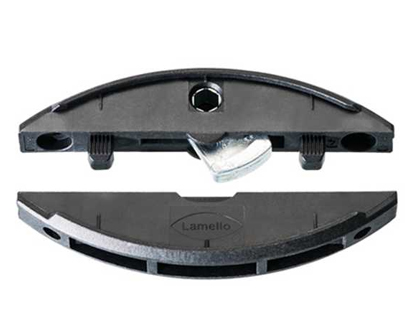

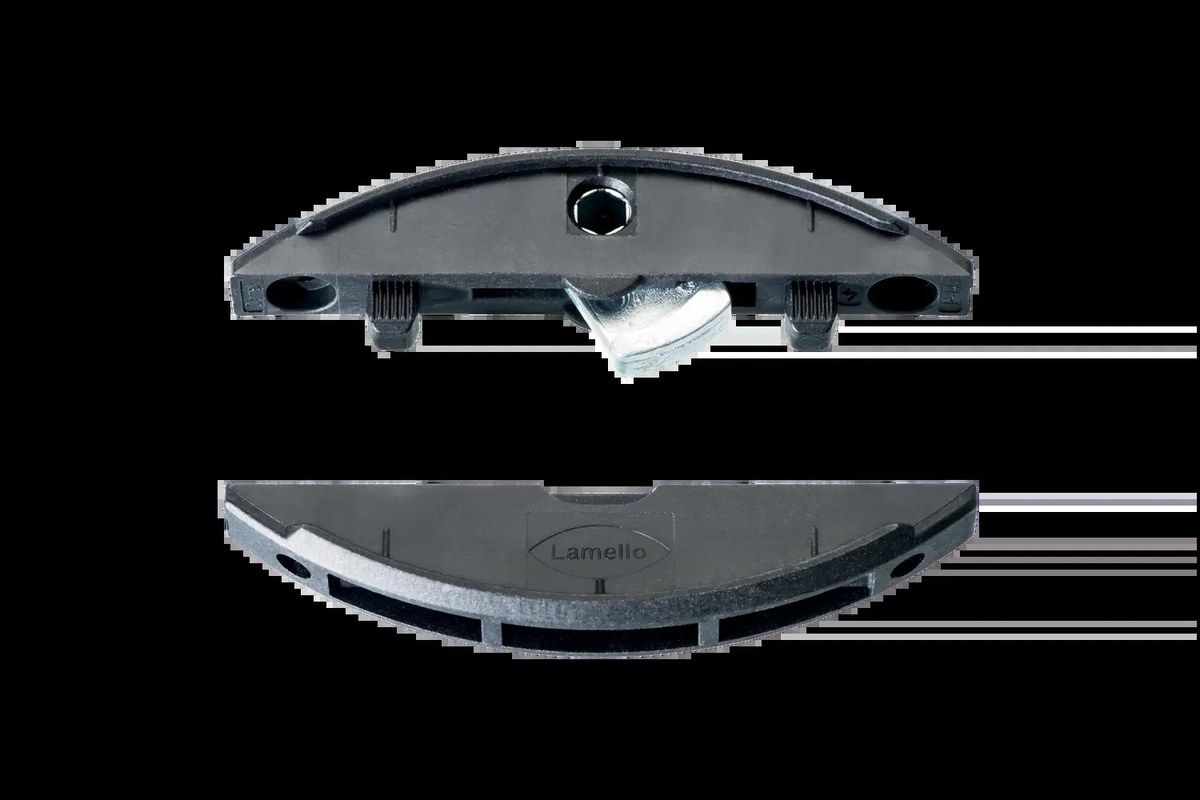

Name: Lamello Clamex P-14
Brand: Lamello
SKU: 145356-LS
Price: 84.0 INR
Availability: InStock

Power Tools & Hand Tools Power Tool - Accessory & Consumables Lamello Clamex P-14

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹84.00

₹105.00

Customize

Choose Quantity :

View Details

TEST

Lamello Clamex P-14 — Inspiration & Application

FEATURE — ADVANTAGE — BENEFIT
Feature / Fact	Advantage (So what?)	Benefit (You get / You save)
QUALITY
Detachable furniture connector — can be...	Detachable furniture connector.	can be assembled and disassembled multiple times.
Connected and released using a lever...	Connected and released using a lever through a minimalist 6 mm access hole (similar to a cam connector).	Delivers Swiss-engineered Lamello performance on every cut.
Near-invisible joint aesthetics — 6 mm...	Near-invisible joint aesthetics.	6 mm access hole is almost completely concealed.
No adhesive required — ideal for...	No adhesive required.	ideal for flat-pack furniture, transport and on-site assembly.
Compatible with butt joints and mitre...	Compatible with butt joints and mitre joints at almost any angle (22.5° to 180°).	Delivers Swiss-engineered Lamello performance on every cut.
Eliminates waiting times — assembled workpiece...	Eliminates waiting times.	assembled workpiece can be further processed or shipped immediately.
Can be used as a gluing...	Can be used as a gluing aid for difficult-to-clamp workpieces.	Delivers Swiss-engineered Lamello performance on every cut.
Stackable — no protruding parts that...	Stackable.	no protruding parts that damage flat-pack workpieces during transport.
PRODUCTIVITY
Anchored in the form-locking P-System groove...	Anchored in the form-locking P-System groove in seconds.	no tools required for installation.
Groove made with Zeta P2 biscuit...	Groove made with Zeta P2 biscuit joiner or CNC machining centre.	Delivers Swiss-engineered Lamello performance on every cut.
