Wide profile shaped sanding machine

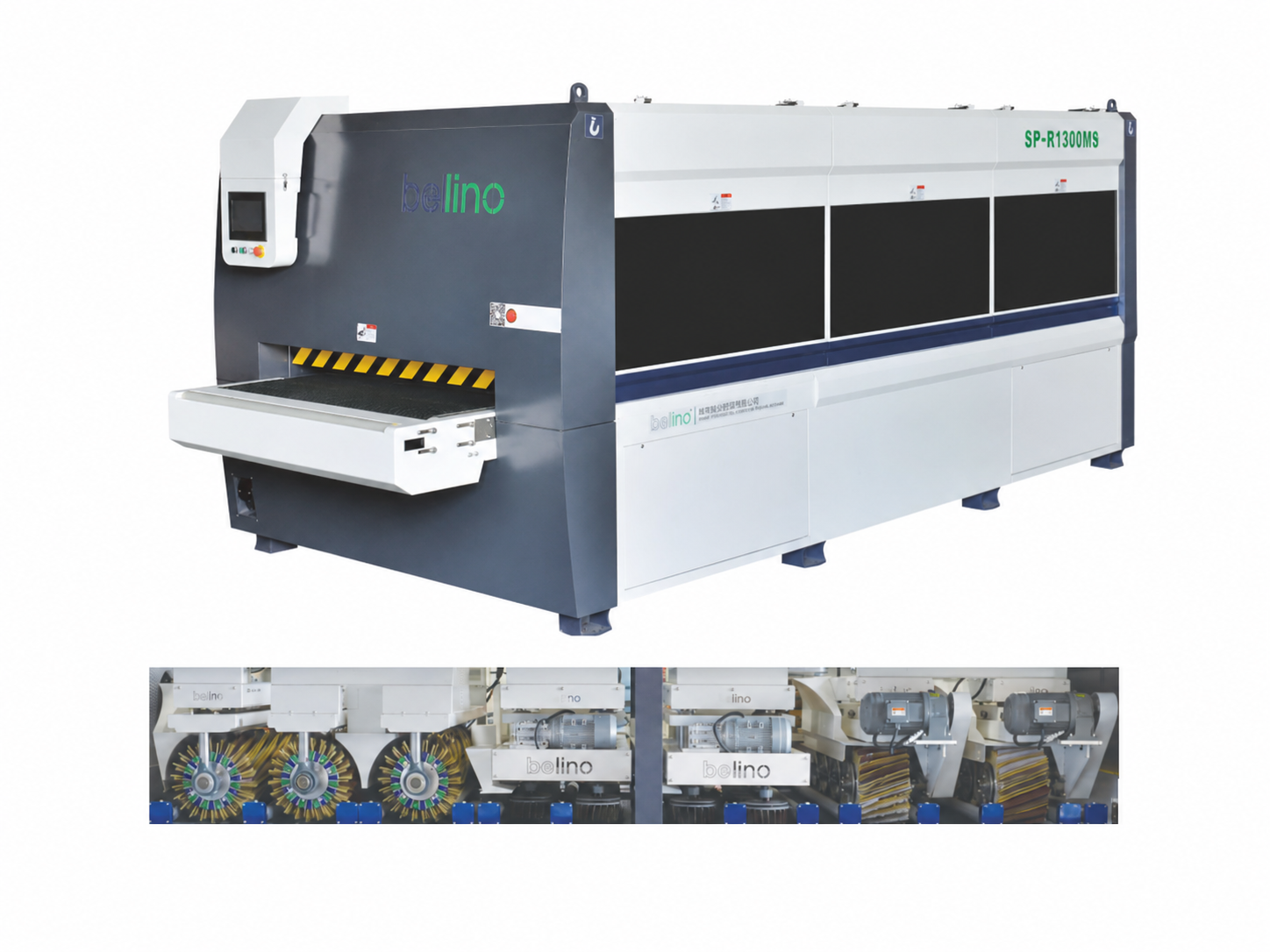

Belino SP-R1300M9: consistent sanding across flat and contoured components
A heavy-duty, 1,300 mm wide profile sanding machine for raw-material and primer sanding of solid wood, MDF and veneer components used in doors, windows, kitchens and custom furniture.
Machine configuration: 3 spiral rollers, 4 round pads, 2 multi-rollers, round-pad swing and 17.25 kW total/main power.
1,300 mmMaximum processing width
10–130 mmProcessing thickness
1–12 m/minVariable feed speed
5 × Ø200 mmDust-extraction outlets
Features, advantages and benefits
How the SP-R1300M9 improves sanding quality and production control
Each machine feature below is connected to its practical production advantage and the measurable benefit it can create for furniture and component manufacturers.
Multi-unit sanding configuration
FeatureThree spiral rollers, four round pads and two multi-roller units combine different sanding actions in one machine.
AdvantageFlat areas, edges, profiles and contoured surfaces can be processed in a coordinated pass.
BenefitReduces manual rework and helps deliver a more consistent surface before coating or finishing.
Independently adjustable sanding units
FeatureSpeed, oscillation and vertical position can be adjusted independently for the sanding units.
AdvantageSettings can be matched to the material, profile shape and required sanding intensity.
BenefitImproves process repeatability while reducing over-sanding, under-sanding and avoidable material loss.
PLC touch-screen control
FeaturePLC control manages machine movement, sanding-unit lifting, oscillation and operating speed.
AdvantageOperating data and repeatable settings can be managed from one control point.
BenefitShortens setup time between jobs and makes the machine easier to operate consistently across shifts.
Variable 1–12 m/min feed speed
FeatureThe conveyor feed can be adjusted from 1 to 12 metres per minute.
AdvantageOperators can balance surface quality and throughput for different materials and finishing stages.
BenefitSupports controlled primer sanding as well as productive raw-material sanding without relying on one fixed speed.
1,300 mm wide processing capacity
FeatureProcesses components up to 1,300 mm wide and 10–130 mm thick, with a minimum length of 400 mm.
AdvantageAccommodates a broad mix of doors, panels, shutters, frames and furniture components.
BenefitAllows manufacturers to handle more product sizes on one sanding platform and reduce dependence on separate machines.
Heavy-duty frame and stable conveyor
FeatureA rigid machine structure is paired with a thick, durable conveyor belt and an 850 mm working height.
AdvantageProvides stable workpiece feeding during continuous production.
BenefitSupports consistent sanding contact, dependable operation and longer conveyor service life.
Slide-out round-pad units
FeatureRound-pad units can be pulled outward to access and replace abrasives.
AdvantageAbrasive changes are more convenient and require less access inside the machine.
BenefitReduces routine changeover effort and helps return the machine to production sooner.
Integrated dust-sweeping unit
FeatureA final sweeping unit removes residual sanding dust from the panel surface.
AdvantageComponents leave the sanding process cleaner before coating, painting or veneer-related operations.
BenefitHelps reduce cleaning effort and supports a cleaner, more reliable finishing process.
Recommended applications
Suitable products and materials
- Solid-wood doors, windows, frames and moulded components
- MDF cabinet shutters, kitchen fronts and furniture panels
- Veneered panels requiring controlled pre-finish sanding
- Raw-material sanding before primer or coating
- Primer sanding between finishing stages
- Custom furniture parts with flat and contoured surfaces
Frequently asked questions
SP-R1300M9 questions answered
What is the Belino SP-R1300M9 used for?
It is used for raw-material and primer sanding of flat, profiled and contoured components made from solid wood, MDF and veneered panels. Typical applications include doors, windows, kitchen cabinets and custom furniture parts.
What is the maximum working width?
The maximum processing width is 1,300 mm. The machine handles workpieces from 10 to 130 mm thick, with a minimum processing length of 400 mm.
Which sanding units are included?
The SP-R1300M9 configuration includes three spiral rollers, four round pads, two multi-roller units and a round-pad swing system.
Can it sand both raw material and primer-coated components?
Yes. The machine is designed for raw-material sanding and primer sanding. The sanding-unit and feed settings should be selected according to the material, coating system, profile and required finish.
Can the sanding units be adjusted separately?
Yes. Individual sanding units can be adjusted for speed, oscillation and vertical position, allowing the process to be matched to different profiles and surface requirements.
What is the machine's feeding speed?
The conveyor feeding speed is adjustable from 1 to 12 m/min, enabling operators to balance sanding quality and production throughput.
What electrical supply is required?
The stated supply is 415 V, 50 Hz, three phase, with 17.25 kW total/main power. Final protection, cable sizing and voltage-stabilisation requirements must be confirmed from the machine nameplate, electrical diagram and site conditions by a qualified electrical contractor.
What dust-extraction connections are required?
The machine has five dust-extraction outlets of Ø200 mm each. The extraction system and ductwork should be engineered for the required combined airflow and static pressure rather than selected by outlet diameter alone.
How large and heavy is the SP-R1300M9?
The machine measures approximately 5,330 × 2,200 × 2,100 mm and weighs approximately 5,200 kg. The installation floor, access route and unloading equipment must be planned accordingly.
Does Caple provide installation and operator training?
Installation and training scope should be confirmed with Caple for the specific order. For effective commissioning, customers should keep representative raw materials ready and make two designated operators available for hands-on training.
Specifications are based on the supplied SP-R1300M9 technical sheet and may be updated by the manufacturer. Confirm final specifications, utilities and scope before ordering.
