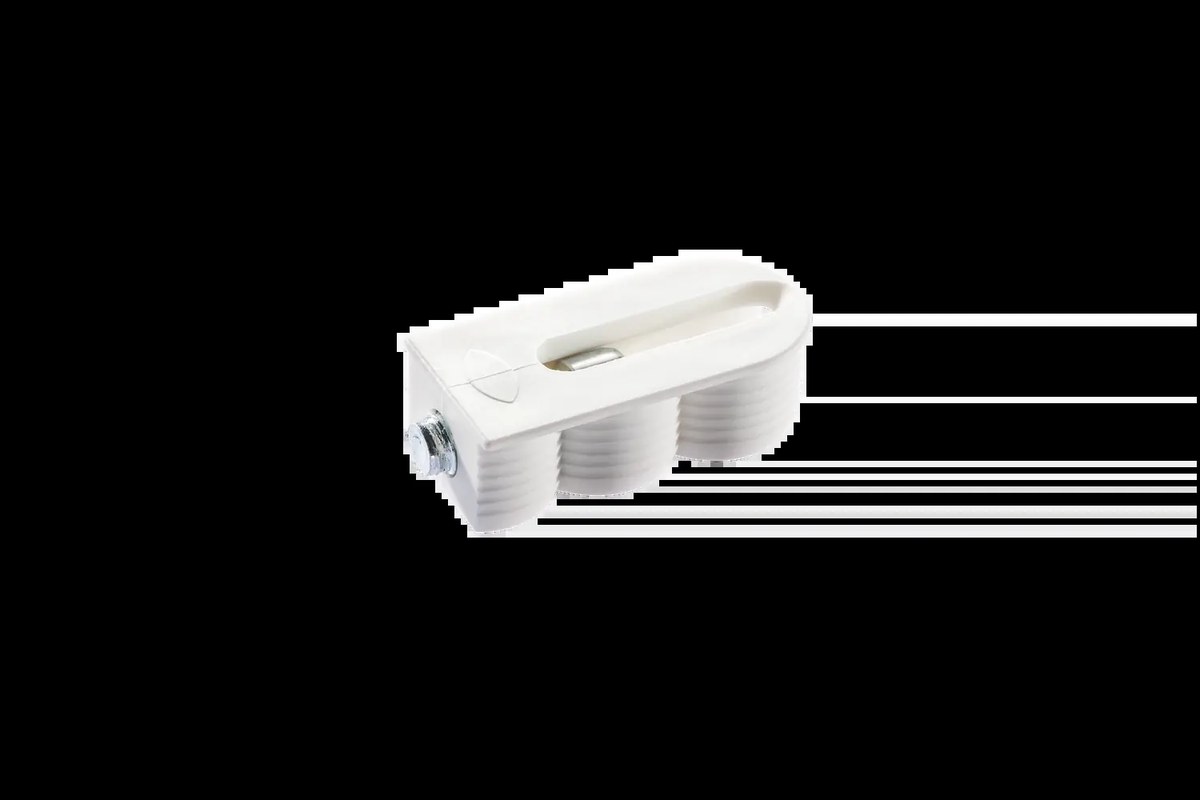

Lamello Cabineo 12 [1 PCS]

Name: Lamello Cabineo 12 [1 PCS]
Brand: Lamello
SKU: 186321-LS
Price: 40.0 INR
Availability: InStock

₹40.00 ₹50.00

Warranty

Not Applicable

Country of origin

Switzerland

YouTube Video 1

https://www.lamello.com/product/bohrenfraesen-verbinder/cabineo-8-cabineo-12/

GST Extra

18%

• Technical Information

• Size (mm): 33.8 x 16.5 x 10.8 mm

• Cutter: Dia. 12 mm or smaller

• Drill: Dia. 5 mm and Dia. 15 mm

• Material connector: Fibreglass reinforced plastic

• Installation tolerance: Longitudinal /- 0.1 mm

• Tensile strength: max 90 kg

Choose Quantity

+ Add to Cart

TEST

Drilling System Connector (Cabinet Connector)

Lamello Cabineo 12

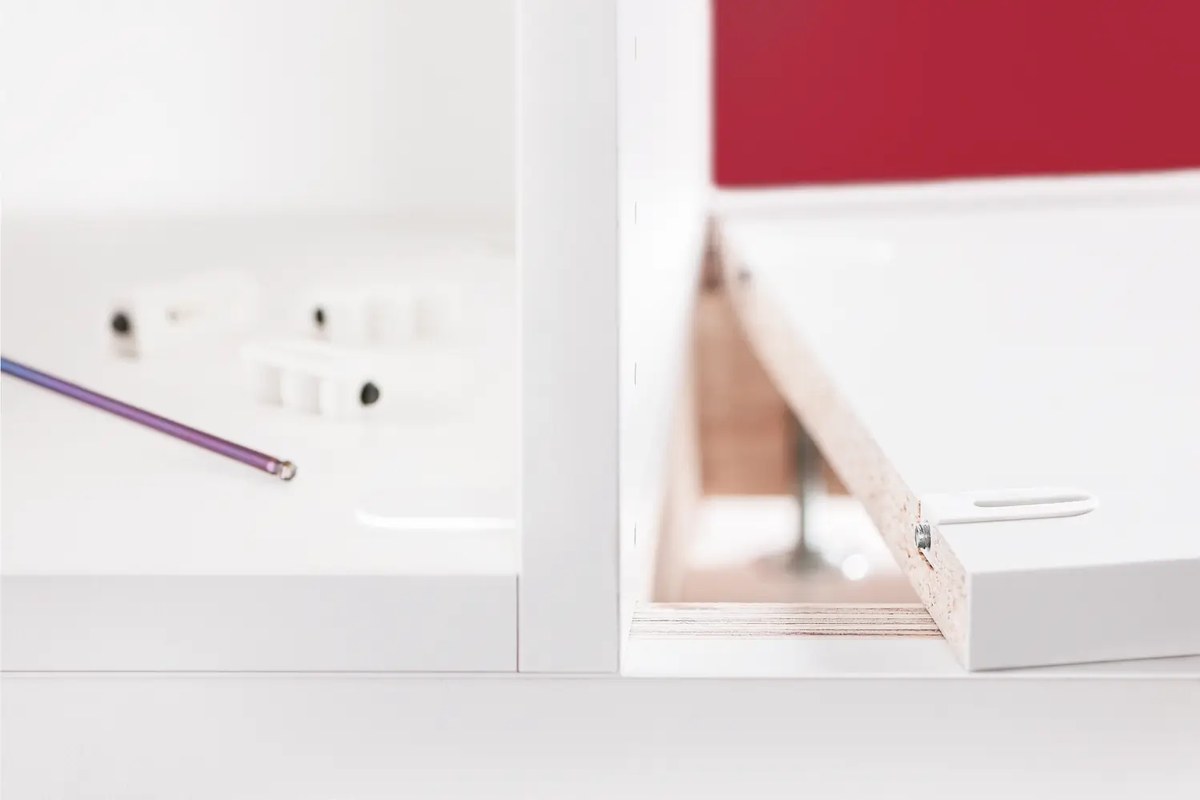

One-piece, pre-assembled cabinet connector for corner joints — no edge drilling required

Installation tolerance longitudinal

± 0.1 mm

Installation tolerance radial

± 0 mm

Minimum workpiece width

21 mm

Minimum material thickness for edge cuts

12 mm

Minimum material thickness for surface cuts

13 mm

Minimum material thickness for centre wall machining

24 mm

Watch It In Action

Cabineo 8 M6 in cabinetry

Why Lamello Cabineo 12

One-piece, pre-assembled cabinet connector for corner joi…

One-piece, pre-assembled cabinet connector for corner joints — no edge drilling required

Pure surface machining — works with all CNC machines incl…

Pure surface machining — works with all CNC machines including simple 3-axis and nesting machines

Pre-installed screw allows connector to be installed in w…

Pre-installed screw allows connector to be installed in workpiece during production (flat-pack ready)

Assembled with cordless drill and Cabineo bit — fast sing…

Assembled with cordless drill and Cabineo bit — fast single-person furniture assembly

Why Choose Caple

Pillar	You Get	You Save
Safety	CE-marked Swiss-engineered tool with comprehensive safety features	Risk of workplace injuries and compliance issues
Quality	Swiss precision engineering with ±0.1 mm tolerance accuracy	Rework, rejection costs, and quality complaints
User Friendly	Intuitive operation with minimal setup and training required	Time on operator training and complex adjustments
Productivity	Dramatically faster assembly — no clamping or drying time	Hours per day on manual clamping, alignment, and rework
ROI	Lower total cost through reduced consumables, rework, and assembly time	Adhesive, clamp, screw hardware, and labour costs
Trust	Authorised Distributor	Official Lamello partner — genuine products with full support
	caple.in Since 1974	Over 50 years of woodworking machinery expertise in India
	Warranty	12 months warranty on machines
	Trained Team	Factory-trained application specialists on staff
	Pan-India Support	Service network across major cities and metro areas

Technical Specifications

Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

Frequently Asked Questions

What is the Lamello Cabineo 12?

The Lamello Cabineo 12 is a drilling system connector (cabinet connector) — One-piece, pre-assembled cabinet connector for corner joints — no edge drilling required

What groove is required for the Cabineo 12?

The Cabineo 12 requires a groove milled with the Lamello Zeta P2 biscuit joiner or a CNC machining centre. Groove depth: P-System groove.

What is the minimum material thickness for the Cabineo 12?

Minimum material thickness is 12 mm. Please refer to the technical specifications above for all thickness requirements.

Is the Cabineo 12 detachable?

This connector is designed for permanent assembly. For detachable options, see the Clamex P range.

How many connectors are needed per joint?

Typically 2–4 connectors per linear joint depending on panel size and load requirements. Our trained team can advise on the optimum count for your specific application.

Does caple.in supply the Cabineo 12 in bulk?

Yes, caple.in supplies Lamello connectors in both trial quantities and bulk packs (up to 1000+ pairs). Contact us for volume pricing.

What is the tensile strength of the Cabineo 12?

Tensile strength is 820 N in particle board. Performance varies by substrate — see specifications for MDF and solid wood values.

Can the Cabineo 12 be used for mitre joints?

Yes, with appropriate machining setup. Contact our team for guidance on mitre joint applications.
