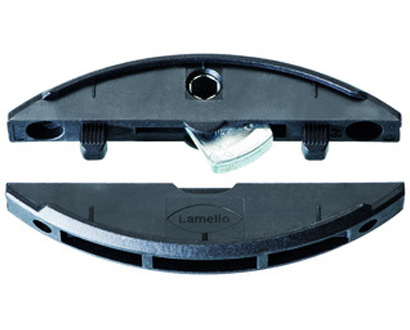

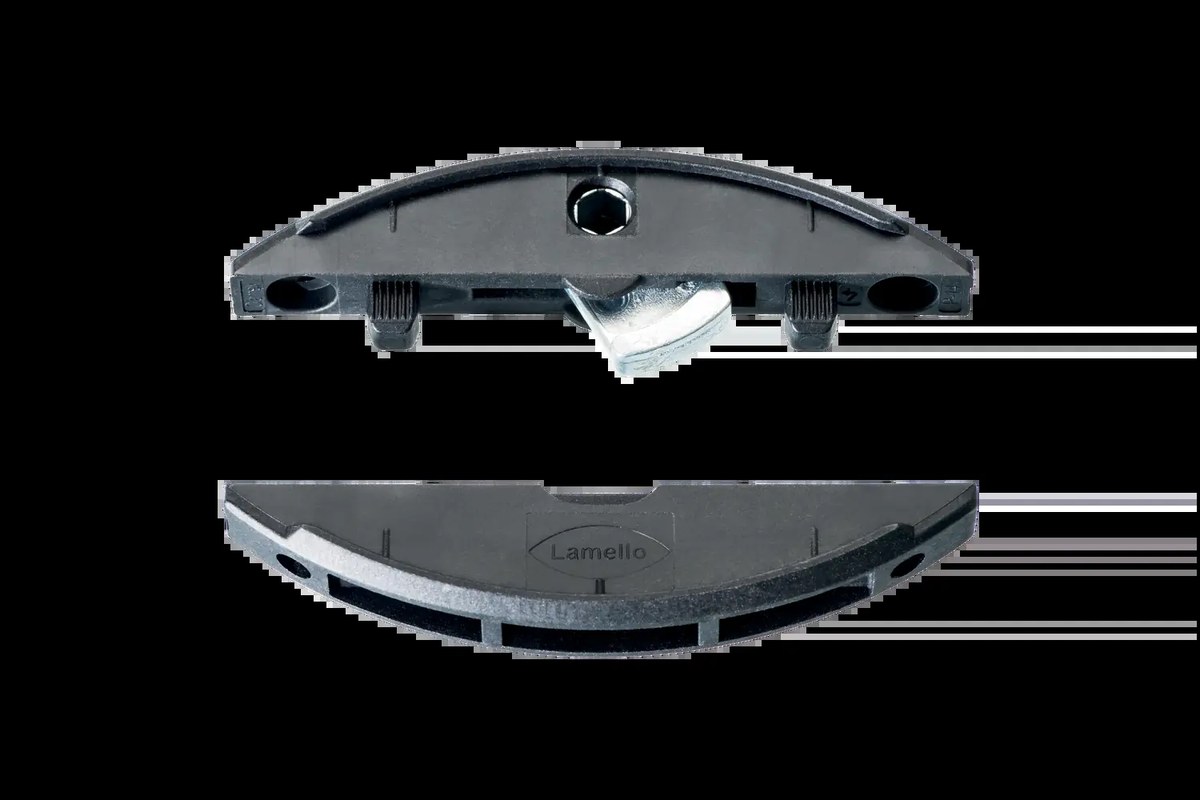

Name: Lamello Clamex P-10 [1Pair]
Brand: Lamello
SKU: 145374-1P
Price: 80.0 INR
Availability: InStock

Technical Specifications — Lamello Clamex P-10
Installation tolerance longitudinal	± 0.5 mm
Installation tolerance radial	± 0.5 mm
Minimum workpiece width	65 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	11 mm
Minimum material thickness for centre wall machining	19 mm
Minimum material thickness for angle bisector	15 mm
P-System groove depth (P-System setting)	P-10
Tensile strength in particle board	540 N
Tensile strength in MDF	700 N
Tensile strength in beech	900 N
Shear strength in particle board	420 N
Shear strength in MDF	530 N
Shear strength in beech	1590 N

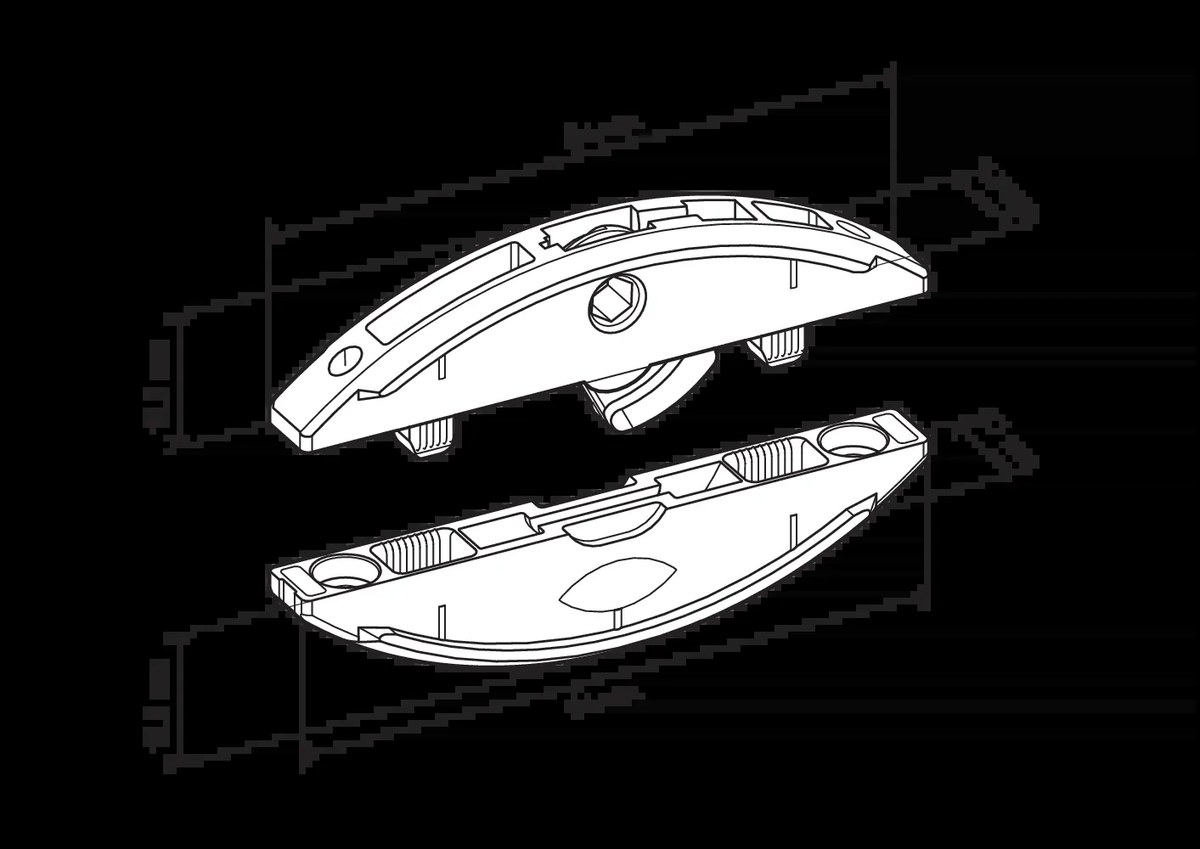

Size (LxWxH)	52 x 19 x 9.7 mm
Access hole diameter	6 mm
Groove depth	10 mm

₹80.00

₹100.00

Customize

Choose Quantity :

TEST

FEATURE — ADVANTAGE — BENEFIT
Feature / Fact	Advantage (So what?)	Benefit (You get / You save)
QUALITY
Detachable furniture connector for thinner materials...	Detachable furniture connector for thinner materials.	groove depth of only 10 mm.
Smaller size than Clamex P-14, suitable...	Smaller size than Clamex P-14, suitable for materials from 12 mm thickness.	Delivers Swiss-engineered Lamello performance on every cut.

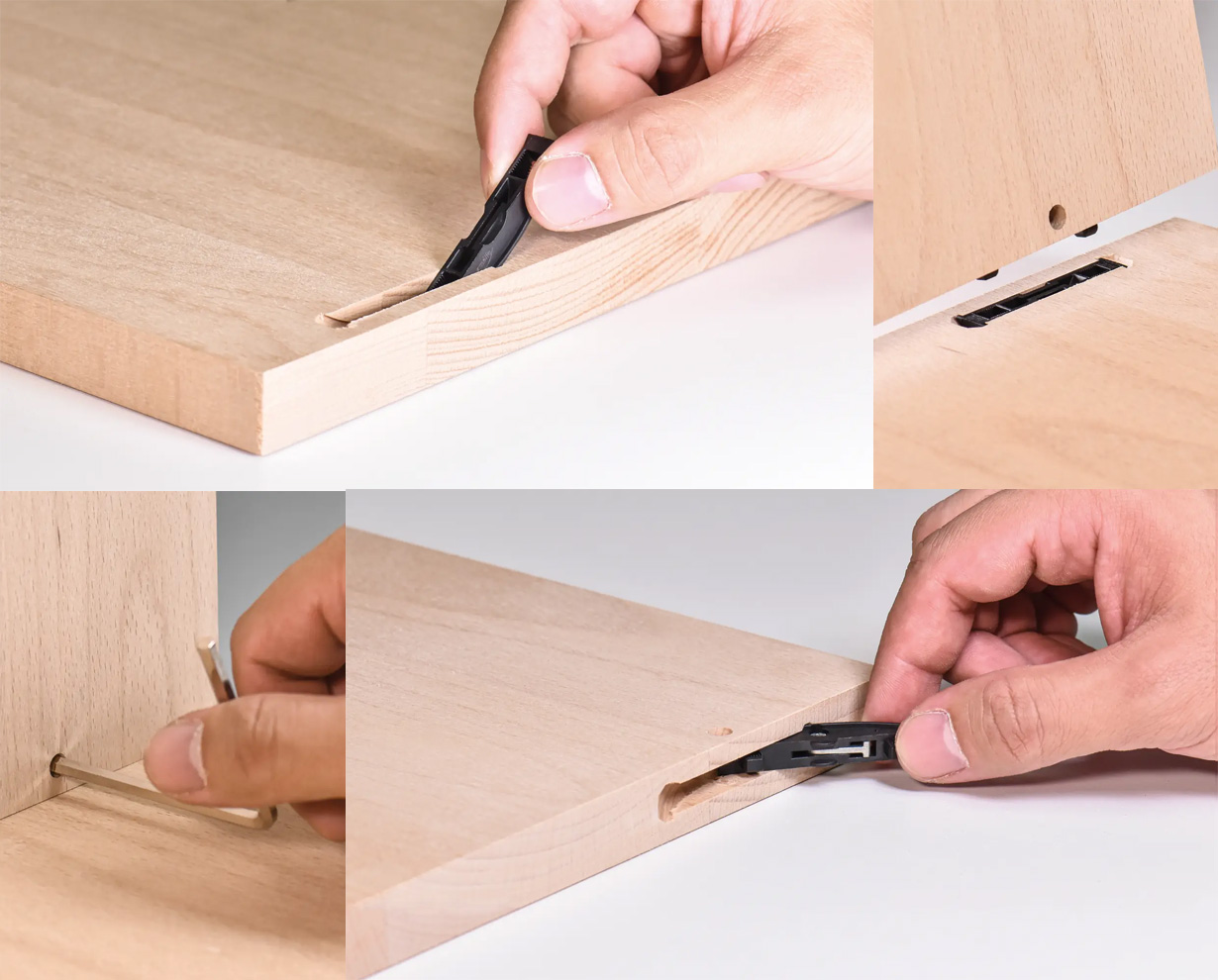

Connected and released using lever through...	Connected and released using lever through minimalist 6 mm access hole.	Delivers Swiss-engineered Lamello performance on every cut.
Ideal for mitre connections and sharp...	Ideal for mitre connections and sharp angles in thin panel materials.	Delivers Swiss-engineered Lamello performance on every cut.
Near-invisible joint aesthetics — almost completely...	Near-invisible joint aesthetics.	almost completely concealed.
No adhesive required — flat-pack friendly...	No adhesive required.	flat-pack friendly, detachable multiple times.

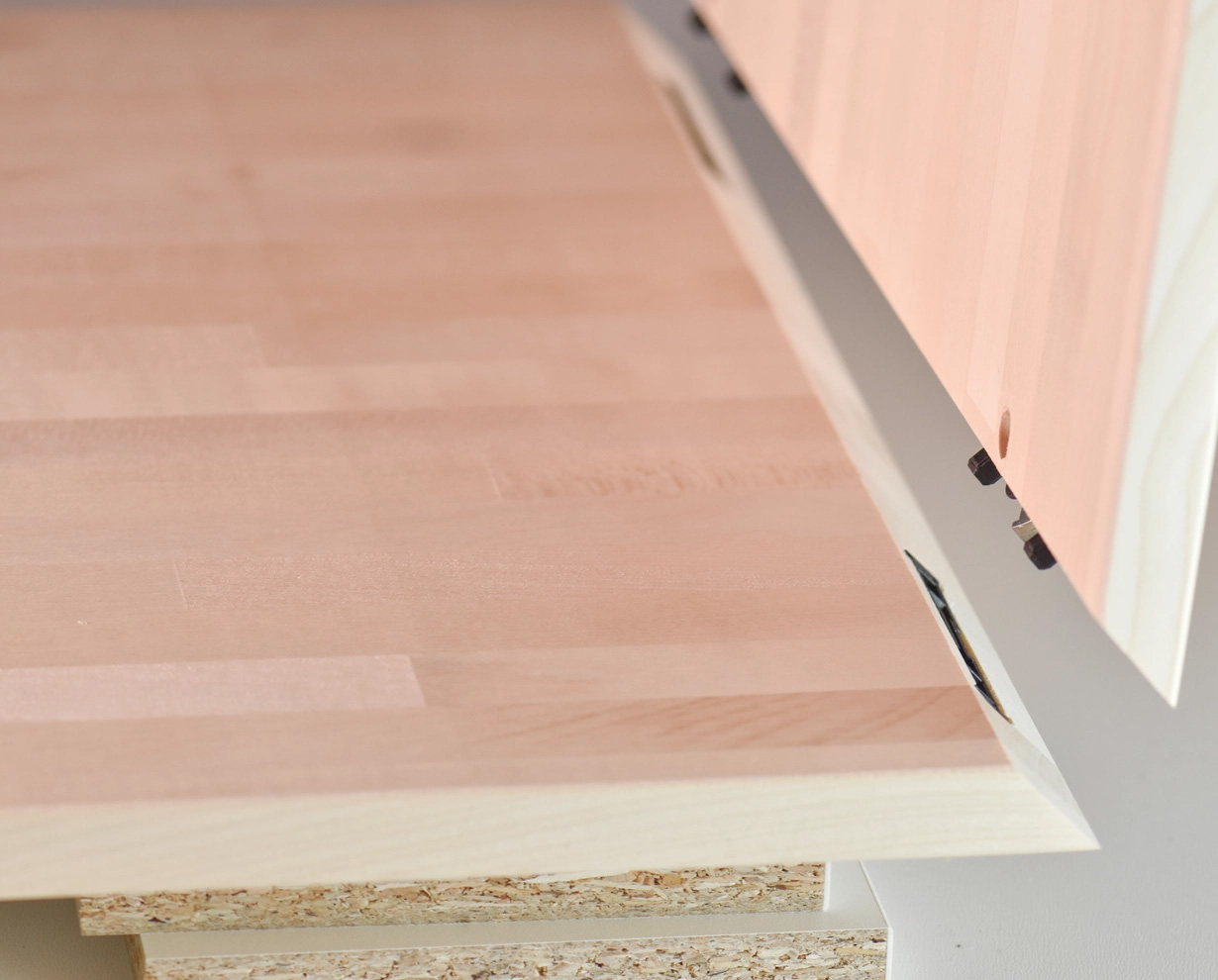

Stackable — no protruding parts during...	Stackable.	no protruding parts during transport.
PRODUCTIVITY
Anchored in the P-System groove in...	Anchored in the P-System groove in seconds without tools.	Delivers Swiss-engineered Lamello performance on every cut.
