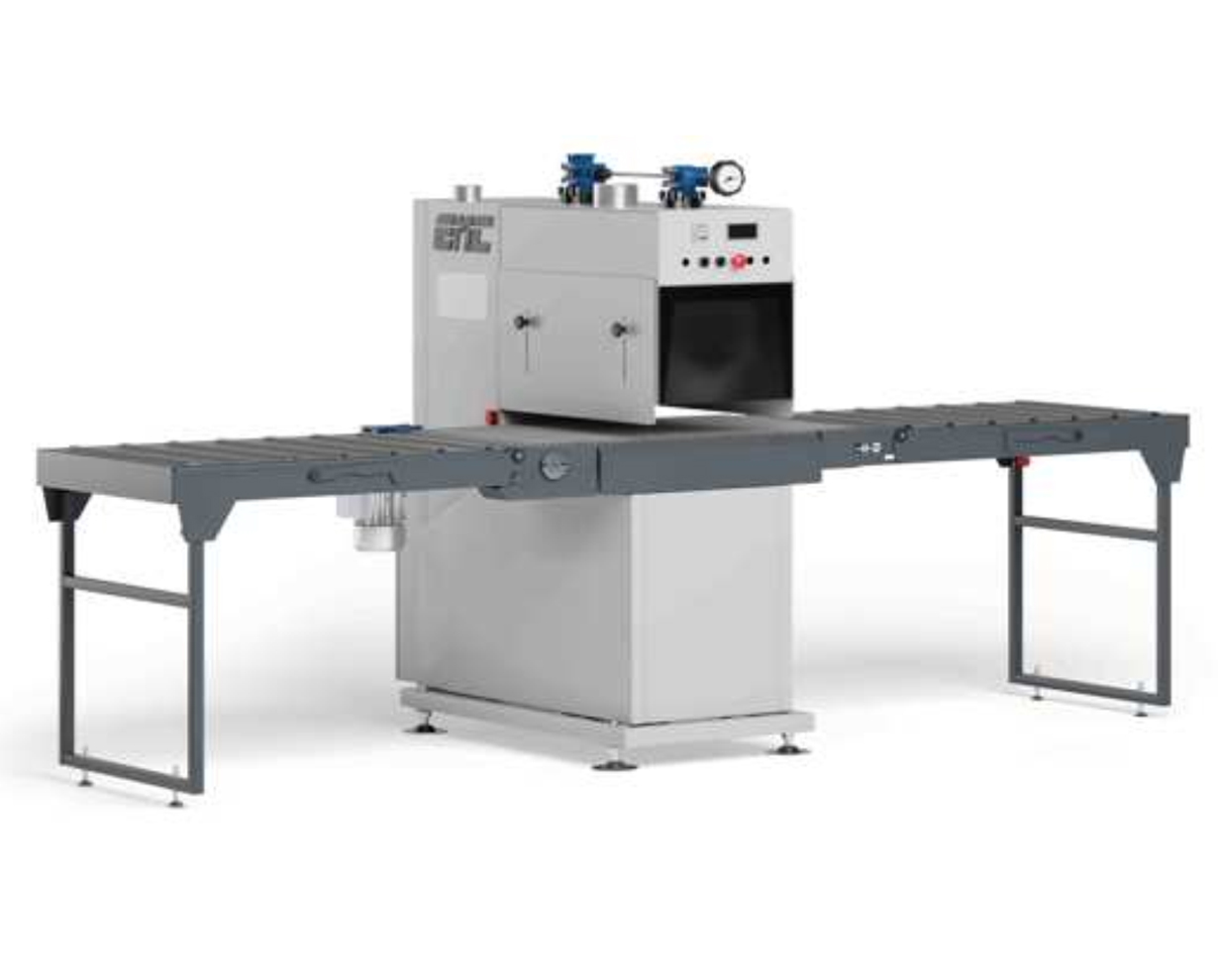

• TECHNICAL CHARACTERISTICS General:
• Machine with constant working height 900 mm from the ground
• "Cage" structured frame made of electro-welded carbon steel
• Independent motors INSIDE the base
• Motorized table lifting by sliding on a rectified cylindrical column
• High-performance and low air consumption extraction hoods Work table:
• Natural rubber conveyor belt with rhomboid profile, rectified
• Dimensions (length-width): 825 x 650 mm
• X-axis sliding, adjustable useful working stroke (variator) and inversion 0.8 to 8 m/min:
• X-axis sliding with 2000 mm roller conveyors
• Possibility of extending the X-axis without stroke limits with additional support surfaces
• Useful working width Y-axis: 650 mm open side
• Idle table extension roller conveyors, foldable to reduce overall dimensions Panel locking system:
• Perforated surface and carpet for sealing by means of a vacuum pump
• Vacuum pump fan housed under the surface
• Built-in 1.1kW vacuum motor, Control from electrical panel Brush:
• Brush unit inclined at 3° with respect to the axis
• Compact, medium-soft cotton disc brush
• Max. brush diameter: 250 mm
• Brush length: 670 mm
• Brush motor power: 2.2kW (3hp)
• Fixed rotation speed 960 RPM Brush oscillation:
• Oscillation stroke: 25 mm (12.5 12.5 mm)
• Oscillation frequency: 32 cycles/min
• Oscillation motor power: 0.37kW (0.55hp)
