FEATURES
- Long clamp beam & fast clamps with 5.5m high-rigidity clamp beam
- Feed-in & out table

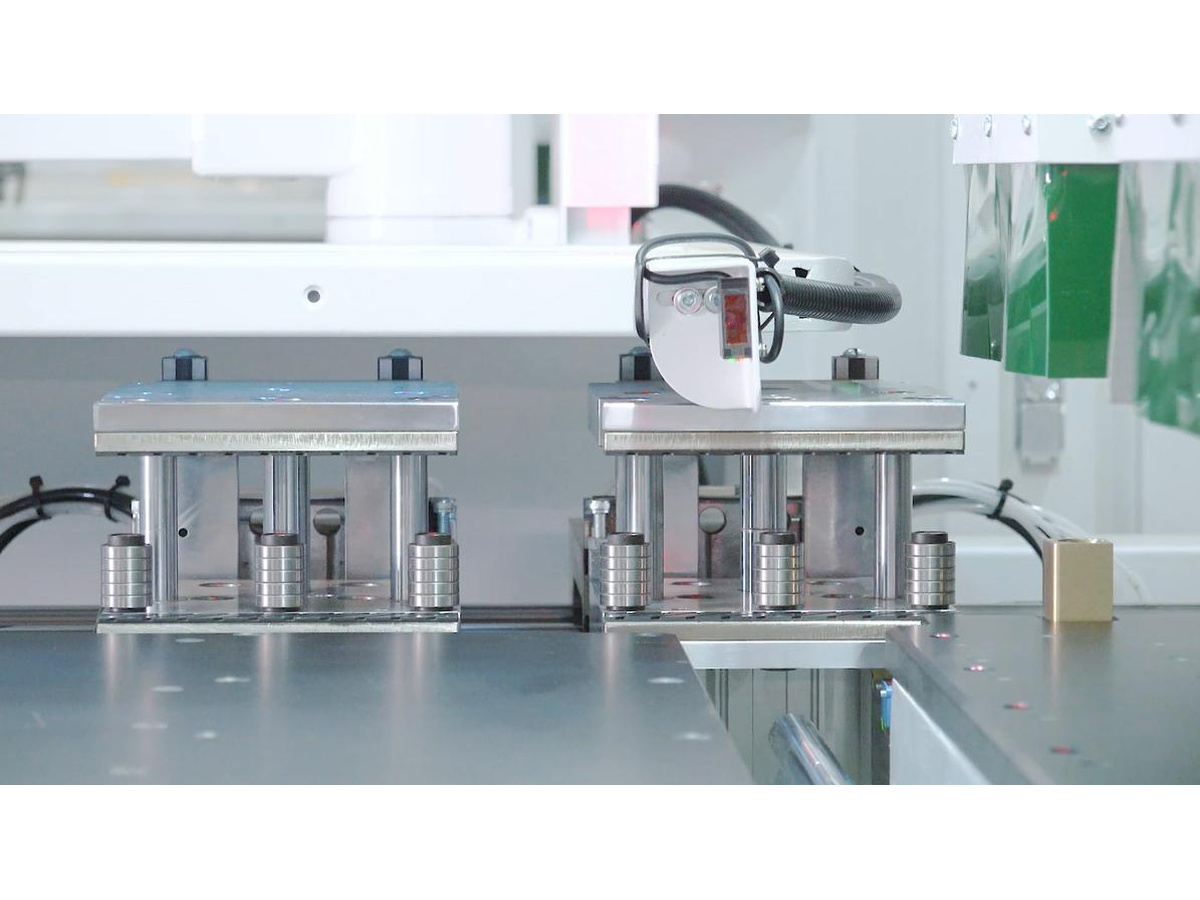

- Positioning: Side aligner & support / press plates
- Accurate movement of each axis
- Auto greasing
- Board length & width detector

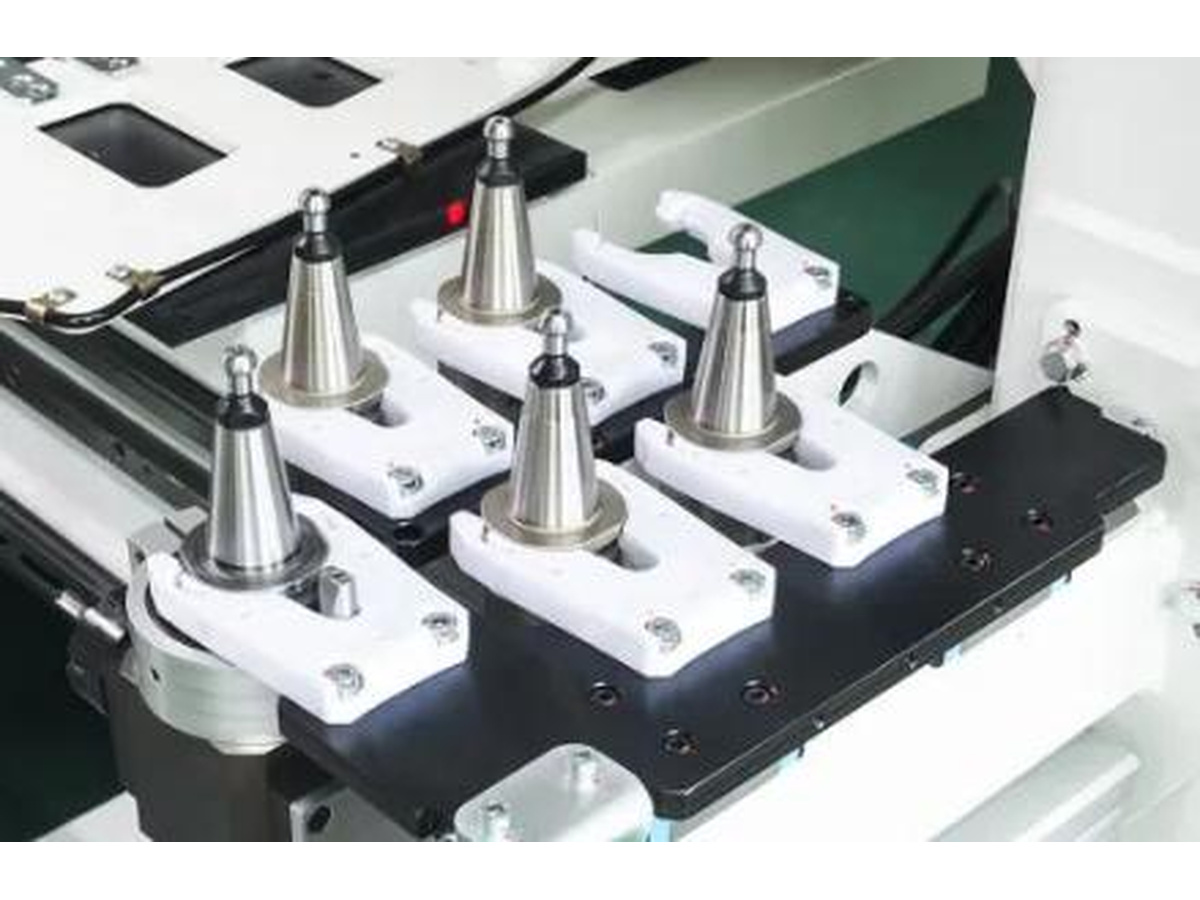

- 6 slots tool changer
- Tool setting gauge
- 5.5kw + 3.5kw main spindle
- Optimized drilling blocks layout + saw blade
- Min. processing part
- Stack processing
- Invisible hardware
- Side grooving
- Anti-handling device for infeed table
- Dust collection port
- Cable chain
- Hand controller
- Control system
- Industrial computer
- Excellent electrical components
- User-friendly operation
- File format support

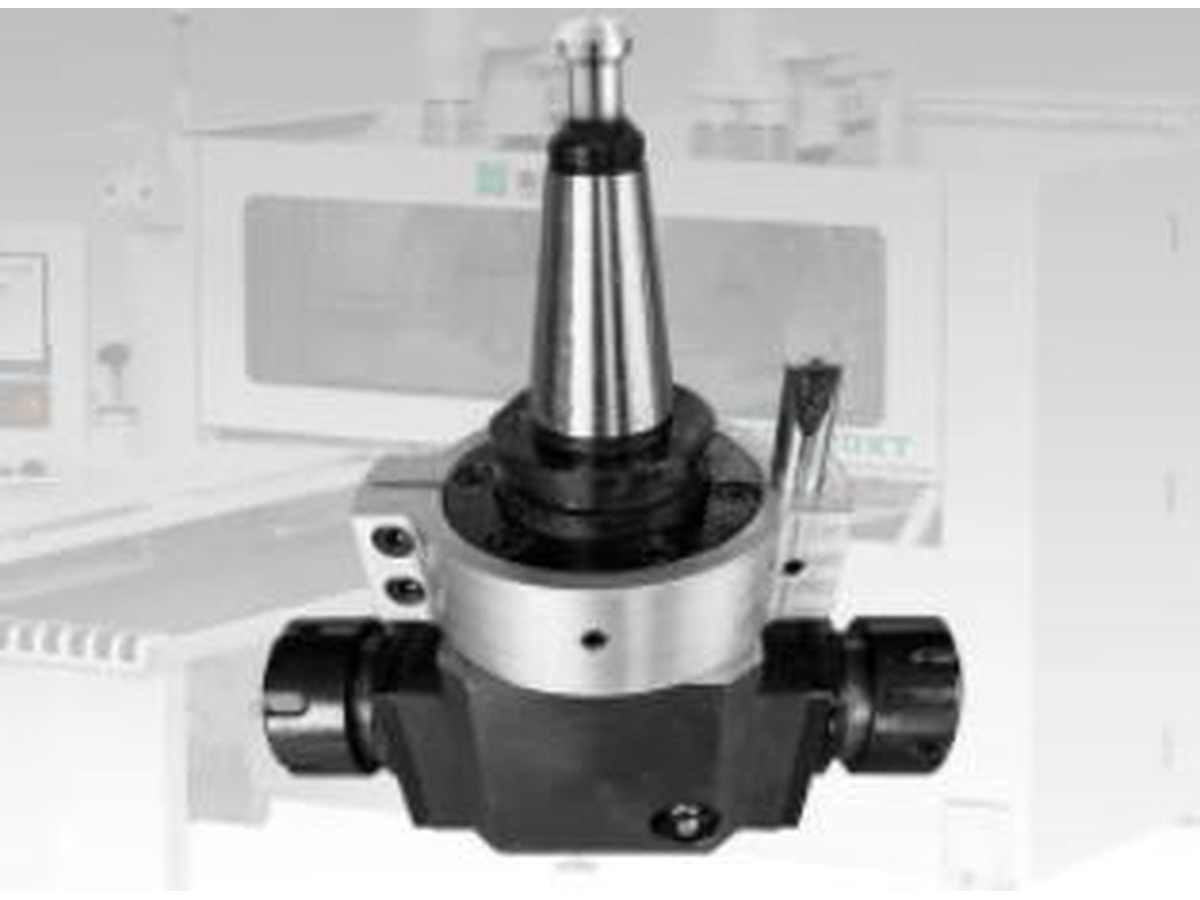

- Side routing: Two-head aggregate
- Board thickness sensor

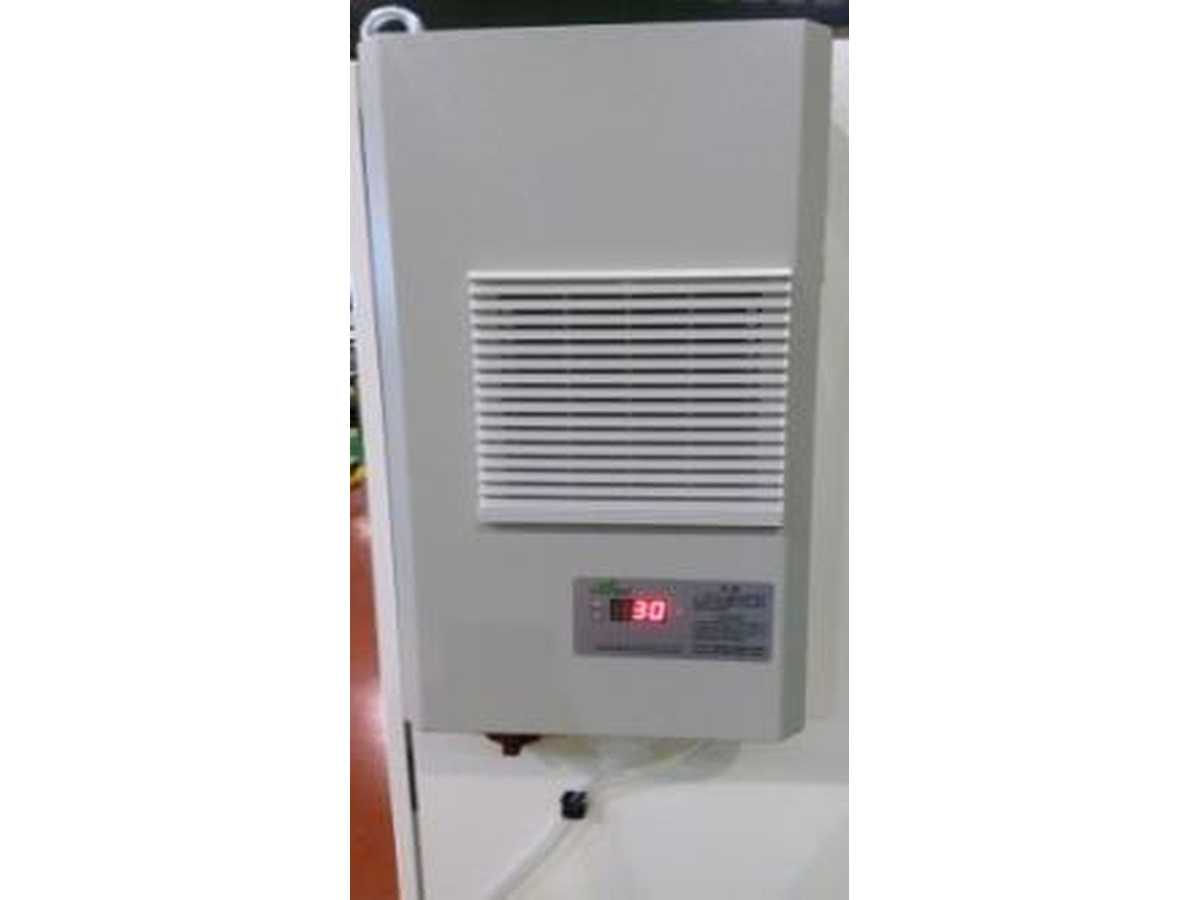

- Air conditioner on control cabinet
TECHNICAL DATA:

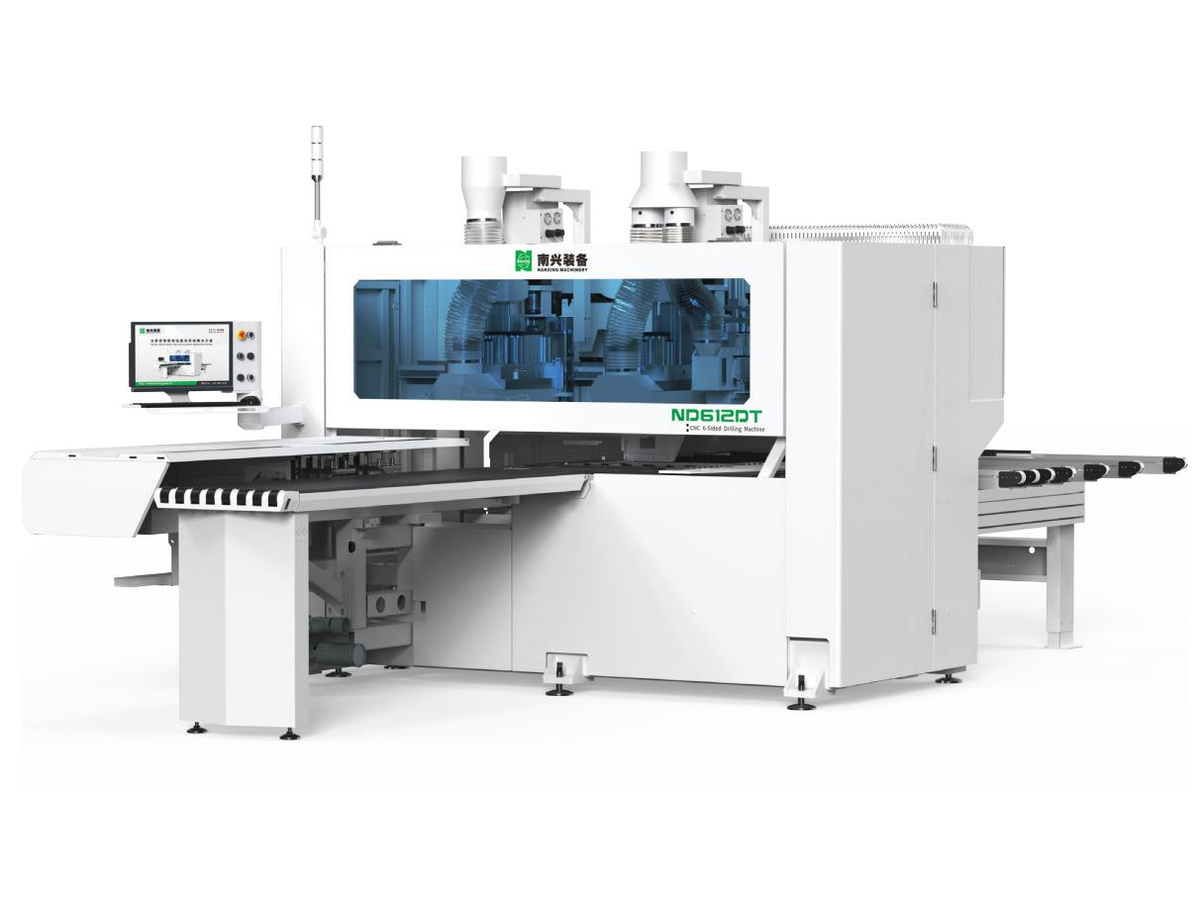

- Model : ND612DT
- Total power : 23.93KW

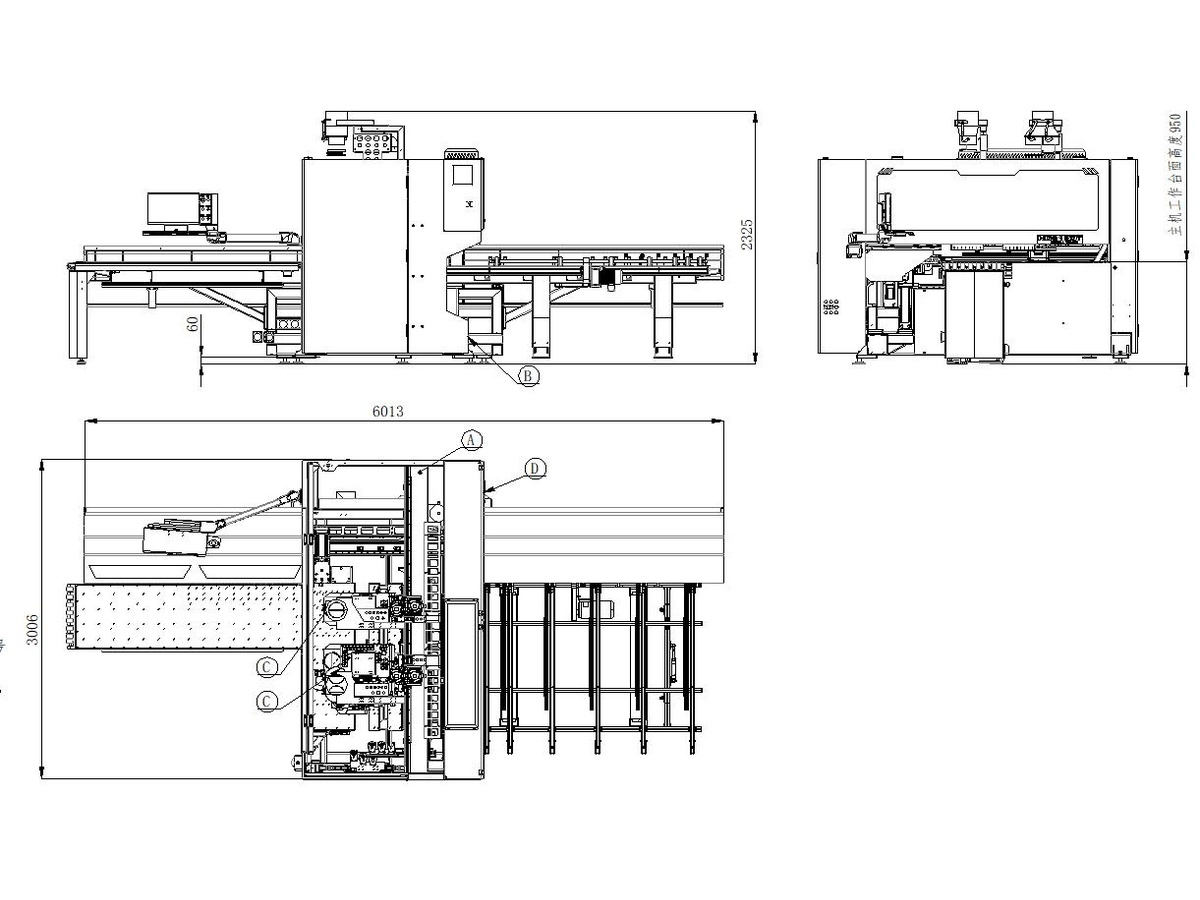

- Machine size : 6,150 × 3,010 × 2,320 mm
- Power supply : 415V/50Hz
- Air supply : 0.6-0.7MPa
- Total weight : 3,650Kg
- Control system Brand : SYNTEC
- Panel size Length : 200-3,000mm
- Panel size Width : 30-1,200mm (40mm with grooving)
- Panel size Thickness : 10-60mm
- Max. traveling speed (X /U) axis : 135m/min
- Max. traveling speed Y axis : 75m/min
- Max. traveling speed Z axis : 30m/min
- Transmission mode X axis : Rack and pinion
- Transmission mode Y axis : Rack and pinion
- Transmission mode Z axis : Ball screw rod
- Boring block qty : Top 2; Bottom 1
- Vert. drills qty (top) : 19×2
- Horiz. drills qty (top) : X: 3×4 + Y: 2×4
- Vert. drills qty (Bottom) : 9
- Max drill diameter : Φ35mm
- Drill spacing : 32mm
- Rotation speed : 5000rpm
- Shank diameter : Φ10mm
- Main spindle qty : Top tool ER32 holder ISO30; Bottom tool collet ER25
- Main spindle power : 5.5kw×1; 3.5kw×1; max.18000rpm
- Dust collector qty : 3
- Dust collector diameter : Top 200mm×2; Lower 125mm×1
- Dust collector speed : ≥28m/min (OEM-stated unit; confirmation required before extraction-system sizing)
Preorder
₹4,250,000.00
₹5,312,500.00
