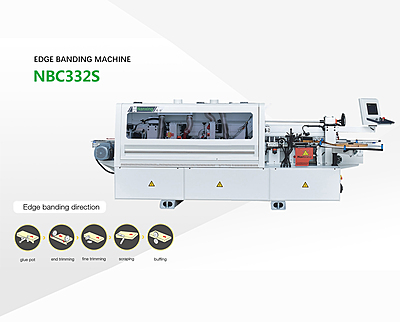

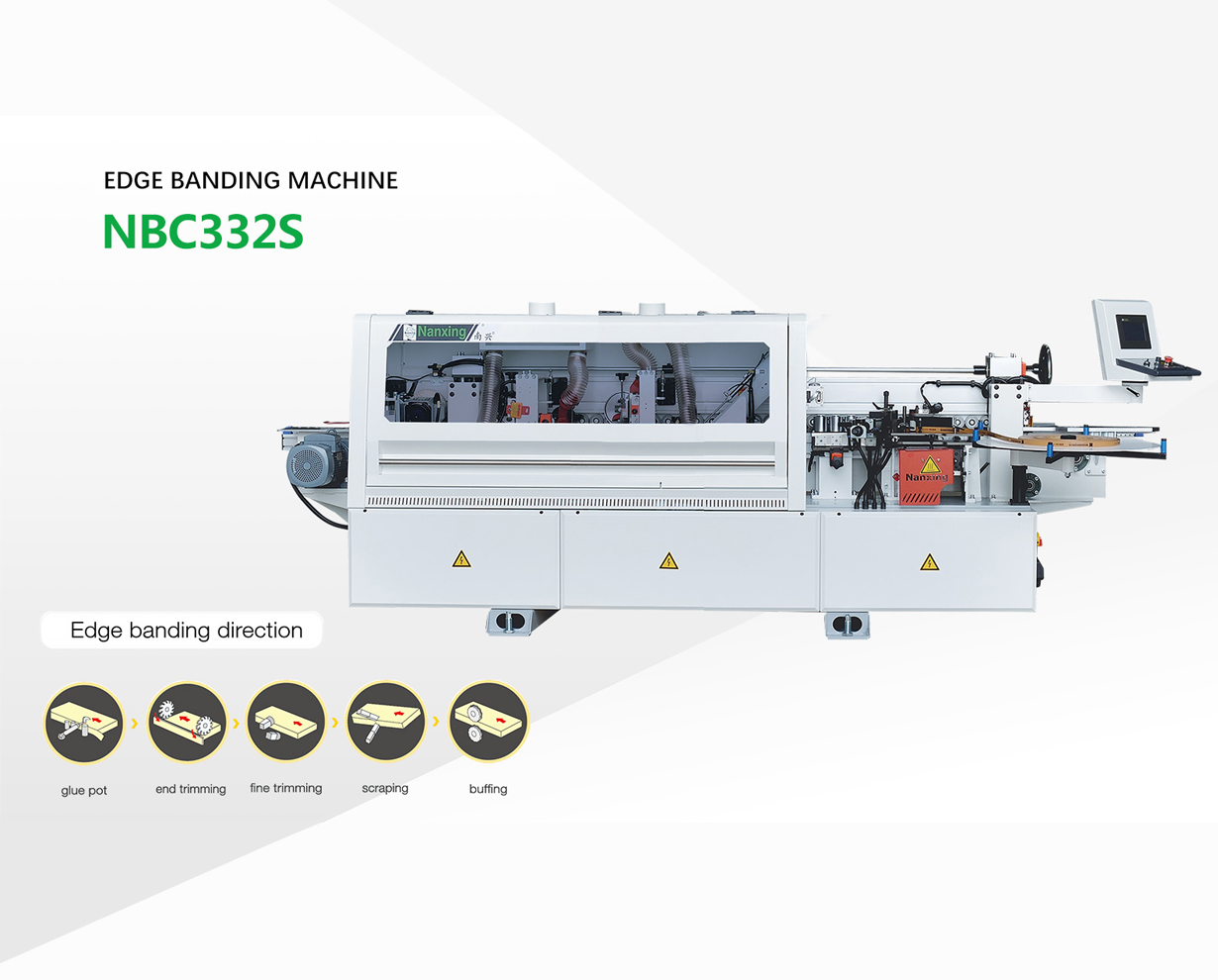

Nanxing Edge Banding Machine NB540E (NBC332S)-415V

₹950,000.00 ₹1,187,500.00
Warranty
12 Months
Country of origin
China
GST Extra
18%

FEATURES

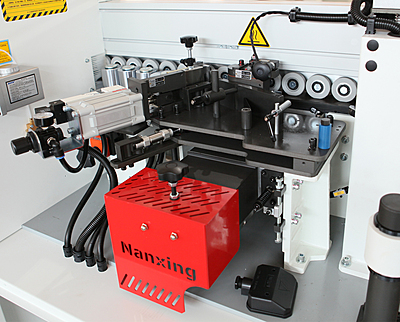

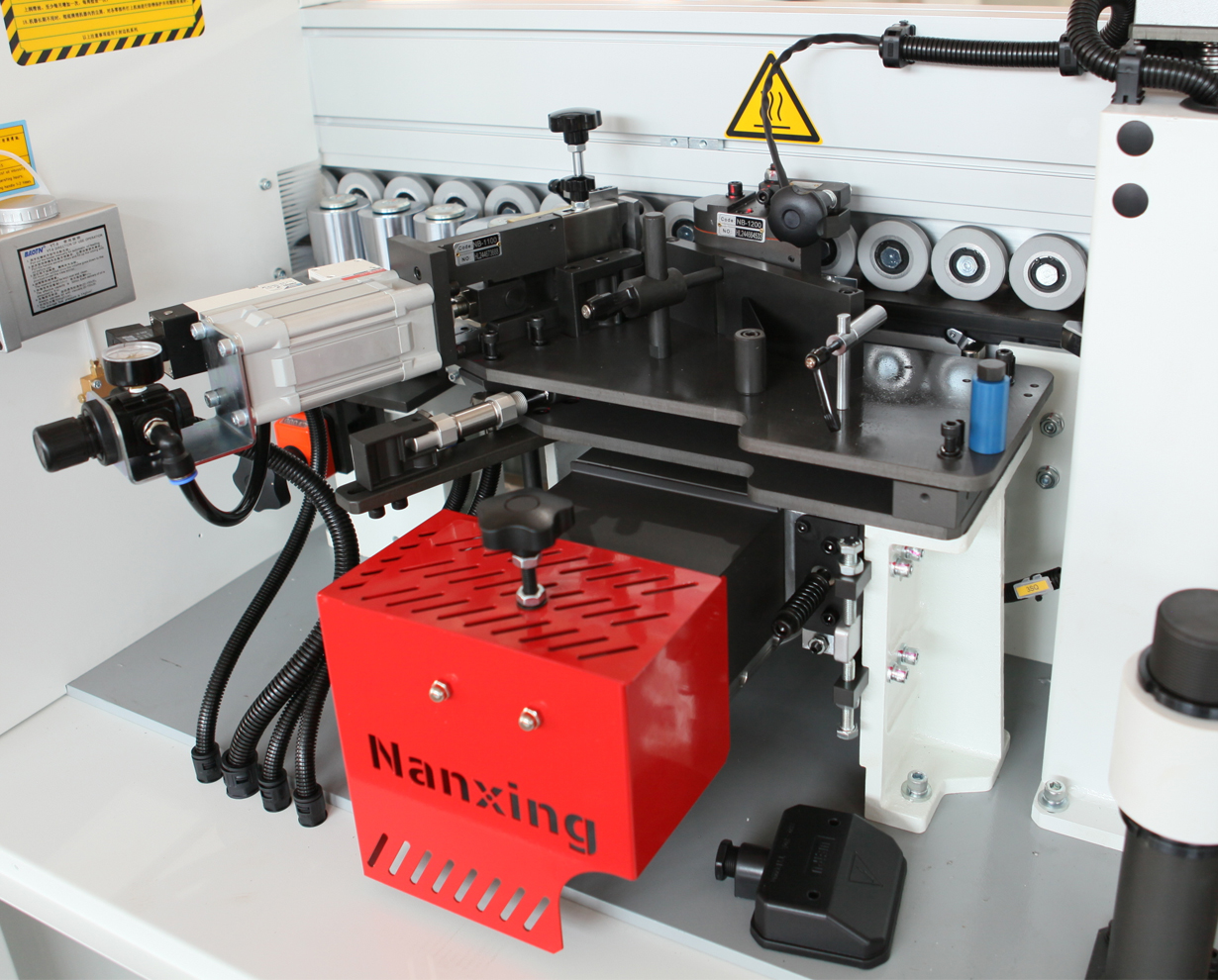

• Gluing

• Snipping

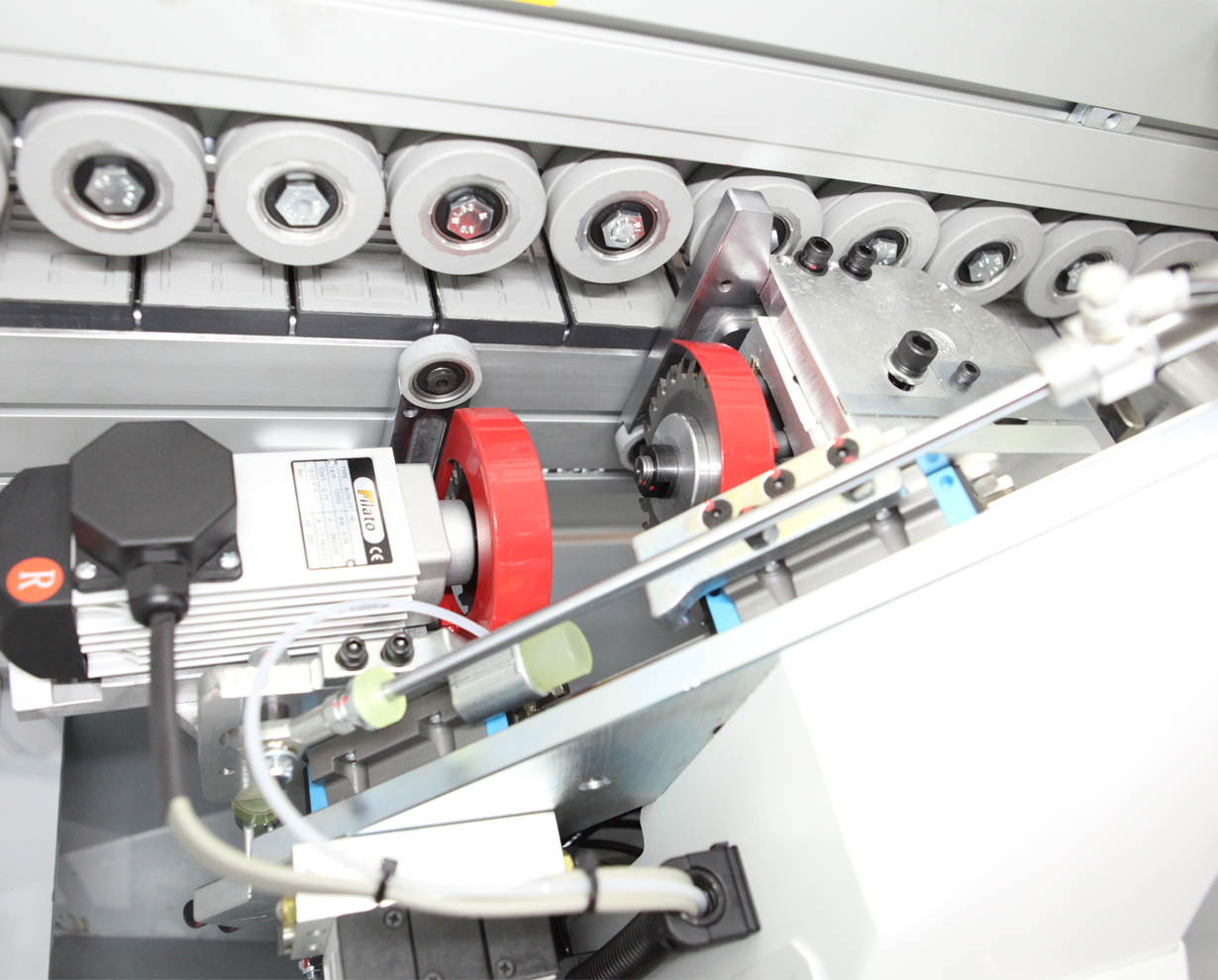

• End trimming

• Fine trimming

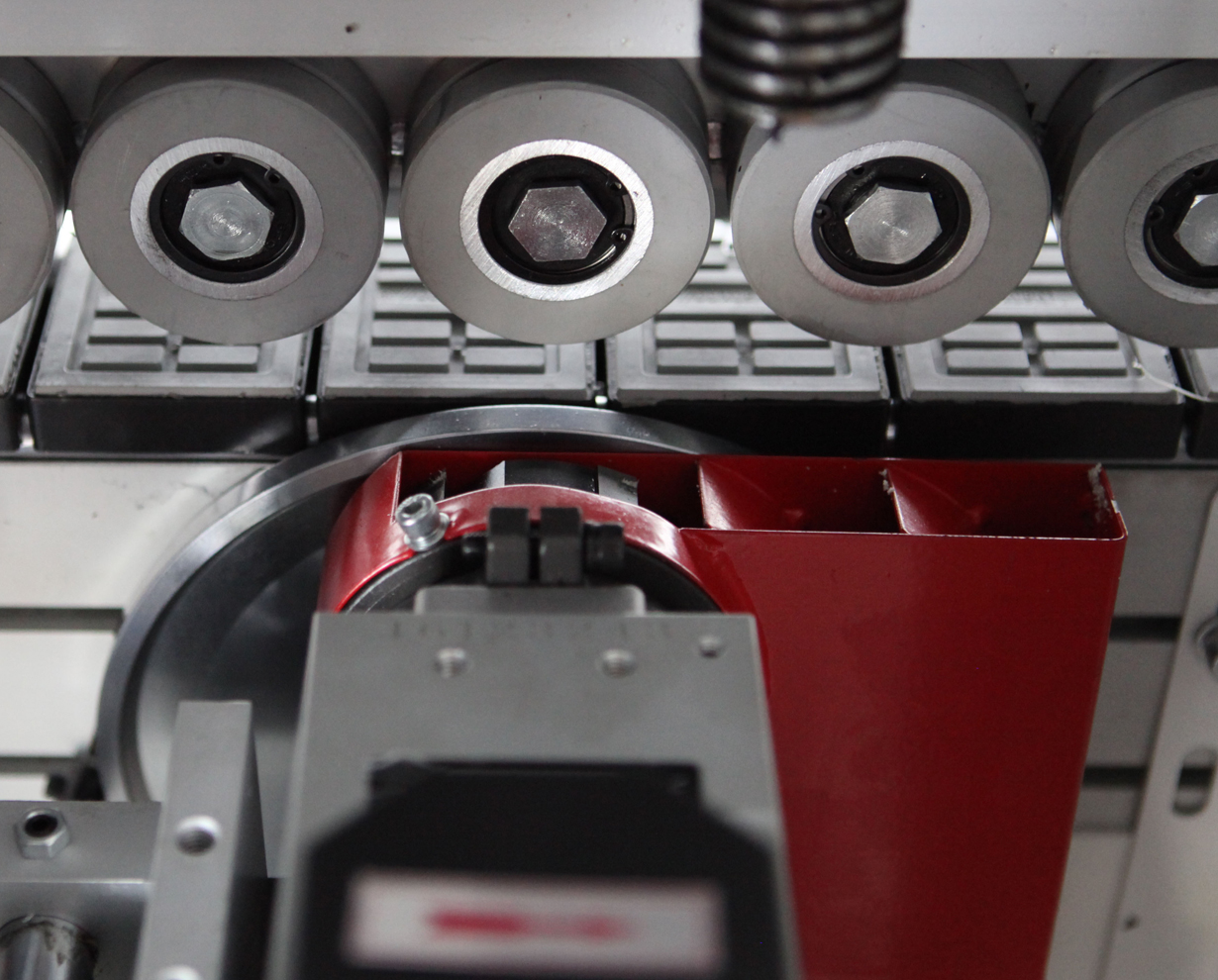

• Scrapping

• Buffing

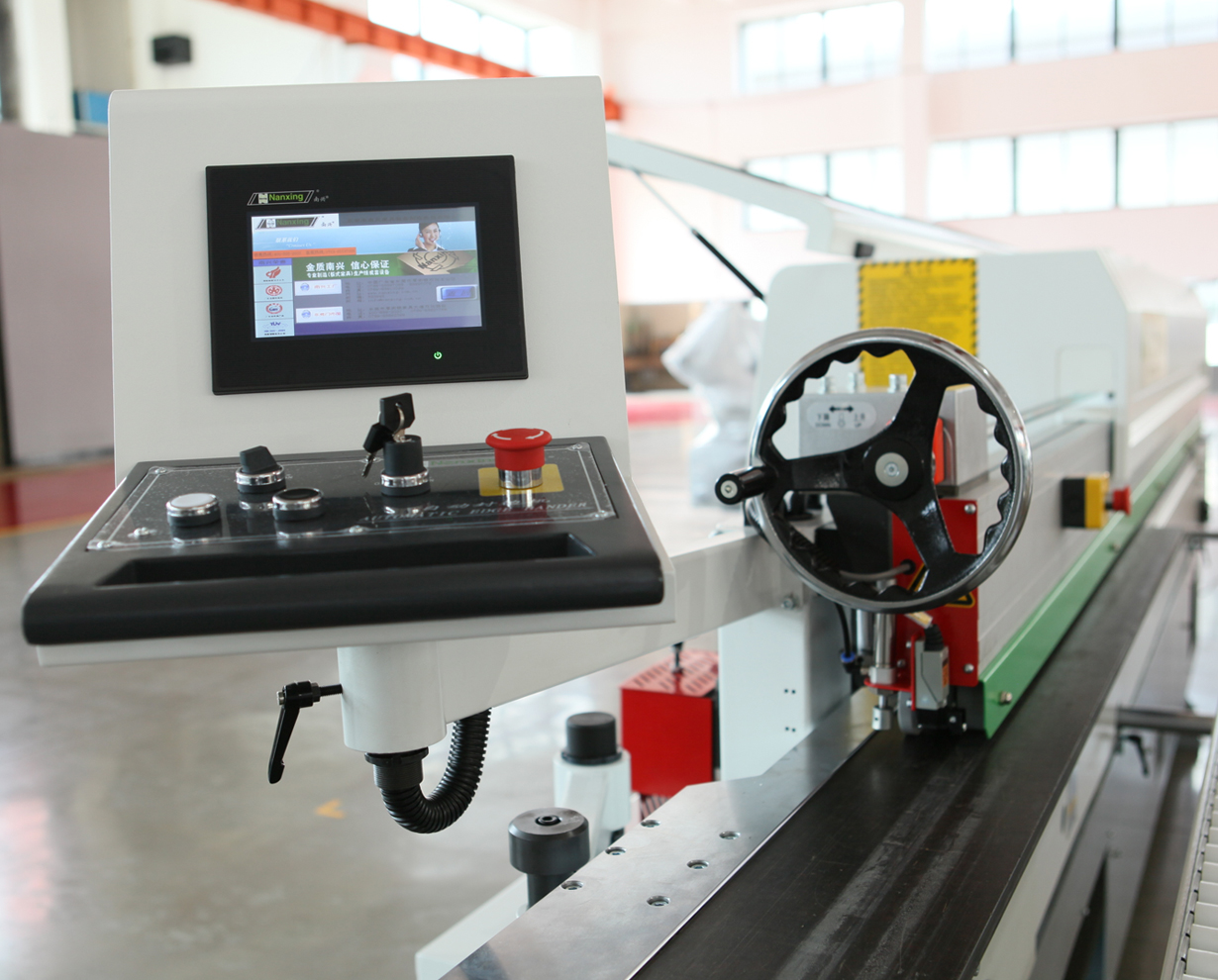

• 7" touch screen

• Stand-by mode

TECHNICAL DATA

• Panel length: 120 mm

• Panel width: 60 mm

• Mini. Panel size: 120×60mm

• Panel thickness: 9-60 mm

• Edge tape thickness: 0.4-3 mm

• Feeding speed: 16/20/24m/min

• Power supply: 415V V; 50 Hz

• Air pressure required: 0.7MPa

• Operation system 7" touch screen

• Dust collector Dia. 125mm×2

• Total power: 10.8 kW

• Approx. weight: 2,100 kg

• Overall dimension: 3,900*785*1,440 mm

Choose Quantity
+ Add to Cart
TEST

Edge Bander

Nanxing Edge Banding Machine NB540E (NBC332S)-415V

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

120×60mm - Panel thickness: 9-60 mm - Edge tape thickness: 0.4-3 mm - Feeding speed: 16/20/24m/min - Power supply: 415V V

Panel Size

24

Feed Speed

10.8 kW - Approx. weight: 2

Total Power

10.8 kW

Power

12 mo / 2000 hr

Warranty

HOW IT WORKS

01

Feed Panel

02

Apply Glue

03

Bond Edge

04

Trim Ends

05

Buff Finish

KEY FEATURES
— 7" touch screen
— TECHNICAL DATA:
— Mini. Panel size: 120×60mm
— Operation system 7" touch screen
— Dust collector Dia. 125mm×2
— Approx. weight: 2,100 kg
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Precision-engineered componentsTight tolerances on all machined partsYou get accurate, consistent output every shift
Rigid steel frame constructionEliminates vibration during operationYou get cleaner cuts and better surface finish
Quality control sensorsAuto-detects deviation in real timeYou get fewer rejects and less rework
USER FRIENDLY
Touch-screen HMI panelIntuitive program entry and adjustmentYou get fast job setup without specialist training
PRODUCTIVITY
High feed speed (24)More panels processed per hourYou get higher daily output from the same shift
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is
TECHNICAL SPECIFICATIONS
Panel length120 mm
Panel width60 mm
Mini. Panel size120×60mm
Panel thickness9-60 mm
Edge tape thickness0.4-3 mm
Feeding speed16/20/24m/min
Power supply415V V; 50 Hz
Air pressure required0.7MPa
Total power10.8 kW
Approx. weight2,100 kg
Overall dimension3,900*785*1,440 mm
FREQUENTLY ASKED QUESTIONS
What edge tape materials can this machine process?
The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.
What board thickness range does this edge bander support?
The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.
Do I need a skilled operator to run this machine?
No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.
What type of glue does the machine use?
The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.
How long does installation and training take?
Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.
Where can I find the full manual and spare parts list for the NB540E?
Full documentation for the NB540E is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NB540E require?

The NB540E requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NB540E?

The NB540E draws approximately 14 HP (10.8 kW) total power. Use a 20-amp 3-phase 415V supply with separate earthing and a 15 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NB540E?

The NB540E needs approximately 2,340 CFM (3,975 CMH) dust extraction through Ø125mm × 2. We recommend the Dust Collector AXC | 5HP | 3975 CMH | Duct | NBC332S.

What are the overall dimensions of the NB540E?

The NB540E measures 3,900*785*1,440 mm (L x W x H). Plan adequate floor space including operator access zones.

What is the weight of the NB540E?

The NB540E weighs 2,100 kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
