Veneer Sanding Machine 400R-R-R
₹1,625,000.00 ₹2,031,250.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request

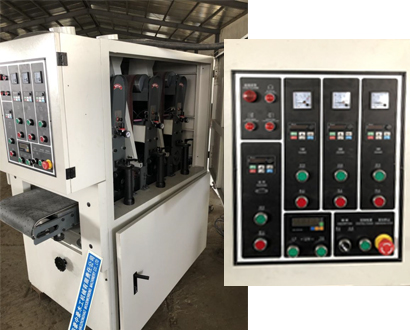

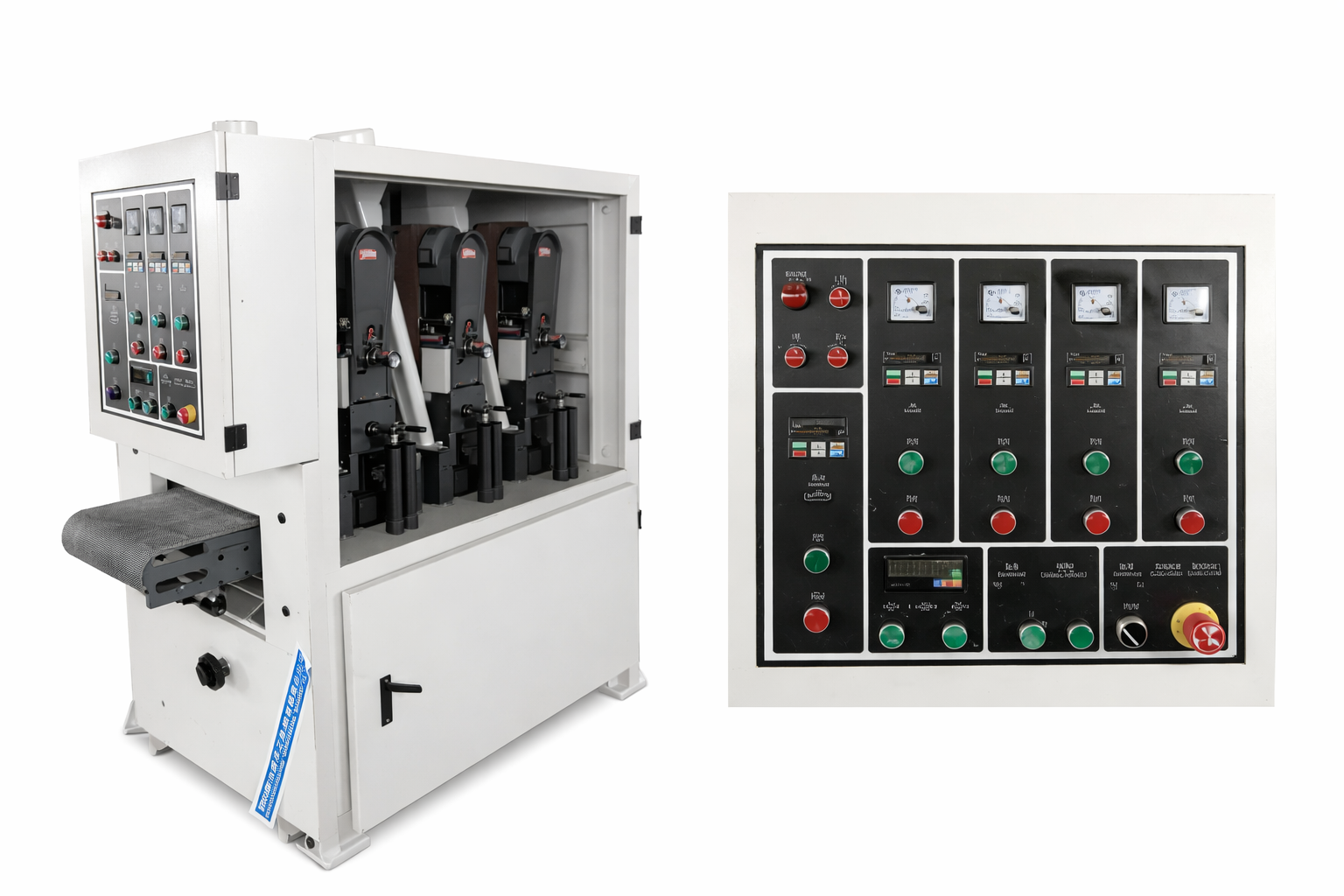

The machine is used specially for polishing veneer, fitted with sanding roller and polish wheels, and conveyor belt is with vacuum suction for holding veneer tightly and making your veneer surface perfect.
TECHNICAl DATA
Max Working width : 400mm
Thickness of processing materials : 0.2-85mm
The length of processing materials : Min.200mm
Speed of abrasive belt : 20m/s
Feed speed : 3-30m/min
Size of abrasive belt : 1660*430mm
Power of 1st abrasive belt : 4kw(frequency
Power of 2nd abrasive belt : 4KW(frequency)
Power of 3rd abrasive belt : 4kw(frequency)
Conveyor belt : 1.1kw
Lift motor power : 0.37kw
Adsorption of vacuum motor power : 5.5kw(maybe smaller)
Working pressure : 0.55Mpa
Speed required for cleaning equipment : 25m/s
Compressed air volume : 5000M3/H
NW : 1200Kg
Dimensions : 1500*1800*2100mm
