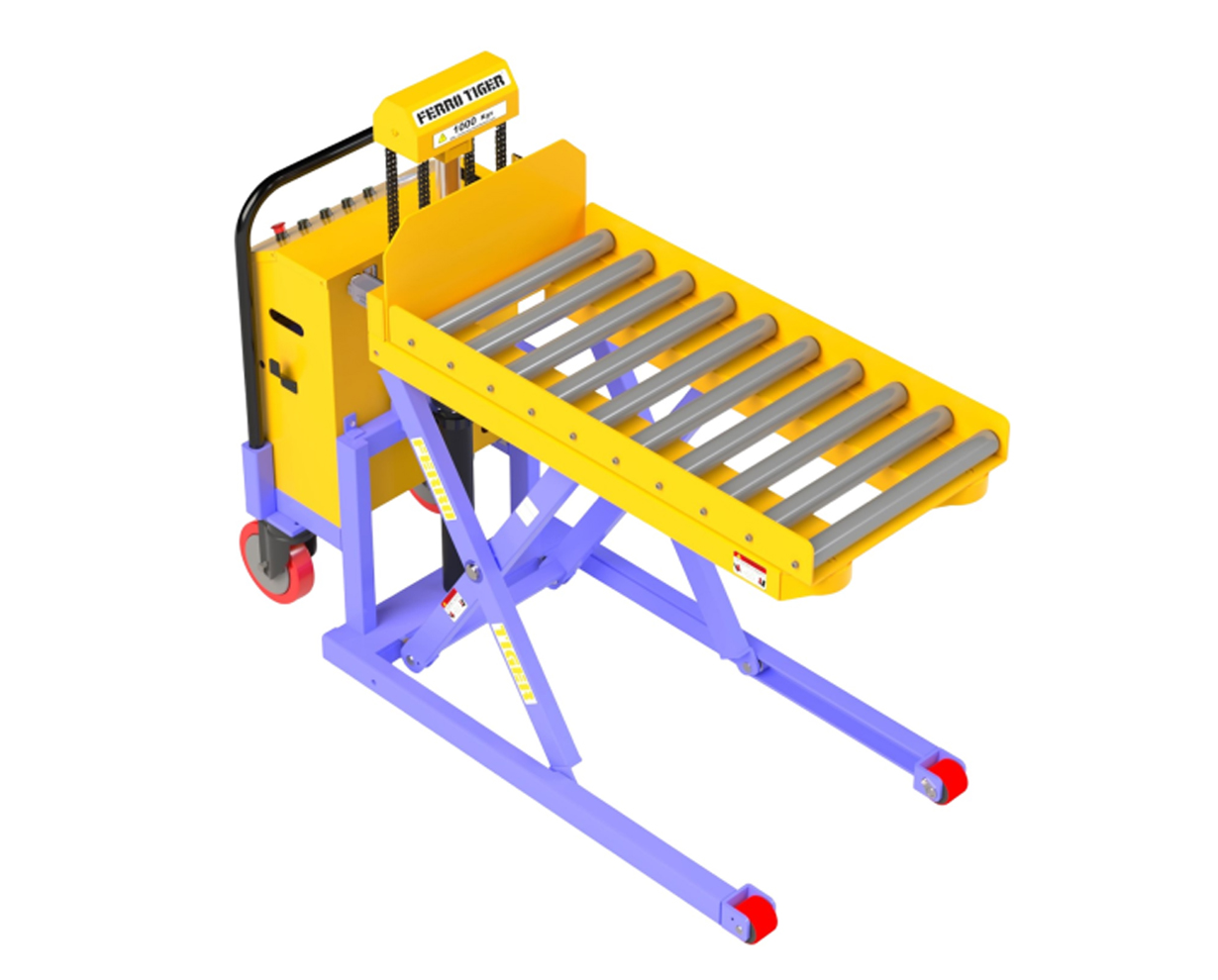

Ferro Tiger, Scissor Lift with Floating Conveyor Rollers [ 1000kg | 2200x800mm | Gravity Roller ]

• SPECIFICATION:

• Number of Scissors Arms : One

• Max Capacity of lift table : 1000 Kgs

• Load to Raise/Lower : 1000 Kgs

• Top Platform size : 2200 mm x 800 mm

• Max height from base frame : 900 mm

• Closed height : 300 mm (With Conveyor Rollers)

• Stroke / Travelling lift : 600 mm

• Motor : 1.5 HP - 3 Phase 415 V AC 50 Hz.

• Power Source : 3 PH, 415V Neutral

• Control Voltage : 220 V AC

• Control type : Foot Operated Pedal Switch

• Top Platform base sheet : 5 mm thick MS Sheet

• Power Pack Position : Inside of Scissor Lift

• Movement / Location : Stationary – Floor Mounted

• Equipment Color : RAL 7035 White

• Roller Conveyor Diameter : Ø 50 mm

• Roller Pitch & Length : As per our design

• Conveyor Roller Make : Reputed Make

• Conveyor Type : Gravity Rollers

• Senzor : Auto Raising & Auto Lowering

• Lifting time / Speed : 15 sec approximate @ 40 mm/sec

• Lowering time / Speed : 15 sec approximate @ 40 mm/sec

• Cycle Time : Customer to specify

• Frequency of Operations per hour : Customer to specify

• Duty Cycle – No. of Shifts : Customer to specify

• Motor Running Type : Non-Continuous

• Circuit Type – for raising and lowering : Inching

• Stopping Accuracy : /- 10 mm

• Site temperature Max & Min : N/A

• Humidity : N/A
