Technical Specifications

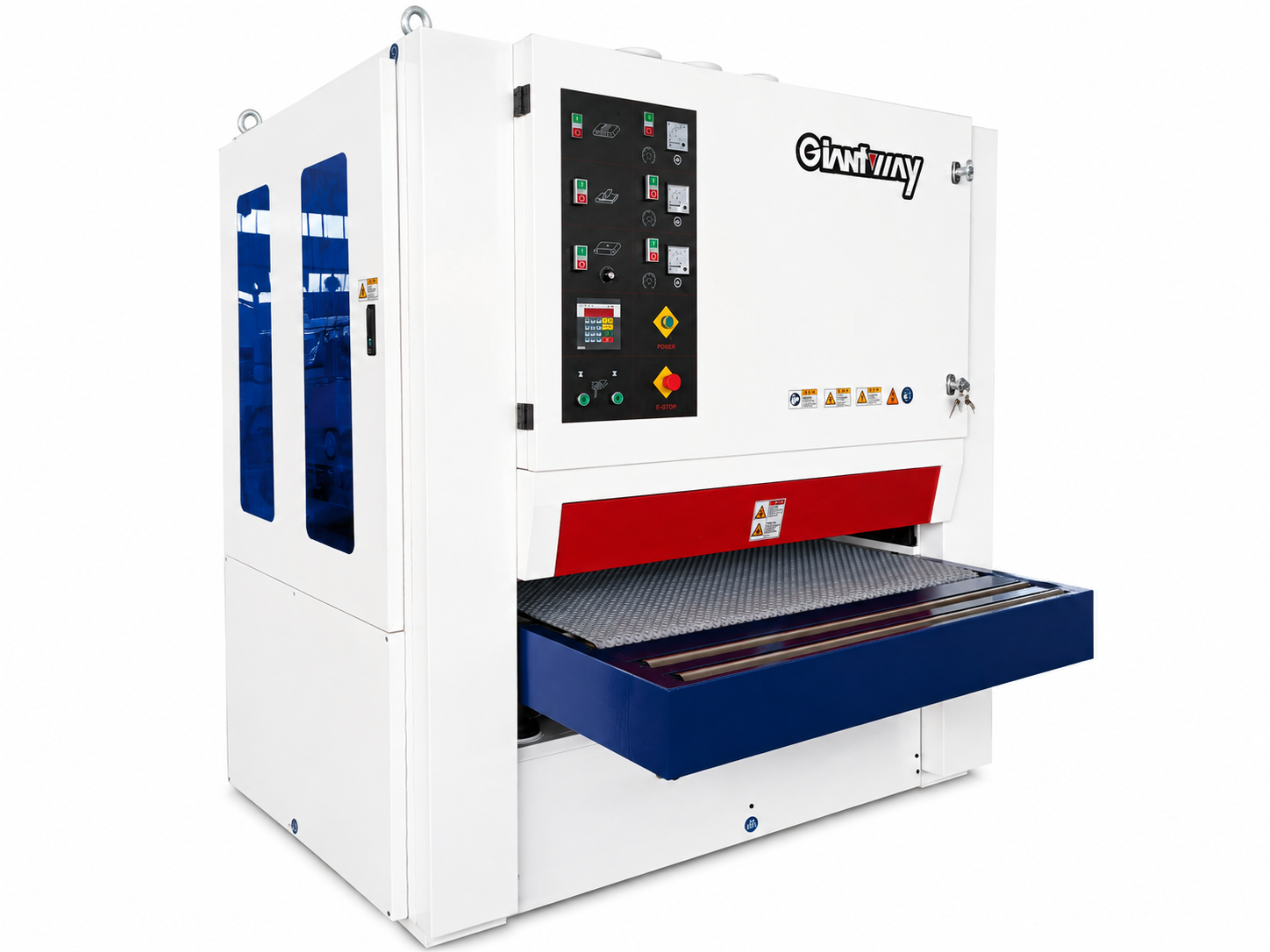

• Model / Type : SGJ1300R-RPA (Standard Type)
• Contact Roller Diameter (mm) : 240
• Calibrating Roller Diameter (mm) : 210
• Working Width (mm) : 40 – 1300
• Working Thickness (mm) : 2.5 – 150
• Feeding Speed (m/min) : 0 – 19
• First Belt Speed (m/s) : 24
• Second Belt Speed (m/s) : 18
• Sanding Belt Size (mm) : 1330 × 2200
• Total Power (kW) : 40.62
• First Belt Motor Power (kW) : 22
• Second Belt Motor Power (kW) : 15
• Motors Position : Inside
• Feeding Motor Power (kW) : 3 (Inverter)
• Lift & Decline Motor Power (kW) : 0.37
• Brush Motor Power (kW) : 0.25
• Working Pressure (MPa) : 0.4 – 0.8
• Compressed Air Consumption (CBM/min) : 1
• Overall Dimensions (mm) : 2300 × 2000 × 2120
• Weight (kg) : 3600
Preorder
₹1,950,000.00
₹2,437,500.00
