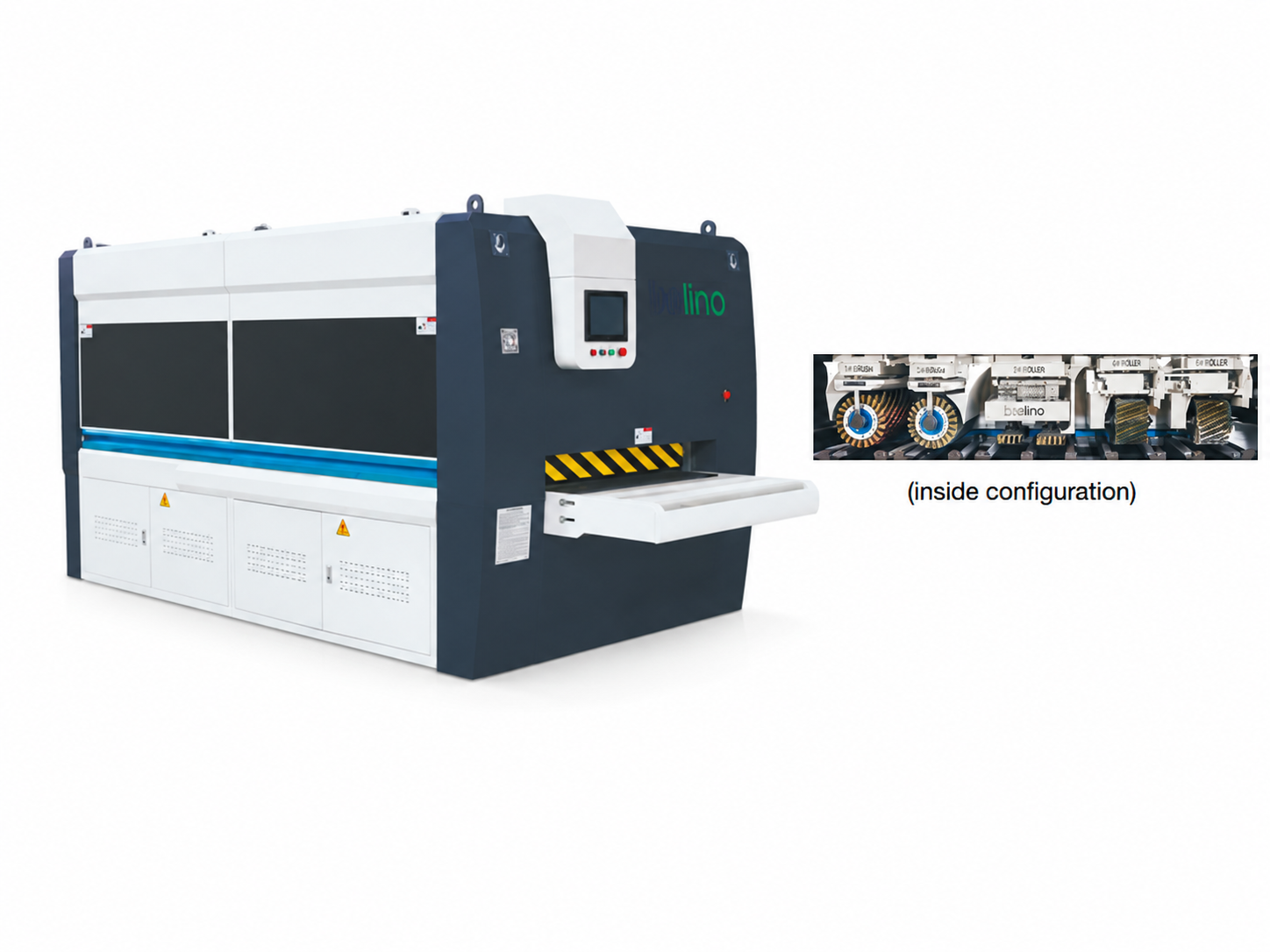

![Wide Profile Sanding Machine SP-R1300M6 [ 2-Spiral Roller | Round Pad | 2-Multi-Roller | Round Pad Swing | 13.5kW ]](https://cdn1.zohoecommerce.com/product-images/SP-R1300M6_Wide_profile_sanding_machine.png/2574649000097462416/400x400?storefront_domain=www.caple.in&format=webp)
A heavy-duty, 1,300 mm wide profile sanding machine for raw-material and primer sanding of solid wood, MDF and veneer components used in doors, windows, kitchens and custom furniture.
TECHNICAL SPECIFICATIONS:
- Maximum Processing Width: 1,300 mm
- Minimum Processing Length: 400 mm
- Processing Thickness: 10–130 mm
- Work Bench Height: 850 mm
- Feeding Speed: 1–12 m/min
- Conveyor Motor Power: 1.5 kW
- Spiral Roller Motor Power: 1.5 kW x 2 units
- Round Pad Swing Motor Power: 0.55 kW
- Round Pad Motor Power: 0.75 kW x 1 unit
- Multi-Roller Motor Power: 0.75 kW x 2 units
- Total/Main Power: 13.5 kW
- Power Supply: 415 V / 50 Hz / 3 Phase
- Dust Extraction Outlets: Ø200 mm × 5
- Machine Dimensions (L x W x H): 4,330 x 2,200 x 2,100 mm
- Machine Weight: 3,800 kg
Preorder
₹3,100,000.00
₹3,875,000.00
