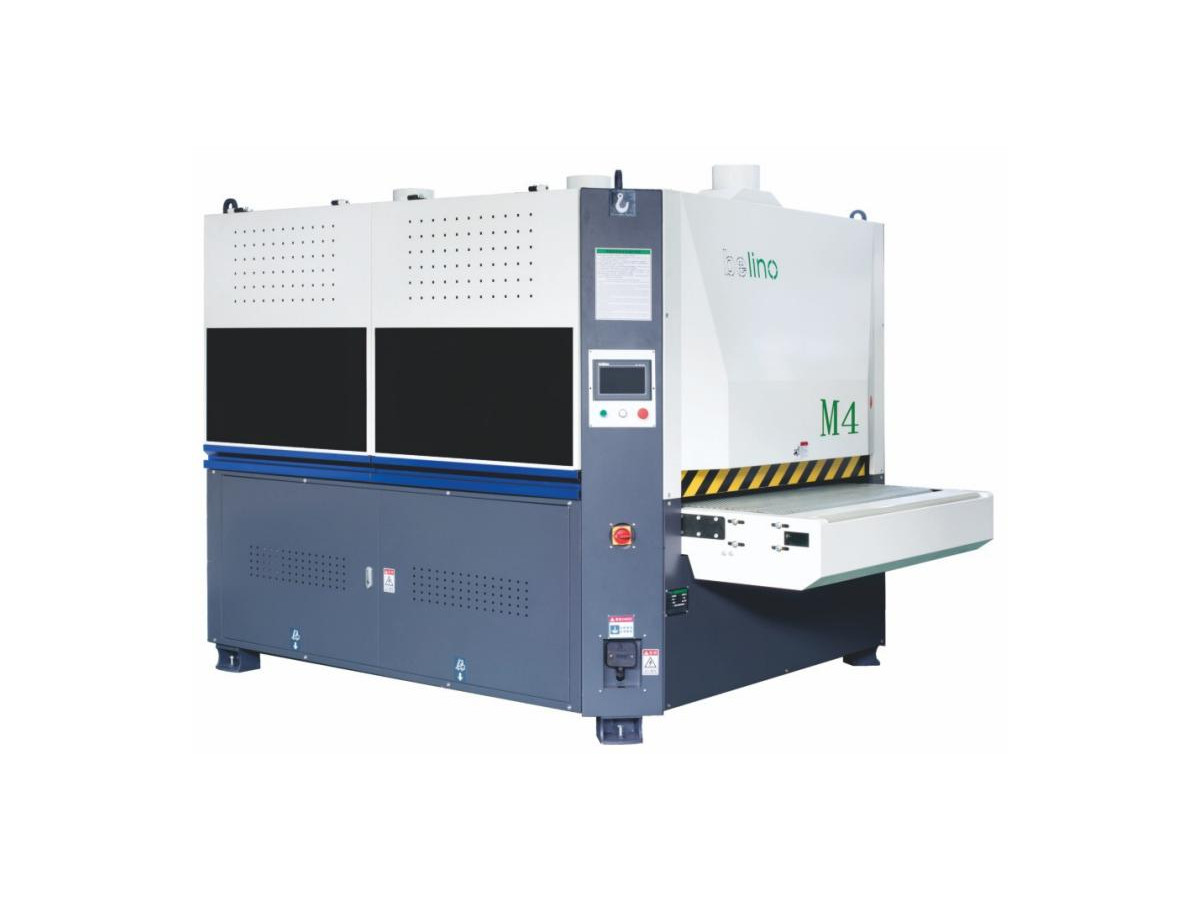

Belino Wide Profile Sanding Machine SP-R1300M4 [ 1,300 mm Processing Width | 1–9 m/min Feed | 8.6 kW ]

The Belino SP-R1300M4 is a heavy-duty wide profile sanding machine designed for raw-material and primer

sanding on flat or uneven surfaces. It processes solid wood, MDF and veneer panels up to 1,300 mm wide

and is suited to doors, windows, kitchen cabinets and furniture components. PLC touch-screen control,

individually adjustable sanding functions and an end-of-line dust-sweeping unit support repeatable surface

preparation.

- Model : SP-R1300M4

- Maximum Processing Width : 1,300 mm

- Minimum Processing Length : 400 mm

- Processing Thickness : 10–130 mm

- Workbench Height : 850 mm

- Feeding Speed : 1–9 m/min

- Conveyor Motor Power : 1.5 kW

- Power Supply : 415 V / 50 Hz / 3 Phase

- Dust-Extraction Inlets : Ø150 mm × 3

- Total Power : 8.6 kW

- Machine Dimensions (L × W × H) : 3,200 × 2,200 × 2,100 mm

- Machine Weight : 2,300 kg
