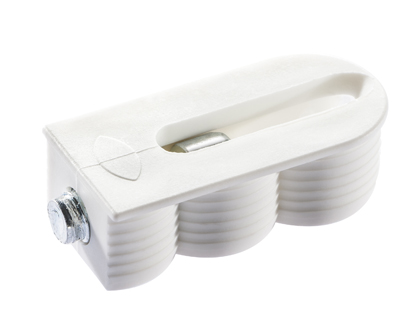

Lamello Cabineo 8

Name: Lamello Cabineo 8
Brand: Lamello
SKU: 186311-LS
Price: 28.0 INR
Availability: InStock

₹28.00 ₹35.00

Warranty

Not Applicable

Country of origin

Switzerland

YouTube Video 1

https://www.lamello.com/product/bohrenfraesen-verbinder/cabineo-8-cabineo-12/

GST Extra

18%

Lamello Cabineo 8

Key Features

• Shorter screw version of Cabineo designed for centre/dividing panel connections

• Same housing as Cabineo 12 — identical machining across all workpieces

• Allows centre wall connections in 16 mm panels (vs 24 mm for Cabineo 12)

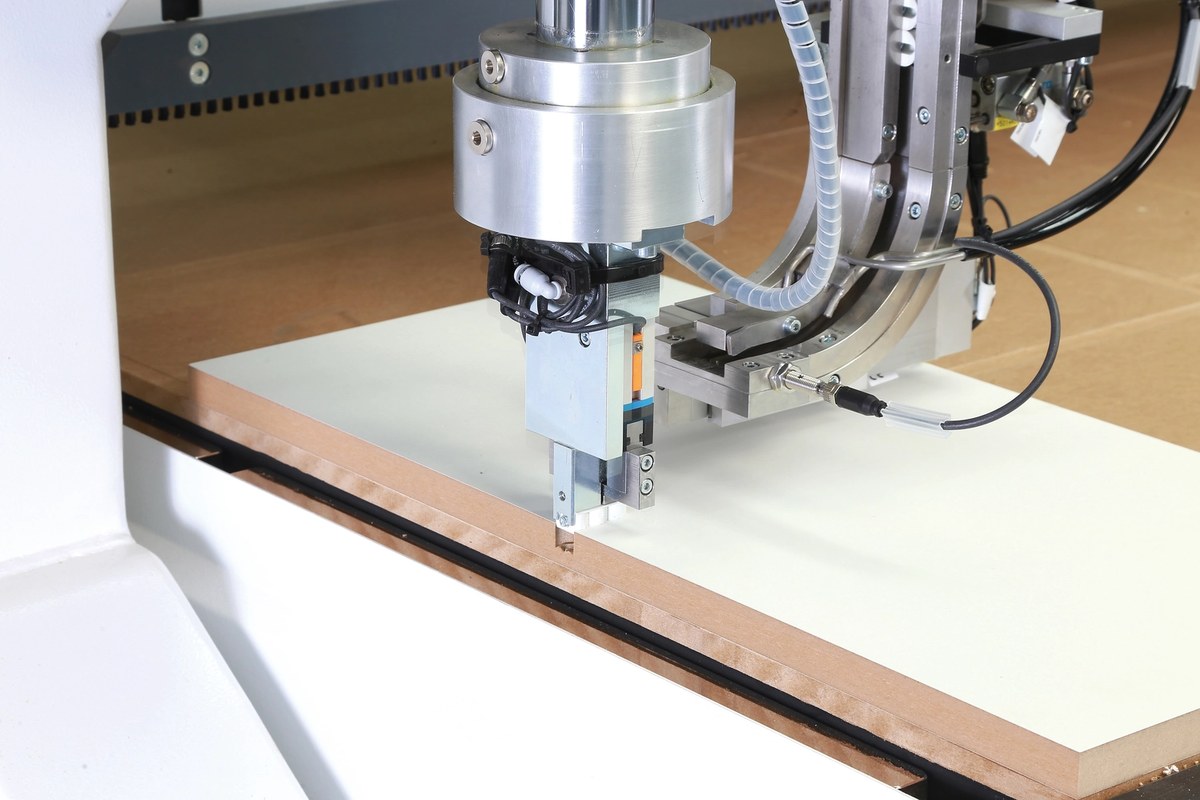

• Pure surface machining — no edge drilling required, compatible with all CNC machines

• One-piece, pre-installed connector — no loose parts during assembly

Additional Features

• Assembled with cordless drill and Cabineo bit

• Available in white or black housing with optional cover caps

Specifications

• Installation tolerance longitudinal: ± 0.1 mm

• Installation tolerance radial: ± 0 mm

• Minimum workpiece width: 21 mm

• Minimum material thickness for edge cuts: 12 mm

• Minimum material thickness for surface cuts: 9 mm

• Authorised Lamello Distributor • caple.in Since 1974 • Pan-India support

Choose Quantity

+ Add to Cart

TEST

Drilling System Connector (Cabinet Connector, Centre Panel)

Lamello Cabineo 8

Shorter screw version of Cabineo designed for centre/dividing panel connections

Installation tolerance longitudinal

± 0.1 mm

Installation tolerance radial

± 0 mm

Minimum workpiece width

21 mm

Minimum material thickness for edge cuts

12 mm

Minimum material thickness for surface cuts

9 mm

Minimum material thickness for centre wall machining

16 mm

Watch It In Action

Cabineo 8 M6 in cabinetry

Why Lamello Cabineo 8

Shorter screw version of Cabineo designed for centre/divi…

Shorter screw version of Cabineo designed for centre/dividing panel connections

Same housing as Cabineo 12 — identical machining across a…

Same housing as Cabineo 12 — identical machining across all workpieces

Allows centre wall connections in 16 mm panels (vs 24 mm …

Allows centre wall connections in 16 mm panels (vs 24 mm for Cabineo 12)

Pure surface machining — no edge drilling required, compa…

Pure surface machining — no edge drilling required, compatible with all CNC machines

Why Choose Caple

Pillar	You Get	You Save
Safety	CE-marked Swiss-engineered tool with comprehensive safety features	Risk of workplace injuries and compliance issues
Quality	Swiss precision engineering with ±0.1 mm tolerance accuracy	Rework, rejection costs, and quality complaints
User Friendly	Intuitive operation with minimal setup and training required	Time on operator training and complex adjustments
Productivity	Dramatically faster assembly — no clamping or drying time	Hours per day on manual clamping, alignment, and rework
ROI	Lower total cost through reduced consumables, rework, and assembly time	Adhesive, clamp, screw hardware, and labour costs
Trust	Authorised Distributor	Official Lamello partner — genuine products with full support
	caple.in Since 1974	Over 50 years of woodworking machinery expertise in India
	Warranty	12 months warranty on machines
	Trained Team	Factory-trained application specialists on staff
	Pan-India Support	Service network across major cities and metro areas

Technical Specifications

Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	9 mm
Minimum material thickness for centre wall machining	16 mm
Tensile strength in particle board	520 N
Tensile strength in MDF	610 N
Tensile strength in beech	1530 N
Shear strength in particle board	530 N
Shear strength in MDF	680 N
Shear strength in beech	1430 N
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	8 mm (black wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole

Frequently Asked Questions

What is the Lamello Cabineo 8?

The Lamello Cabineo 8 is a drilling system connector (cabinet connector, centre panel) — Shorter screw version of Cabineo designed for centre/dividing panel connections

What groove is required for the Cabineo 8?

The Cabineo 8 requires a groove milled with the Lamello Zeta P2 biscuit joiner or a CNC machining centre. Groove depth: P-System groove.

What is the minimum material thickness for the Cabineo 8?

Minimum material thickness is 12 mm. Please refer to the technical specifications above for all thickness requirements.

Is the Cabineo 8 detachable?

This connector is designed for permanent assembly. For detachable options, see the Clamex P range.

How many connectors are needed per joint?

Typically 2–4 connectors per linear joint depending on panel size and load requirements. Our trained team can advise on the optimum count for your specific application.

Does caple.in supply the Cabineo 8 in bulk?

Yes, caple.in supplies Lamello connectors in both trial quantities and bulk packs (up to 1000+ pairs). Contact us for volume pricing.

What is the tensile strength of the Cabineo 8?

Tensile strength is 520 N in particle board. Performance varies by substrate — see specifications for MDF and solid wood values.

Can the Cabineo 8 be used for mitre joints?

Yes, with appropriate machining setup. Contact our team for guidance on mitre joint applications.
