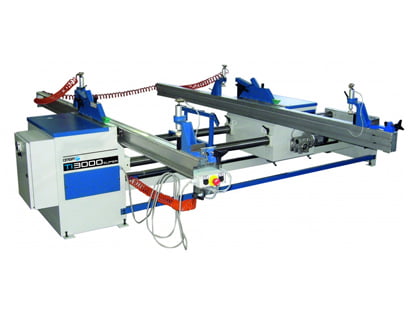

OMGA DOUBLE SQUARING MACHINE TI 3000
₹4,200,000.00 ₹5,250,000.00
Warranty
12 Months GST Extra
18% Available on Request
• Technical details:
• max cutting length 2500 - 3000 mm
• max cutting width between blades 2550 - 3050 mm
• min cutting width 320 mm (460 mm with vacuum system )
• max cutting height at 90 degrees 110 mm
• max cutting height at 45 degrees 78 mm
• saw blades 2 x � 400 mm z= 96
• scoring saws 2 x �125 mm z= 24
• motors 2 x 4 kW
• motor brakes
• motor overloads
• working table height 850 mm
• net weight 930 � 1030 Kg. Includes TI 3000 Super CE Vacuum Clamping Motorized traverse Digital read-out of cutting length TI 3000 Lase Pointer
