SCM

CONFIGURATION

• 10.99.99 N. 1 : Security execution

• R0.08.57 N. 1 : e 20 CE version

• 93.07.31 N. 1 : Volt 400 EU

• 93.12.01 N. 1 : Frequency 50 Hz

• 62.15.70 N. 1 : Adjustable tilting table from 0 to 45°

• 62.15.71 N. 1 : Infeed fence for linear panels

• 62.15.72 N. 1 : 3-roller outfeed fence

• 62.13.87 N. 1 : Front extension for the support of large dimensions panels

• 62.15.79 N. 1 : Glue pot for poliurethane glue supplied in substitution of the standard one

• 08.32.05 N. 1 : Wood blocks

• 10.99.91 N. 1 : Machine language: ENGLISH

• CONFIGURATION -Composition Code: R004402

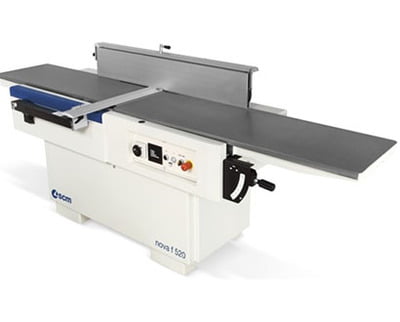

• R1.11.64 : nova f 520

• 93.07.31 : Volt 400 EU

• 93.12.01 : Frequency 50 Hz

• 55.50.14 : P1 version

• CE and electrical protections)

• 57.01.27 : Additional overturning fence

• 57.03.23 : Xylent spiralknife cutterblock with 3 series of knife

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 08.32.50 : Wooden Block

• 10.99.91 : Machine language: ENGLISH

CONFIGURATION

• composition code: R013301 / R015501

• 10.99.99 : Security execution

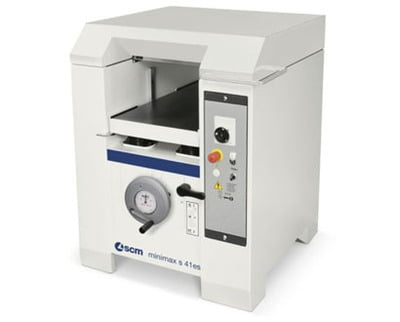

• R0.21.98 : minimax fs 41es

• 93.07.72 : Voltage 400 EU

• 93.12.05 : Frequency 50 hz

• 58.02.22 : Rubber-coated feed roller on thicknesser outfeed

• 58.04.93 : Xylent spiralknife cutterblock with 3 series of knives

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 58.02.41 : Additional overturning fence for processing of thin workpieces

- 08.33.18 : WOOD BLOCKS

CONFIGIRATION

• 10.99.99 : Security execution

• R0.21.98 : minimax fs 41es

• 93.07.72 : Voltage 400 EU

• 93.12.05 : Frequency 50 hz

• 58.02.22 : Rubber-coated feed roller on thicknesser outfeed

• 58.04.93 : Xylent spiralknife cutterblock with 3 series of knives

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 58.02.41 : Additional overturning fence for processing of thin workpieces

• 58.01.14 : Bridge planer protection (standard for CE version)

- 08.33.18 : WOOD BLOCKS

• 10.99.91 : Machine language: ENGLISH

• Item number: FS 41 ES Configuration: R013701

• Certification model type: FS-03

• CONFIGURATION

• 10.99.99 : Security execution

• R1.11.64 : nova f 520

• 93.07.31 : Volt 400 EU

• 93.12.01 : Frequency 50 Hz

• 57.01.27 : Additional overturning fence

• 57.03.23 : Xylent spiralknife cutterblock with 3 series of knife

• 57.03.27 : Xylent maintenance kit

• 57.03.28 : 10 spare inserts kit (15x15x2,5) for Xylent spindle

• 08.32.50 : Wood blocks

• 10.99.91 : Machine language: ENGLISH Item number: NOVA F 520 Configuration: R004701 Certification model type: F 52

• Previous composition code : R001102

FEATURES

• INCREDIBLE CUTTING WITH THE NEW SAW UNIT AND SLIDING TABLE

• SQUARING FRAME AND FENCE: MAXIMUM PERFORMANCE AS STANDARD - 90° . SIMULTANEOUS TABLES OPENING TOWARDS THE INSIDE OF THE MACHINE:  EXCEPTIONAL ACCESS

• Extruded anodized aluminium sliding table (dimensions 270 x 124 x 1600 mm) sliding on high precision hardened steel guideways

• Squaring frame (dimensions 1200 x 650 mm) complete with:

• telescopic fence with 2 crosscut flip-over stops

• eccentric clamp

• swinging arm support

• Saw unit with 315 mm maximum blade diameter with scoring blade (option) installed (blade not included)

• Simultaneous surfacing tables opening, at 90°     , towards the inside of the machine

• Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers

• Integrated fence, for parallel cuts and surface planing

• Pre-setting for mortiser

• New design of the dust-conveyor, to protect the cutter block, for further system safety increase

• Belt driven scoring unit complete with blade  - 2 extra handwheels for the operating units movement

• Professional fences

• Xylent spiralknife cutterblock with 3 series of knives

• Anodized aluminium tables for spindle moulder fence

• Cast iron mortiser

• Spindle moulder shaft of 30 mm diam

TECHNICAL DATA

• PLANER:

• useful working width [mm] : 300

• cutter block diameter (mm)/n. standard knives  : 72/3

• standard knives dimensions [mm] : 300 x 30 x 3

• max. stock removal [mm] : 4

• surfacing tables total length [mm] : 1510

• thicknessing table dimensions [mm] : 585 x 300

• feed speed on thicknesser [m/min] : 7

• min.   max. working height on thicknesser [mm] : 3 - 230 CIRCULAR SAW :

• cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335

• blades tilting  : 90° - 45°

• max. saw blade diam. with scoring blade installed [mm] : 315

• max. saw blade projection from table at 90°   /45°      [mm] : 100/78

• max. squaring stroke (standard) [mm] : 1600

• cutting width on parallel fence [mm] : 820 SPINDLE MOULDER :

• max. useful spindle length [mm] : 100*

• spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000

• max. tool diameter when profiling [mm] : 210

• max. diam. of tool lowered under the table at 90  [mm] : 180

• three-phase motors S6  :  5kW (6.6hp) 50Hz

• exhaust outlets diameter [mm] : 120 Frequently Asked QuestionsDoes Caple still supply SCM machines? Caple was formerly a dealer for SCM Group and no longer represents it. Any SCM item listed here is offered only from existing stock; for new machinery, see our Nanxing range.How does an SCM edge bander compare to entry-level edge banders?SCM edge banders feature precision German-engineered glue units, servo-controlled feed systems, and digital parameter adjustment — delivering superior edge quality, faster changeover, and longer service life versus entry-level machines.What is the lead time for SCM machines in India?Lead times for SCM machines vary by model and configuration. Contact Caple at caple.in/contact for current availability and delivery timelines.Does SCM equipment work with Indian wood species?Yes — SCM machines are engineered for hardwoods, softwoods, MDF, plywood, and particle board, including Indian species like teak, sheesham, and mango wood commonly used in Indian furniture manufacturing.What after-sales support does Caple provide for SCM?Caple provides installation, operator training, scheduled maintenance, and spare parts supply for SCM machines. Contact us at caple.in/contact.
