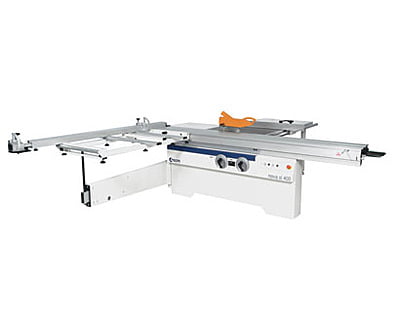

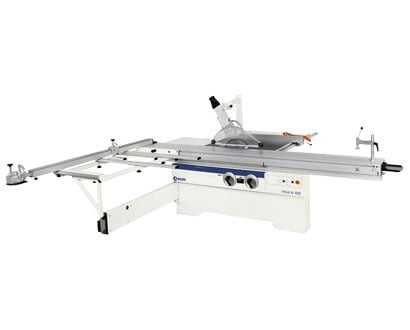

SCM Circular Saw / Panel Saw NOVA SI400 BR - R001501

₹600,000.00 ₹750,000.00
GST Extra
18%
SCM Panel Saw Machine with 3200mm Sliding Table, 1430mm Ripping Capacity with fine tute adjustment, Provision for DADO saw,  400mm Height to Cut the Plywood, Particle board, MDF, Acrylic and other non ferrous material with accurate sizing and precision


FEATURES :
- Anodized aluminium alloy carriage on hardened steel guides, which are fixed on the carriage through a mechanical
  bending system
- Sliding carriage length 3200mm
- Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
- Squaring frame the fast fence positioning of angular cuttings
- Outfeed table extensions
- Manual rip fence with position reading on the metric rule
- Sliding on steel bar, 40 mm diameter with micrometric adjustment
- Ripping capacity on parallel fence 1430 mm.
- Dado shaft with Flanges as Standard with Machine.
- Eccentric Clamp as Standard with Machine.

SAFETY / PROTECTIONS:
- Emergency pushbutton located on the front machine side
- Overload protection
- Blade protection on the riving knife (versions with electrical protections) exhaust outlet 60mm. and 120mm
- Padlockable main switch
- Auxiliary low voltage circuit (110 voltage)

TECHNICAL SPECIFICATIONS:
- Squaring capacity [mm] : 3200x3200
- Cutting width on rip fence [mm] : 1430mm
- Max cutting height at 90°   [mm] : 140 with 400dia blade
- Max cutting height at 45°   [mm] : 97 with 400dia blade
- Blades lifting & tilt : Manual- Main blade rotating speed [rpm] : 3000 / 4000 / 5000
- Scoring blade rotating speed [rpm] : 8500
- Saw unit motor power (S6 -40%) kW (HP) 50 Hz : 5.5 KW, 7.5 ( HP)
Choose Quantity
+ Add to Cart
Specifications
Sawing Specifications
  • Squaring Capacity
    3200 mm
  • Ripping capacity
    1430 mm
  • Max. Cutting Height
    140 mm
  • Main Saw Unit Power
    5.5 kW
  • Main Saw Rpm
    3000 / 4000 / 5000
