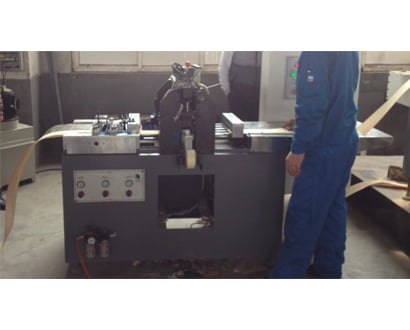

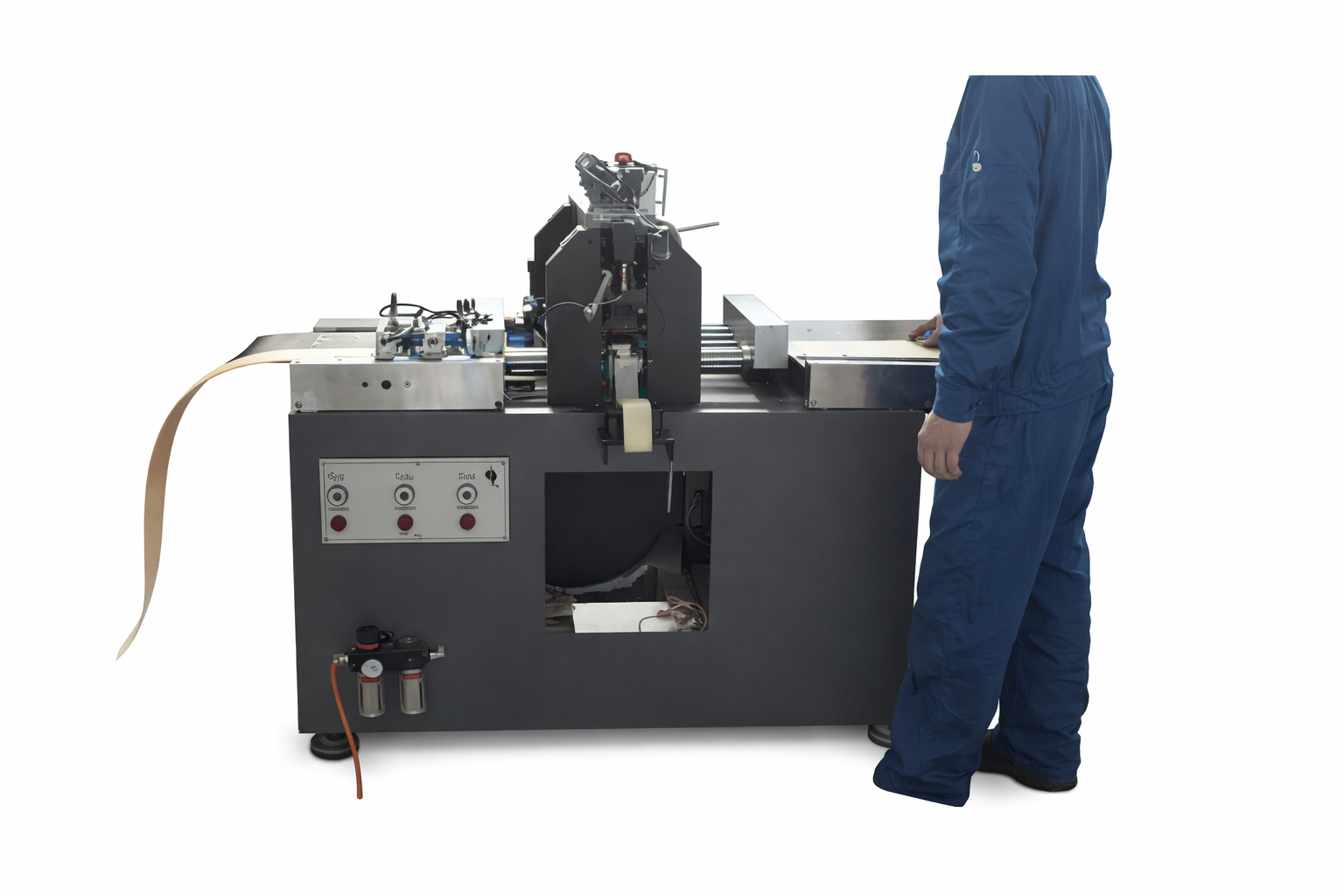

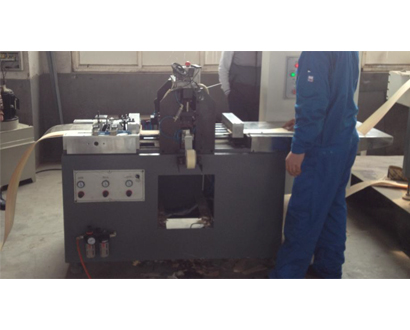

Veneer Finger Joint Machine ZJ300
₹2,550,000.00 ₹3,187,500.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
It can be used to finger-joint the veneer and make it longer after the veneer is sliced and dried. The joint looks like irregular finger-type teeth in shape. The maximum length of veneer finger-jointed is up to 200-300m.
TECHNICAl DATA
Max. processing width : 300mm
Processing thickness : 0.3 - 0.8mm
Min Processing length : 800mm
Time of finishing a joint : 8 - 12s
Total Power : 2.1kw
Compressed air : 0.7 m3/h
Overall dimensions : 2300*1500*1650mm
Weight : 800kg
