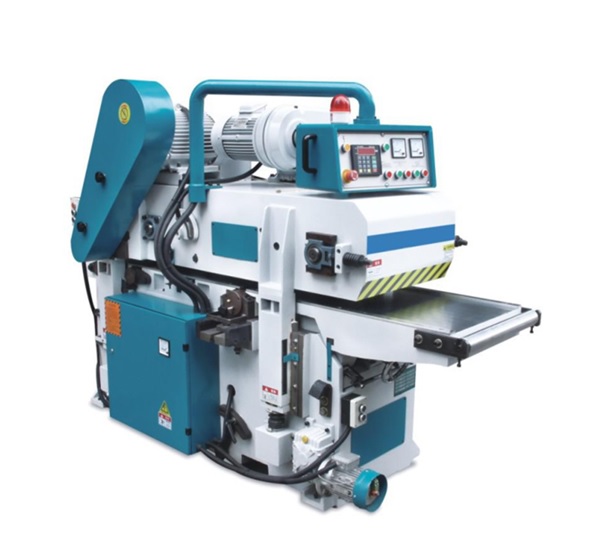

Double Side Planer
₹2,200,000.00 ₹2,750,000.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAl DATA: - Max. working width : 630 mm - Max. working thickness : 150 mm - Min. working length : 260 mm - Max.cutting depth(upper spindle) : 7 mm - Max. cutting depth(bottom spindle) : 5 mm - Tool cutting circle diameter : 101 mm - Type of Cutter : Spiral - Spindle speed : 4800 r/min - Feed speed : 4-16 m/min - Upper & Bottomspindle motor : 11+7.5 kw - Feed motor : 3 kw - Total power : 21.5 kw - Dust exit : 120x1 150x1 - Net weight : 2500 kg - Overall dimensions : 2250x1180x1700 mm
