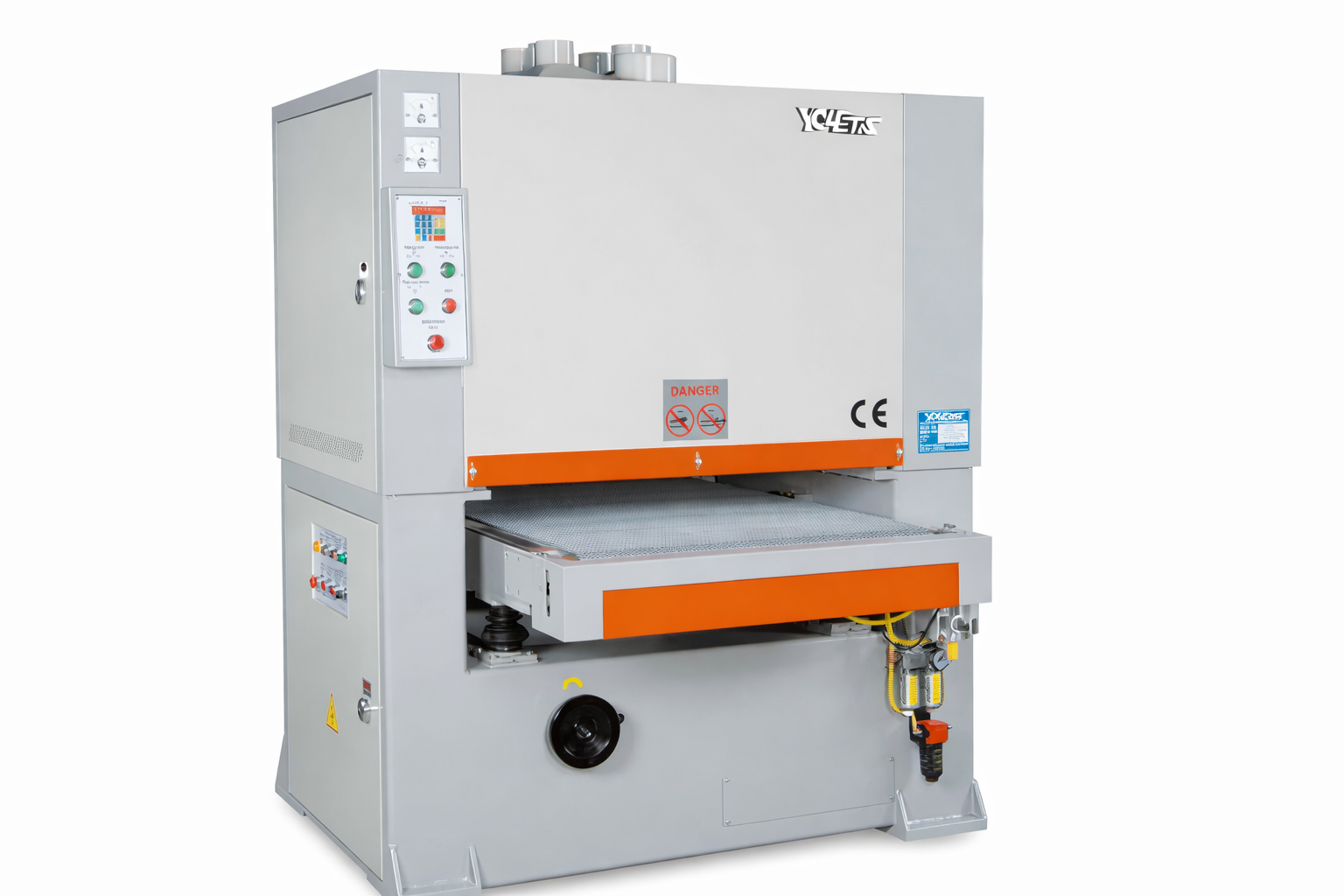

Wide Belt Sander with Double Belt SGJ1300R-RPA [STANDARD STEEL ROLLER | + COMBINATION (ROLLER AND PAD) | TOTAL Power: 40.62KW]

Technical Specifications

• Model / Type : SGJ1300R-RPA (Standard Type)

• Contact Roller Diameter (mm) : 240

• Calibrating Roller Diameter (mm) : 210

• Working Width (mm) : 40 – 1300

• Working Thickness (mm) : 2.5 – 150

• Feeding Speed (m/min) : 0 – 19

• First Belt Speed (m/s) : 24

• Second Belt Speed (m/s) : 18

• Sanding Belt Size (mm) : 1330 × 2200

• Total Power (kW) : 40.62

• First Belt Motor Power (kW) : 22

• Second Belt Motor Power (kW) : 15

• Motors Position : Inside

• Feeding Motor Power (kW) : 3 (Inverter)

• Lift & Decline Motor Power (kW) : 0.37

• Brush Motor Power (kW) : 0.25

• Working Pressure (MPa) : 0.4 – 0.8

• Compressed Air Consumption (CBM/min) : 1

• Overall Dimensions (mm) : 2300 × 2000 × 2120

• Weight (kg) : 3600

₹1,950,000.00 ₹2,437,500.00

Ferro Tiger, Scissor Lift as Dock Up for Loading Unloading [ 6000kg | 5000x2500mm | 2000mm Stroke]

FEATURES:

Key Benefits

• Durable 5 mm chequered plate top platform

• Seamless truck-to-dock transition with a steel lip

• Precise control with infinite positioning

• Efficient single-acting hydraulic cylinders

• 24V DC control voltage for enhanced safety

• Even load distribution for optimal performance

TECHNICAL SPECIFICATIONS:

• Number of Scissor Arms : One

• Max Capacity of lift table : 6000 Kgs

• Load to Raise/Lower : 6000 Kgs

• Top Platform size : 5000 mm x 2500 mm

• Max height from base frame : 2800 mm

• Closed height : 800 mm

• Stroke / Travelling lift : 2000 mm

• Motor : 7.5 HP - 3 Phase 415 V AC 50 Hz.

• Power Source : 3 PH, 415V + Neutral

• Control Voltage : 24 V DC (For Safety)

• Control type : Push Button

• Top Platform base sheet : 8 mm thick MS Chequered Sheet

• Power Pack Position : Outside of Scissor lift

• Movement / Location : Stationary – Pit Mounted

• Equipment Color : RAL 5017 Traffic Blue

OPERATIONAL SPECIFICATIONS:

• Lifting time / Speed : 50 sec approximate @ 40 mm/sec

• Lowering time / Speed : 50 sec approximate @ 40 mm/sec

• Cycle Time : Customer to specify

• Frequency of Operations per hour : Customer to specify

• Duty Cycle – No. of Shifts : Customer to specify

• Motor Running Type : Non-Continuous

• Circuit Type – for raising and lowering : Inching

• Stopping Accuracy : +/- 5 mm

• Site temperature Max & Min : N/A

• Humidity : N/A

Exclusions

• Installation of equipment: unloading and placing into the pit / factory floor is not our scope of supply.

• Civil and structural work at site is not in our scope of supply.

₹1,550,000.00 ₹1,937,500.00

Curvilinear Edge Bander DTMAC DT-10XZ

TECHNICAL DATA:

- Voltage : 220V/50Hz/1phase

- Total Power : 6.2kw

- Air Pressure : 0.5-0.8Mpa

- Glue Pot : 2800ml

- Glue Pot Temperature : 110-210°C

- Speed : 0-24cm/s

- Strips Width : 12-70mm

- Strips Thickness : 0.5-3mm

- Size : 1010×800×1100mm

- Edge Banding Assembly : Oblique straight, with micro switch

- Cutting : Limit switch triggers automatic strip cut when board reaches set position

- Bonding : Hot air assisted edge banding for stronger bonding

- Pressure Unit : Detachable 45° beveled straight pressure unit

- Cutter Assembly : Brand new, compact structure, good cutting flatness effect

- Fluent Strip : Widened, extends 0-45cm outward for large plates

- Walking Board : New type, anti-reversal, suitable for edge banding width up to 7cm

- Applicable Profiles : Curve, inner right angle, oblique straight, straight line, round, alien

- Applicable Boards : Particle board, MDF, ecological board, multilayer board, Osong board, high gloss board

- Applicable Edge Banding Materials : PVC, ABS, veneer, melamine

₹180,000.00 ₹225,000.00

Automatic Bevel Edge Banding DTMAC F350

Features :

TECHNICAL DATA:

- Milling Diameter : 200mm

- Milling Power : 4KW

- Milling Speed : 3000 r/min

- Slotting Height : 3-23mm

- Slotting Power : 0.35KW

- Gluing Glue : PUR or EVA

- Gluing Volume : 3000ml

- Banding Roller : 4+4 pcs

- Banding Power : 0.25KW

- End Cutting Power : 0.37kw

- Trimming Power : 0.75KW

- Scraping Method : both sides

- Polishing Power : 0.37KW

- Voltage : 415v/50hz/3phase (can be customized)

- Total Power : 16KW

- Air Pressure : 0.6-0.8Mpa

- Dust Extraction : φ100mm×3 pcs

- Feeding Speed : 12m/min

- Strip Thickness : 0.5-2mm

- Board Thickness : 14-25mm

- Min. Board Size : ≥250×150mm

- Warranty : ONE YEAR

₹1,350,000.00 ₹1,687,500.00

Holzh Vacuum press machine Full Automatic WV3300A-2Z(FA)

Function

It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box and to cover veneer and heating transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company. Compared with WV2300C-2, it doubles the working efficiency. WV2300A-2Z is fully automatic model

TECHNICAL DATA:

- Worktable size 3300×1300*60mm

- Max Work piece size 3100*1100mm

- Max workpiece thickness - 60mm

- Total power 33Kw - Vacuum -0.1Mpa

- Overall dimensions - 9800×2000×2000mm

- Package size 3800*2000*2000mm

- Weight 1800kg

₹1,450,000.00 ₹1,812,500.00

Cabinet Factory ROI Comparison — All Plans

₹100.00

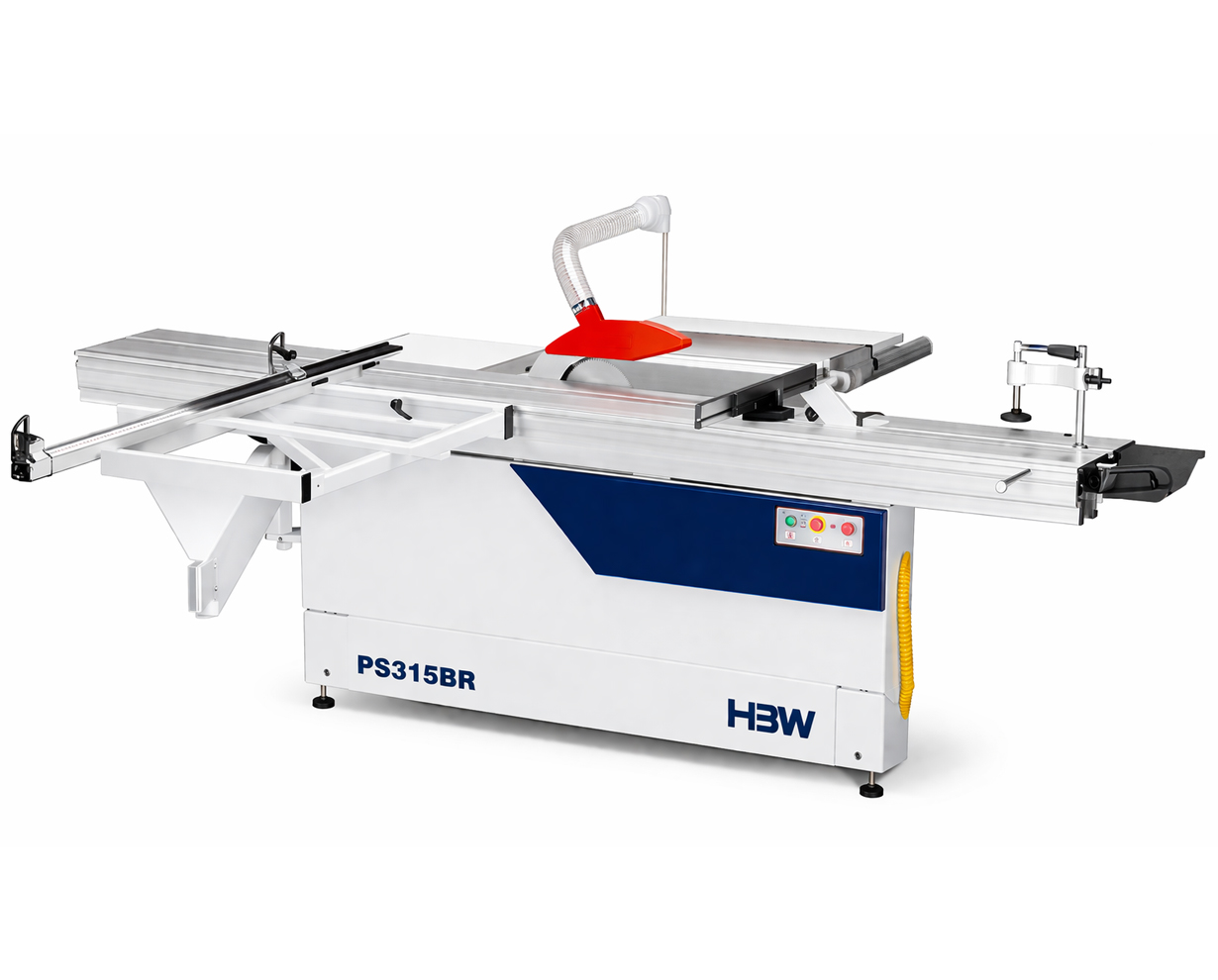

Sliding Table Panel Saw PS315BR with Simple Guard | Angle Cutting Device | 3000mm Table | 975mm Rip Cut | 93mm Max Height Cut | Single Speed | 4KW

TECHNICAL DATA:

Main Blade Diameter : 315 mm
Main Blade Speed : 3400 rpm / 50 Hz
Scoring Blade Diameter : 120 mm
Scoring Blade Speed : 7600 rpm / 50 Hz
Blade Tilt : 0–45°
Max Depth of Cut @ 45° : 65 mm
Max Depth of Cut @ 90° : 93 mm
Max Rip Capacity : 975 mm
Sliding Beam Size : 3000 × 360 mm
Sliding Beam Cutting Capacity : 3000 mm
Blade Rising : Manual
Blade Tilting : Manual
Table Size : 819 (374+650) mm
Dust Extraction Outlet : 100 mm
Main Motor Output : 4 kW S1
Net / Gross Weight : 452 / 527 kgs
Package Size : 2005 × 1140 × 870 mm, 3326 × 470 × 188 mm

₹275,000.00 ₹343,750.00

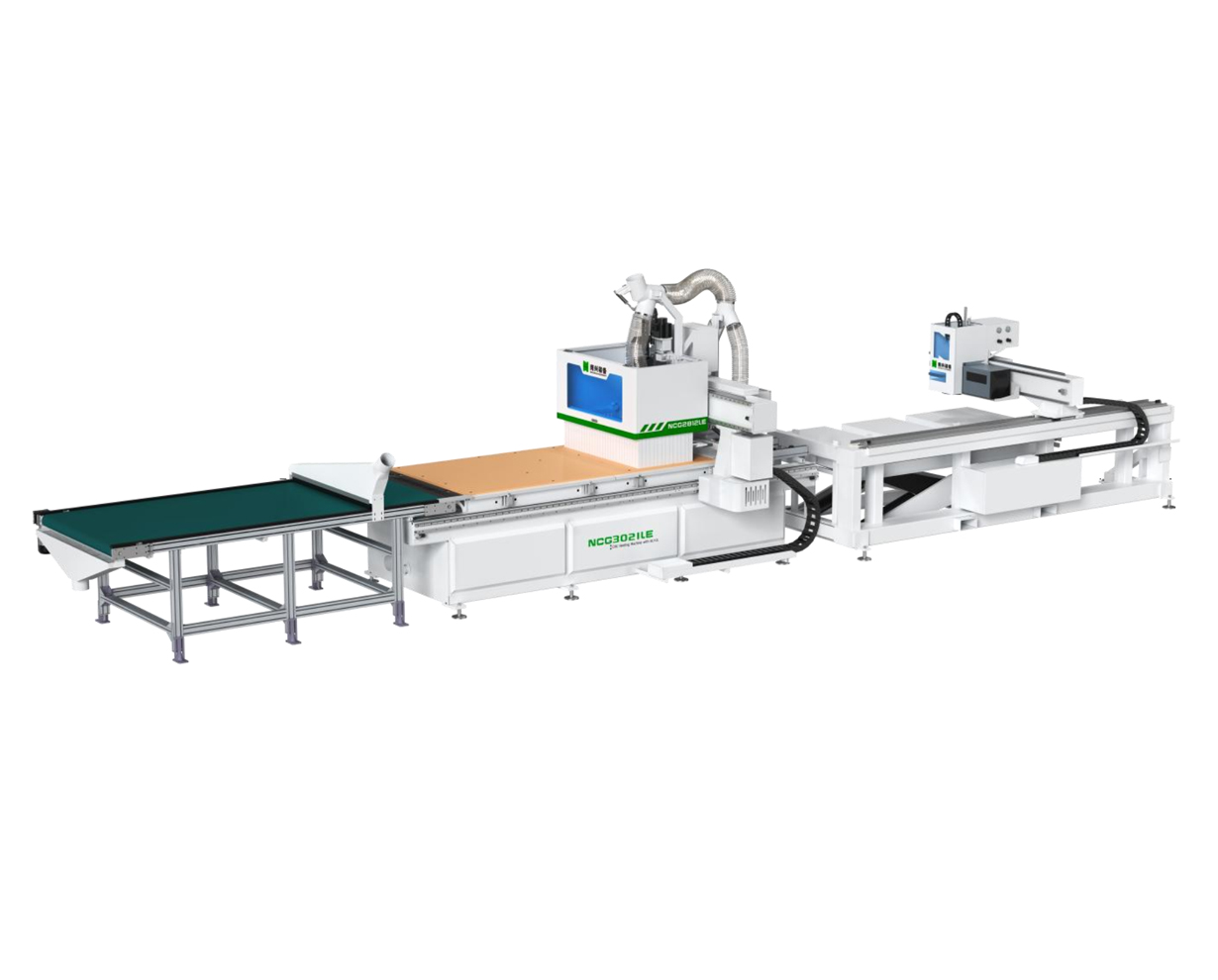

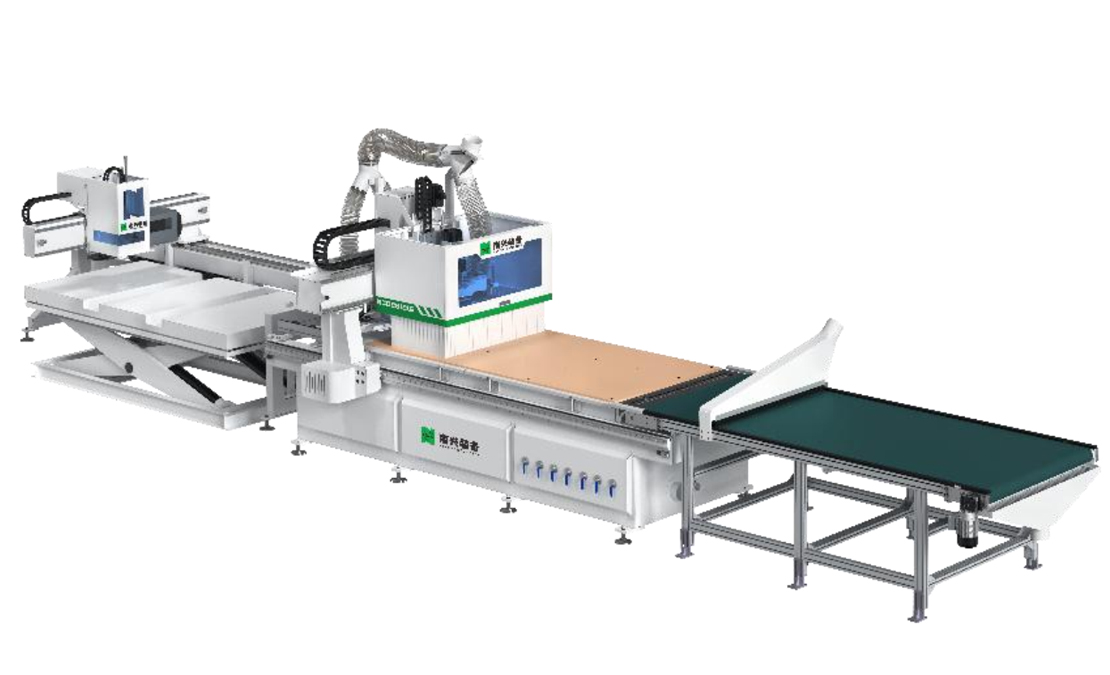

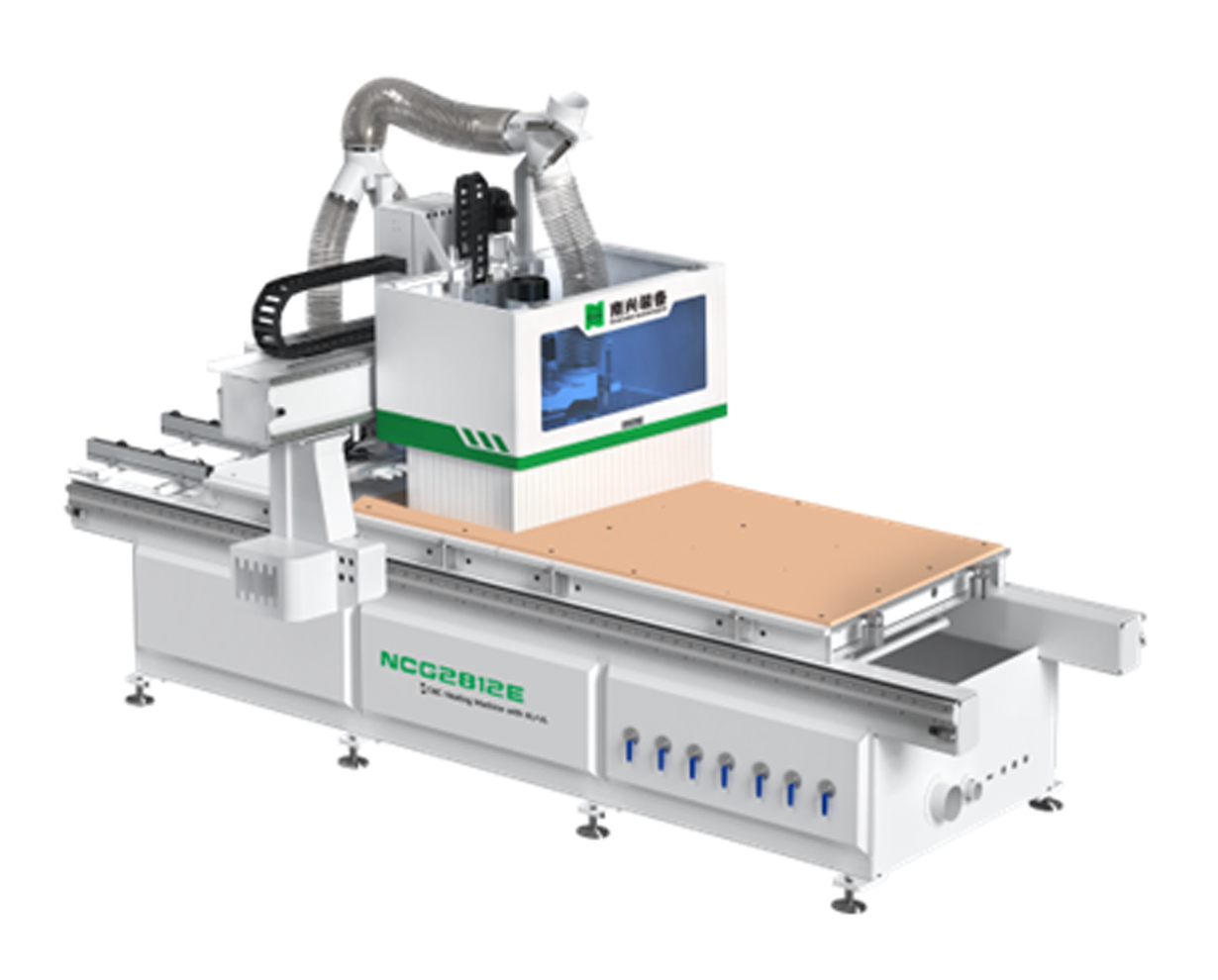

CNC Nesting Machine with AL&UL NCG2812LE(AC) with 12kw Spindle with Drill Head

FEATURES:

1pc Vacuum Pump
Automatic Loading
Pre-Positioning Vacuum Cup
Vacuum cup and roller bracket
Rotatable Labelling
Movement of each axis Servo motore
Automatic Greasing
Side Positioning Cylinders & Positioning Cups
12 kw main Spindle + V10 Drilling block
Automatic Line Tool Changer 12 Slots
Unloading Pusher
Rear Positioning Cylinders and Dust Collector
Auto Unloading
Start/Stop Button on gantry
Tank Cable Chain
Tool Setting gauge and locker
Hand Wheel and Foot Switch
Computer with Windows Dell Display USB Port & easy for remote assistance
Control System
Optimizing Software
Workpiece Editor Software
Online Optimization Software (One Year free of charge)
Pressure Roller
2no. Standard Tool Holder
FCC
Air Conditioner for Control Cabin

TECHNICAL SPECIFICATIONS:

Control system : SYNTEC
Working range X : X-axis: 2,800 mm
Working range Y : Y-axis: 1,220 mm
Working range Z : Z-axis: 50 mm
Working table : Size: 2,800×1,220 mm Height: 950mm
Max. traveling speed X : X-axis: 100 m/min
Max. traveling speed Y : Y-axis: 100 m/min
Max. traveling speed Z : Z-axis: 200 m/min
Main spindle Quantity : 1
Main spindle Power : 12 kW
Main spindle Tool Holder : ISO30
Main spindle Tool Speed : 24000 rpm
ATC : Servo control Line tool changer with 12 slots
Vacuum pump Quantity : 1
Vacuum pump Power : 7.5 kW
Vacuum pump Suction flow rate : 250 m3/h
Dust extraction Diameter : 150 mm*1x125mm*3 Speed required: 28 m/s
Air supply : 6-7 kg/cm2
Power supply : 415V, 3-phase, 50 Hz
Total power : 27.31 kW
Floor space : L×W×H: 11000×2460×2500 mm
Net weight : 4,600 kg

₹3,000,000.00 ₹3,750,000.00

Nanxing CNC 6-Sided drilling machine ND510S 415V | AC | Grooving Saw Blade | Air Jet for Gripper | Thickness Sensor

FEATURES

• Long clamp beam & fast clamps – 3.3 m

• Infeed air float table – 500 × 1613 mm

• Feed-out table – 500 × 1613 mm

• Positioning system

• Accurate movement of each axis (X, Y, U) transported by inclined rack and pinion

• Auto greasing

• Board length detector

• Processing unit

• Quick-change tool

• Cable chain

• Minimum processing size

• Stack processing

• Hand controller

• Start button & pedal switch

• E-stop & pause bar

• Industrial computer

• Control system

• Excellent electrical components

• Bar-code reader

• User-friendly operation

• File format support

• Air conditioner on control cabinet

• Air jet for gripper

• Board thickness sensor

Technical Data

• Total Power: 13.87 kW

• Machine Size: 3962 × 2222 × 2271 mm

• Power Supply: 415 V / 50 Hz

• Air Supply: 0.6–0.7 MPa

• Control System: SYNTEC

• Panel Length: 200–3,000 mm

• Panel Width: 30–1,000 mm

• Panel Thickness: 10–60 mm

• Max. Travelling Speed – X/U axis: 135 m/min

• Max. Travelling Speed – Y axis: 75 m/min

• Max. Travelling Speed – Z axis: 30 m/min

• Max. Travelling Speed – V axis: 30 m/min

• Working Table Material: HPL

• Working Table Size: 1232 × 275 mm

• Working Table Height: 955 mm

• Drilling Block Qty: Top 1 + Bottom 1

• Vertical Drills Qty (Top): 10

• Horizontal Drills Qty (Top): X: 6 + Y: 4

• Vertical Drills Qty (Bottom): 9

• Max. Drill Diameter: Φ35 mm

• Drill Spacing: 32 mm

• Drill Rotation Speed: 5000 rpm

• Shank Diameter: Φ10 mm

• Drill Length: 70 mm

• Main Spindle: 1 × 3.5 kW (Top)

• Dust Collector Qty: 2

• Dust Collector Diameter: Top 200 mm × 1 + Bottom 125 mm × 1

• Dust Collector Speed: ≥28 m/min

₹2,450,000.00 ₹3,062,500.00

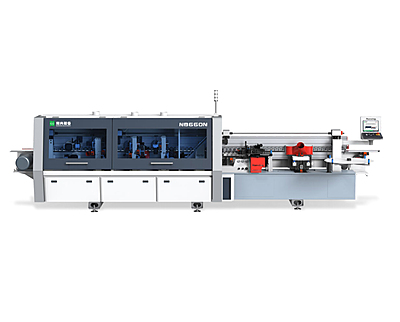

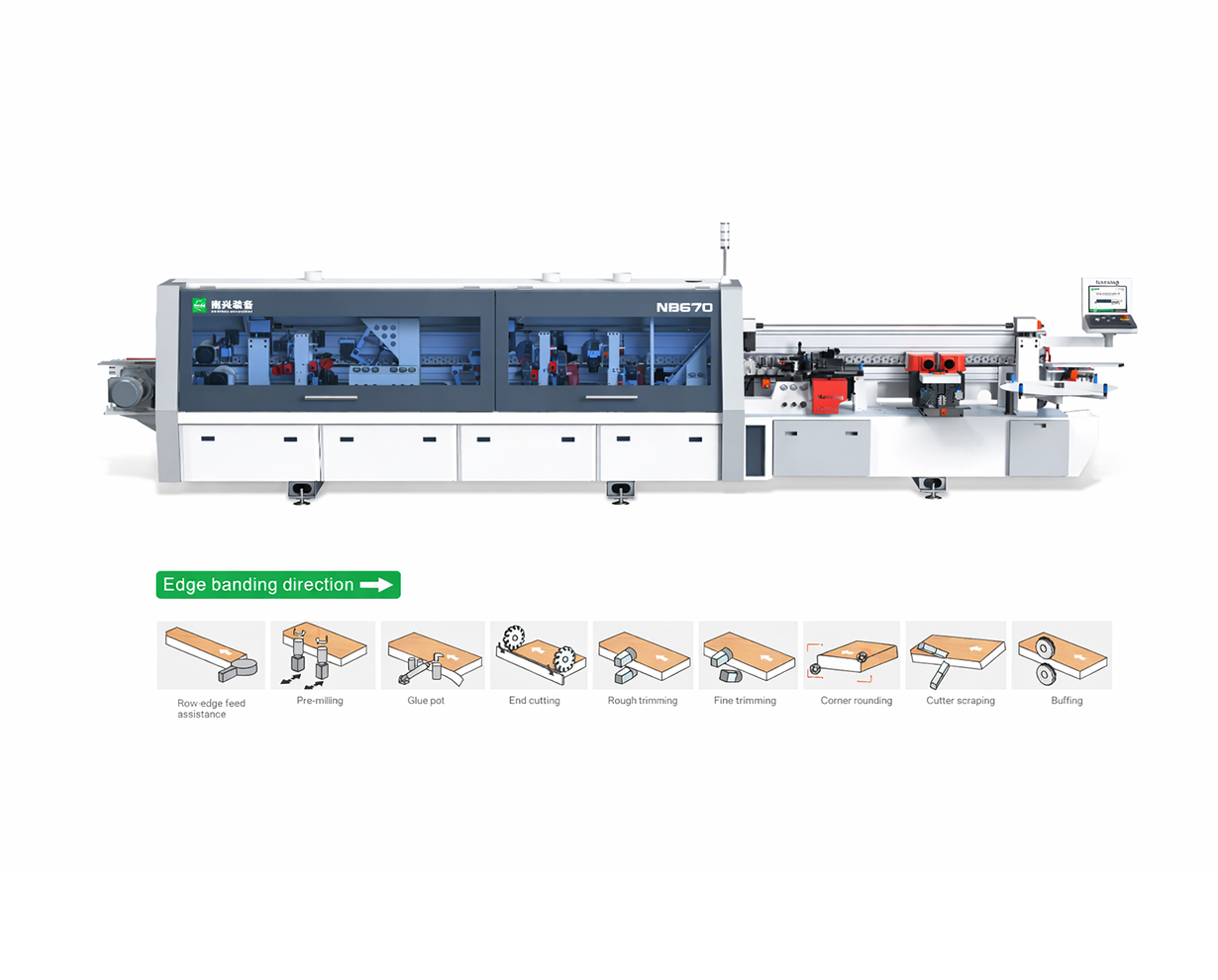

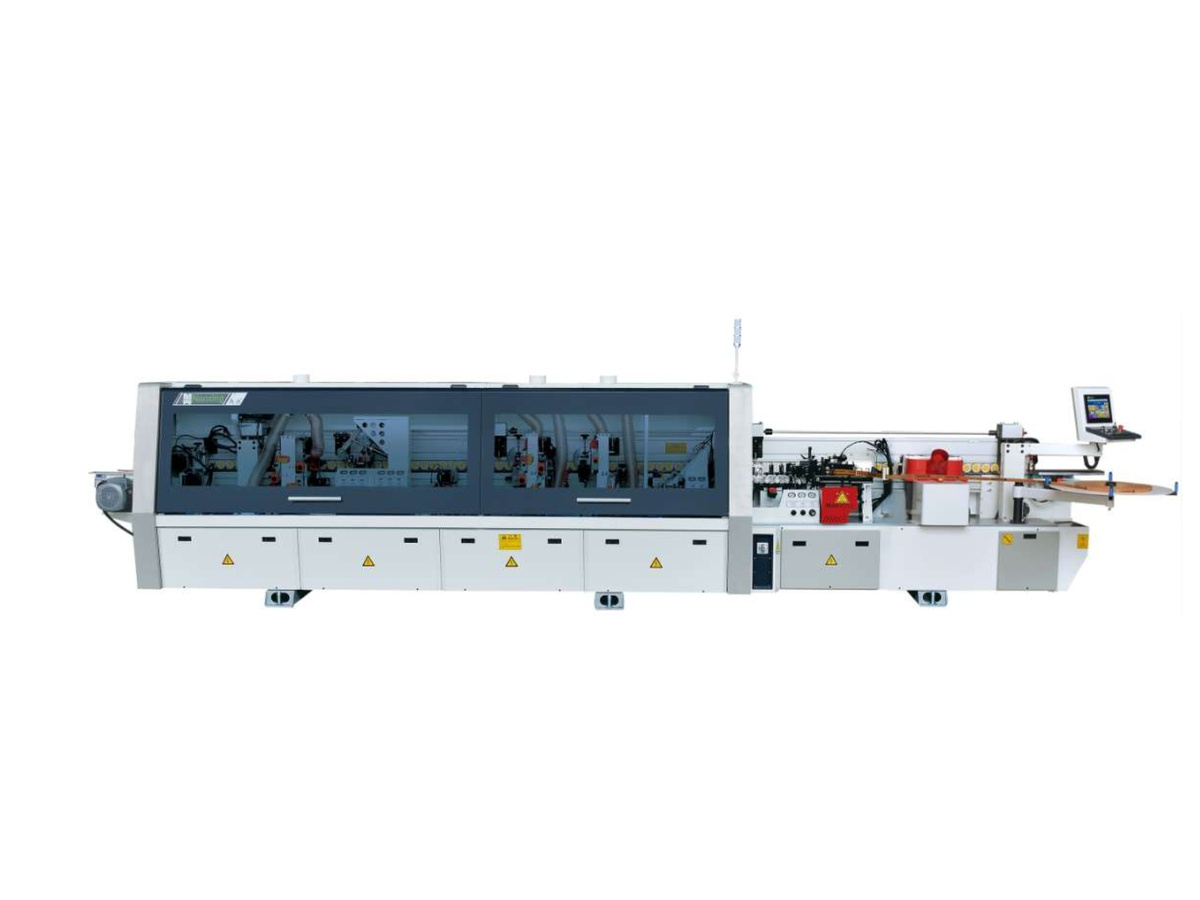

Nanxing Edge Banding Machine NB670N-415V for Narrow Parts | PUR | 2 Color PUR Heater | Flat Scrapping

FEATURES

TECHNICAL DATA:

Panel Length : ≥200mm
Panel Width : ≥40mm (45mm when corner trimming)
Panel Thickness : 9-60 mm
Edge Tape Thickness : 0.4-3 mm
Feeding Speed : 16/20/24 m/min (16 m/min for corner trimming)
Min. Panel Size : 200∗40∗9mm (Long) / 200∗45∗9mm (Short)
Dust Collector : ϕ125mm×4
Total Power : 22.4 Kw
Overall Dimension : 7,700×1,450×1,650mm
Weight : Approx. 2,800 kg
Power Supply : 415 V; 50 Hz
Air pressure required: 0.7MPa
Operation system 10’’ touch screen
Dust collector Φ125mm×4
Total power: 22.4 Kw
Approx. weight: 2,800 kg
Overall dimension: 7,700*1,450*1,650 mm

₹2,900,000.00 ₹3,625,000.00

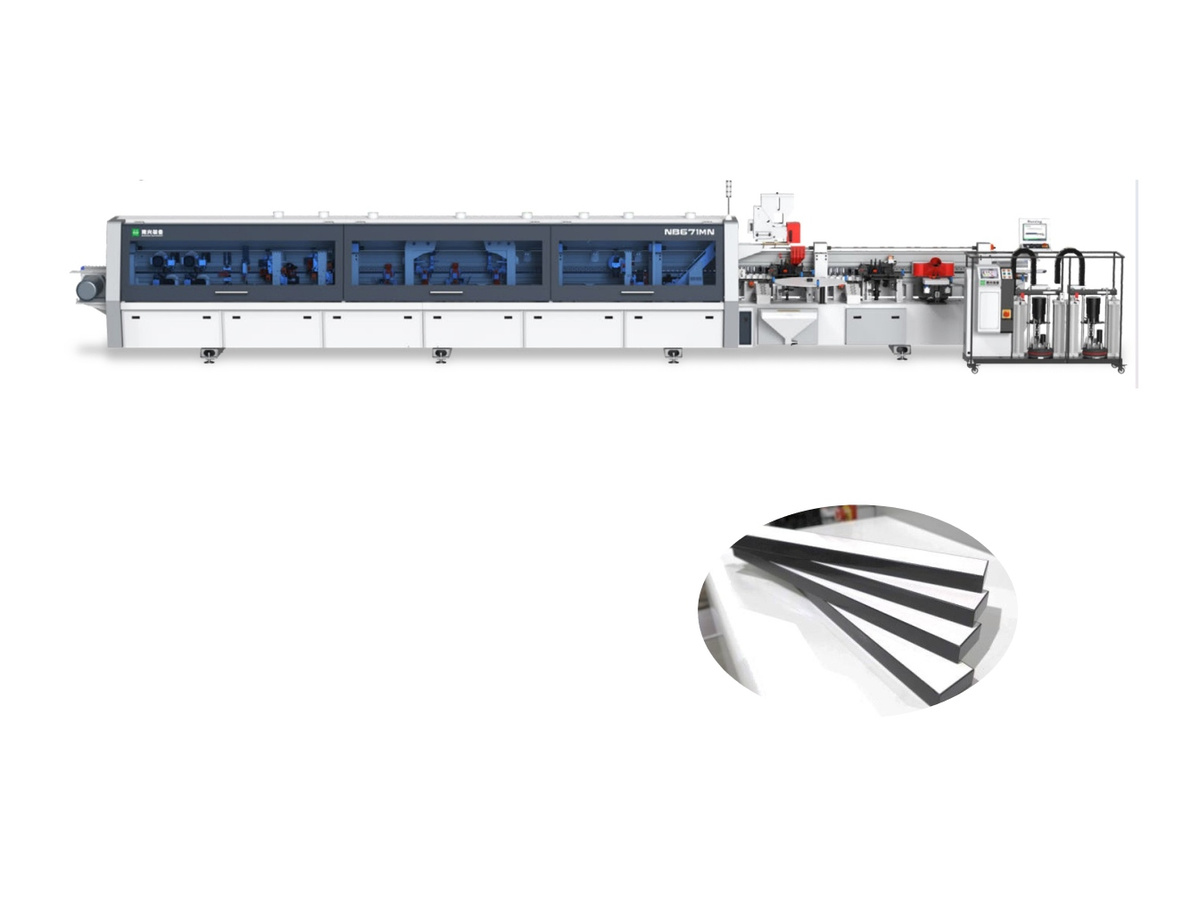

Nanxing Edge Banding Machine NB670N-415V for Narrow Parts | Pre Melter | Pneumatic adjust gate

FEATURE

TECHNICAL DATA:

Panel Length : ≥200mm
Panel Width : ≥40mm (45mm when corner trimming)
Panel Thickness : 9-60 mm
Edge Tape Thickness : 0.4-3 mm
Feeding Speed : 16/20/24 m/min (16 m/min for corner trimming)
Min. Panel Size : 200∗40∗9mm (Long) / 200∗45∗9mm (Short)
Dust Collector : ϕ125mm×4
Total Power : 22.4 Kw
Overall Dimension : 7,700×1,450×1,650mm
Weight : Approx. 2,800 kg
Power Supply : 415 V; 50 Hz
Air pressure required: 0.7MPa
Operation system 10’’ touch screen
Dust collector Φ125mm×4
Total power: 22.4 Kw
Approx. weight: 2,800 kg
Overall dimension: 7,700*1,450*1,650 mm

₹2,650,000.00 ₹3,312,500.00

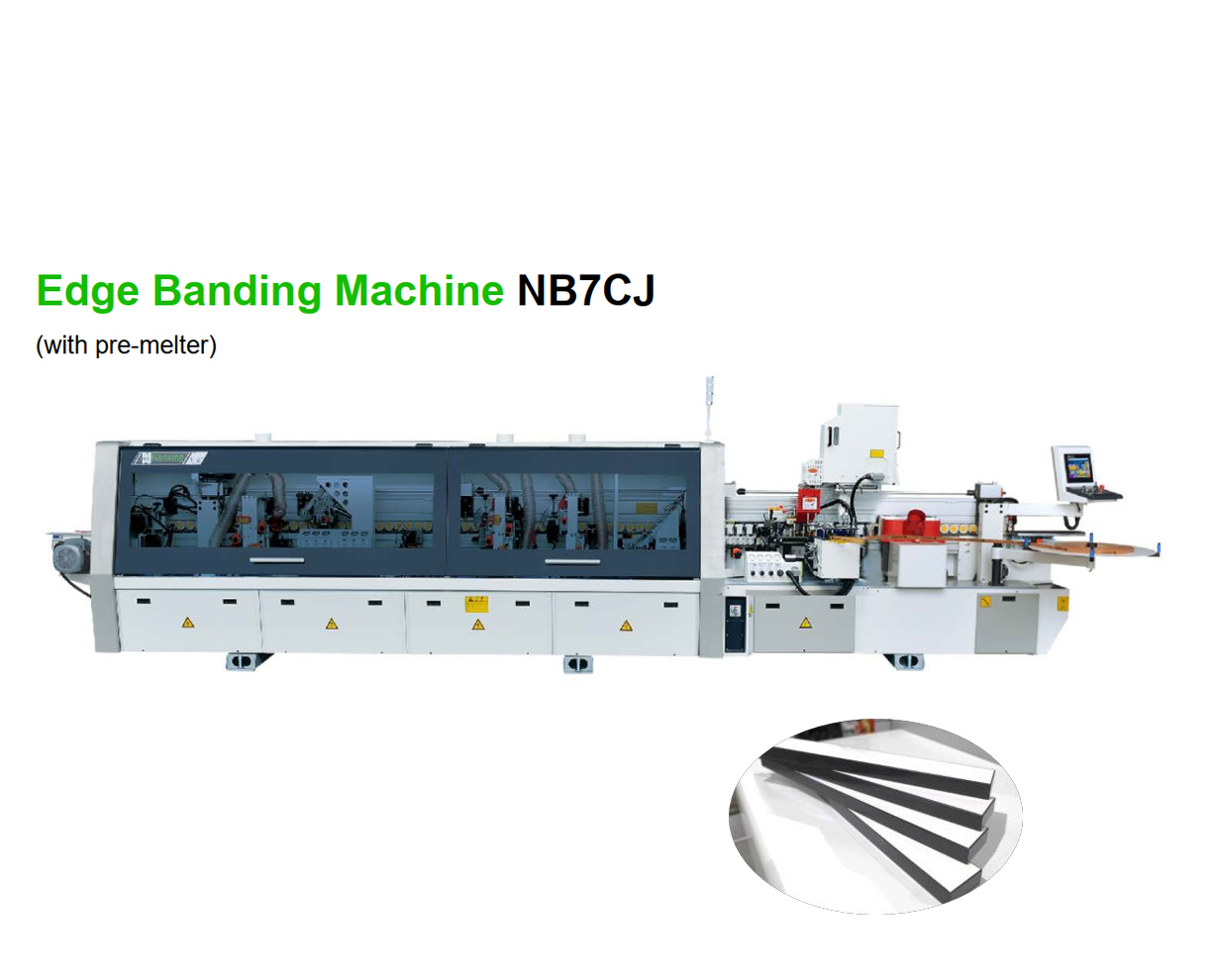

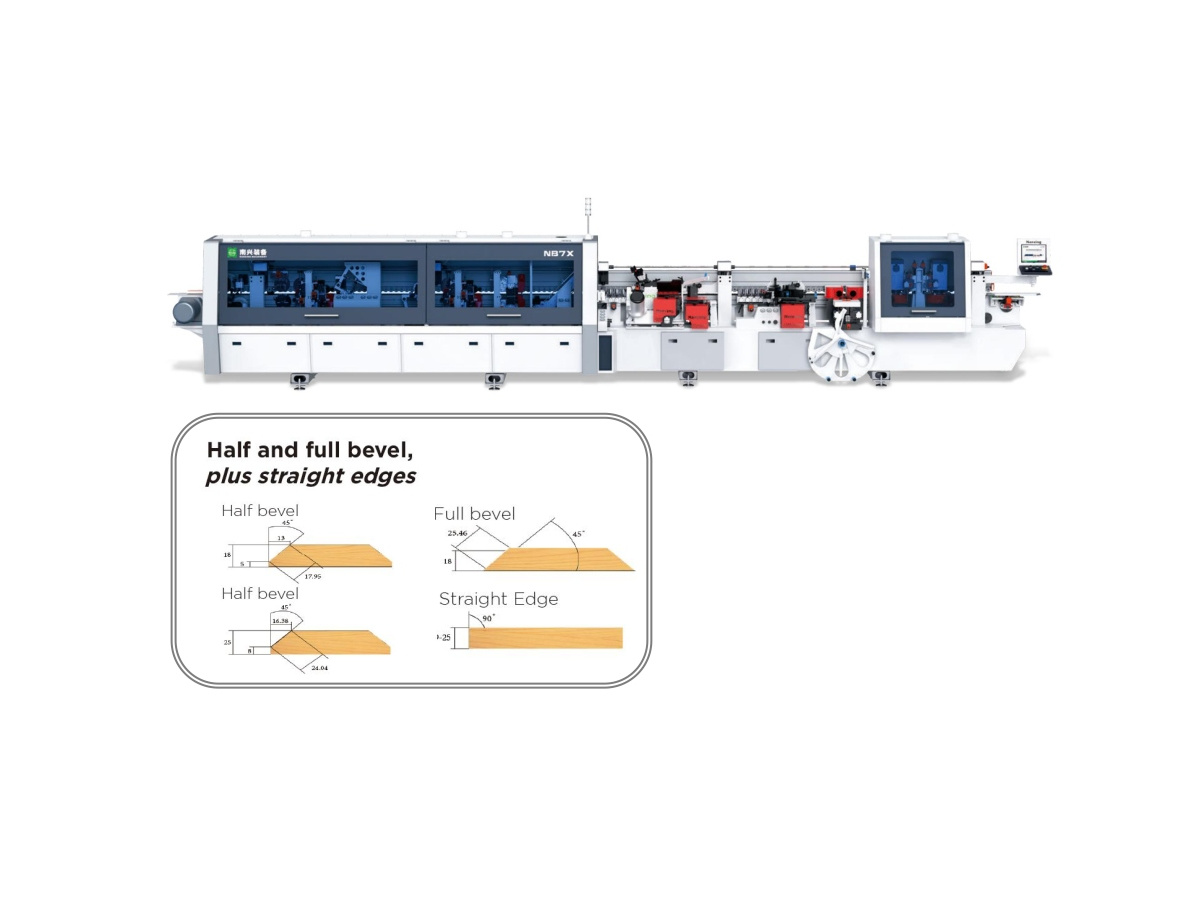

Nanxing Edge Banding Machine for Inclined Edge with Pre Melter | Pneumatic adjust gate

FEATURE:

Conveyor
Release agent sprayer
Bevel edge milling
Straight edge pre-milling
Pre-heating
Edge tape grooving device
Pre-melter gluing system
Pneumatic Adjust Gate (Controlled By Cylinder)
Auto glue pumping + 25kg glue basin
Bevel and straight gluing
Hot air blowing gun
Edge tape pressing
Lubrication system
End trimming
Rough Trimming unit
Fine trimming unit
Corner trimming unit
Profile scraping unit
Flat scraping
Clean agent spray
Buffing
Dust collection
Safety device
Remote Switch
Control system
Energy saving
Electric equipment
Processing diagram

TECHNICAL DATA:

Panel Length : ≥150mm
Panel Width : ≥120mm (inclined) / ≥150mm (straight)
Panel Thickness : 9-50mm (straight) / 15-25mm (half bevel) / 15-25mm (fully bevel)
Edge Tape Thickness : 0.4-2mm
Feeding Speed : 14/18m/min
Min. Panel Size : ≥150×120mm
Dust Collector : Φ125mm×6
Total Power : 42kw
Overall Dimension : 9,800×1,050×1,650mm
Net Weight : 3900kg

₹3,850,000.00 ₹4,812,500.00

Nanxing Edge Banding Machine NB671EMN(NB7CJMN) for Narrow Edges | Pre Melter | Pneumatic adjust gate | 2 Colour PUR

FEATURE

Top presser
Conveyor
Pre-milling
Assistance for narrow edge
2 sets of pre-heating
2 sets of gluing units
2 sets servo edge tape feeders
2 sets of pressure rollers
Lubrication system
End trimming
2 sets of fine trimming units with 2 position pneumatic one set with R1.5 & other with R1
Corner trimming unit
Dust collection
2 sets of scraping units with 2 position pneumatic with R1.5 & other with R1
Off cut device and flat scraping
2 sets of buffing units
Safety device
Remote switch and indicator light
Control system
Energy saving
Production report
Electric equipment
Narrow workpiece solution

TECHNICAL DATA:

Narrow Long Edge : 40×200×9mm
Narrow Short Edge : 45×200×9mm
Panel Thickness (Narrow Edge, Corner Trim On) : ≤25mm
Panel Thickness : 9-60mm
Edge Tape Thickness : 0.4-3mm
Feed Speed : 16/18/20m/min
Feed Speed (Narrow Edge, Corner Trim On) : 16m/min
Dust Extraction : Φ125mm×5
Total Power : 30.1kw
Overall Dimension : 9800×1450×1650mm
Net Weight : 3670kg

₹3,500,000.00 ₹4,375,000.00

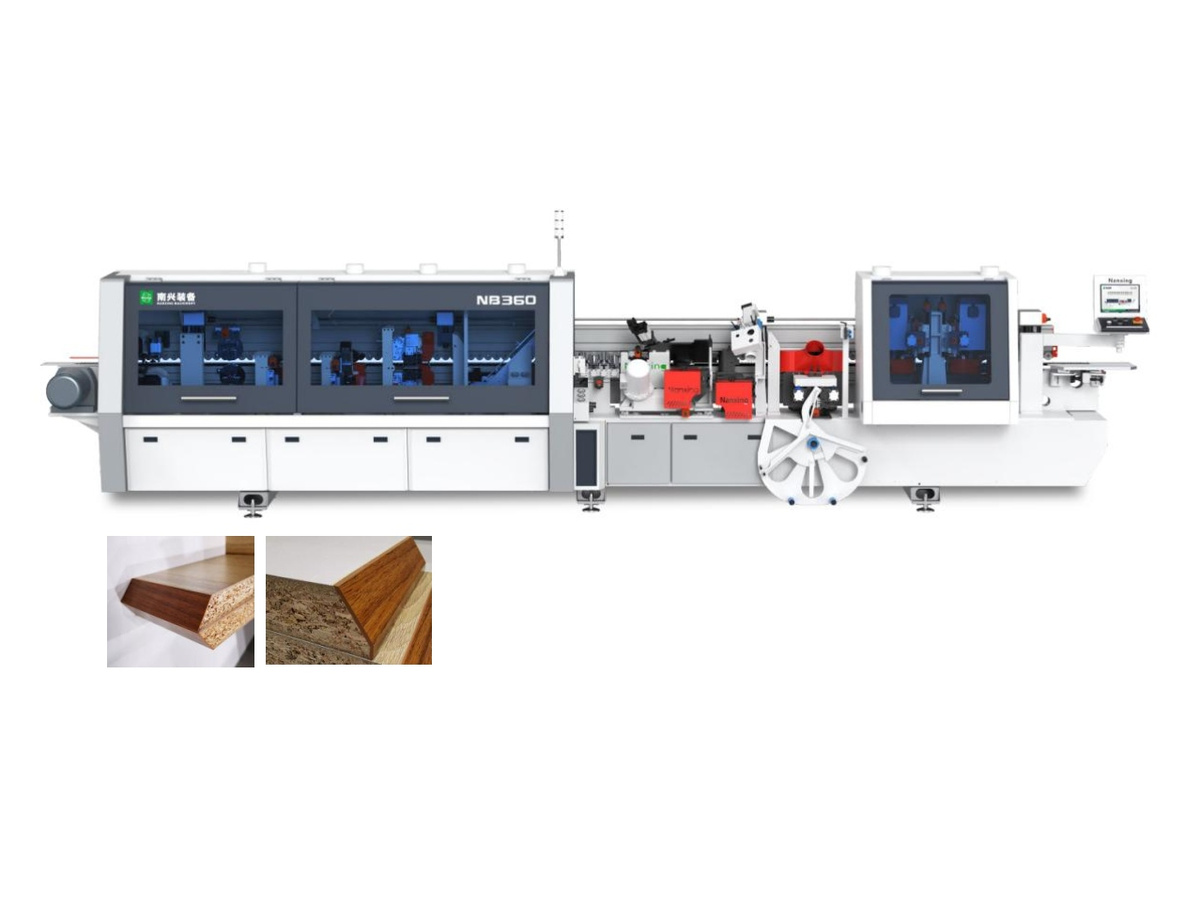

Nanxing Edge Banding Machine NB360(NB5X-415V) for Inclined Edges

FEATURES:

Top presser
Conveyor
Release agent sprayer
Bevel edge milling
Straight surface Pre-milling
Pre-heating
Half bevel tape feed and edge tape grooving device
Bevel and straight gluing
Edge tape pressing
Hot air blowing gun
Lubrication system
End cutting
Rough Trimming unit
Bottom Fine trimming unit
Bottom Profile scraping unit
Flat scraping
Clean agent sprayer
Buffing
Dust collection
Remote switch and indicator light
Safety device
Cover door and dust collector
Control system
Energy saving
Production report
Electric equipment

TECHNICAL DATA:

₹2,200,000.00 ₹2,750,000.00

CNC 6-Sided drilling machine ND512TS 415V | AC | Lamello Saw Blade | Double-head aggregate | Air Jet for Gripper

FEATURES:

TECHNICAL DATA:

Total Power : 21.07kw
Machine Size : 3962×3010×2320mm
Power Supply : 415V/50Hz
Air Supply : 0.6-0.7MPa
Control System : SYNTEC
Panel Length : 200-2,800mm
Panel Width : 30-1,220mm
Panel Thickness : 10-60mm
Max. Travelling Speed X/U axis : 135m/min
Max. Travelling Speed Y axis : 75m/min
Max. Travelling Speed Z axis : 30m/min
Max. Travelling Speed V axis : 30m/min
Drilling Block Qty : Top 1 + Bottom 1
Vertical Drills Qty (Top) : 10
Horizontal Drills Qty (Top) : X: 2×2 + Y: 2×2
Vertical Drills Qty (Bottom) : 9
Max Drill Diameter : Φ35mm
Drill Spacing : 32mm
Drill Rotation Speed : 5000rpm
Shank Diameter : Φ10mm
Drill Length : 70mm
Top Main Spindle : 1×5.5kw ER32 ATC4 18000rpm
Bottom Main Spindle : 1×3.5kw ER25 18000rpm
Saw Blade Power : 1.7kw
Saw Blade Size : Φ100×Φ22×δ4
Saw Processing Range : 50-1200mm
Dust Collector Qty : 3
Dust Collector Diameter : Top 200mm×2 + Bottom 125mm×1
Dust Collector Speed : ≥28m/min

₹3,100,000.00 ₹3,875,000.00

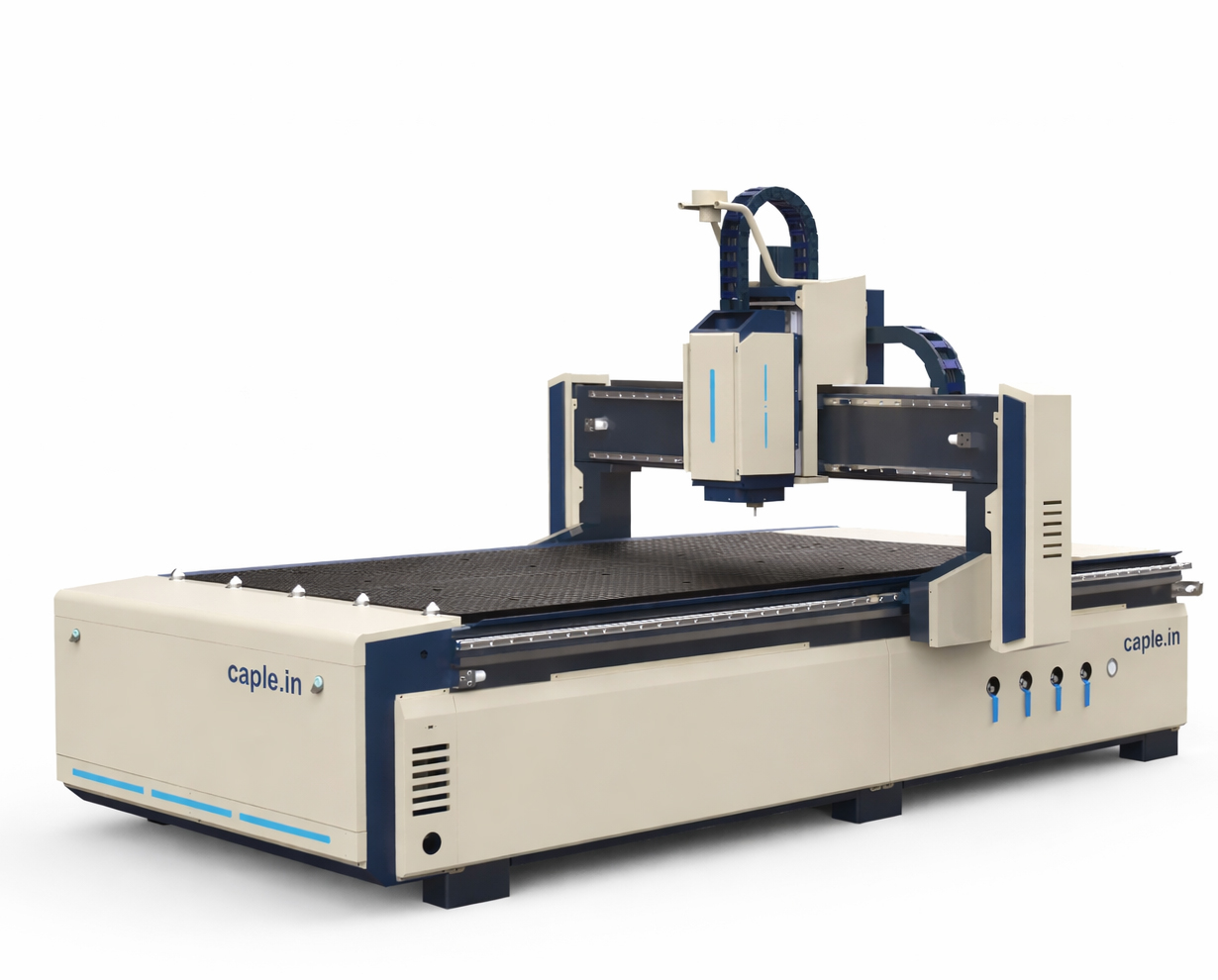

Nanxing CNC Nesting Machine NCG2812E without Drill Block & Optimization NACC | 9KW | AC | Pressure Roller

FEATURE

1pc vacuum pump
Movement of each axis
Automatic greasing
Side positioning cylinders
9kw main Spindle
Automatic Line tool changer with 12 slots
Start/Stop Button on gantry
Tank cable chain
Tool setting gauge and locker
Hand controller
Electric equipment
SYNTEC Control System
Pressure Roller
Air conditioner on control cabinet

TECHNICAL DATA:

Control System : SYNTEC
Working Range X-axis : 2,800mm
Working Range Y-axis : 1,220mm
Working Range Z-axis : 50mm
Working Table Size : 2,800×1,220mm
Working Table Height : 950mm
Max. Travelling Speed X-axis : 100m/min
Max. Travelling Speed Y-axis : 100m/min
Max. Travelling Speed Z-axis : 20m/min
Main Spindle Power : 9kw
Main Spindle Rotating Speed : 24,000rpm
Tool Holder Type : ISO30
ATC : Line tool changer with 12 slots
Vacuum Pump Qty : 1
Vacuum Pump Power : 7.5kw
Suction Flow Rate : 250m³/h
Dust Extraction : Φ150mm×1 + Φ125mm×1; 28m/s
Air Pressure Required : 6~7 kg/cm²
Power Supply : 415V/50Hz
Total Power : 24kw
Floor Space : 4,220 x 2,270 x 2,500mm
Net Weight : 2,500kg

₹1,650,000.00 ₹2,062,500.00

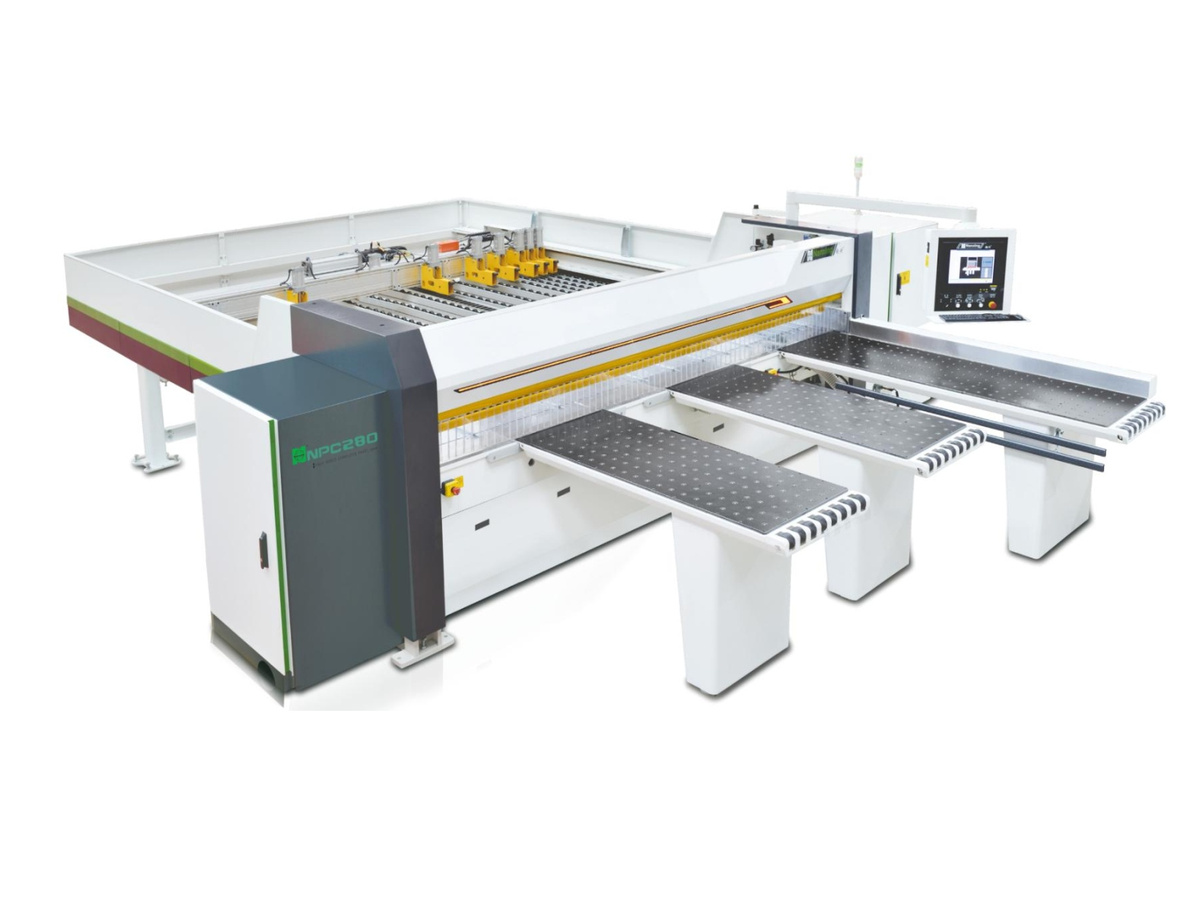

Nanxing CNC Beam Saw NPC280-18.5KW 9 Gripper | Opticut | Label Printer | Blade Set | AC | Grooving

FEATURES:

TECHNICAL DATA:

Max. Cutting Length : 2,780mm
Max. Cutting Thickness : 120mm
Main Saw Motor Power : 18.5kw
Main Saw Rotating Speed : 3,910rpm/min
Main Saw Blade Diameter : Φ380mm (max Φ400)
Main Saw Blade Shaft Diameter : Φ60mm
Scoring Saw Rotating Speed : 4,300rpm/min
Scoring Saw Blade Diameter : Φ200mm
Scoring Saw Blade Shaft Diameter : Φ45mm
Saw Carriage Motor Power : 2kw
Forward Speed : 90m/min
Backward Speed : 120m/min
Automatic Feeding Motor : 2kw
Max. Feeding Speed : 85m/min
IPC : 15'' Windows 7 | USB port: 4 pcs
Air Requirement : 0.6 MPa
Dust Extraction : Φ150mm×3; 28m/min
Power Supply : 415V/50HZ/3P
Total Power : 27.7kw
Overall Dimension : 6,400×4,995×1,830mm
Net Weight : 4,800kg

₹2,850,000.00 ₹3,562,500.00

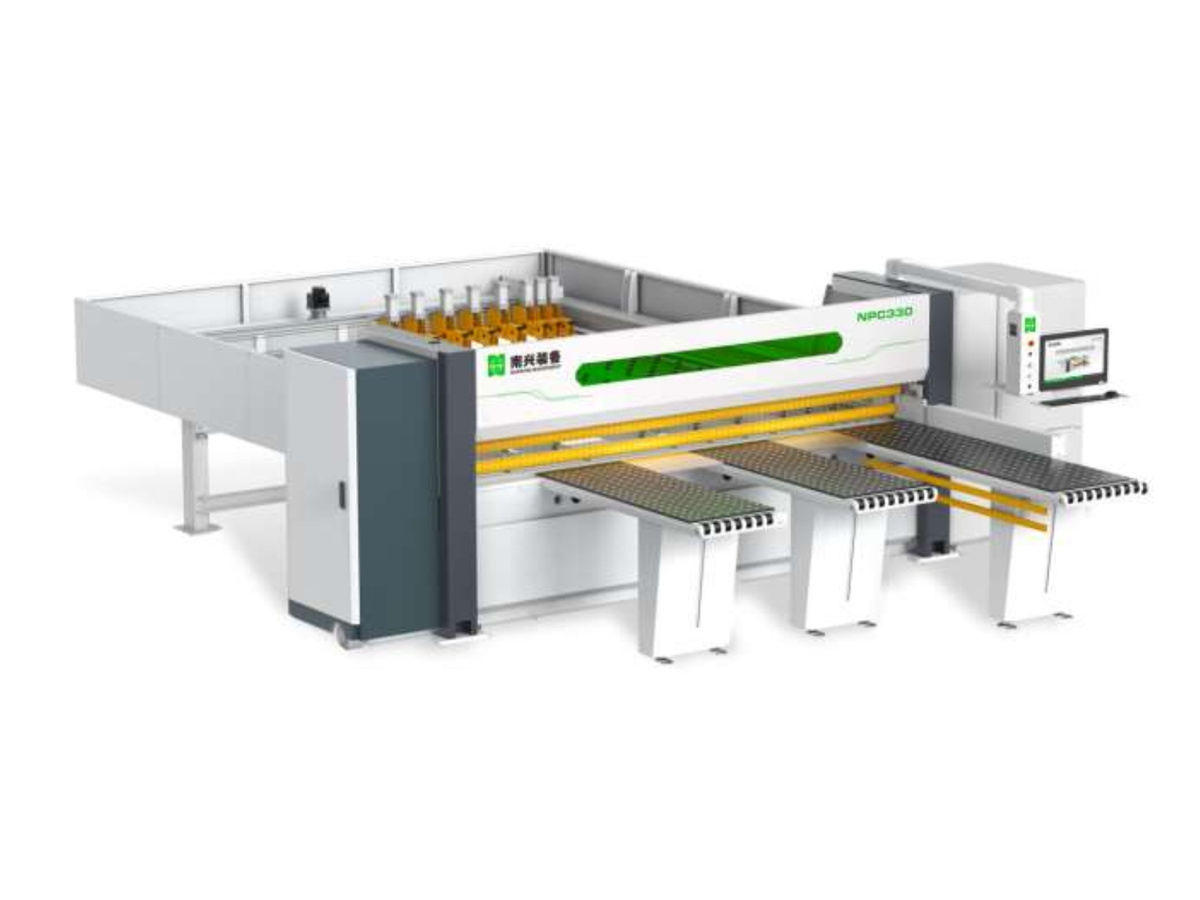

Nanxing CNC Beam Saw NPC330-18.5KW | 3 Longer Air Table | Opticut | Label Printer | Blade Set | AC | Grooving

• Features

• Machine body

• Professional assembly line

• Quality control

• Steel table plate

• Air float feed table

• Side operation rod

• Pressure beam

• Hand protector

• Piano dust cover

• Servo side alignment

• Gripper

• Anti-dropping device

• Integrated saw carriage

• Full covered fence

• Dust collection

• Automatic lubrication system

• Machine control

• Operation software

• Control cabinet

• Optimizing software Auto CUT

• Long air floating tables

• Label Printer

• Servo grooving function

• Air conditioner on control cabinet

TECHNICAL DATA

• Max. Cutting Length : 3,270mm

• Max. Cutting Thickness : 120mm

• Main Saw Motor Power : 18.5kw

• Main Saw Rotating Speed : 3,910rpm/min

• Main Saw Blade Diameter : Φ450mm

• Main Saw Blade Shaft Diameter : Φ60mm

• Scoring Saw Rotating Speed : 4,300rpm/min

• Scoring Saw Blade Diameter : Φ200mm

• Scoring Saw Blade Shaft Diameter : Φ45mm

• Saw Carriage Motor Power : 2.2kw

• Forward Speed : 90m/min

• Backward Speed : 120m/min

• Automatic Feeding Motor : 2kw

• Max. Feeding Speed : 85m/min

• IPC : 21.5'' Windows 7

• Air Requirement : 0.6 MPa

• Dust Extraction : Φ150mm×3; 28m/min

• Power Supply : 415V/50Hz/3P

• Total Power : 27.7kw

• Overall Dimension : 6,900×5,400×1,820mm

• Net Weight : 4,850kg

₹3,100,000.00 ₹3,875,000.00

Nanxing CNC Beam Saw NPC280-18.5KW | Opticut | Label Printer | Blade Set

• Features

• Air float feed table

• Side operation rod

• Pressure beam

• Hand protector

• Piano dust cover

• Side alignment

• Gripper

• Anti-dropping device

• Saw unit

• Dust collection

• Automatic lubrication system

• Machine control

• Optimizing software NXPareto

• Operation software

• Control cabinet

• Printer

• Opticut software

TECHNICAL DATA

• Panel Dividing Saw NPC280

• Max. Cutting Length : 2,780mm

• Max. Cutting Thickness : 120mm

• Main Saw Motor Power : 18.5kw

• Main Saw Rotating Speed : 3,910rpm/min

• Main Saw Blade Diameter : Φ380mm (max Φ400)

• Main Saw Blade Shaft Diameter : Φ60mm

• Scoring Saw Rotating Speed : 4,300rpm/min

• Scoring Saw Blade Diameter : Φ200mm

• Scoring Saw Blade Shaft Diameter : Φ45mm

• Saw Carriage Motor Power : 2kw

• Forward Speed : 90m/min

• Backward Speed : 120m/min

• Automatic Feeding Motor : 2kw

• Max. Feeding Speed : 85m/min

• IPC : 15'' Windows 7 | USB port: 4 pcs

• Air Requirement : 0.6 MPa

• Dust Extraction : Φ150mm×3; 28m/min

• Power Supply : 415V/50HZ/3P

• Total Power : 27kw

• Overall Dimension : 6,400×4,995×1,830mm

• Net Weight : 4,800kg

₹2,750,000.00 ₹3,437,500.00

Nanxing Edge banding Machine with Pre melt | Pneumatic adjust gate

FEATURES:

Pre-milling
Pre-heating
Glue pot
Edge tape supporter
Snipping
Pressure rollers
Lubrication system
End cutting
Fine trimming
Corner trimming unit
Scraping
Buffing
Dust collection
Safety device
Remote switch & Indicator light
Cover door and dust collector
Control system
Energy saving
Production report
Electric equipment
Pre-melter gluing system
Pneumatic Adjust Gate (Controlled By Cylinder)

TECHNICAL DATA:

₹2,150,000.00 ₹2,687,500.00

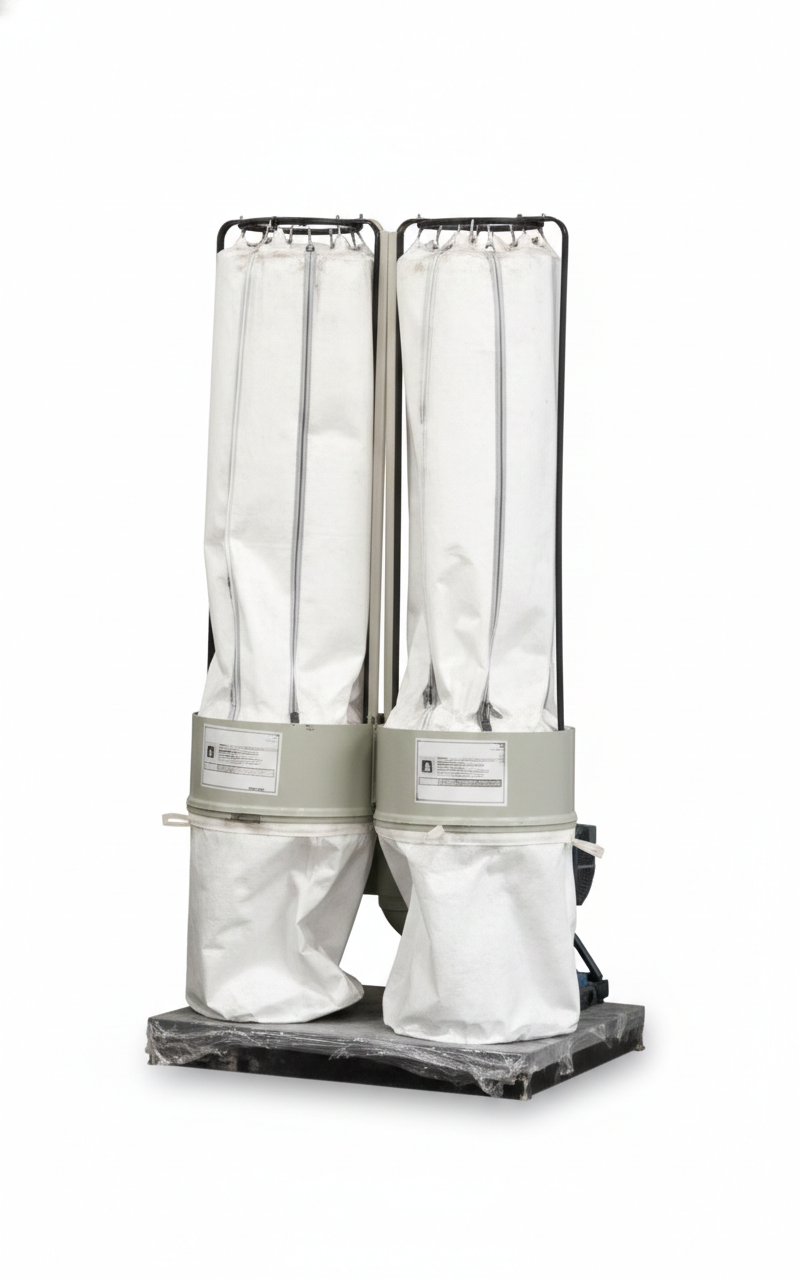

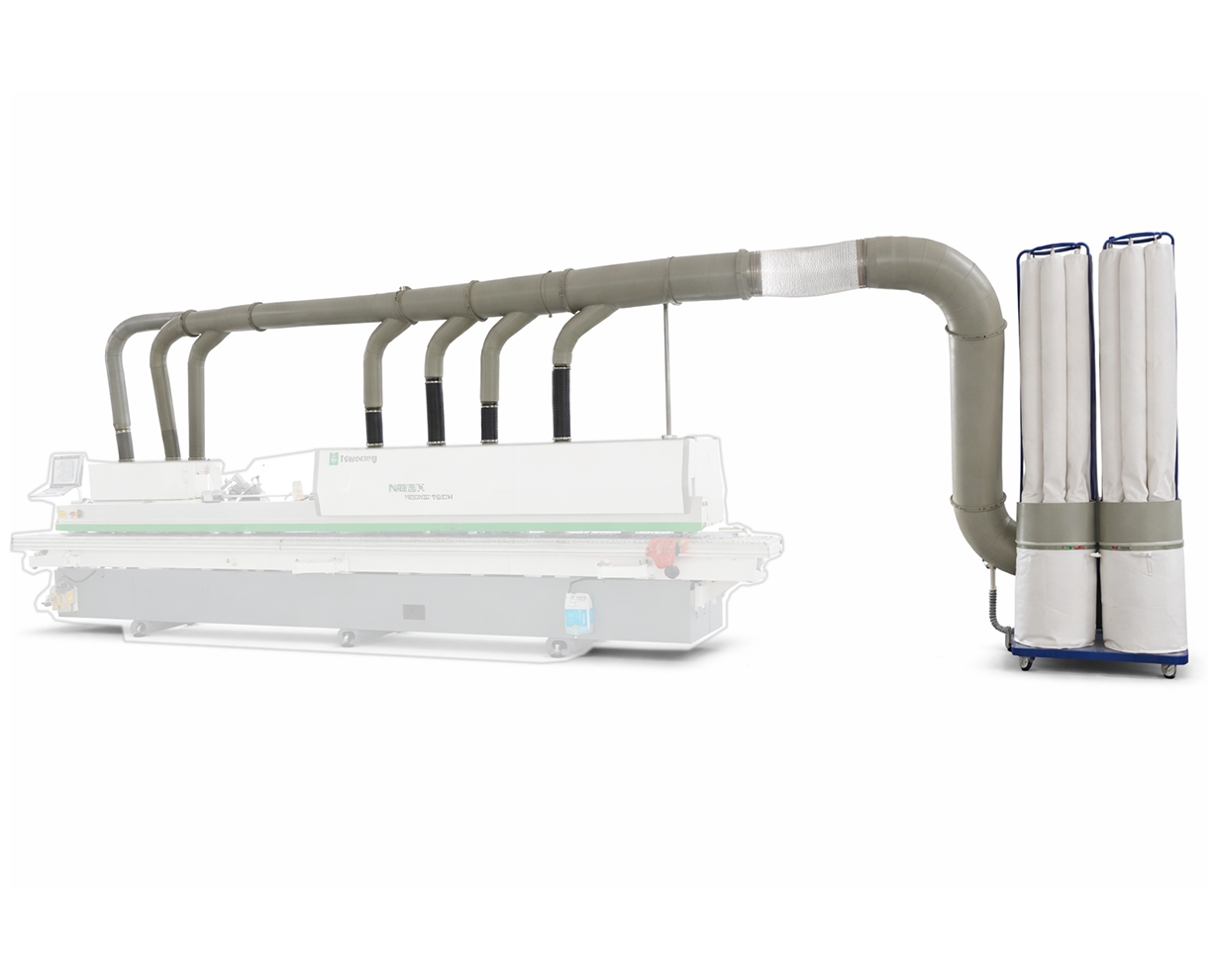

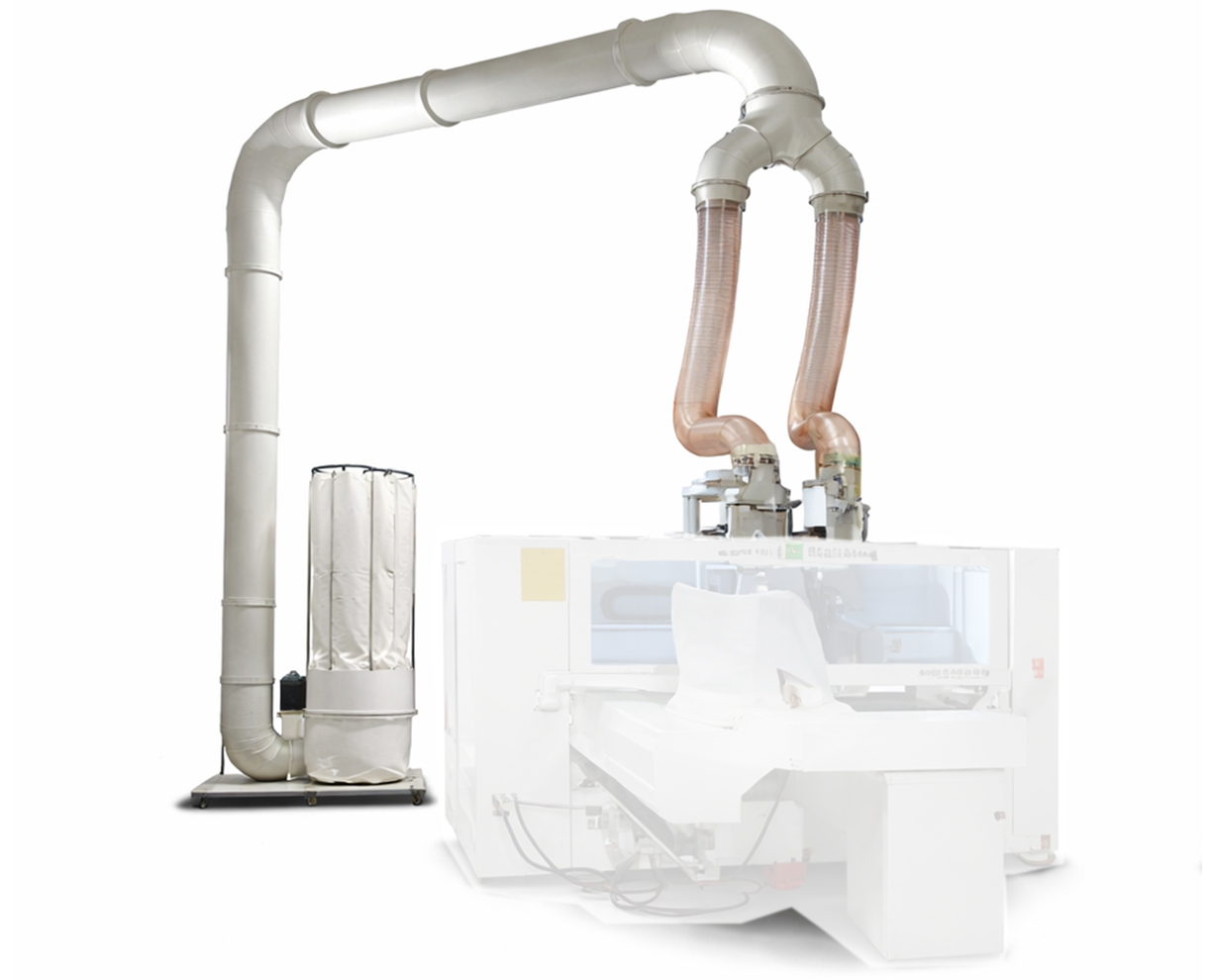

Dust Collector AXC | 5HP | 3975 CMH | Duct | NBC332S

• Technical Specification:

• Suction Port Size : Dia 125 OD x 3 No

• Motor : 5 HP/2P

• Dust Collector Capacity : 4500-5000

• Required Capacit At 30 m/s : 3975 CMH

• Fan Model Dust Colletor : AXC-HMS-22.5-ARR ''A '' AXC-PDC-5 HP- DS

• MPN : AXC-PDC-5 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter

• PDC Suction adaptor & Machine adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• GI fabricated and powder coated Aerodynamic ducts for better suction efficiency. PVC Flexible Hose and Clamps.

• Φ250 x 1000Long.

• Φ11” clamps= 2 nos.

₹230,000.00 ₹287,500.00

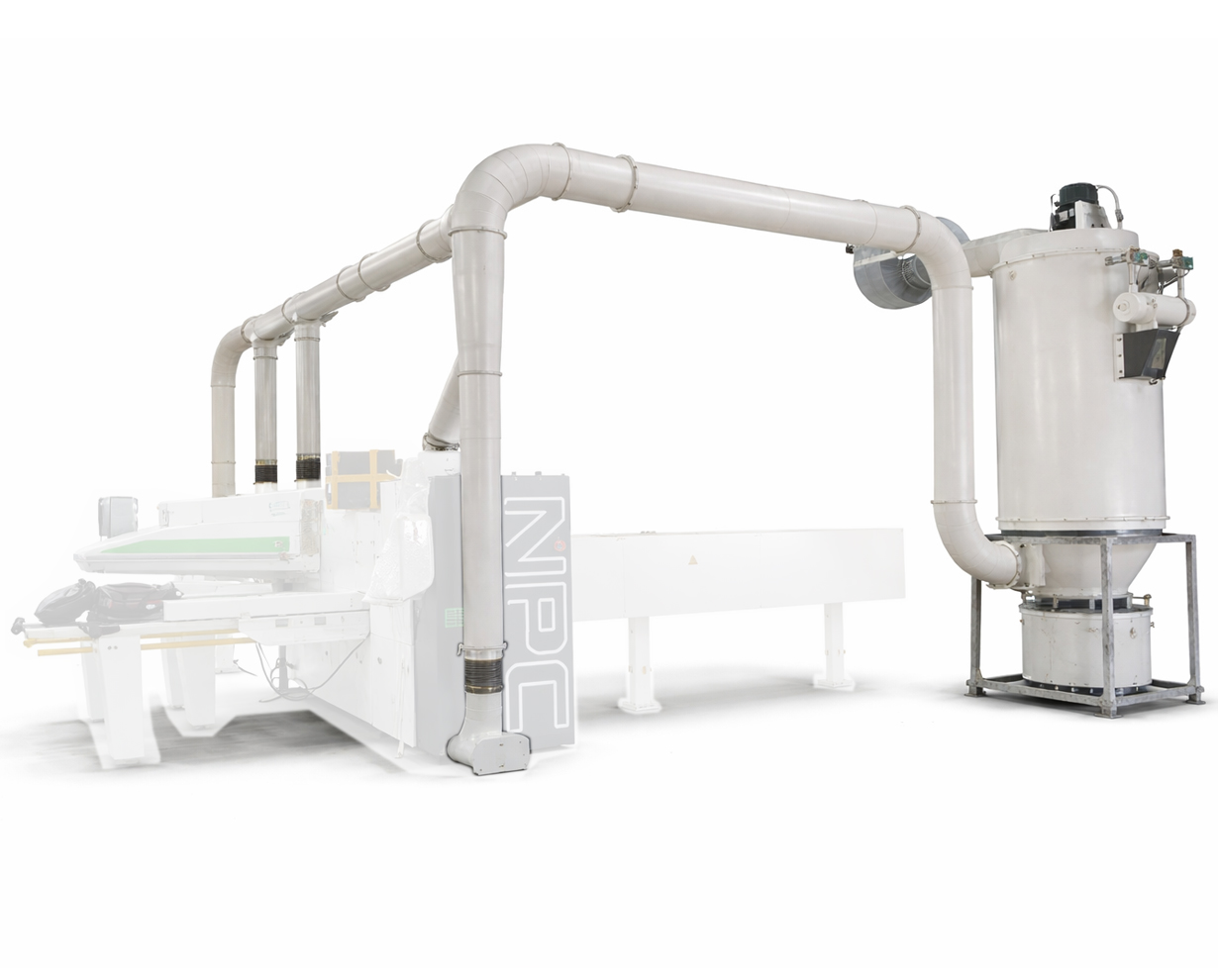

Dust Collector AXC Pulse Jet | 7.5HP | 5495 CMH | Duct | NPC280

• Technical Specification: "- Suction Port Size : Dia 150 x 3 No Dia 75 x 1 No "

• Motor : 7.5 HP/2P

• Dust Collector Capacity : 6000-6500

• Required Capacit At 30 m/s : 5495 CMH

• Fan Model Dust Colletor : AXC-HMB-27.5 -ARR''A'' AXC-PJBF-28-R-1.5M

• MPN : AXC-PJBF-28-R-1.5M

• Bag : AUTOMATIC Filter bag cleaning

• Fan Outlet Silencer

• 1No Dustbin with Trolley for easy disposal of dust.

• 12m2 MS/GI fabricated and powder coated ducting as per site condition and system layout drawing.

• 1Set PVC & PU Flexible hose and Clamps.

• 1Lot Duct supports, fasteners, gaskets and sealant.

• 1No FASD Starter

₹650,000.00 ₹812,500.00

Dust Collector AXC Pulse Jet | 7.5HP | 5495 CMH | Duct | NPC330

• Technical Specification:

• Suction Port Size : Dia 140 x 3 No Dia 75x1 No

• Motor : 7.5HP/2P

• Dust Collector Capacity : 6000-6500

• Required Capacit At 30 m/s : 5495 CMH

• Fan Model Dust Colletor : AXC-HMB-27.5 -ARR''A'' AXC-PJBF-28-R-1.5M

• MPN : AXC-PJBF-28-R-1.5M

• Bag : AUTOMATIC Filter bag cleaning

• Fan Outlet Silencer

• 1No Dustbin with Trolley for easy disposal of dust.

• 12m2 MS/GI fabricated and powder coated ducting as per site condition and system layout drawing.

• 1Set PVC & PU Flexible hose and Clamps.

• 1Lot Duct supports, fasteners, gaskets and sealant.

• 1No FASD Starter

₹650,000.00 ₹812,500.00

Dust Collector AXC | 10HP | 5060 CMH | Duct | NCG2812LE

• Technical Specification:

• Suction Port Size : Dia 150 x 1 No Dia 125 x 2No Dia 75 (Cleaning Port) = 1 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 5060 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter.

• PDC Suction adaptor & Machine adaptor.

• 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set PVC FLEXIBLE HOSE AND CLAMPS.

₹275,000.00 ₹343,750.00

Dust Collector AXC | 10HP | 8125 CMH | Duct | ND512TS

• Technical Specification:

• Suction Port Size : Dia 200 x 2 No Dia 125 x 1No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 8125 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter.

• PDC Suction adaptor & Machine adaptor.

• 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning.

• 1Set PVC Flexible Hose and Clamps.

• 1Set PU Flexible Hose & Clamps. Φ200

₹275,000.00 ₹343,750.00

Dust Collector AXC | 7.5HP | 4725 CMH | Duct | NB612FT2

• Portable Dust Extraction with High Suction Efficiency for NB612FT2 Technical Specification:

• Suction Port Size : Dia 200 x 1 No Dia 125 x 1No

• Motor : 7.5 HP/2P

• Dust Collector Capacity : 6000-6500

• Required Capacit At 30 m/s : 4725 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-7.5 HP- DS

• MPN : AXC-PDC-7.5 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• DOL starter.

• PDC Suction adaptor & Machine adaptor.

• 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning.

• 1Set PVC Flexible Hose and Clamps.

• 1Set PU Flexible Hose & Clamps. Φ200

₹275,000.00 ₹343,750.00

Dust Collector AXC | 10HP | 6625 CMH | Duct | NB7CJMN

• Technical Specification:

• Suction Port Size : Dia 125 OD x 5 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 6625 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning. PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.

₹275,000.00 ₹343,750.00

Dust Collector AXC | 10HP | 6625 CMH | Duct | NB7CJ

• Technical Specification:

• Suction Port Size : Dia 125 OD x 5 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 6625 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack. "- 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning." PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.

₹275,000.00 ₹343,750.00

Dust Collector AXC | 10HP | 7295 CMH | Duct | NB5X

• Technical Specification:

• Suction Port Size : Dia 125 OD x 7 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacit At 30 m/s : 9275 CMH

• Fan Model Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack.

• 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning." PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15” clamps= 2 nos.Φ6” clamps= 8 nos.

₹275,000.00 ₹343,750.00

Dust Collector AXC | 10HP | 10600 CMH | Duct | NB7X

• Technical Specification:

• Suction Port Size : Dia 125 OD x 8 No

• Motor : 10 HP/2P

• Dust Collector Capacity : 7000-8000

• Required Capacity At 30 m/s : 10600 CMH

• Fan Model Dust Collator : AXC-HMS-26-ARR ''A '' AXC-PDC-10 HP- DS

• MPN : AXC-PDC-10 HP- DS

• No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti-static Filter bags with Teflon coating inside-12M2

• No.of Bottom Bags : 2 collection bag to collect .35 m3

• L&T make DOL starter

• Suction adaptor.

• Total assembly mounted on a rigid movable trolley with wheels having jack. "- 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning." PU & PVC Flexible Hose and Clamps.

• PU-Φ350 x 1000Long.

• PVC-Φ125 x 2500 Long,

• Φ15" clamps= 2 nos.Φ6" clamps= 8 nos.

₹275,000.00 ₹343,750.00

Flatbed CNC routing machines T9-1530-VT [ Vacuum table, 4 zones | 15003000200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Vacuum table, 4 zones

₹650,000.00 ₹812,500.00

Flatbed CNC routing machines T9-1530-MT [ Alu+T slot+PVC | 15003000200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Aluminum profile table+T slots+PVC

₹600,000.00 ₹750,000.00

Flatbed CNC routing machines T9-1325-VT [ Vacuum table, 4 zones | 13002500200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Vacuum table, 4 zones

₹600,000.00 ₹750,000.00

Flatbed CNC routing machines T9-1325-MT [ Alu+T slot+PVC | 13002500200 | Servo Motor | HQD 6 KW ]

TECHNICAL SPECIFICATIONS:

Aluminum profile table+T slots+PVC

₹500,000.00 ₹625,000.00

Lamello 101403CNS Zeta P2 Biscuit Joiner with Carbide Cutter, Drill Jig in systainer3 M

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹180,000.00 ₹225,000.00

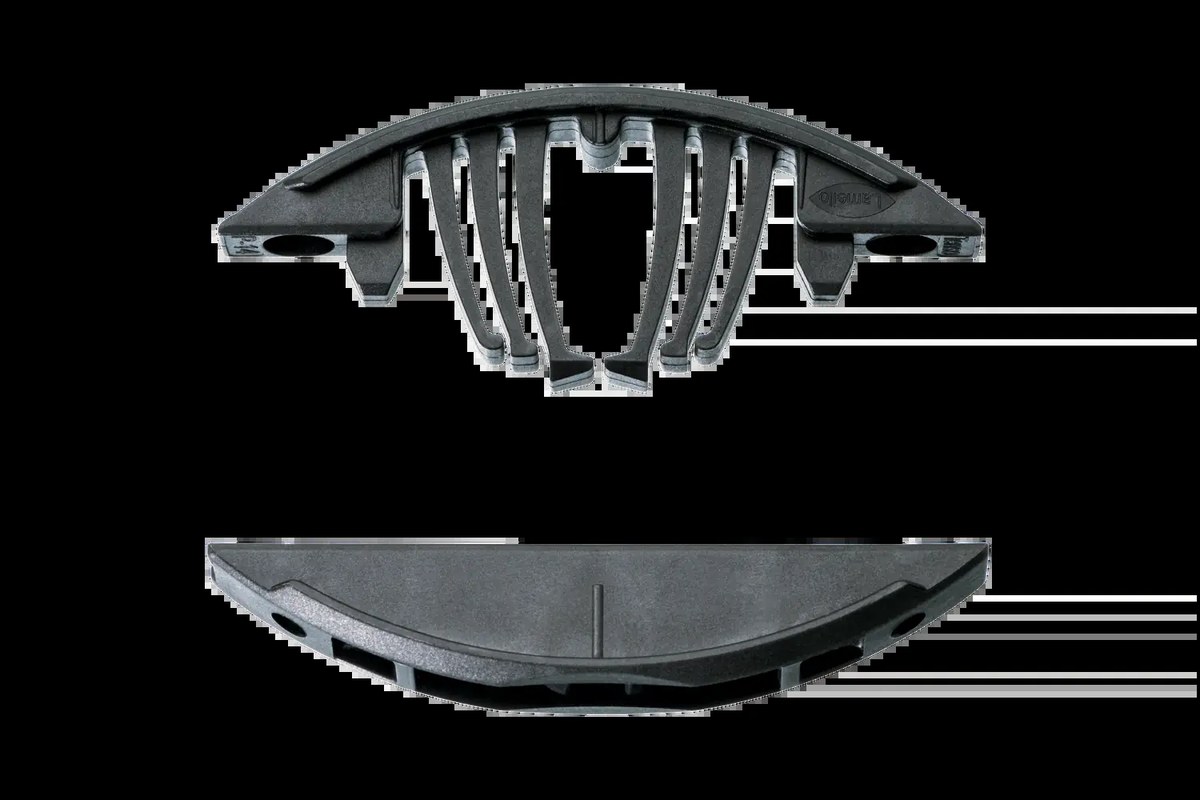

Lamello Divario P-18

Technical Specifications — Lamello Divario P-18
P-System groove depth (P-System setting)	P-18
Groove depth	18 mm

₹64.00

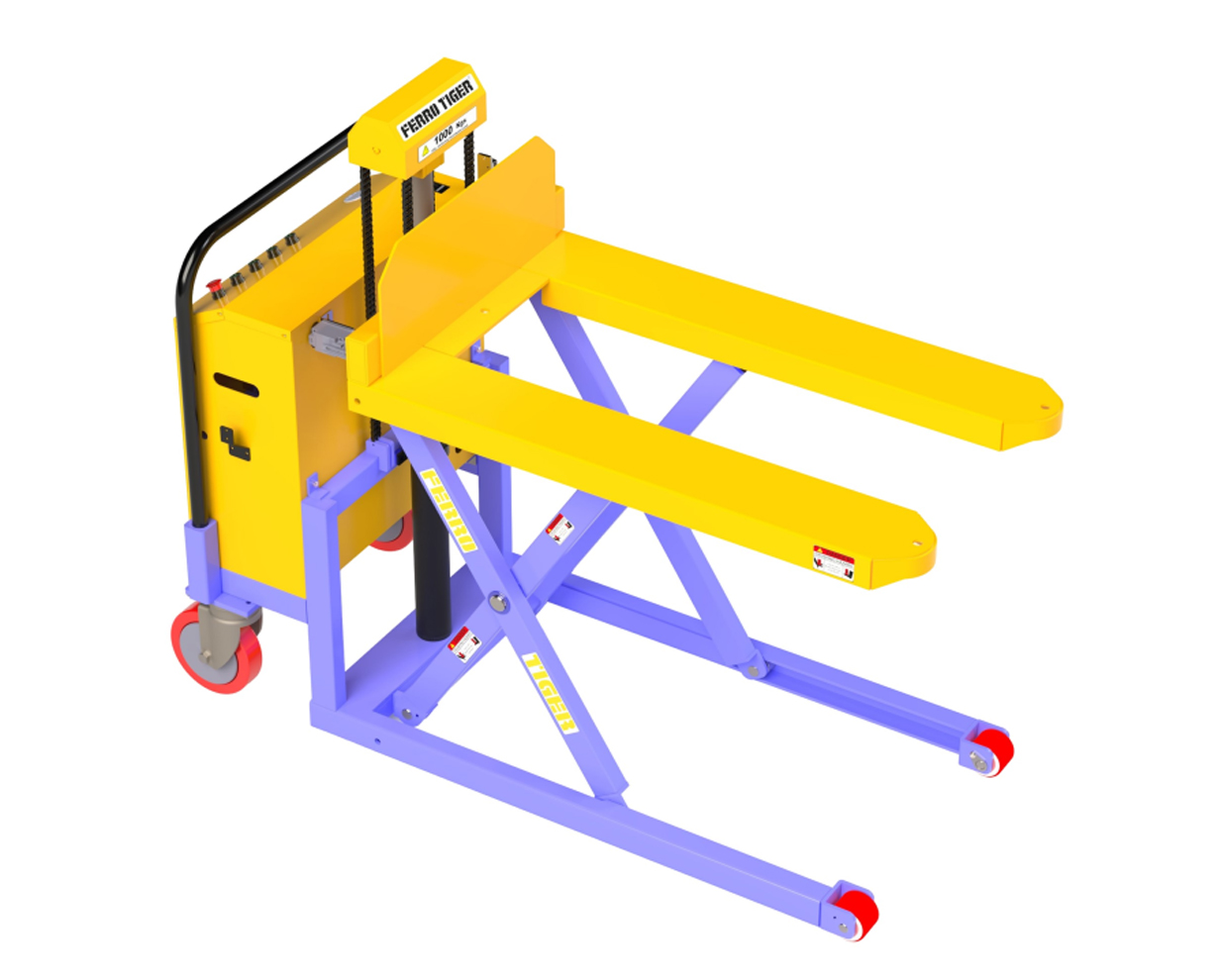

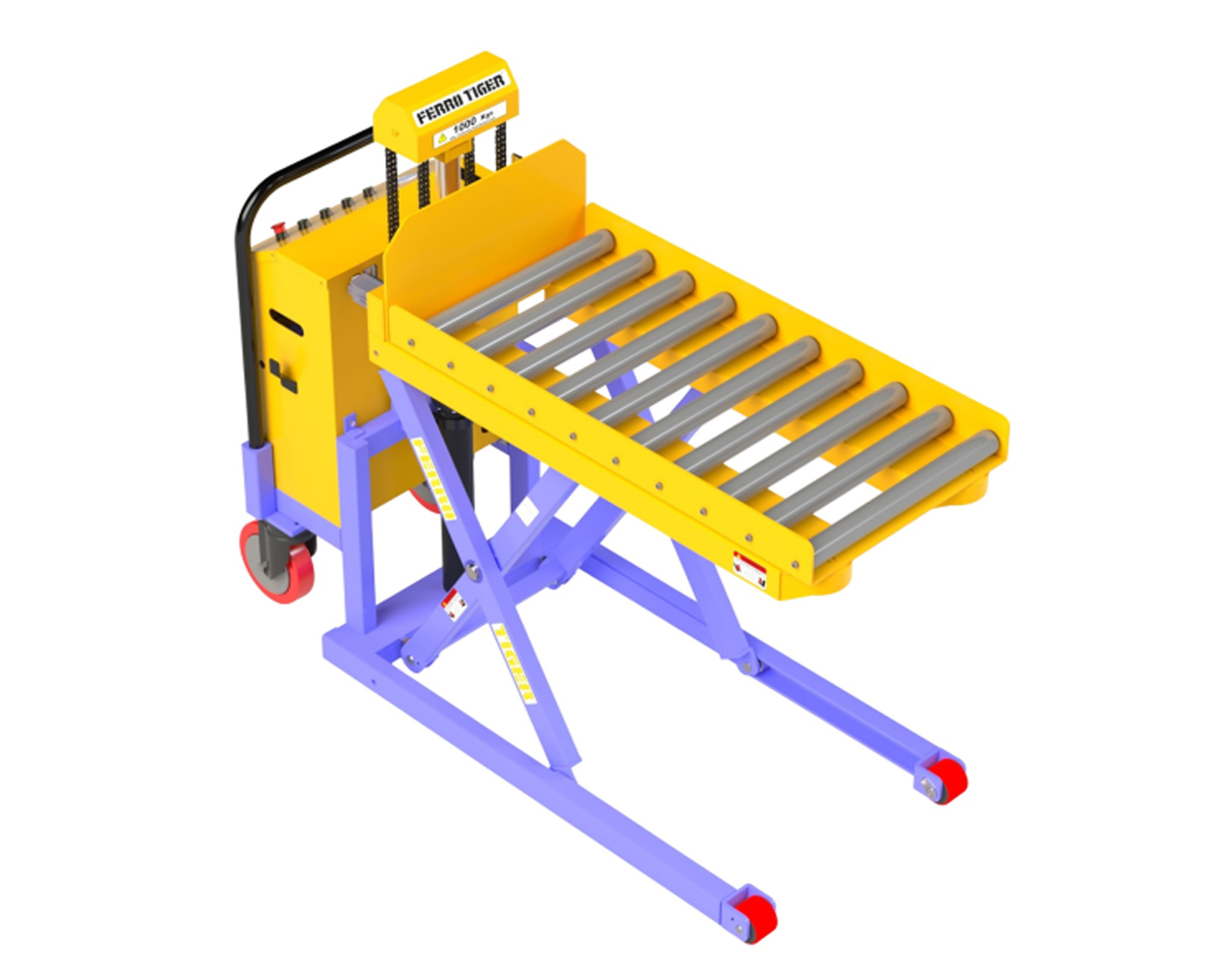

Mobile Slim Lift Battery Operated with Auto Sensor [ 1000 Kg- | 900 mm | 685 mm X 1200 mm ]

• SPECIFICATION:- Model : Mobile Slim Lift (Skid Lift)

• Battery Operated- Lifting capacity : 1000 Kgs- Fork length : 1200 mm- Overall width over fork : 685 mm- Height of the fork lowered : 90 mm- Travelling Lift : 810 mm- Maximum stacking height : 900 mm- Power Pack : 2 KW, 12V DC Motor with 1.6 CC Pump- Battery Charger : SPE Italian Make, 12V, 15A- Power Source : 12V 200 Amp Tubular battery- Frame : Heavy duty formed steel for continuous use"- Steering : Skid Lift is capable of turning through 180°, with minimum turning radius for easymaneuverability."- Wheels / Fork Rollers : 200 x 50 mm dia PU Castor Wheels with Lock / 80 x 60 mm dia PU Rollers- Linear Movement : Manual- Movement : With Auto Raising & Lowering Arrangement

₹270,000.00 ₹337,500.00

Ferro Tiger, Scissor Lift with Floating Conveyor Rollers [ 1000kg | 2200x800mm | Gravity Roller ]

• SPECIFICATION:

• Number of Scissors Arms : One

• Max Capacity of lift table : 1000 Kgs

• Load to Raise/Lower : 1000 Kgs

• Top Platform size : 2200 mm x 800 mm

• Max height from base frame : 900 mm

• Closed height : 300 mm (With Conveyor Rollers)

• Stroke / Travelling lift : 600 mm

• Motor : 1.5 HP - 3 Phase 415 V AC 50 Hz.

• Power Source : 3 PH, 415V Neutral

• Control Voltage : 220 V AC

• Control type : Foot Operated Pedal Switch

• Top Platform base sheet : 5 mm thick MS Sheet

• Power Pack Position : Inside of Scissor Lift

• Movement / Location : Stationary – Floor Mounted

• Equipment Color : RAL 7035 White

• Roller Conveyor Diameter : Ø 50 mm

• Roller Pitch & Length : As per our design

• Conveyor Roller Make : Reputed Make

• Conveyor Type : Gravity Rollers

• Senzor : Auto Raising & Auto Lowering

• Lifting time / Speed : 15 sec approximate @ 40 mm/sec

• Lowering time / Speed : 15 sec approximate @ 40 mm/sec

• Cycle Time : Customer to specify

• Frequency of Operations per hour : Customer to specify

• Duty Cycle – No. of Shifts : Customer to specify

• Motor Running Type : Non-Continuous

• Circuit Type – for raising and lowering : Inching

• Stopping Accuracy : /- 10 mm

• Site temperature Max & Min : N/A

• Humidity : N/A

₹310,000.00 ₹387,500.00

Lamello Cabineo 12 [1 PCS]

Technical Specifications — Lamello Cabineo 12
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

₹40.00 ₹50.00

Lamello Cabineo 12 black [1 PCS]

Technical Specifications — Lamello Cabineo 12
Installation tolerance longitudinal	± 0.1 mm
Installation tolerance radial	± 0 mm
Minimum workpiece width	21 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	13 mm
Minimum material thickness for centre wall machining	24 mm
Tensile strength in particle board	820 N
Tensile strength in MDF	980 N
Tensile strength in beech	2250 N
Shear strength in particle board	880 N
Shear strength in MDF	1120 N
Shear strength in beech	2350 N
Clamping force in particle board (19 mm)	~900 N (~90 kg)
Size (LxWxH)	33.8 x 10.8 x 16.5 mm
Screw length	12 mm (nickel-plated wood screw)
Housing material	Fiberglass reinforced plastic
Required drill	Ø 15 mm hole (or Ø 12 mm cutter) + Ø 5 mm screw hole
Assembly torque	approx. 2.5 Nm
Colours available	White, Black (cover caps in 12 colours)

₹40.00 ₹50.00

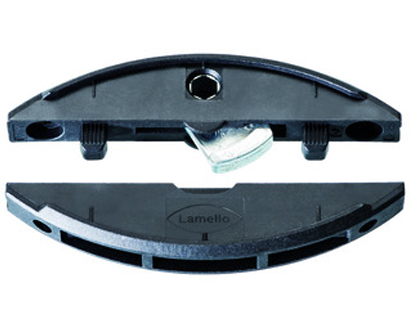

Lamello Clamex P-10 [1Pair]

Technical Specifications — Lamello Clamex P-10
Installation tolerance longitudinal	± 0.5 mm
Installation tolerance radial	± 0.5 mm
Minimum workpiece width	65 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	11 mm
Minimum material thickness for centre wall machining	19 mm
Minimum material thickness for angle bisector	15 mm
P-System groove depth (P-System setting)	P-10
Tensile strength in particle board	540 N
Tensile strength in MDF	700 N
Tensile strength in beech	900 N
Shear strength in particle board	420 N
Shear strength in MDF	530 N
Shear strength in beech	1590 N
Size (LxWxH)	52 x 19 x 9.7 mm
Access hole diameter	6 mm
Groove depth	10 mm

₹80.00 ₹100.00

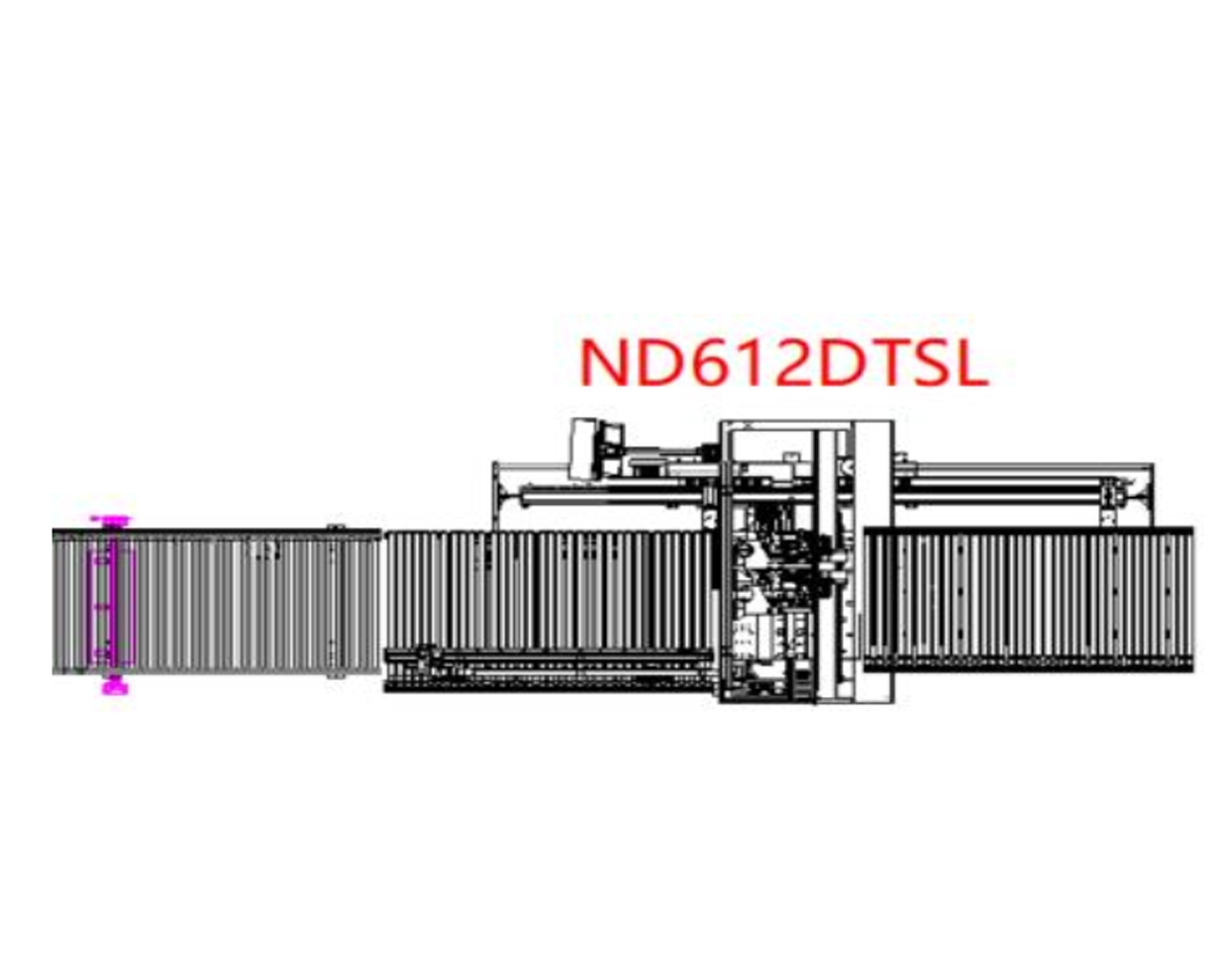

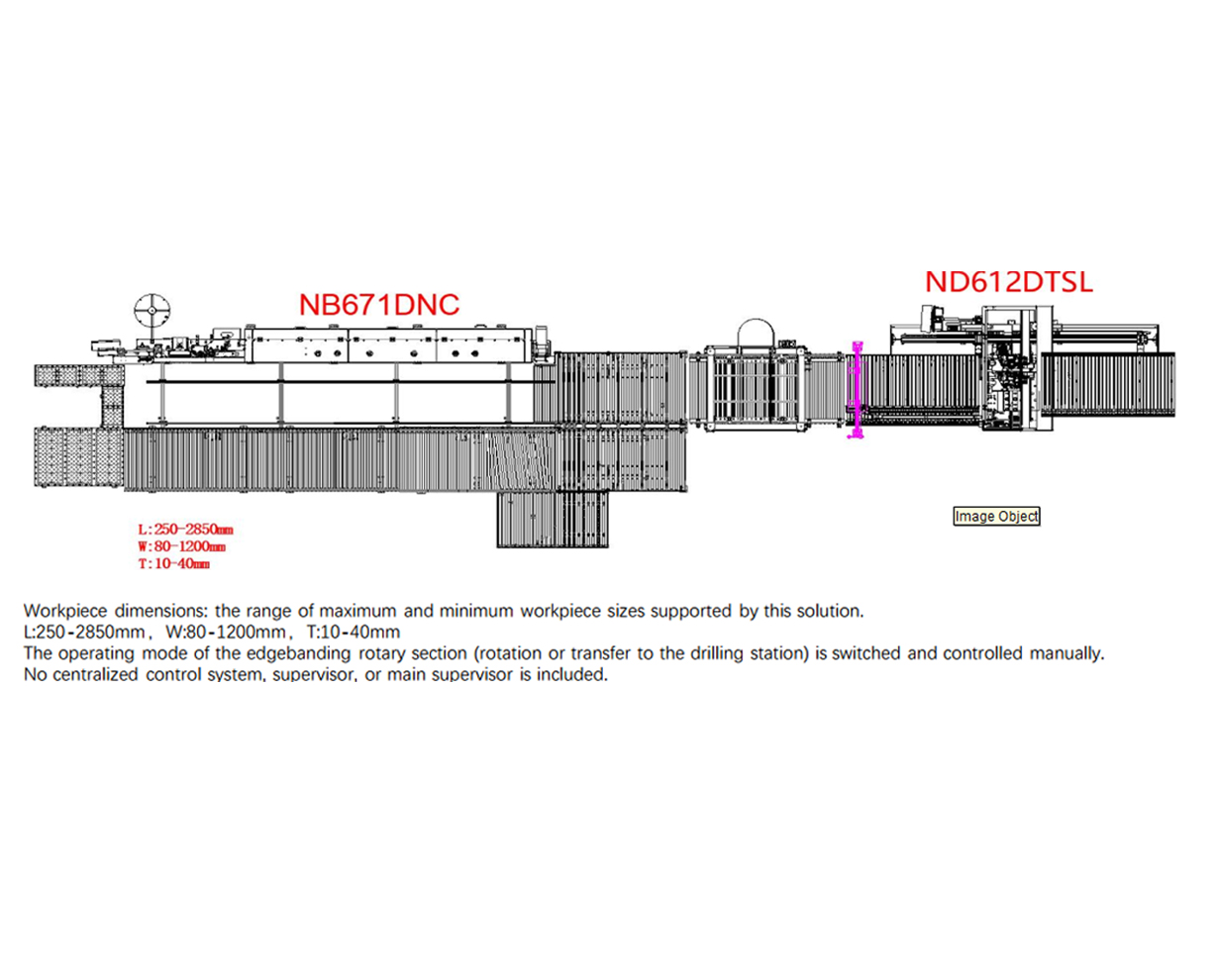

Nanxing CNC 6-Sided Drilling Machine ND612DTSL with feeding conveyor systems

FEATURES

Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
Feed-in & out table
Positioning Side aligner & Support / press plates
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Top drilling block 1 boring blocks 2.2kw,
Optimized drilling blocks layout +saw blade
2 boring blocks 2.2kw with Vertical drills: 19+19
Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
Bottom drilling block 1.6kw 9 vertical drills
Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
Stack processing
Side Grooving
Machine is configured with Lamello aggregate & tool
Anti-handling device for infeed table
3No. Dust collection port
Hand controller
Control system
Windows 10 operating system
Control interface is modern and friendly
Manual programming interface
Simulation function
Easy tools setting
Statistics function
Bar-code reader
File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
Side routing-One head aggregate
Board thickness sensor
Air jet for Grippe
A-02 Conveyor BCC3015 1No.
A-03 Controlling System 1No.
A-04 -. Auto Scanner 1No.

₹5,850,000.00 ₹7,312,500.00

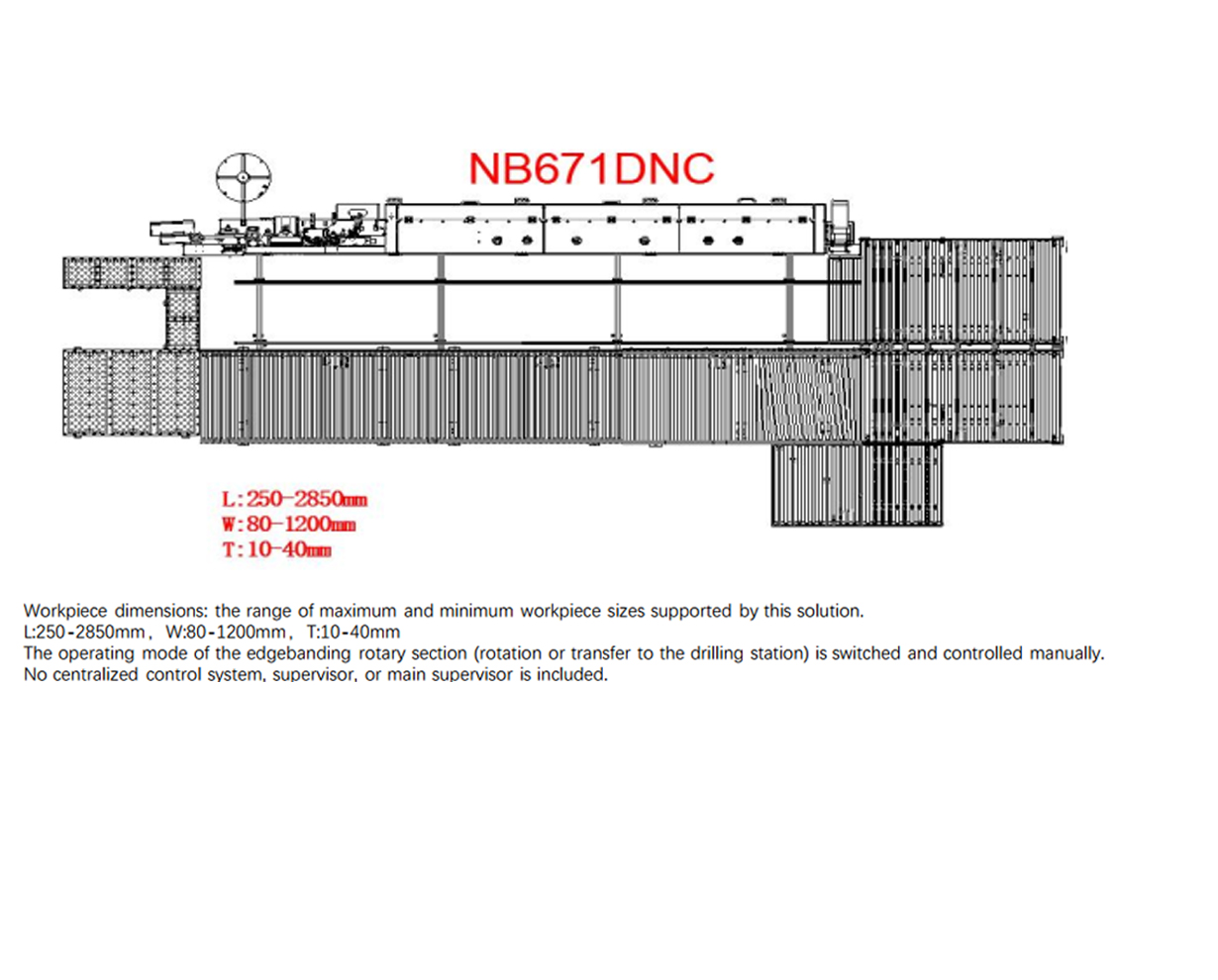

Nanxing Edge Banding Machine NB671DNC with Auto conveyor systems

Workpiece dimensions: the range of maximum and minimum workpiece sizes supported by this solution.
L:250-2850mm, W:80-1200mm, T:10-40mm

The operating mode of the edge banding rotary section (rotation or transfer to the drilling station) is switched and controlled manually.

No centralized control system, supervisor, or main supervisor is included.

INCLUDES:

A-01- Edge Banding Machine NB671DNC 1No.
A-02 - Conveyor BCC3517 1No.
A-03 - Conveyor BCC3015 1No.
A-04 - Conveyor BNC2513 1No.
A-05 - Conveyor BC3515 1No.
A-06 - Conveyor BC3015 1No.
A-07 - Conveyor BC3015 1No.
A-08 - Air Floating Table AF2012 1No.
A-09 - Air Floating Table AF1306 1No.
A-10 - Air Floating Table AF2006 1No.
A-11 - Controlling System 1No.

₹8,650,000.00

Nanxing Edge Banding Machine NB671DNC & CNC 6-Sided Drilling Machine ND612DTSL with Auto conveyor systems

Workpiece dimensions: the range of maximum and minimum workpiece sizes supported by this solution.
L:250-2850mm, W:80-1200mm, T:10-40mm

The operating mode of the edge banding rotary section (rotation or transfer to the drilling station) is switched and controlled manually.

No centralized control system, supervisor, or main supervisor is included.

INCLUDES:

A-01- Edge Banding Machine NB671DNC 1No.
A-02 - Conveyor BCC3517 1No.
A-03 - Conveyor BCC3015 1No.
A-04 - Conveyor BNC2513 1No.
A-05 - Conveyor BC3515 1No.
A-06 - Conveyor BC3015 1No.
A-07 - Conveyor BC3015 1No.
A-08 - Air Floating Table AF2012 1No.
A-09 - Air Floating Table AF1306 1No.
A-10 - Air Floating Table AF2006 1No.
A-11 - Controlling System 1No.
A-12 - Buffering Conveyor ACCD330 1No.
A-13 - 6-Sided Drilling Machine ND612DTSL 1No.

₹16,300,000.00

Nanxing CNC 6-Sided Drilling Machine ND612DTSL 415V

FEATURES

Long clamp beam & fast clamps 5.5m longer high-rigidity clamp
Feed-in & out table
Positioning Side aligner & Support / press plates
Board length, width detector
6 slots tool changer
Tool setting gauge
5.5kw+3.5kw main spindle
Top drilling block 1 boring blocks 2.2kw,
Optimized drilling blocks layout +saw blade
2 boring blocks 2.2kw with Vertical drills: 19+19
Independent grooving saw 1.7kw; Saw blade size:Ф100*Ф22*δ4 fixed in X direction.
Bottom drilling block 1.6kw 9 vertical drills
Min. processing Panel length: 200-3000mm / Panel width 30-1200mm
Stack processing
Side Grooving
Machine is configured with Lamello aggregate & tool
Anti-handling device for infeed table
3No. Dust collection port
Hand controller
Control system
Windows 10 operating system
Control interface is modern and friendly
Manual programming interface
Simulation function
Easy tools setting
Statistics function
Bar-code reader
File format support (MPR, DXF, BAN, BPP, PDX; XML; XX)
Side routing-One head aggregate
Board thickness sensor
Air jet for Grippe
DC3015L Roller Conveyor
DCC3015L Roller Conveyor
DC3515L Roller conveyor
Electrical control system
Barcode scanner and its components

TECHNICAL SPECIFICATIONS:

Total power : 26.63Kw+3KW
Power Supply 415V/50Hz/3PH
Total weight : 3,850Kg
Panel size : Length 200-3,000mm
Panel size : Width 30-1,200mm
Panel size : Thickness 10-60mm
Max. traveling speed : X /U axis 135m/min
Max. traveling speed : Y axis 75m/min
Max. traveling speed : Z axis 30m/min
Transmission mode : X axis Rack and pinion
Transmission mode : Y axis Rack and pinion
Transmission mode : Z axis Ball screw rod
Boring blocks qty : Top 2; Bottom 1
Boring blocks Vert. drills qty (top) : 19*2
Boring blocks Horiz. drills qty (top) : X: 3× 4 + Y: 2× 4
Boring blocks Vert. drills qty (Bottom) : 9
Boring blocks Max drill diameter : Φ35mm
Boring blocks Drill spacing : 32mm
Boring blocks Rotation speed : 5000rpm
Boring blocks Shank diameter : Φ10mm
Main spindle qty : Top tool ER32 holder ISO30 ; Bottom tool collet ER25
Main Spindle power : 5.5kw*1 ; 3.5kw×1 max.18000rpm
Saw blade : Power 1.7kw
Saw blade : Size Ф 100*Ф 22*x 4
Saw blade : Processing range 50-700mm
Dust collector : qty 2
Dust collector : diameter
Dust collector : Top 200mm×2
Dust collector : Lower 125mm×1
Dust collector : speed ≥28m/min

₹7,050,000.00 ₹8,812,500.00

Nanxing CNC Nesting Machine NCG3021LE with [AL+UL | 12KW Spindle | V10 Drill | FCC+Editor | Pressure Roller]

FEATURE:

Automatic loading
Stack height (without pit)
The hydraulic pump power is 5.5kw.
Pushing device
Electric cabinet
Printer
The table base size is 3000*2100mm.
The working height is 900-950mm. The size is 3000*2100mm.
Vacuum pump 2pcs 7.5kw oil cooling vacuum pumps.
Gantry frame
Transmission method for the X and Y axes is Rack and pinion, while the Z axis uses a Screw.
The maximum movement speed for the X and Y axes is 100m/min, and for the Z axis is 20m/min.
Processing stroke: X axis: 3100mm; Y axis: 2100mm; Z axis: 200mm.
Servo motor power: X axis: 2*1.3kw; Y axis: 1*1.3kw; Z axis: 1*1.3kw.
Spindle 12KW | ER32 | 2400rpm | ISO030
12 in-line automatic tool magazine.
Lubricating
Dust removal device and unloading pusher
Tank drag chain
Auto unloading Table size: 3200*2200mm; Motor: 1*0.75kw.
Dust collector outlets are 1*150Dia. and 3*125 Dia.
Electric cabinet
Control System SYNTEC
Electric equipment
The computer consists of an IPC with Windows operating system, a DELL display, and a USB port.
A hand wheel and foot switch are provided to make commissioning more convenient.
Pressure roller
V10 drilling bloc
FCC + Editor
Additional 7.5kw vacuum pump

TECHNICAL DATA

Control system : 1 spindles controller
Working range : X-axis: 3,100 mm
Working range : Y-axis: 2,100 mm
Working range : Z-axis: 200 mm
Working table size : 3100 x 2100 mm x H900mm
Max. traveling speed : X-axis: 100 m/min
Max. traveling speed : Y-axis: 100 m/min
Max. traveling speed : Z-axis: 20 m/min
Main spindle : 12KW*1 , 2400rpm / ER32
Servo motor : X axis: 1.3kw*2
Servo motor : Y axis: 1.3kw
Servo motor : Z axis: 1.3kw
Vacuum pump : 3*7.5kW Suction flow rate: 250 m3/h
Dust collector outlets are 1*150 Dia and 3*125 Dia
Speed rate : 30 m/s
Air pressure required: 6~7 kg/cm2
Power supply Voltage: 415V, 3-phase / 50Hz
Total Power Supply 39.7kW
Floor space LxWxH: 11,800x3,350x2,500 mm
Net Weight : 6000KG

₹5,250,000.00 ₹6,562,500.00

1000 boards/day | Automatic Industrial Line for Modular Furniture: Kitchens, Wardrobes, Office Furniture

CIS-PPM-007 — 1000 Boards/Day Automatic Industrial Line

Mega-scale automatic cabinet manufacturing line for tier-1 OEM brands, retailers and large modular kitchen / wardrobe / office furniture B2B contract manufacturers. Two-shift operation, 2,00,000 sqft, 400-person factory crew. Fully automated panel saw + edge bander + CNC nesting + hot press + dust extraction sized for 1,000 boards/day @ 60% OEE — one accountable contract by Caple Industrial Solutions with pan-India service.

PACKAGE DASHBOARD
Machine investment	₹40.00 Cr	Other investment*	₹57.36 Cr
Total investment	₹97.36 Cr
Equity (Self)	₹29.21 Cr (30%)	Bank loan (TL+CC)	₹68.15 Cr (70%)
Years to be bank-free	1.2 years
Factory area	2,00,000 sqft	Manpower (B2B, 2 shifts)	400 people

*Supporting eqp ₹10 Cr + Working capital ₹37.07 Cr + Pre-op & GST ITC ₹10.29 Cr. Manpower excludes designers, sales, showroom, installation.

Contact us for Demo / Detailed Excel →

₹400,000,000.00

500 boards/day | Automatic Industrial Line for Modular Furniture : Kitchens, Wardrobes, Office Furniture

CIS-PPM-006 — 500 Boards/Day Automatic Industrial Line

Industrial-scale automatic cabinet manufacturing line for large modular kitchen, wardrobe and office furniture B2B contract manufacturers and OEM brands. Two-shift operation, 1,00,000 sqft, 200-person factory crew. Fully automated panel saw + edge bander + CNC nesting + hot press + dust extraction sized for 500 boards/day @ 60% OEE — one accountable contract by Caple Industrial Solutions with pan-India service.

PACKAGE DASHBOARD
Machine investment	₹20.00 Cr	Other investment*	₹28.68 Cr
Total investment	₹48.68 Cr
Equity (Self)	₹14.60 Cr (30%)	Bank loan (TL+CC)	₹34.07 Cr (70%)
Years to be bank-free	1.2 years
Factory area	1,00,000 sqft	Manpower (B2B, 2 shifts)	200 people

*Supporting eqp ₹5 Cr + Working capital ₹18.54 Cr + Pre-op & GST ITC ₹5.14 Cr. Manpower excludes designers, sales, showroom, installation.

Contact us for Demo / Detailed Excel →

₹200,000,000.00

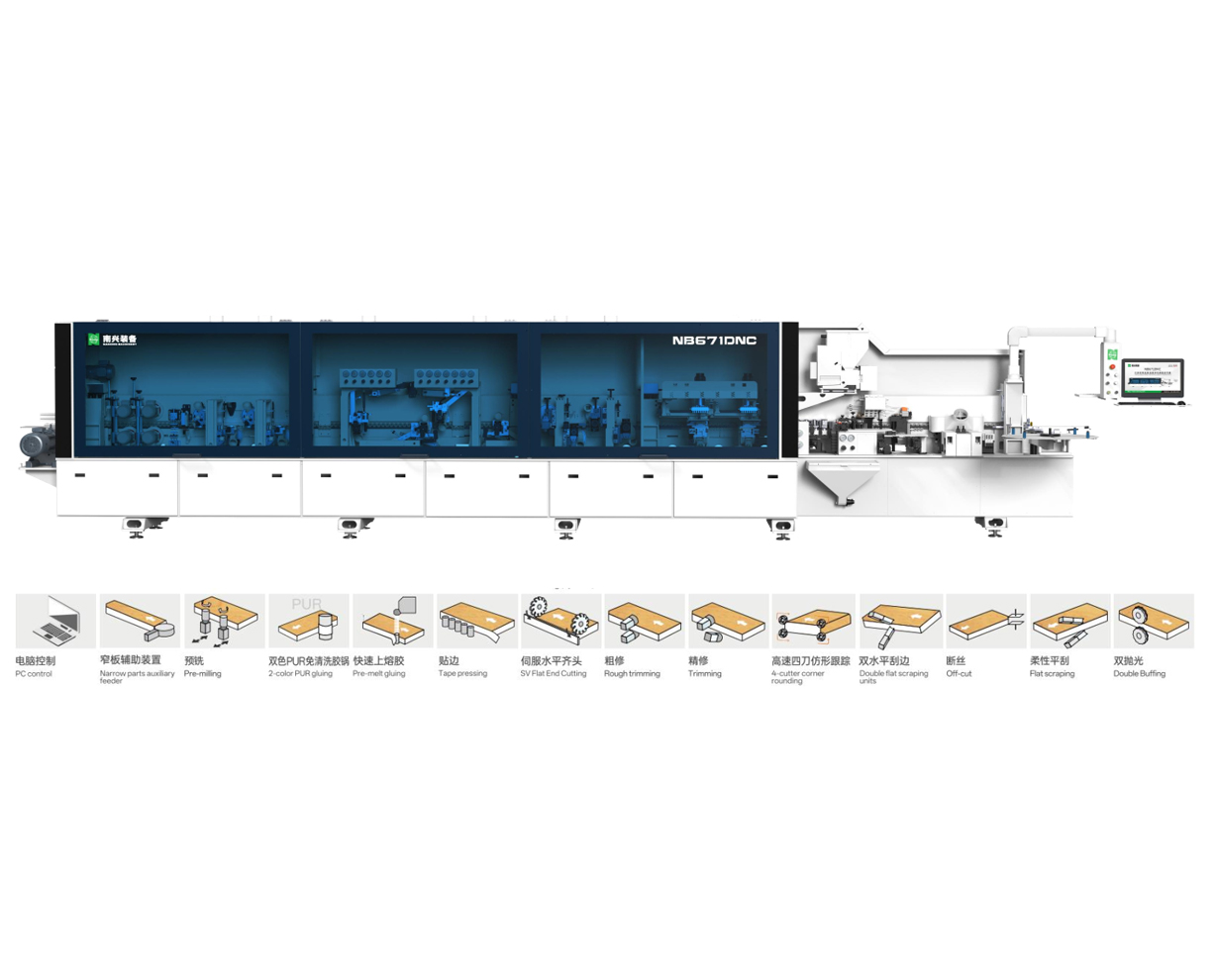

Nanxing Edge Banding Machine for narrow parts NB671DNC

FEATURES:

• Narrow Panel Feeding Auxiliary Device,

• Release Agent sprayer

• Pre-Milling

• Pre-Heating

• 2-Color PUR Gluing System

• Pre-melt gluing units

• Tape Feeding

• Five-Roller Tape Presser,

• Servo end cutting

• Rough trimming

• Fine trimming

• High-Speed 4-motor corner rounding

• 2 sets Flat tracing arm Scraping units

• Off cut Device

• Flat scraping,

• clean agent sprayer,

• 2 sets buffing;

TECHNICAL SPECIFICATION:

• Panel length : 120mm

• Panel width : 35mm

• Mini workpiece size : 300x35

• Panel thickness : 8 - 60mm

• Tape thickness : 0.4 - 3mm

• Dust collector : φ 125mm x 7

• Total power : 34.5KW

• Infeed speed : 18/22/26m/min

• Machine Size : 10000 x 1050 x 1930mm

• Net Weight : 5080kg

₹5,050,000.00 ₹6,312,500.00

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(1200+650) Gripper+AC for Cabinet

FESTURES

TECHNICAL SPECIFICATIONS

Total power : 48.36KW
Machine size : 7,400*4,470*2,380mm
Power supply : 415V/50Hz3PH
Air supply : 0.6-0.7MPa
Total weight : 6,300Kg
Control system : SYNTEC
Panel Length : 200-3,000mm
Panel Width : 30-1200+650mm
Panel thickness : 10-60mm
Max. traveling speed (X/U) axis : : 135m/min
Max. traveling speed Y axis : : 75m/min
Max. traveling speed Z axis : : 30m/min
Max. traveling speed (X/U) axis : : 135m/min
Transmission mode X & Y : Rack and pinion
Transmission mode Z : Ball screw rod
Drilling blocks
Boring block qty : Top 2+2 , Bottom1+1
Vertical drills qty(top) : 19*4
Horizontal drills qty(top) : X:3×8+Y:2x4
Vertical. drills qty(Bottom) : 9x2
Max. drill diameter : 35mm Dia.
Drill spacing : 32mm
Rotation speed : 5000rpm
Shank diameter : 10mm
Main spindle qty : 4*ER32
Main spindle power : 4*3.5kwmax.18000rpm
Dust collector Top : 200x4
Dust collector Bottom : 125mm×2
Dust Collector Speed : 28m/min

₹9,000,000.00

All Products

CIS-PPM-007 — 1000 Boards/Day Automatic Industrial Line

CIS-PPM-006 — 500 Boards/Day Automatic Industrial Line
