Portable Jointing Machines

Lamello 101403CNS Zeta P2 Biscuit Joiner with Carbide Cutter, Drill Jig in systainer3 M

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹180,000.00 ₹225,000.00

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

₹200,000.00 ₹250,000.00

Technical Specifications — Lamello Invis Mx2
Size connector	Ø 12 × 35 mm
Size stud (standard)	Ø 12 mm × 14 mm
Size stud (long)	Ø 12 mm × 30 mm
Size centre-wall stud	Ø 12 mm × 30 mm
Required drill hole	Ø 12 mm
Maximum distance to edge (for full clamping force)	9 mm (max. 15 mm)
MiniMag rotation speed	1200–1500 rpm
Housing material	Zinc
Installation tolerance longitudinal	± 0.1 mm
Clamping force per connector	up to 250 kg (2452 N)
Minimum panel thickness	18 mm (edge cuts)
Sold in sets of	20 pairs

₹65,000.00 ₹81,250.00

Technical Specifications — Lamello Clamex P-14
Installation tolerance longitudinal	± 1 mm
Installation tolerance radial	± 1 mm
Minimum workpiece width	75 mm
Minimum material thickness for edge cuts	12 mm
Minimum material thickness for surface cuts	15 mm
Minimum material thickness for centre wall machining	29 mm
Minimum material thickness for angle bisector	18 mm
P-System groove depth (P-System setting)	P-14
Tensile strength in particle board	1070 N
Tensile strength in MDF	1210 N
Tensile strength in beech	1870 N
Shear strength in particle board	490 N
Shear strength in MDF	600 N
Shear strength in beech	2940 N
Size (LxWxH)	64 x 27 x 9.7 mm
Access hole diameter	6 mm
Material	Fiberglass reinforced plastic
Groove depth	14 mm

₹90,000.00 ₹112,500.00

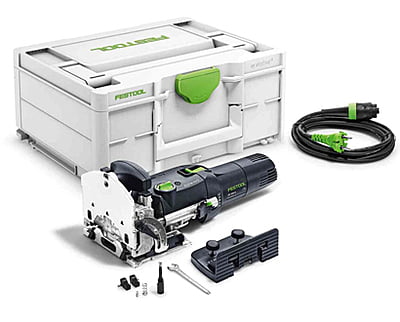

• Domino Cutter D5 Support Bracket Operation Tool In A Systainer Sys 2 T-Loc

₹240,000.00 ₹300,000.00

• Domino Cutter D 12Mm Support Bracket 2X Dowel Box 20X Domino D 12X100 Bu Operating Tool In Systainet Sys 5 T- Loc

₹365,000.00 ₹456,250.00
