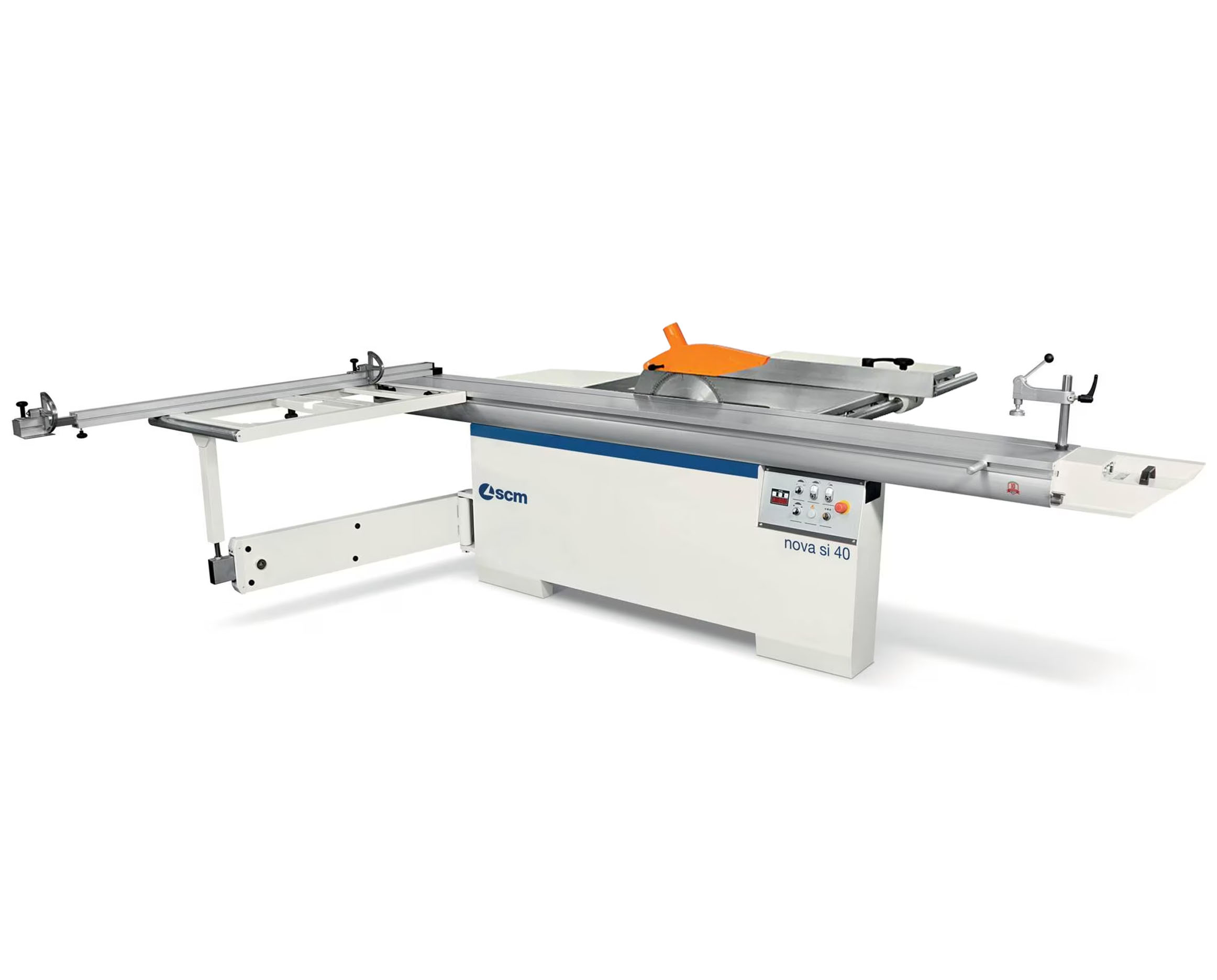

Scm Circular Saw / Panel Saw NOVA SI40 [ 3200mm Table | 1270mm Digital Rip-cut Fence | DRO on Cross-cut Fence | 5.5kw ]

- Application to be downloaded from the App Store or Paly Store on

  compatible tablets (mobile devices) equipped with

  iPadOS or Android  operating systems.

- It can be activated using the QR code supplied with the machine.

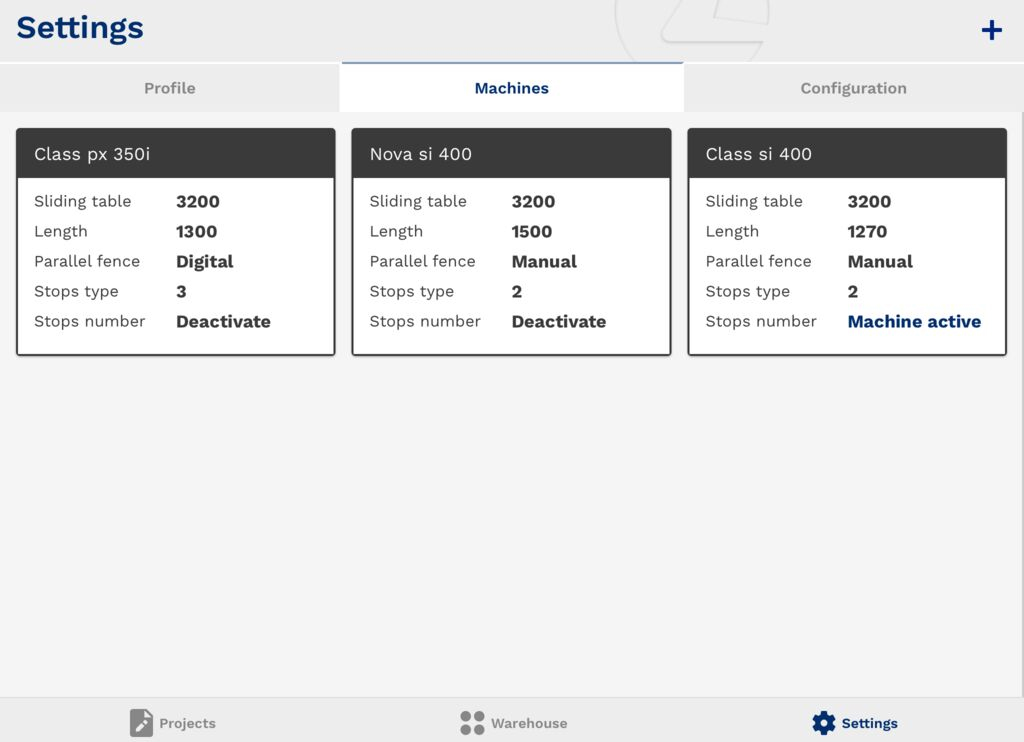

* manage your machine stock and the material and panel magazine

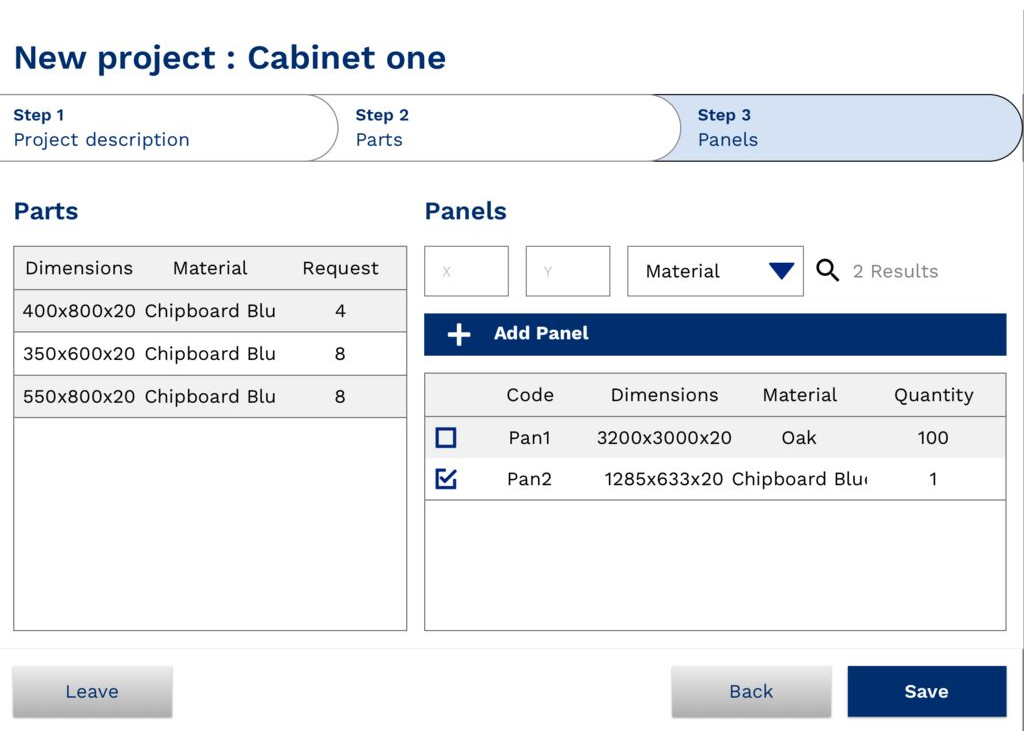

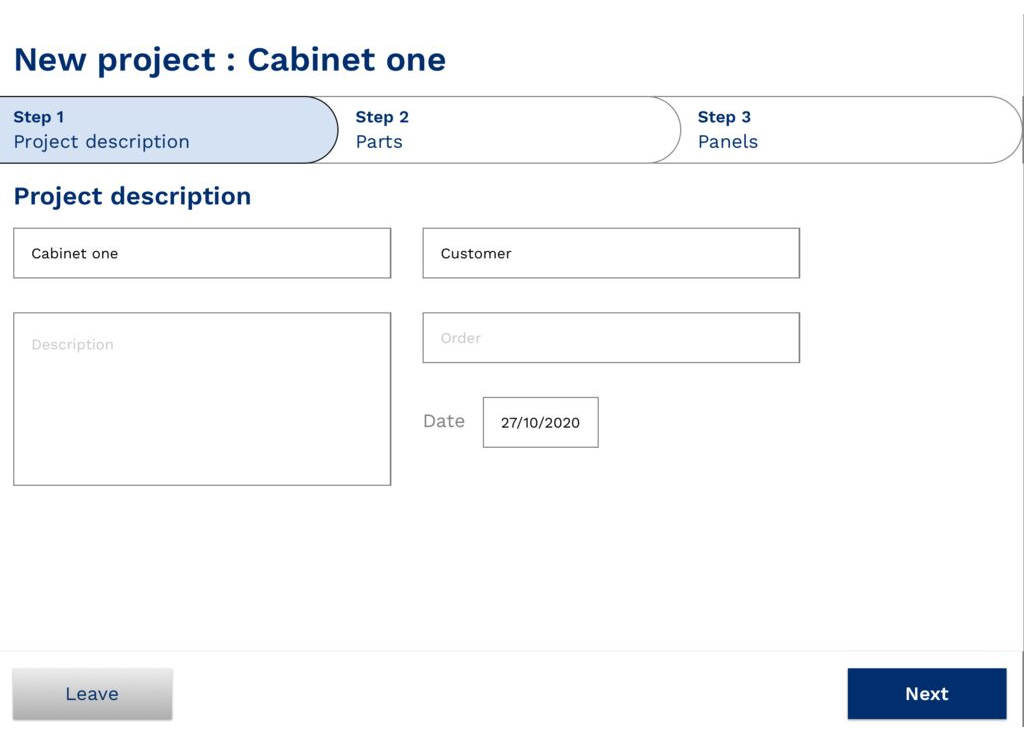

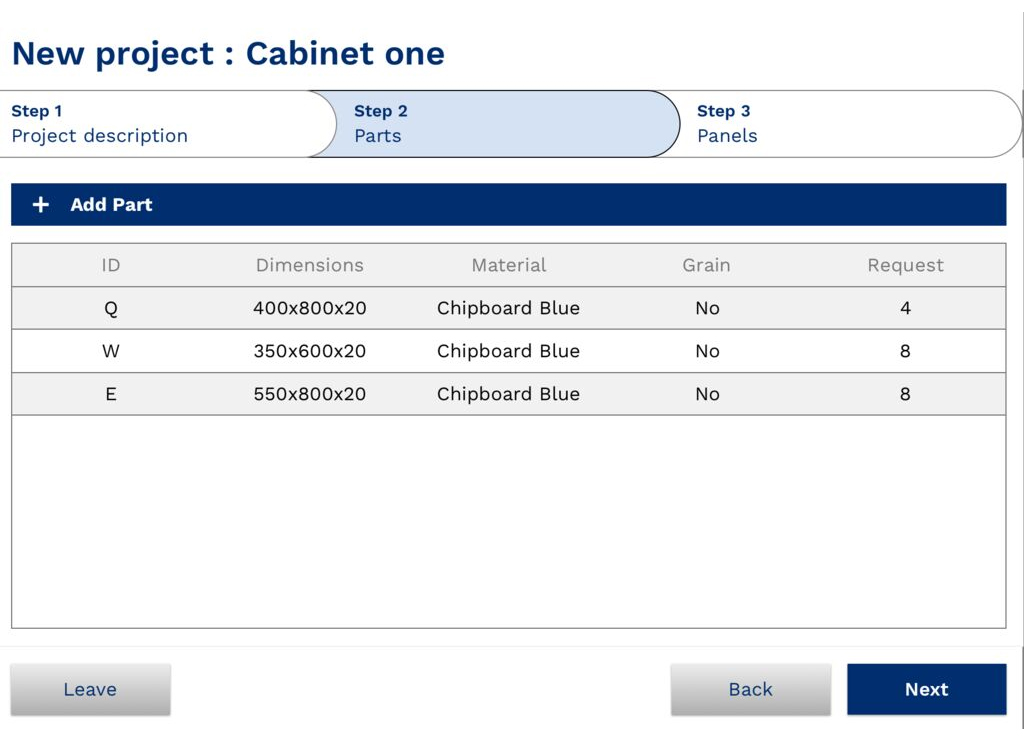

* create and modify projects, import projects from the main furniture

  design software ("cpout" file format), import cutting lists

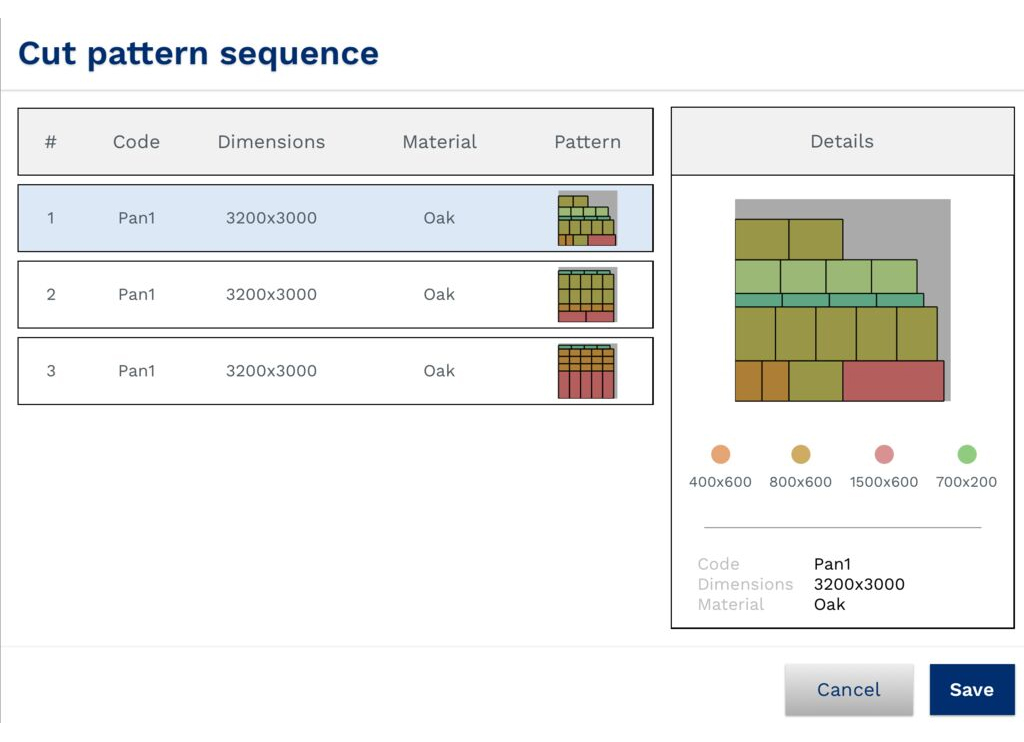

* optimize cutting lists, choosing from one or more proposals of the

  optimization software integrated into the App.

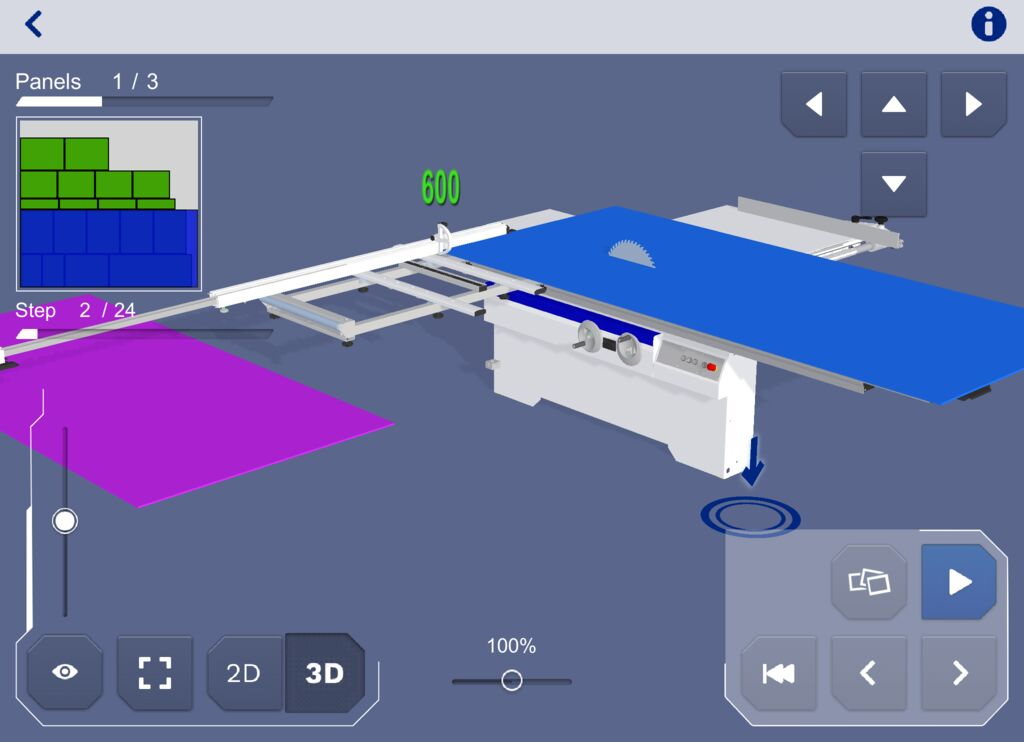

* set the machine correctly for each cut to be made, thanks to the

  simple and intuitive graphics of the 3D sequencer that guides the

  operator at each step.

* print  labels with bar code to identify the various parts, thanks to the

  Bluetooth connection with compatible label printers.

- Cast iron saw unit, with lifting system by means of "dove-tail" guideways and tilting on high rigidity sliding side

   trunnions, complete with scoring unit with independent motor and external setting up

- Anodized aluminium alloy carriage (dimensions 360 x 3200 mm) sliding on hardened steel guides, which  are fixed

  on the carriage by means of mechanical bending system

- Squaring frame (dimensions 1200 x 650 mm) with:

* telescopic fence with 2 flip-over stops and metric rule tilted towards the operator

* eccentric clamp

* swinging arm support

* idle roller to facilitate the panel loading/unloading

- Dedicated saw parallel fence with:

*"high rigidity" cast iron fence support

* micrometric adjustment and cam-locking system

* rectified steel round sliding bar, 45 mm diameter

- Readout of sawblades tilt on the machine front side

- Version with maximum squaring stroke 3200 mm

Powered parallel fence with electronic programmer (1 axis)

complete with:

- position reading by means of encoder

- movement through recirculating ball screws

- continuously adjustments by means of pushbutton

- possibility of incremental positioning

- exclusion of fence

- 1270 mm cutting width

Squaring fence with no. 2 LCD readouts for stops position

- Each stop with micrometric adjustment is equipped with

  electronic digital readout with detecting system on magnetic band

  and readout on LCD display.

- Max cutting height at 90????   (mm) : 136 with  blade 400

- Max cutting height at 45????   (mm) : 97 with blade 400

- Blade tilt (degrees) : 45????

- Blades lifting and tilt : manual

- Main blade rotating speed (rpm) : 3500/4000/5000

- Scoring unit rotating speed  (rpm) : 9200

- Saw unit motor power kW (HP) 50Hz : 5 (6,6)

- Scoring unit motor power [S1] kW (HP) 50Hz : 0,55 (0,75)

- w. 3200 mm carriage : 3200x3200

- Cutting width on parallel fence (mm) : 1270

- at the base (mm) : 120

- on overhead protection (mm) : 80
