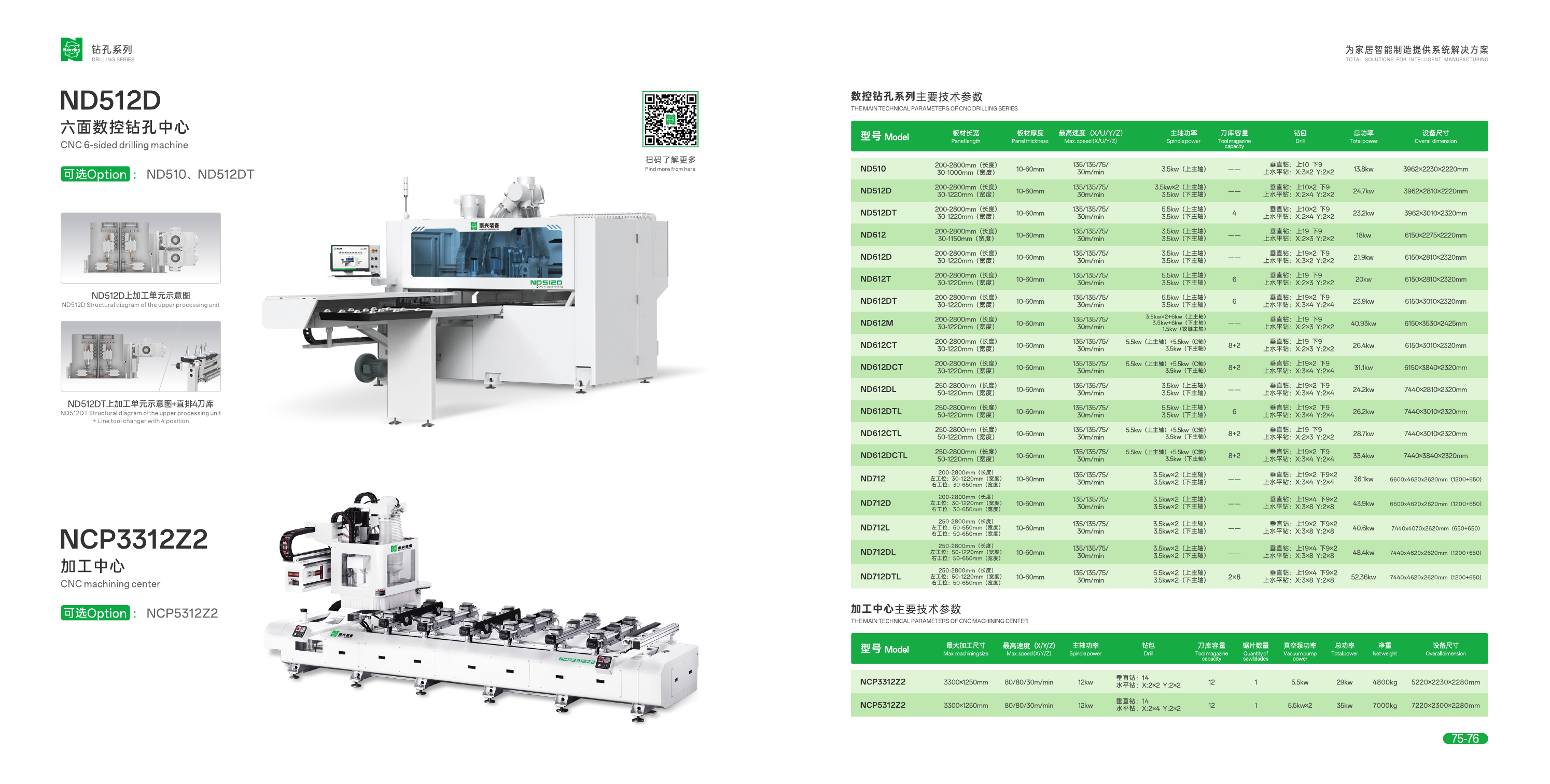

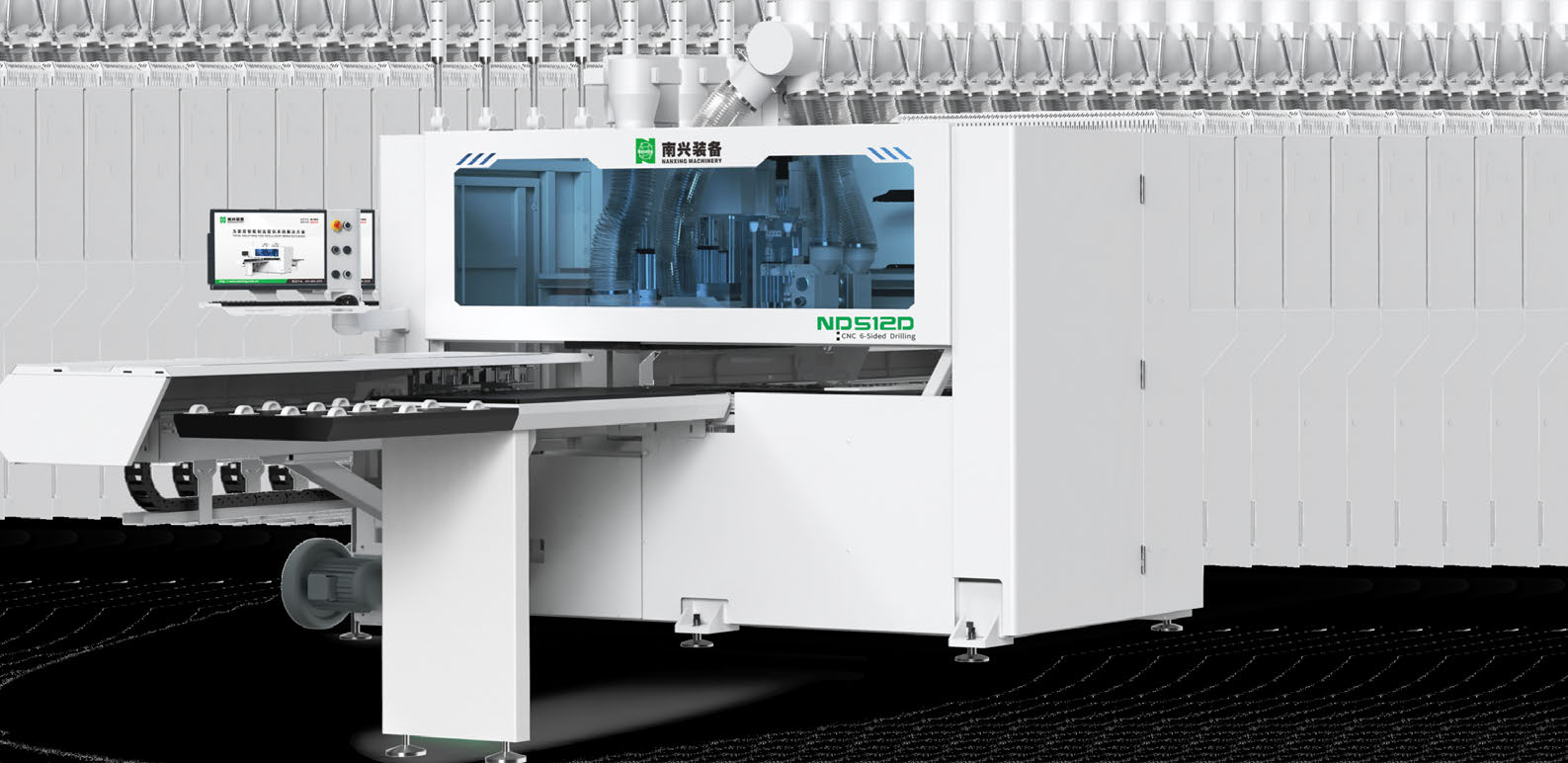

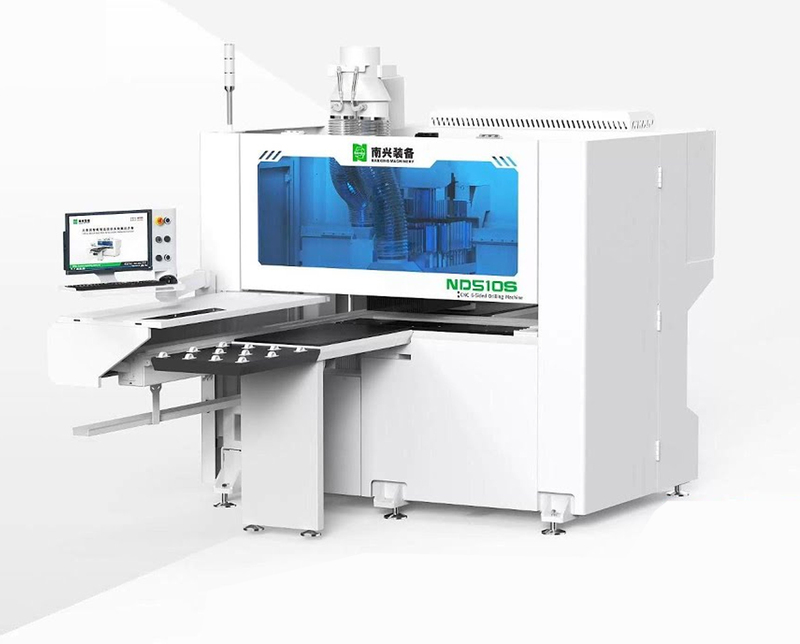

CNC 6-Sided drilling machine ND512TS
FEATURES
• Long clamp beam & fast clamps 3.3 mtr
• Infeed air float table : 500*1613 mm
• Feed out table : 500*1613 mm
• Accurate movement of each axis X,Y,U Transported by inclined rack and pinion
• Accurate movement of Z Transported by Ball screw rod
• Servo motor for each axis
• Max travelling speed: X/U/Y/Z/V:135/135/75/30/30m/min
• Linear guiding rail and bearings can be greased automatically
• Board length detector
• Top processing unit
• Vertical drills: 10;
• Horizontal drills: 2 2 in X direction; 3 3 in Y direction. 5000rmp rotating speed,
• One 3.5kw main spindle
- TYPE:ER35
• Independent grooving saw
• Motor:1.7KW*1
• Saw blade size Dia.:100*22*4
• Bottom processing unit
Drilling block
• 9 vertical drills
• Quick change tool
• Min. processing size
• Drilling block design and software can do drilling for narrow parts
• Panel length: 200-3000mm
• Panel width 30-1200mm
• Stack processing
• Support stacking processing if hole position is mirror
• Hand controller
• Start button & pedal switch
• E-stop & Pause bar
• Industrial computer
• Windows 10 operating system.
• All-in-one industrial computer
• SYNTEC CNC control system
• Excellent electrical components
• Excellent electrical components
• User-friendly operation Controll interface
• Manual programming interface
• Tool management
• Simulation function
• File format support MPR, BXF, BAN, BPP, PDX, XML, XXL
• Air conditioner on control cabinet
• Safety light barrier & safety fence
TECHNICAL DATA
• Total power : 13.87 KW
• Machine size : 3962*2222*2271 mm
• Power supply : 380V/50Hz
• Air supply : 0.6-0.7MPa
• Control system Brand : SYNTEC
• Panel size Length : 200-3,000mm
• Panel size Width : 30-1,200mm
• Panel size Thickness : 10-60mm
• Max. traveling speed （X /U）axis : 135m/min
• Max. traveling speed Y axis : 75m/min
• Max. traveling speed Z axis : 30m/min
• Max. traveling speed V axis (push) : 30m/min
• Working table Material : HPL
• Working table Table size : 1478 x 275 mm
• Working table height : 955mm
• Drilling block qty : Top 1; Bottom 1
• Vert. drills qty Top : 10
• Horiz. drills qty Top : X: 6 Y: 4
• Vert. drills qty Bottom : 9
• Max drill diameter : 35mm
• Drill spacing : 32mm
• Rotation speed : 5000rpm
• Shank diameter : 10mm
• Drill length : 70mm
• Main spindle Top : 1
• Main spindle power : 3.5kw
• Dust collector qty : 2
• Dust collector diameter : Top 200mm×1
• Dust collector diameter : Bottom 125mm×1
• Dust collector speed : 28m/min
• Auto Tool Changer
| Double-Block Drilling for High-Throughput Factories. |
Panel size
Thickness：10-60mm Width：30-1200mm Length： 200- 2800mm
| Max speed（X/U/Y/Z）
135/135/75/30m/min
| Spindle power
top：5.5kw，bottom：3.5kw
| Vert.drill
10
| Horiz. drill
X direction：2×2 Y direction：2×2
| Total power
21.07kw
|
| How It Works | |||||||||||||||
|
| Gallery | ||
 |  |  |
 |  |  |
| Key Features | |
Model ND512TS Panel size Thickness 10-60mm
| |
Simple routing meets different process requests and gives batch-size-one product
ion max flexibility.
| |
Software is open port, support most formats in market
| |
Simple routing meets different process requests and
| |
gives batch-size-one production max flexibility
| |
Machine is configured with one top and one bottom
|
| Features, Advantages & Benefits | ||
| Feature | Advantage | Benefit to You |
| Safety | ||
| Auto clamping | Pneumatic clamps secure the panel before any drill movement | You get zero panel movement — accurate holes and safer operation |
| Safety fencing | Full perimeter guarding with interlocked access doors | You get a compliant machine that meets CE/factory safety standards |
| Emergency stop | E-stop on control pendant and machine body | You get instant halt of all motion at any point in the cycle |
| Quality | ||
| Servo-driven axes | Servo motors on all positioning axes ensure repeatable accuracy | You get ±0.1mm positional accuracy across every board |
| Automatic tool measurement | Tool length sensor compensates for drill wear automatically | You get consistent hole depth without manual adjustment |
| 6-sided in one clamping | Panel is fully processed without re-fixturing | You get perfect hole alignment on all six faces every time |
| User Friendly | ||
| CAD/CAM import | Import drilling files directly from design software | You save programming time — no manual coordinate entry |
| Touchscreen pendant | Large-screen control pendant with job library | You get intuitive operation — new operators productive fast |
| Auto-load conveyor option | Optional infeed and outfeed conveyors for hands-free feeding | You save operator fatigue and increase throughput |
| Productivity | ||
| Six-sided in one cycle | All six faces drilled without re-clamping | You cut cycle time by up to 60% vs conventional drilling |
| Fast axis travel | High-speed servo axes minimise air-cutting time | You get shorter cycle times and higher board counts per shift |
| Batch processing | Load multiple identical panels and run unattended | You free up operator time for other tasks during drilling |
| ROI | ||
| Reduced labour | One operator runs the machine; no skilled setter required | You save on labour cost while maintaining production volume |
| Zero re-work | Accurate drilling first time eliminates fitting failures | You save on assembly rework — panels fit hardware immediately |
| Long drill life | Carbide drills with auto depth control last longer | You reduce tooling cost with consistent, non-overdriven drills |
| Trust | ||
| Authorised Distributor | Official Nanxing distributor in India | You get genuine machines, original parts, and manufacturer-backed support |
| caple.in | Since 1974 | 50+ years of woodworking machinery expertise across India | You get a trusted partner with deep industry knowledge |
| Warranty | 12 months or 2000 hours whichever is earlier | You get protected investment — lower risk from day one |
| Trained Service Team | Factory-trained engineers; genuine spare parts stocked in India | You get fast turnaround on service calls — minimal production loss |
| Pan-India Support | Multiple demo centres for installation and ongoing support | You save on downtime with rapid-response service desk |
| Technical Specifications | |
| Model | ND512TS |
| Panel size | Thickness：10-60mm Width：30-1200mm Length： 200- 2800mm |
| Max speed（X/U/Y/Z） | 135/135/75/30m/min |
| Spindle power | top：5.5kw，bottom：3.5kw |
| Vert.drill | 10 |
| Horiz. drill | X direction：2×2 Y direction：2×2 |
| Total power | 21.07kw |
| Control system | SYNTECH |
| Machine size | 3962×3010×2320mm |
| Frequently Asked Questions |
What does 'six-sided drilling' mean?
Six-sided (or 6-sided) drilling means the machine can drill holes on all six faces of a panel — top, bottom, left, right, front, and back — in a single clamping cycle. This eliminates manual re-positioning and ensures perfect hole alignment for assembly.
|
What software does the machine use?
The machine imports standard drilling files (typically .dn2 or compatible CAD/CAM formats) from popular design software including Cabinet Vision, imos, and Polyboard. No manual coordinate entry is required.
|
What is the working area?
The working area is please enquire. This determines the maximum panel size the machine can process in a single cycle.
|
Can the machine handle solid wood and MDF?
Yes. CNC 6-sided drilling machines are designed to process all sheet materials including MDF, chipboard, plywood, solid wood panels, and composite boards, provided the panel fits within the working envelope.
|
How accurate is the drilling position?
Servo-driven axes deliver positional accuracy of ±0.1mm or better. This ensures hardware — hinges, drawer runners, shelf supports — fit without adjustment at assembly.
|
What is the cycle time per panel?
Cycle time varies by the number of holes and panel size, but a typical cabinet side panel with 20–30 holes takes 45–90 seconds. Auto-load and unload systems further increase effective throughput.
|
What warranty is included?
All Nanxing machines supplied by caple.in include a warranty of 12 months or 2000 hours whichever is earlier, with factory-trained service engineers and spare parts stocked in India.
|
Is training provided after installation?
Yes. caple.in provides operator training and programming training during commissioning. Ongoing support is available via our service team across India.
|
What air pressure/CFM does the ND512TS require? The ND512TS requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably. |
What is the total power consumption of the ND512TS? The ND512TS draws approximately 19 HP (13.87 kW) total power. Use a 25-amp 3-phase 415V supply with separate earthing and a 20 KVA stabiliser for safe operation. |
What dust extraction capacity is needed for the ND512TS? The ND512TS needs approximately 4,782 CFM (8,125 CMH) dust extraction through Ø200mm × 1 + Ø125mm × 1. We recommend the Dust Collector AXC | 10HP | 8125 CMH | Duct | ND512TS. |
What are the overall dimensions of the ND512TS? The CNC 6-Sided drilling machine ND512TS measures 3,962 × 2,222 × 2,271 mm (L × W × H) — equivalent to 12'12" × 7'3" × 7'5". Machine footprint is 8.8 m² (95 sq ft). Plan at least 391 sq ft including 1.5 m operator access zones on all sides. |
What is the weight of the ND512TS? The ND512TS weighs Not specified — contact sales. Ensure floor load capacity and proper foundation before installation. |
What is under the customer’s scope? Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope. |
