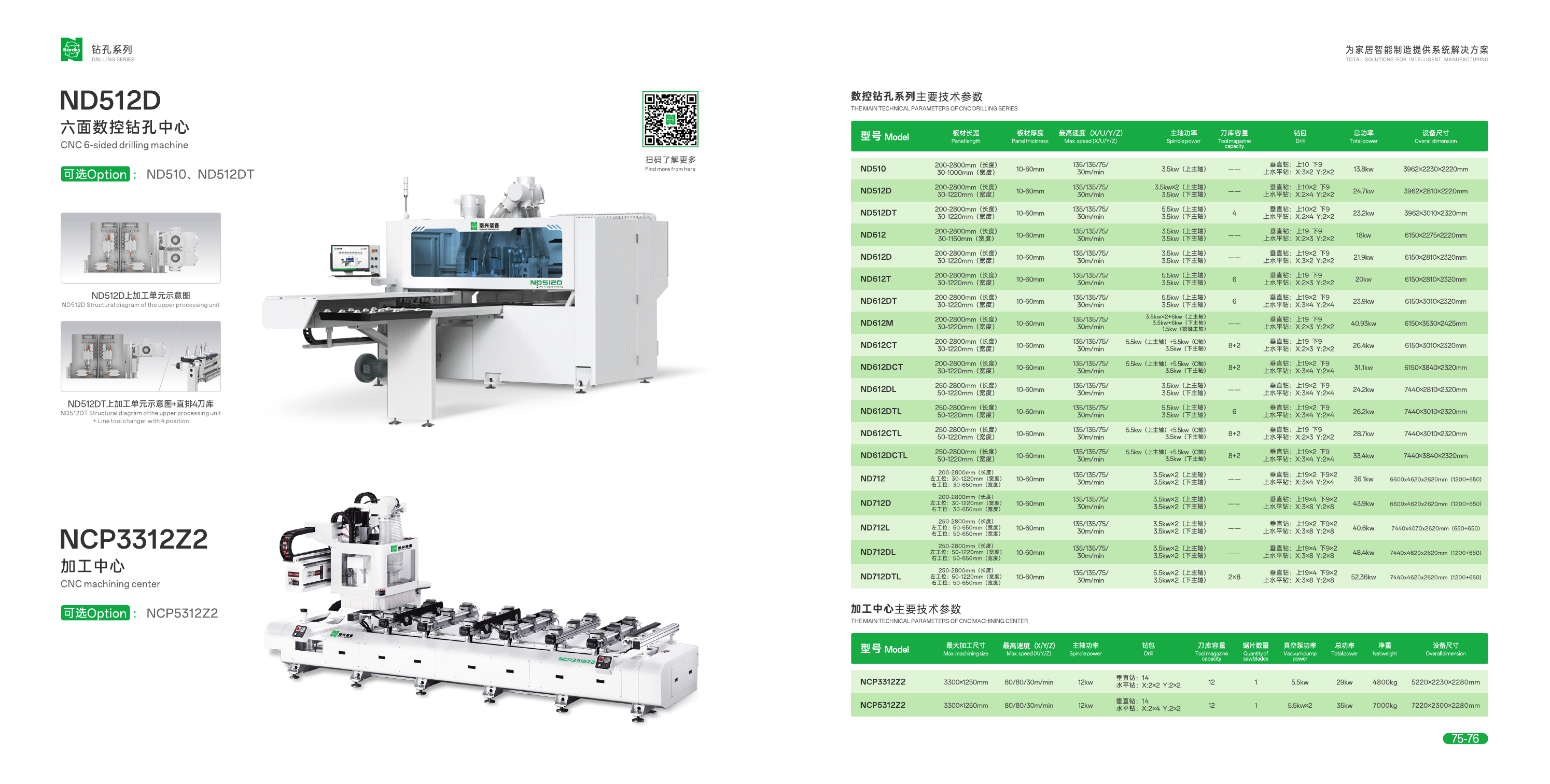

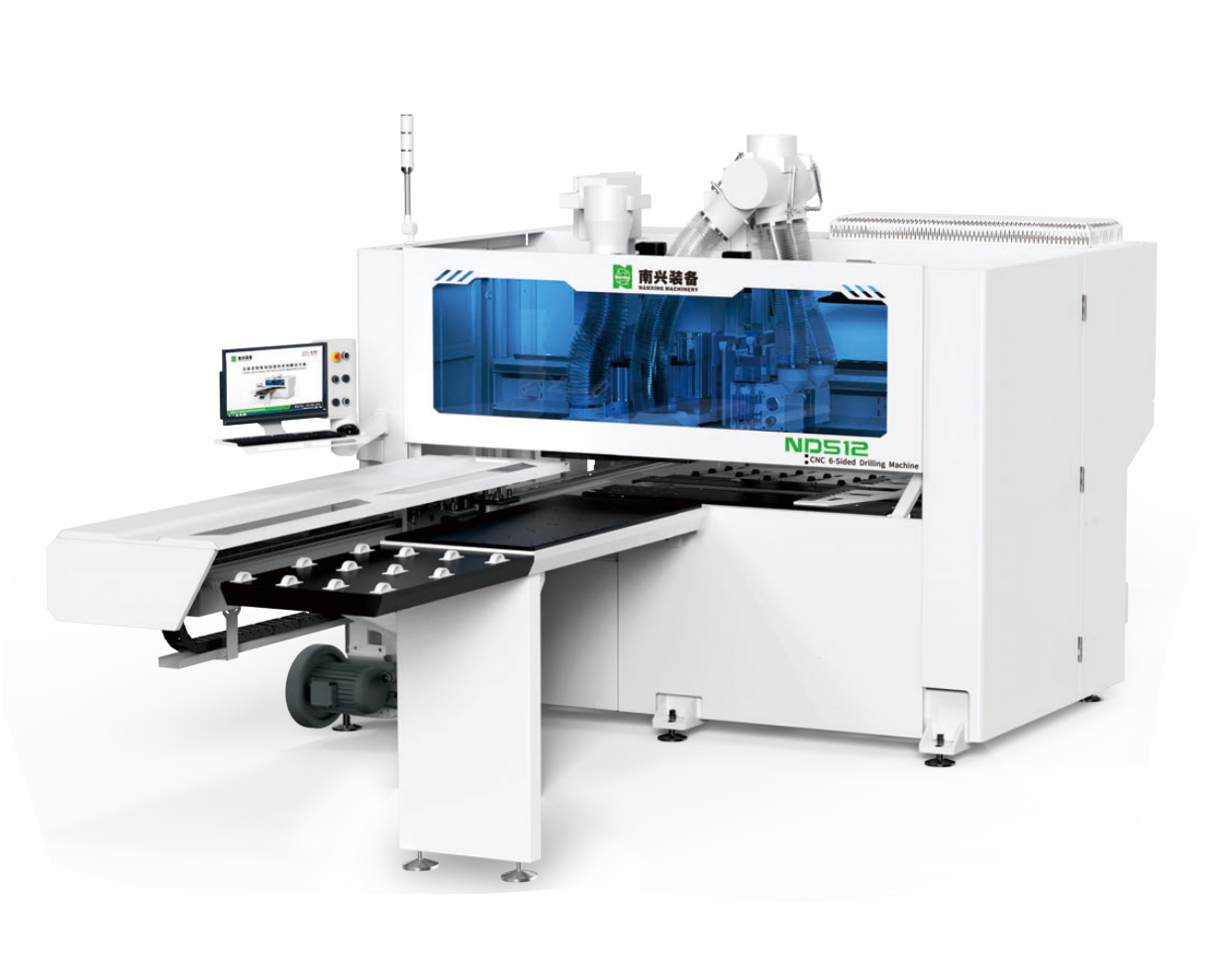

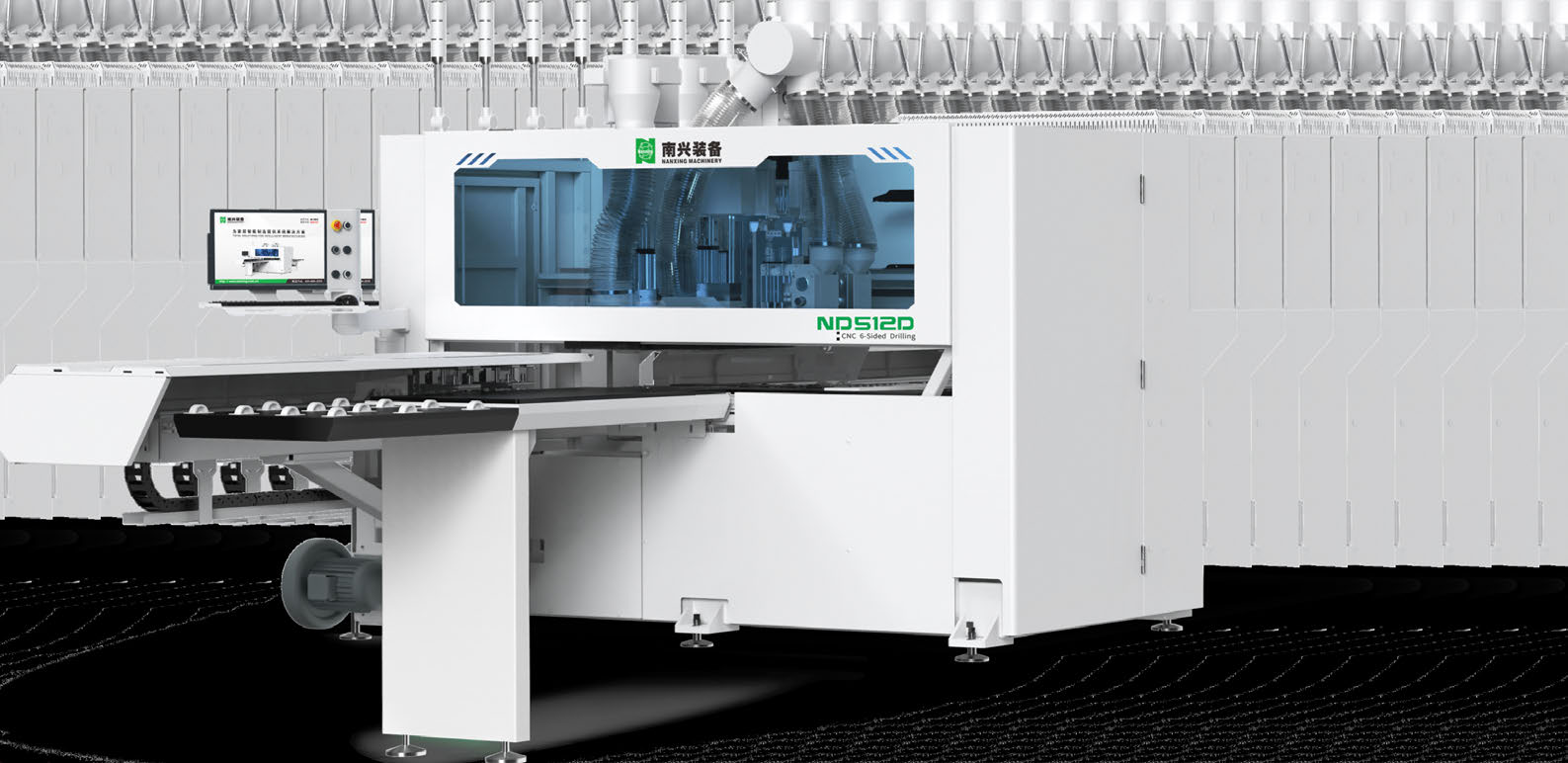

FEATURES
- Long clamp beam & fast clamps 3.3 mtr
- Infeed air float table : 500*1613 mm
- Feed out table : 500*1613 mm
- Accurate movement of each axis X,Y,U Transported by inclined rack and pinion
- Accurate movement of Z Transported by Ball screw rod
- Servo motor for each axis
- Max travelling speed: X/U/Y/Z/V:135/135/75/30/30m/min
- Linear guiding rail and bearings can be greased automatically
Board length detector
- Handwheel (Wired/Wireless(depend on the model) remote control for easy test run)
- Air jet for gripper
- WP length & thickness detection
- Standard Toolbox for testing
- #90901.00690 saw blade for lamello
- one-head aggregate for horizontal routing
Top Spindle 5.5kw
- Vertical drills: 10;
- Horizontal drills: 8 (2+2 in X direction; 2+2 in Y direction.)
Independent grooving saw
- Motor:1.7KW*1
- Saw blade size Dia.:100*22*4
ATC main spindle
- 4 slot tool changer
Bottom Spindle 3.5KW
- Drilling block : 9 vertical drills
Min. processing size
- Drilling block design and software can do drilling for narrow parts
- Panel length: 200-3000mm
- Panel width 30-1200mm
Stack processing
- Support stacking processing if hole position is mirror
Hand controller
- Start button & pedal switch
- E-stop & Pause bar
Industrial computer
- Windows 10 operating system.
- All-in-one industrial computer
SYNTEC CNC control system
- Excellent electrical components
- User-friendly operation Control interface
- Manual programming interface
- Tool management
- Simulation function
- File format support MPR, BXF, BAN, BPP, PDX, XML, XXL
- Air conditioner on control cabinet
- Safety light barrier & safety fence
TECHNICAL DATA:
- Total power : 21.07 KW
- Machine size : 3962*2810*2320 mm
- Power supply : 415V/50Hz
- Air supply : 0.6-0.7MPa
- Control system Brand : SYNTEC
- Panel size Length : 200-2800mm
- Panel size Width : 30-1220mm
- Panel size Thickness : 10-60mm
- Max. traveling speed （X /U axis : 135m/min
- Max. traveling speed Y axis : 75m/min
- Max. traveling speed Z axis : 30m/min
- Working table Material : HPL
- Working table size : 1478 x 275 mm
- Working table height : 955mm
- Drilling block qty : Top 1; Bottom 1
- Vertical drills qty Top : 10
- Horizontal drills qty Top : X: 2*2 + Y: 2*2
- Vert. drills qty Bottom : 9
- Max drill diameter : 35mm
- Drill spacing : 32mm
- Rotation speed : 5000rpm
- Shank diameter : 10mm
- Drill length : 70mm
- Main spindle Top : 1
- Main spindle power : 5.5kw ER32 ATC4 18000rpm
- Bottom spindle power : 1.3kw ER25 1800rpm
- Saw Blade Power : 1.7kw
- Saw Blade Size : Dia.100 x 22
- Processing Range : 50-1200mm
- Dust collector qty : 3
- Dust collector diameter : Top 200mm×2
- Dust collector diameter : Bottom 125mm×1
- Dust collector speed : 28m/min
- Dust collection speed : 28m/min = or greater
