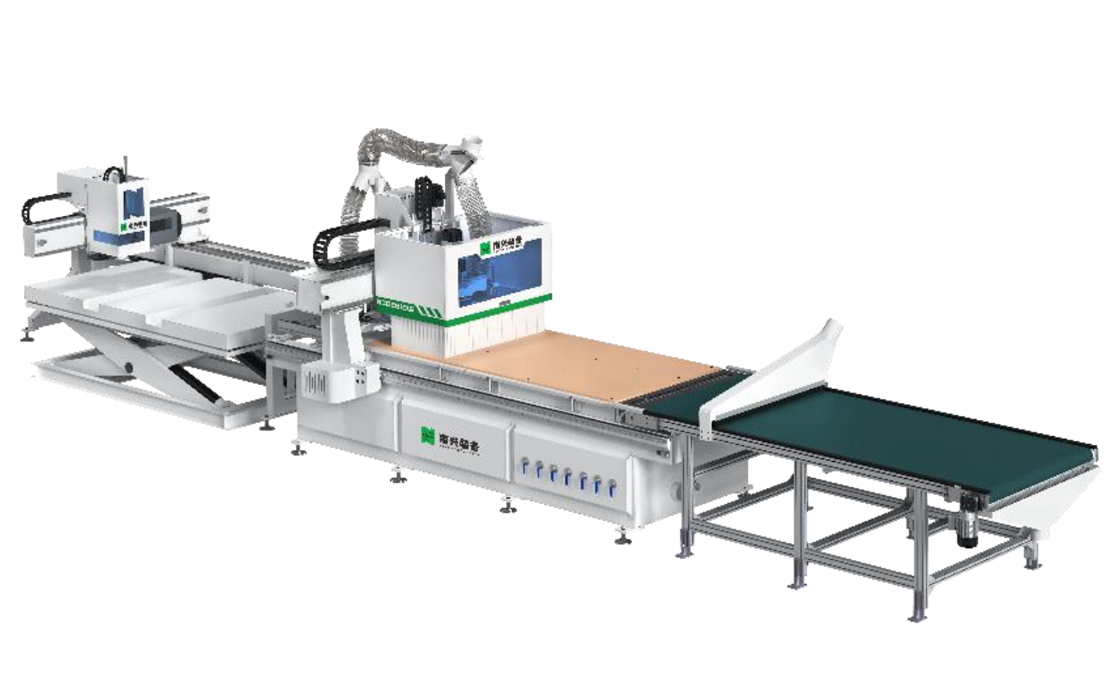

CNC Nesting Machine with AL&UL NCG2812LE with 12kw Spindle with Drill Head 415V
₹3,100,000.00 ₹3,875,000.00
The CNC Nesting Machine with AL&UL NCG2812LE with 12kw Spindle with Drill Head 415V is a professional-grade CNC nesting machine built for efficient full-sheet CNC routing in furniture manufacturing. As an advanced CNC router machine, it supports complete panel processing — drilling, routing, and profiling — in a single setup. This nesting machine for furniture maximises material utilisation through intelligent nesting software, making it the preferred panel processing machine for modular kitchen, wardrobe, and office furniture factories across India.
| Features → Advantages → Benefits | ||
|---|---|---|
| Feature / Fact | Advantage (So what?) | Benefit (You get / You save) |
| ▲ SAFETY | ||
| Dedicated India service team — installation to ongoing support | Local engineers with Nanxing factory training | Machine commissioned and running within 48 hours of delivery |
| Full spare parts inventory maintained in India | Critical parts available for next-day delivery | Mean time to repair under 24 hours for any breakdown |
| ★ QUALITY | ||
| 12 kW HSD or Hitachi spindle rated to 24,000 RPM | Delivers clean, burr-free cuts in MDF, plywood, and melamine | Cabinet-grade surface finish direct from machine — no sanding |
| Vacuum zone table with independent section control | Each zone activates only under the panel being processed | Maximum hold-down force; eliminates panel shift during routing |
| Automatic tool length measurement sensor | Compensates for tool wear and new tool length automatically | Consistent cut depth and profile accuracy across full shift |
| Drill block with 9 or 21 spindles for system boring | Combines full-sheet routing with 32 mm boring in one setup | Complete panel ready for assembly direct from CNC nesting machine |
| ±0.05 mm positioning accuracy on X and Y axes | Servo drives with linear encoder feedback on all axes | Furniture parts fit perfectly first time; zero assembly rework |
| ⚡ PRODUCTIVITY | ||
| Full 2800 × 2100 mm or 3000 × 2100 mm work table | Processes a complete 8 × 4 ft panel in a single setup | Maximum board utilisation; nesting software optimises every sheet |
| Integrated nesting software with automatic part layout | Algorithm minimises waste by optimising part positions on sheet | Material waste reduced to under 8% on typical cabinet jobs |
| Automatic in-loading and out-loading conveyor option | Panel loading and unloading without manual handling | One operator manages cutting, drilling, and stacking |
| Rapid tool change via automatic tool changer (ATC) | Swaps between router bits and drill tools in under 8 seconds | No production pause for tool changes throughout shift |
| V10 or V6 drill head processes dowel holes in same pass | Eliminates secondary boring machine in production line | Full part — cut, profiled, and bored — off one machine |
| ● RELIABILITY | ||
| Servo motor with absolute encoder on every axis | No re-homing required after power interruption | Production resumes immediately after any power event |
| Automatic lubrication on all guide rails and drives | Consistent oil delivery to all moving components | Maintenance interval 1,500+ hours; minimal planned downtime |
| Replaces panel saw + boring machine + router in one cell | Single CNC nesting machine handles cut, bore, and profile | Equipment investment and floor space both reduced |
| Nesting software reduces board waste to under 8% | Every mm² of expensive MDF or plywood sheet is utilised | Material saving of ₹15,000–₹40,000 per month in typical factory |
| 415 V / 50 Hz three-phase — standard Indian supply | No additional electrical infrastructure cost | Fast installation and commissioning within 2 days |
| Labour requirement: 1 operator per machine vs. 4 on manual line | CNC automation eliminates most manual handling steps | Annual labour saving of ₹10–18 lakh per production shift |
| Custom furniture capability with zero retooling cost | Any new design loaded as a CNC program — no jigs needed | Unlocks premium custom order revenue at standard production cost |
| ✓ TRUST | ||
| Nanxing CNC nesting machines installed in 1,000+ furniture factories | Proven high-volume performance across global markets | Reference sites available across India for factory visits |
Frequently Asked Questions
What is a CNC nesting router machine and what does it do?
A CNC nesting router is a computer-controlled machine that cuts, drills, mills, and grooves MDF, plywood, and particle board panels automatically. It uses software to "nest" multiple parts onto a single sheet, minimising waste. The Nanxing NCG2812LE processes panels up to 2800x1220mm and is used for modular kitchen cabinets, wardrobes, office furniture, and panel furniture manufacturing.
What materials can the Nanxing CNC router cut?
The Nanxing CNC nesting router cuts MDF, particle board, plywood, melamine-faced board, solid wood, acrylic, aluminium composite panels (ACP), and PVC foam board. It is not suitable for stone, glass, or metal thicker than 3mm.
What software is compatible with the Nanxing CNC router?
The Nanxing CNC router runs on the SYNTEC control system and is compatible with MPR, DXF, TCN, and standard NC file formats. It integrates with furniture design software including Cabinet Vision, imos, Polyboard, and most Indian ERP and furniture design systems.
How many boards per shift can a Nanxing CNC nesting router process?
A skilled operator can process 80–150 standard cabinet panels (2440x1220mm) per 8-hour shift depending on complexity. With the automatic loading and unloading system (AL+UL), output increases to 200–300 boards per shift (indicative — actual throughput depends on panel size, material, and operator skill) with minimal operator intervention.
What is the price of a Nanxing CNC router machine in India?
Nanxing CNC nesting router prices in India vary by model and specification depending on the model, working area, spindle power, and automation level. Caple Industrial Solutions offers finance options and EMI arrangements. Contact us for a current quote with GST.
Is Caple Industrial Solutions the authorised Nanxing dealer in India?
Yes. Caple Industrial Solutions is the authorised dealer for Nanxing woodworking machinery in India. We supply genuine Nanxing machines with full manufacturer warranty, factory-trained service engineers, and genuine spare parts. We have been supplying Nanxing machines in India since 2005.
Where can I see a Nanxing machine demo in India?
Caple Industrial Solutions has multiple demo centres across India. You can visit to see Nanxing machines running on actual furniture panels before purchase. Contact us at Contact Caple or web@caple.in to arrange a visit.
Installation Requirements
What electrical supply is required for the NCG2812LE?
The NCG2812LE requires 415V, 3-phase, 50Hz power supply. A dedicated isolator and appropriate cable gauge should be installed by a qualified electrician. Refer to the electrical schematic in the installation manual.
What is the total power consumption of the NCG2812LE?
Total installed power is 12 kW. Ensure the electrical circuit is rated for this load with appropriate overcurrent protection.
What floor space is required to install the NCG2812LE?
The machine footprint is 2800 × 2100 mm. Allow an additional 1000mm clearance on all sides for safe operator movement and material handling. Ensure the floor is level and load-bearing to the machine weight. Refer to the installation drawing supplied with the machine.
Does the NCG2812LE require compressed air?
Yes. CNC and boring machines typically require 5–7 kg/cm2 compressed air. Confirm exact requirement from the installation manual.
Does the NCG2812LE require dust extraction?
Yes. All woodworking machines require dust extraction. Caple supplies complete factory dust extraction systems. Contact us to design a centralized extraction system for your factory.
Who installs the NCG2812LE and how long does installation take?
Caple service engineers handle commissioning and operator training upon site readiness confirmation. Installation can proceed only after full payment and a signed pre-installation checklist. Typical commissioning takes 1–3 working days. Buyer bears all travel, lodging, site labour, and material handling costs. Contact Caple Industrial Solutions at Contact Caple or web@caple.in to schedule installation and confirm site requirements.
What are the site preparation requirements before delivery?
Before delivery, ensure: (1) Factory floor is clear and levelled — check machine weight and floor load capacity. (2) Electrical supply point is ready at the machine location. (3) Dust extraction ducting is planned if installing a centralized system. (4) Forklift or crane is available for unloading (machines over 500kg require mechanical unloading). Caple service team will share a site checklist upon order confirmation. Call Contact Caple to request the pre-installation checklist.
